Microscopy > Microscopes > Digital microscopes > Upright microscopes > Kern > OBE > Kern Microscope Digital Microscopy Set, OBE 124T241, HF, digital, 1.25 Abbe condensor, fixed, USB 2.0, 40-400x, Dl, 3W LED, 5 MP, Tablet
Product no.: 83004

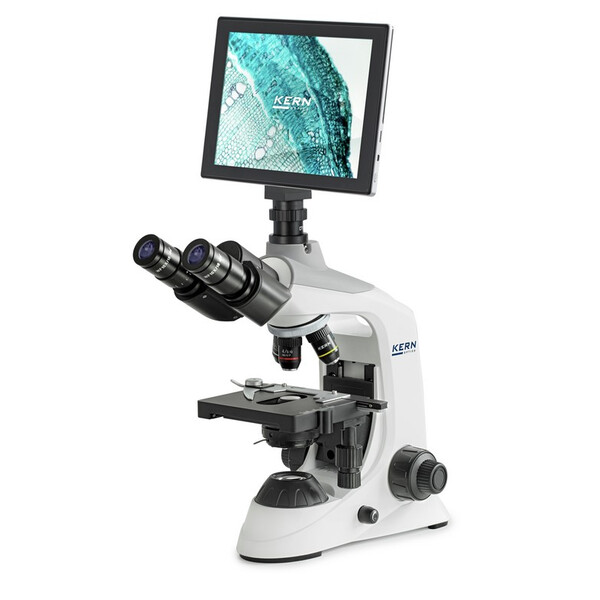

Microscope Digital Microscopy Set, OBE 124T241, HF, digital, 1.25 Abbe condensor, fixed, USB 2.0, 40-400x, Dl, 3W LED, 5 MP, Tablet

$ 2,480.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

OBE Series

The KERN OBE Allround transmitted light microscopes are a complete digital solution for schools, training and laboratories.

  • The laboratory microscopes of the OBE series are also available as a complete digital solution with an adapted C-mount camera for your live examination.
  • The appropriate C-mount adaptor is of course included in the delivery.
  • The adapted C-mount camera is available in different versions and is universally applicable.
  • A dust cover, eyepiece cups and multilingual operating instructions are included in the scope of delivery.

OBE 124

  • The KERN OBE 124 stands out thanks to its exclusive and dynamic design, which is unbeatable in terms of robustness and ergonomics. The smart storage compartment on the back allows you to quickly and conveniently stow away your power cables. Power can also be supplied via an external power bank thanks to USB connection technology.
  • The impressive and continuously dimmable 3W LED ensures brilliant illumination of your sample. Another highlight is the integrated butterfly tube, which is included as standard and gives you the ideal viewing angle. The height-adjustable and therefore focusable 1.25 Abbe condenser with aperture diaphragm is another quality feature of the OBE series and guarantees optimum light focusing. The height of the fully equipped cross table can be adjusted using a coarse and fine drive on both sides. The specimen can be moved and worked on quickly using the ergonomically designed coaxial drive.

ODC 241

  • The integrated 5 MP camera enables live transmission of the image to the Android tablet as well as the creation of images and videos for documentation purposes. Simple measurements such as distance, area and angle measurements as well as a manual counting function are also available.
  • Automatic white balance and automatic contrast compensation can be performed quickly and easily, enabling efficient work.
  • The integrated interfaces provide a wide range of additional functions, such as
    - Data storage on a USB stick or SD card
    - Connection of a USB mouse
    - Transmission of the live image to an external screen via HDMI
    - Transmission of stored data to external receivers via WLAN
  • The scope of delivery includes the tablet camera with pre-installed software and the power supply unit.

Specifications

Optics


Lens type
Achromatic (DIN (160mm))
Objective 1
4x
Objective 2
10x
Objective 3
40x
Colour correction
achromatic
Condensor
Abbe

Capacity


Type of build
Trinocular
Field of view value
18
Transmitted light
3W LED
Incident light
nein

Mechanics


Revolver
4

Camera


sensor
CMOS
Size of chip (″)
1/2,8
Megapixel
5
frame rate (fps)
30 fps
Colour camera
yes
Resolution Photograph (Pixel)
2048x1536
Resolution video (Pixel)
2048x1536

General


Height (mm)
540
Width (mm)
360
Length (mm)
235
Series
OBE

Contrast methods


brightfield
yes
Dark field
optional
Polarization
optional

Field of application


Education
yes
Hobby
yes
Medicine
yes

Area of application


University
yes
Secondary school
yes
Technical training
yes
Naturalist
yes
Parasite analysis
yes
Veterinary medicine
yes

Miscellaneous


supplier product number
OBE 124T241
