Microscopy > Microscopes > Digital microscopes > Upright microscopes > Motic > Panthera L > Motic Microscope Panthera DL, binocular, digital, infinity, plan, achromatic, 40x-1000x, 10x/22mm, Halogen/LED, WI-Fi, 4MP
Product no.: 77019

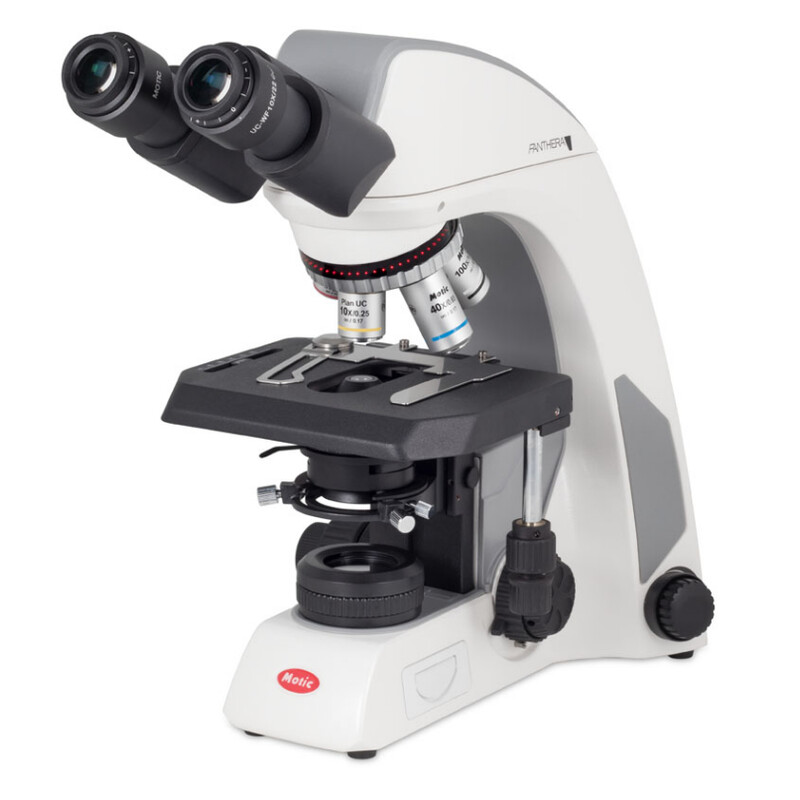

Microscope Panthera DL, binocular, digital, infinity, plan, achromatic, 40x-1000x, 10x/22mm, Halogen/LED, WI-Fi, 4MP

$ 3,690.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Panthera L...

Panthera L at a glance:

  • Integrated digital microscopy. Smart microscope with "ImagingOnDevice"
  • New UC optics for ultra contrast
  • HDMI (Panthera L), Wi-Fi, LAN and USB for external hardware
  • New compact microscope stage without rack and pinion
  • Halogen/LED lamps interchangeable; LEDs with different colour temperatures
  • Motic "LightTracer" system with coded objective turret and digital brightness control

Specification Panthera DL (1100403300061)

  • Optical system: Motic CCIS® colour-corrected infinity optics

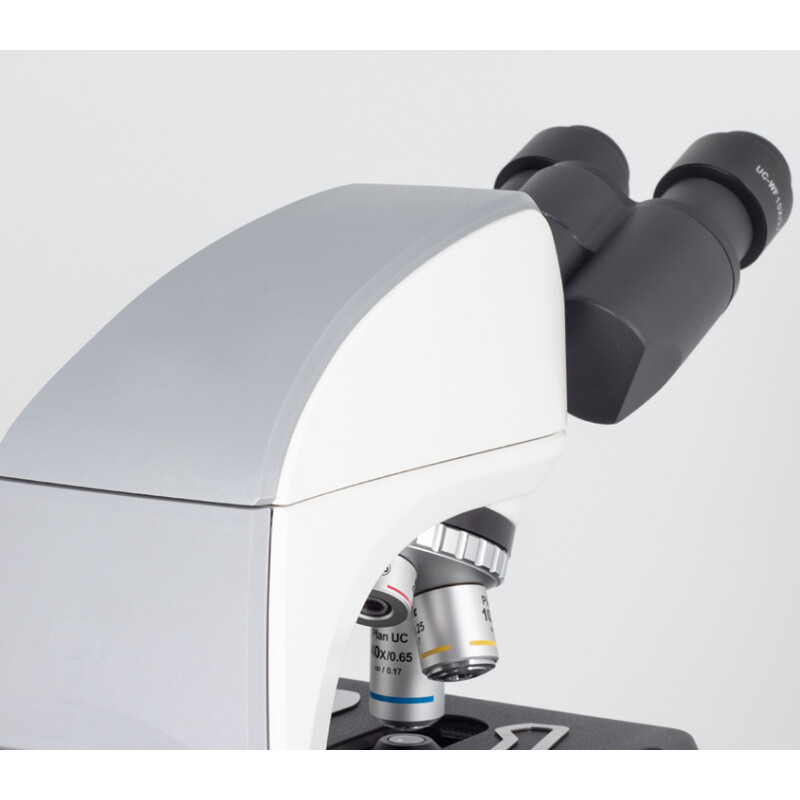

  • Observation tube: Binocular Siedentopf type, 25° viewing angle, tube rotatable 360
  • Sensor type: CMOS
  • Sensor format: 1/3"
  • Number of pixels: 4 MP (2592x1520 pixels)
  • Live display mode via Wi-Fi: 1280x720, 1920x1080 pixels (Full HD)
  • Live display mode via Ethernet: 1280x720, 1920x1080 pixels (Full HD)
  • Data transmission: Wi-Fi (2.4 & 5 GHz), Ethernet
  • Eye relief (mm): 48-75

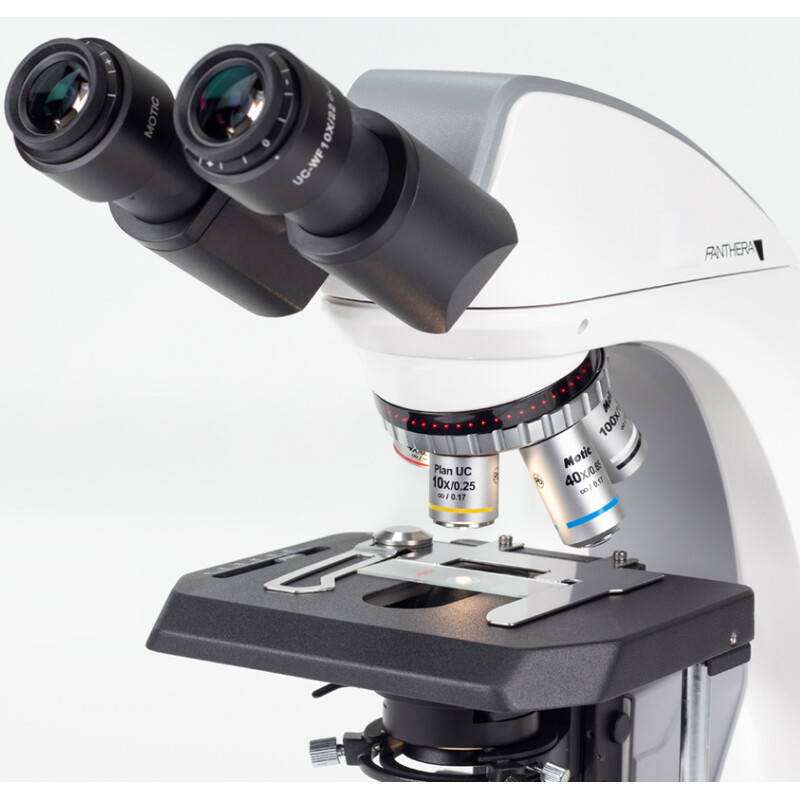

  • Eyepieces: Wide field UC-WF10X/22
  • Diopter adjustment on both eyepieces: +/- 4 dpt
  • Objective turret: 5-fold; rearward facing; coded
  • Lenses: CCIS© UC Plan Achromatic (Pb-free) 4X/0.1 (AA 30.5 mm), 10X/0.25 (AA 17.4 mm), 40X/0.65/S (AA 0.6 mm), 100x/1.25/S oil (AA 0.16 mm)
  • Objective thread: W 4/5" x 1/36" (RMS standard)

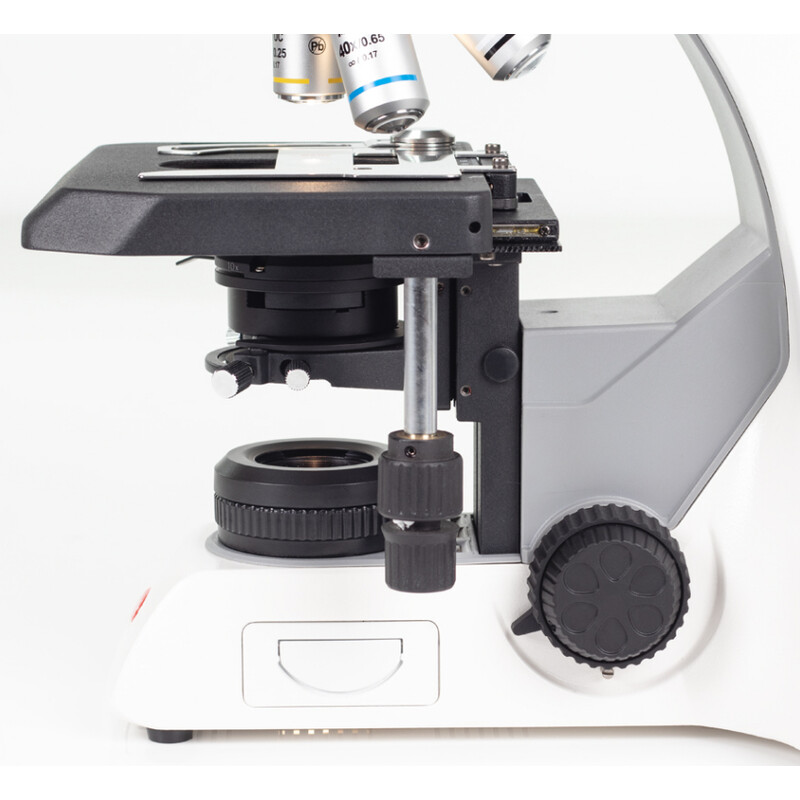

  • Stage: Compact mechanical cross-shaped stage with built-in rack-free, coaxial stage control and specimen holder
  • Table surface (mm): 185x145
  • Travel range (mm): 75x50
  • Upper table stop: Preset at factory; can be adjusted later
  • Condenser: Focusable and centring N.A. 0.90 / 1.25 Abbe condenser, with slot for contrast slider and iris diaphragm
  • Focus: coaxial coarse and fine adjustment
  • Smallest step size of fine drive (µm): 2
  • Stage travel in Z (mm): 25
  • Filter holder: On light outlet on tripod pad; with fixing ring
  • Lighting: 6V/30W quartz halogen lamps and 3W LED module according to Köhler
  • Interchangeable lighting: halogen/LED and interchangeable LED colour temperature
  • Illumination function: Motic LightTracer: memory function, sleep mode (automatic switch-off), LED light intensity indicator on the objective turret
  • Software: MotiConnect app for iOS and Android

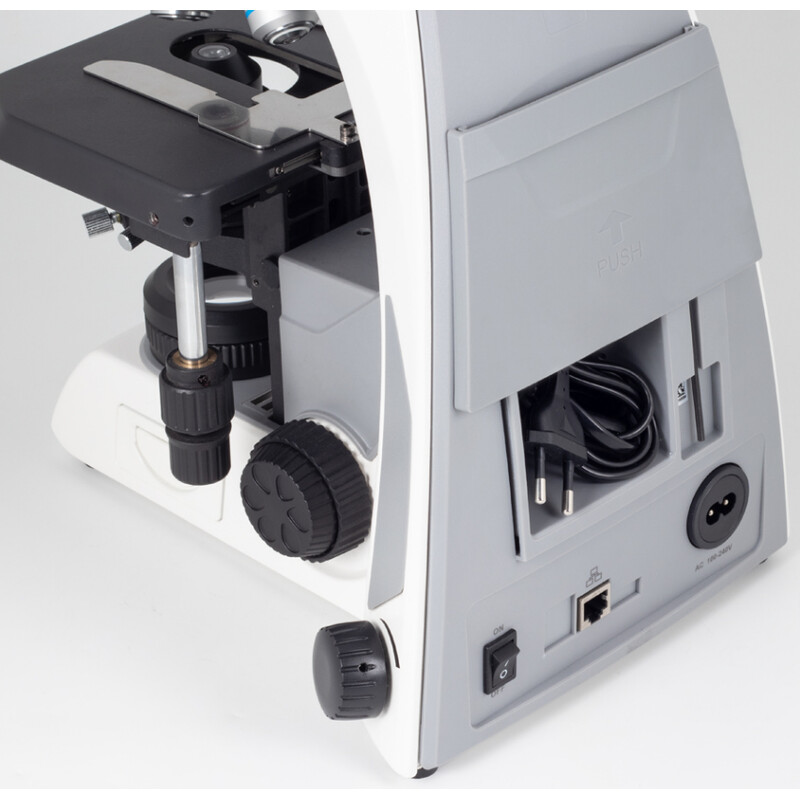

  • Transformer: internal
  • Mains voltage: 110-240V (CE)
  • Dimensions LxWxH (mm): 282 x 210 x 394
  • Weight kg: 8.8
  • Brightfield: Yes
  • Phase contrast: optional with slider and rotating condenser
  • POL contrast: optional with add-on
  • Simple dark field: optional with slider and rotating condenser
  • Fluorescence: No

Scope of delivery: Dust cover, power cord, Allen key, immersion oil (5 ml), blue filter, halogen lamps, LED module, calibration slides.

Specifications

Optics


Magnification
40 - 1000
Eyepiece
10/22 (UC-WF 10x/22mm)
Lens type
Plan, achromatic (CCIS)
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Lamp type
Halogen (Interchangeable halogen and LED lighting)
Optical system
infinity
Objective 1
4x/0.10 w.d. 30.5 mm
Objective 2
10x/0.25 w.d.17.4 mm
Objective 3
40x/6.65/S w.d. 0.6 mm
Objective 4
100x/1.25/S-Oil w.d. 0.16mm
Field curvature
Plan
Colour correction
achromatic
Immersion lens
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
infinity corrected
yes

Capacity


Brightness control
yes
brightfield
yes

Mechanics


Type of build
binocular
Focusing
Coarse and fine movement
Specimen stage
Cross table (185 x 145 mm)
Revolver
5
Pupillary distance (mm)
48-75

Special features


Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes (10x/22)

Camera


Megapixel
4 MP
sensor
CMOS

General


Colour
grey/black
Weight (g)
8800
Length (mm)
282
Height (mm)
394
Width (mm)
210
Series
Panthera L

Field of application


Medicine
yes
Hobby
yes
Industry
yes
Education
yes

Area of application


Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
University
yes
Materials Science
yes
Internal medicine
yes
Technical training
yes
High School
yes
Urology
yes

Miscellaneous


supplier product number
1100403300061

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
