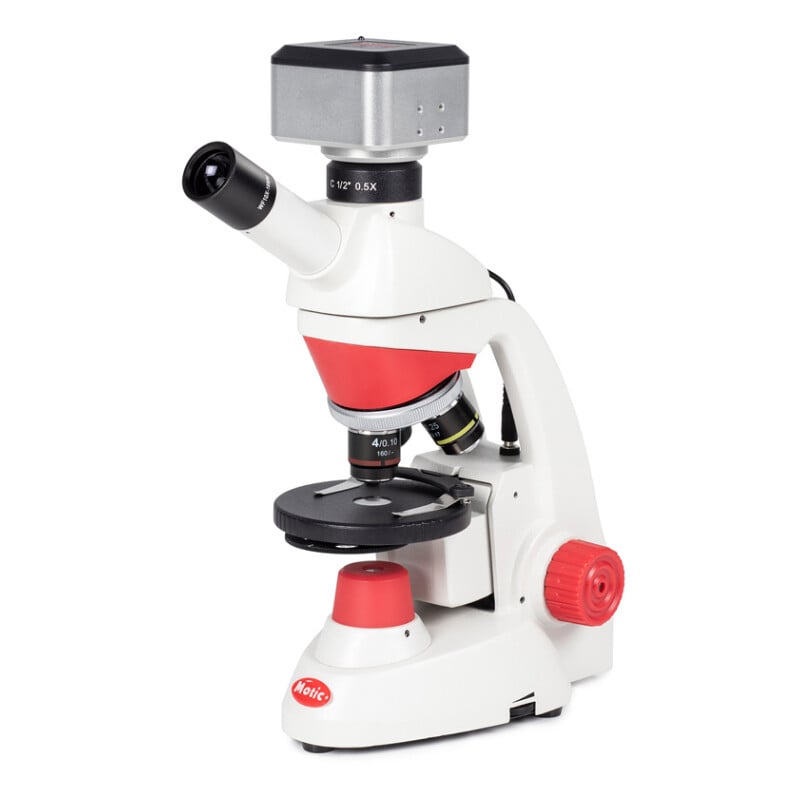

RED50X Plus

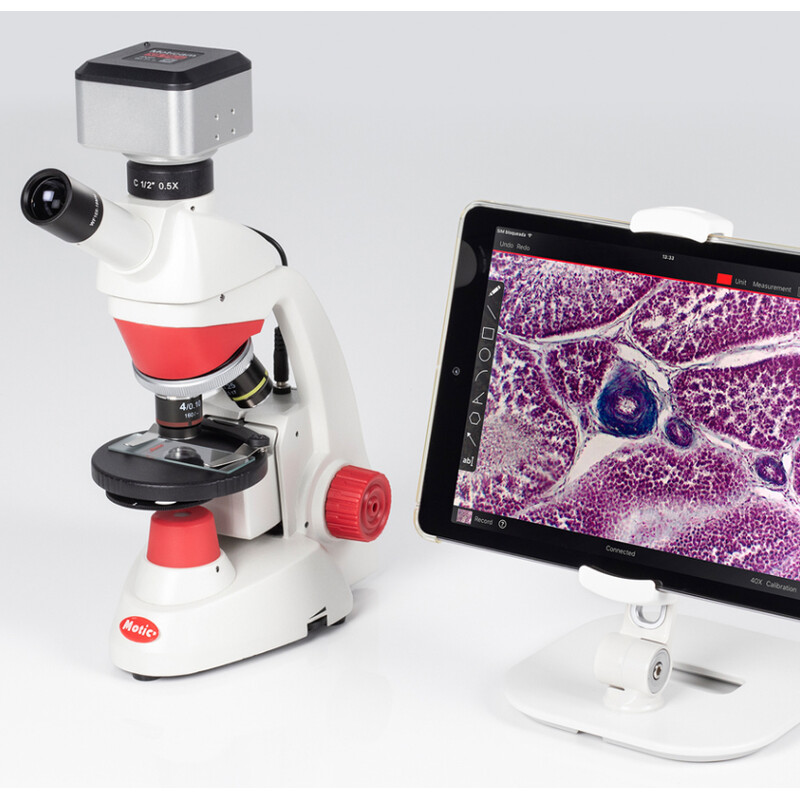

A digital learning microscope for beginners. The Wi-Fi camera with 4 MP resolution enables fast image transfer to tablets and smartphones. A carrying handle for transport, a small footprint for easy storage and recessed screws to protect against accidental adjustment of the eyepieces and tube make the RED50X Plus the ideal companion in schools.
Specification RED50X PLUS (1100402800081)
Optical concept: Final optics, 160 mm
Observation tube: Monocular tube with externally used photo tube
Viewing angle: 30º viewing angle, tube rotatable 360º
Eyepieces: Wide field WF10X/18mm
Objective turret: 3-fold, rearward facing
Lens quality: Achromatic, DIN
Objectives/magnification range: 4X/0.10, 10X/0.25, 40X/0.65/S, lockable
Objective thread: W 4/5"x1/36" (RMS)
Stand type: upright

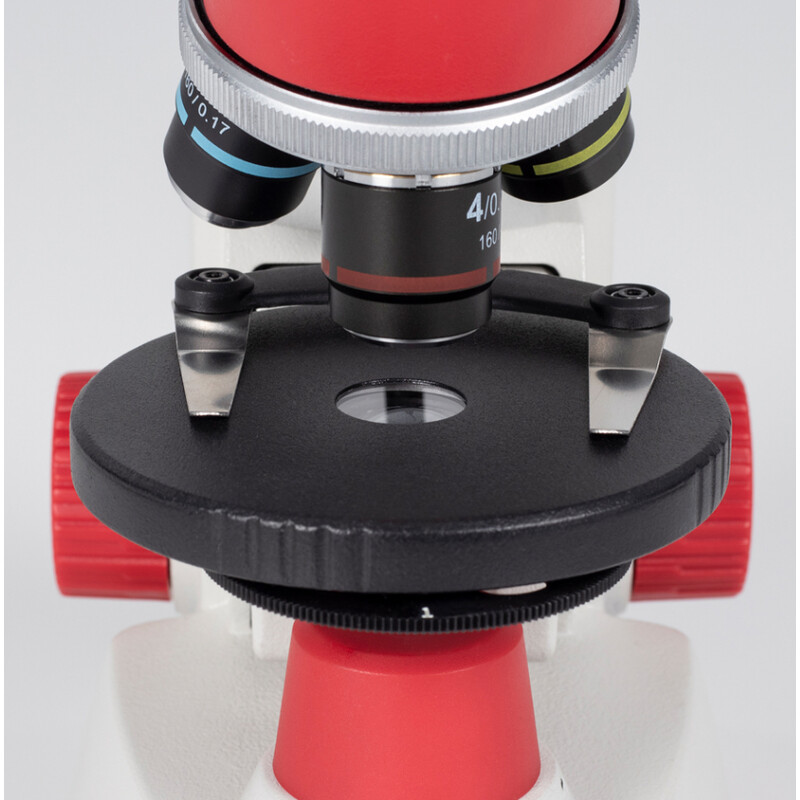

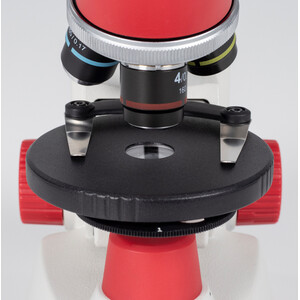

Table: Sliding table with "one-touch" specimen clamps
Table size: Ø105 mm
Condenser: Integrated condenser N.A. 0.65
Iris diaphragm: Rotary disc with fixed lens inserts
Focus: Coarse focus
Travel range in Z: 8 mm
Upper table stop: Preset at factory, adjustable
Filter: Integrated diffuser

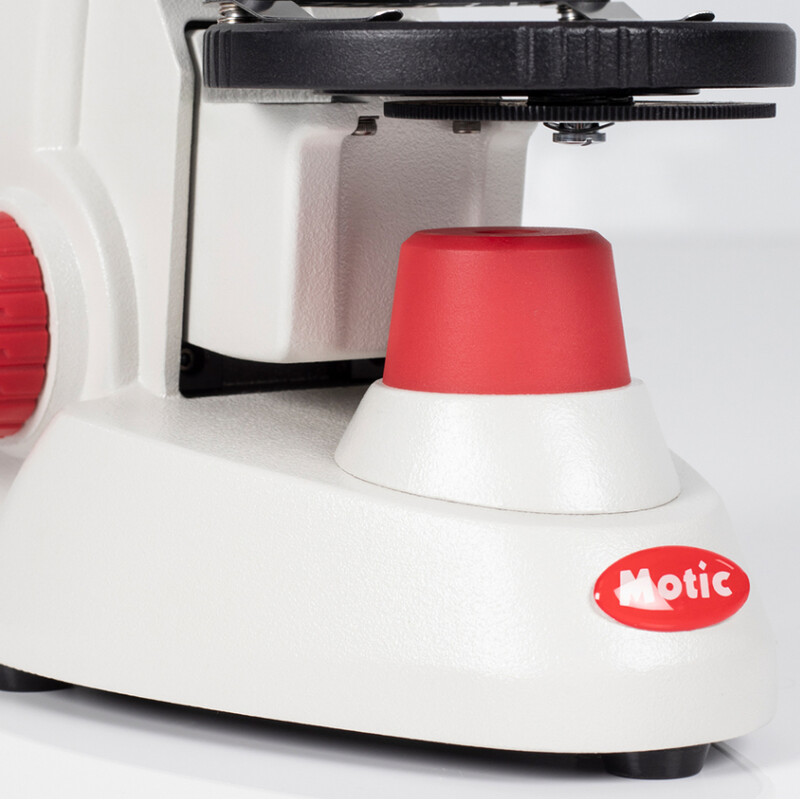

Transmitted light: LED 3.5V/70mW, adjustable
Transformer: External
Mains voltage: 110-240V (CE)
Scope of delivery: Dust cover, calibration scale, C-mount adaptor 0.5X
Dimensions LxWxH: 175x153x334mm
Weight: net 2.75 kg
camera
Sensor type: CMOS
Sensor format: 1/3"
Resolution: Still image 4MP (2560x1440 pixels)
Live image via WI-FI: 1280x720, 1920x1080 pixels (Full HD)
Live image via Ethernet: 1280x720, 1920x1080 pixels (Full HD)
Data transmission: Wi-Fi (2.4 & 5 GHz), Ethernet
Software: Motic Images Plus 3.1 for Windows, OSX and Linux, MotiConnect app for iOS and Android
