Microscopy > Microscopes > Digital microscopes > Upright microscopes > Optika > B-60 > Optika Microscope B-61V, Screen, 7 inch, DIN, achromatic, 40-400x, LED, 1W
Product no.: 75683

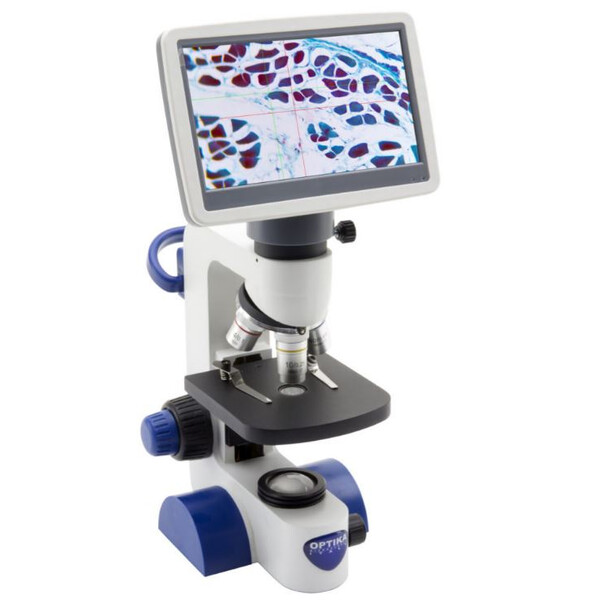

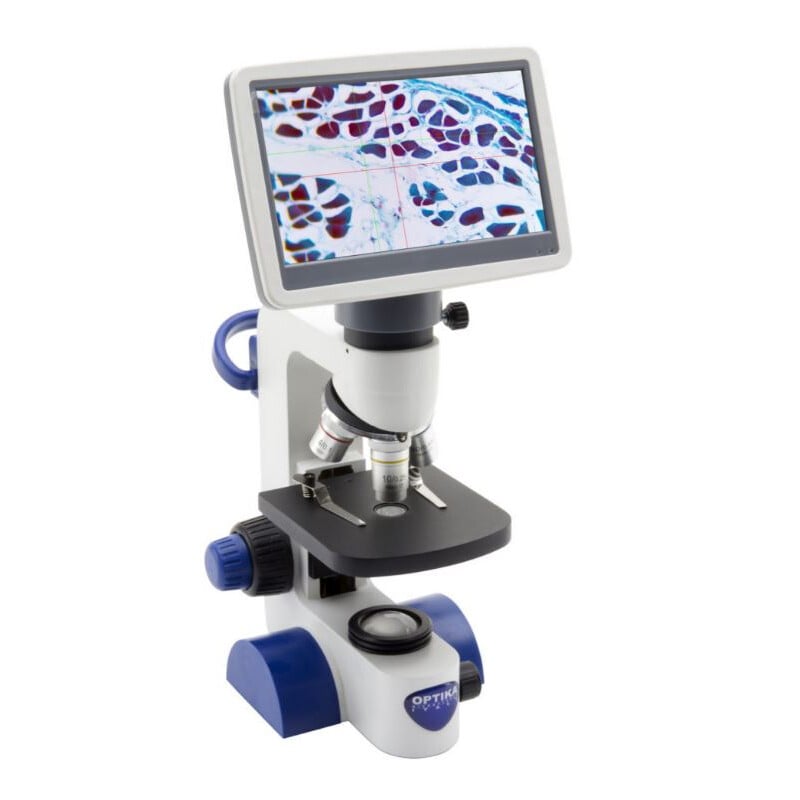

Microscope B-61V, Screen, 7 inch, DIN, achromatic, 40-400x, LED, 1W

RRP: $ 610.00 Our price:
$ 550.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
Product questions?
advice for Microscopy

Product description

More about the series B-60...

Highlights:

  • Specimen stage: StagErase™ eraseable fixed stage, 120×110 mm, with sample clips.
  • LCD screen: High definition 7” LCD.
  • Camera: 1920×1080 pixels, 30fps (video). Up to 1844×1080 pixels (photo).

B-61V

Observation mode: Brightfield

Digital head:

LCD screen: High definition 7” LCD.

Camera: 1920×1080 pixels, 30fps (video). Up to 1844×1080 pixels (photo).

Storing capacity: On Micro Sd card

Video recording: Yes

Measuring function: Yes, simple line measurement

Optical head with eyepiece included

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:

– Achromatic 4x/0.10, with anti-fungus treatment

– Achromatic 10x/0.25, with anti-fungus treatment

– Achromatic 40x/0.65, with anti-fungus treatment

Specimen stage: StagErase™ eraseable fixed stage, 120×110 mm, with sample clips.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: N.A. 0.65 with iris diaphragm.

Illumination: 1 W LED, with brightness control, rechargeable batteries.

Color temperature: 6,300 K.

Specifications

Optics

Magnification
400x
Field curvature
without
Eyepiece
10x/18
Number of objectives
3
Objective 1
4x/0.10
Objective 2
10x/0.25
Objective 3
40x/0.65
Lighting
Transmitted light
Condensor
N.A. 0.65 focusable (Iris diaphragm)
Lamp type
LED (1 W)
Optical system
DIN (160mm)

Capacity

Field of view value
18
brightfield
yes

Mechanics

Type of build
Digital
Specimen stage
Specimen stage (120x110)
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Revolver
4

Camera

Resolution Photograph (Pixel)
1920x1080
frame rate (fps)
30
Size of chip (″)
1/2.8
Pixel size
2.9x2.9
Megapixel
2
sensor
CMOS
Software
S-Viewer
LCD screen
7
Image transmission
USB 2.0

General

Series
B-60

Field of application

Education
yes
Hobby
yes

Miscellaneous

supplier product number
B-69
show more...

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/

Recommended accessories

Microscopy > Microscopy accessories (19)

Optika M-001 5X eyepiece

$ 34.90*
+ Show more accessories in this category: 18
Microscopy > Microscopy supplies (9)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
+ Show more accessories in this category: 8
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 1.90*
+ Show more accessories in this category: 3
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 6.90*
+ Show more accessories in this category: 1

*All prices include VAT plus shipping costs.

show more...
Optika Microscope B-61V, Screen, 7 inch, DIN, achromatic, 40-400x, LED, 1W

Customer reviews

There are no customer reviews for this product yet.

Compose your own review

Do you have specific questions about your order or products? Please contact our customer service!

Add your review now

Customers who bought this product also bought...

Levenhuk Microscope MED D10T 40x-1000x 5MP LCD Digital Trino
$ 1,730.00
Levenhuk Microscope MED D10T 40x-1000x 5MP LCD Digital Trino
 Bresser MikrOcular Full HD eyepiece camera
$ 81.00
Bresser MikrOcular Full HD eyepiece camera

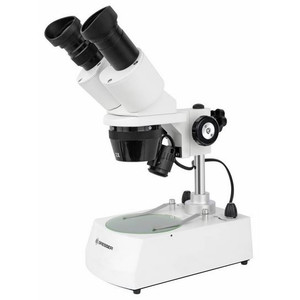

 Bresser Stereo microscope Erudit ICD , bino, 20x, 40x
