Product no.: 75207

Camera 8.3MP

$ 690.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

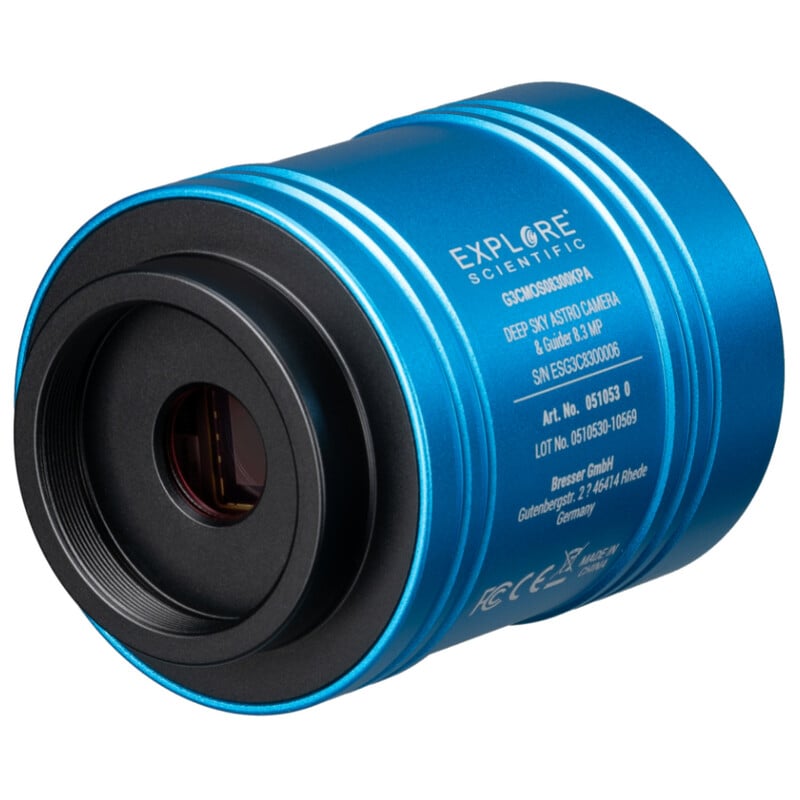

  • Light-sensitive USB 3.0 4K colour camera
  • Sony Exmor IMX485 CMOS sensor
  • Ideal for the Moon, planets and guiding

Product description

Enter the world of astrophotography now – with the new EXPLORE SCIENTIFIC 4K Planet & Deep Sky Astro Camera plus ST-4 autoguider function!

This is truly new: equipped with the new highly sensitive SONY IMX485 Exmor CMOS colour sensor, this astronomy camera delivers amazing image results even with simple telescope equipment thanks to extremely short exposure times. This ultra-modern camera can also be used as an autoguider. An allround camera that not only delivers super-sharp, high-resolution planetary images, but is also particularly well suited for capturing faint deep-sky objects such as galaxies, nebulae and star clusters. The high 4K resolution of 3840x2160 pixels guarantees the best possible image results.

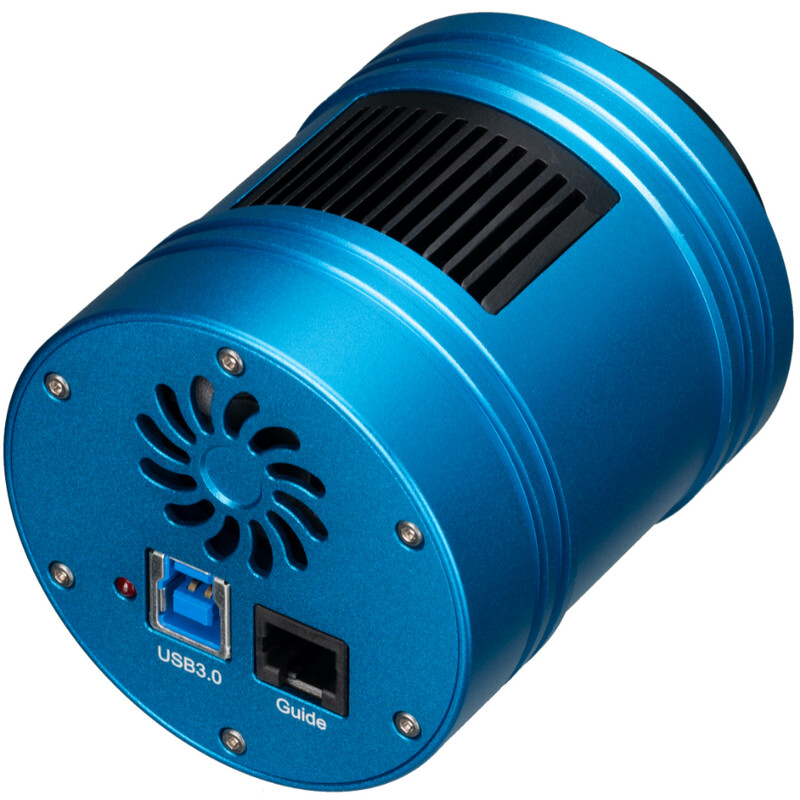

Sensor: The secret of the high light sensitivity lies in the new back-illuminated Exmor CMOS sensor from Sony. This increases the quantum efficiency to up to 77% at 533 nm, which means extremely high light output and therefore particularly bright and high-contrast photos. In addition, the particularly low noise level of this new chip generation from Sony ensures exceptionally high brilliance and no active cooling is required. Nevertheless, this astro camera has a sophisticated internal structure made of aluminium for heat dissipation and a fan that can be activated via software. The high native pixel resolution of 3840x2160, in combination with suitable telescopes, allows for beautiful overview shots of the moon as well as detailed planetary images.

Software: The Explore Capture software included in the scope is not only a great way to capture images and videos, but also has a bunch of handy extra features for post-processing and setting up the guide camera.

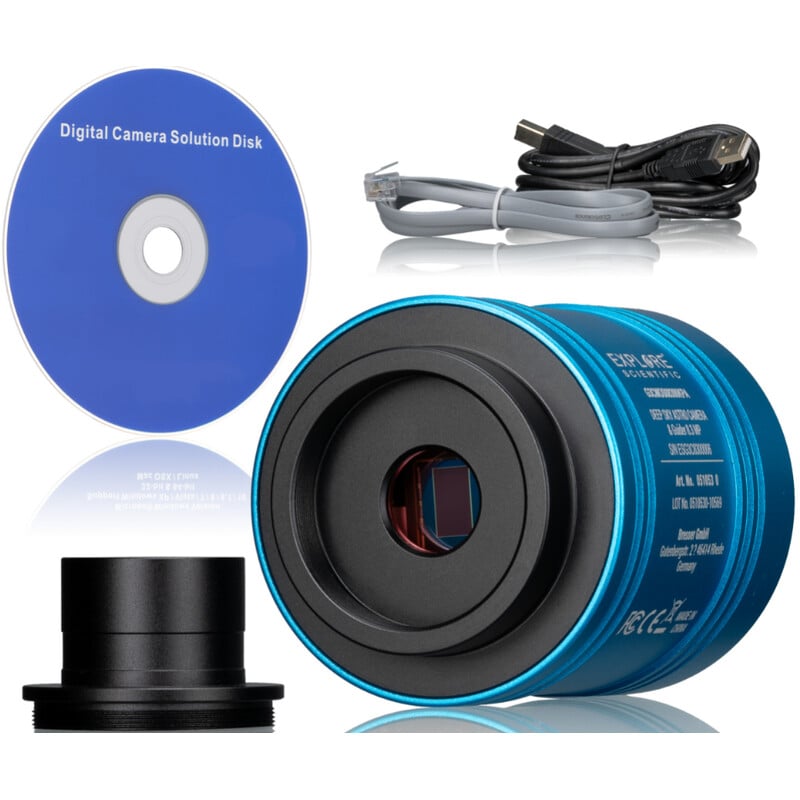

Scope of delivery:

  • Astro camera 8.3 MP

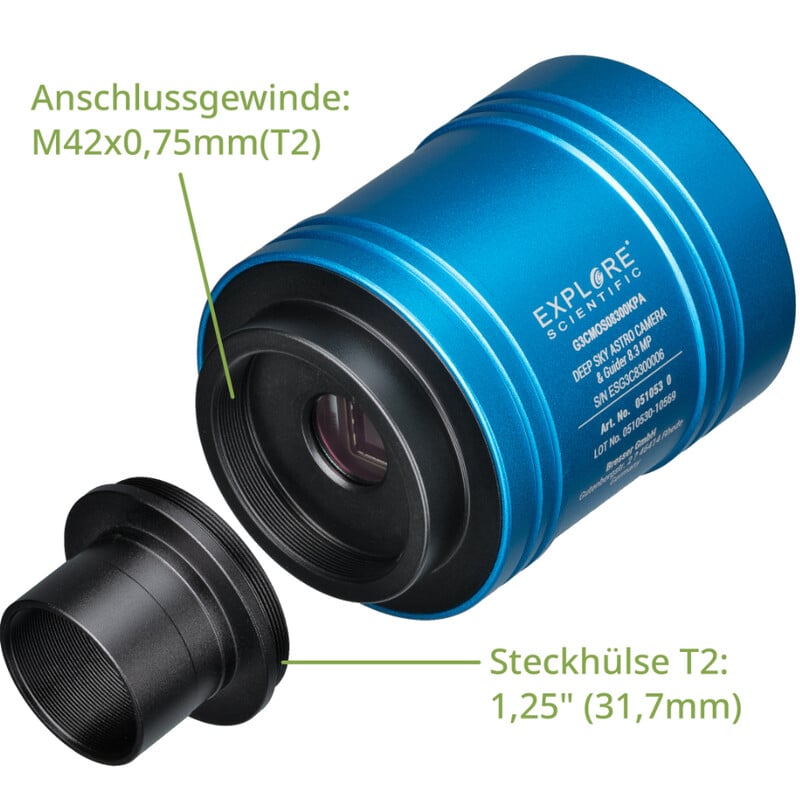

  • Plug-in adapter 1.25 inch with filter thread
  • USB 3.0 connection cable 150 cm
  • Control cable for ST-4 autoguider function 150 cm
  • Dust cap for camera opening
  • Software CD

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX485)
Size of chip (mm)
11,14 x 6,26
Chip - Diagonal (mm)
12,86
Megapixel
8,3
Pixel size
2,9
Resolution Photograph (Pixel)
3840 x 2160
Resolution video (Pixel)
1920 x 1080
Bit depth (Bit)
12
Binning
1x1 & 2x2
Active cooling
yes
Interfaces
USB 3.0 & ST-4
Connection (to the telescope)
1,25" & T2
Colour camera
yes
Operating temperature
-10 - +50
Max. exposure time (min)
60
Min. exposure time
0,0001s
Images per second
66
Quantal efficiency
77
Flange focal distance (mm)
17,5
Shutter
Global Shutter
Cable length (m)
1,5
Supported operating systems
Windows 10 & 11 (CPU Intel Core2 2.8 Ghz / 2 GB RAM / USB 3.0)
Software
EXPLORE Capture

Equipment


Filter wheel
no

General

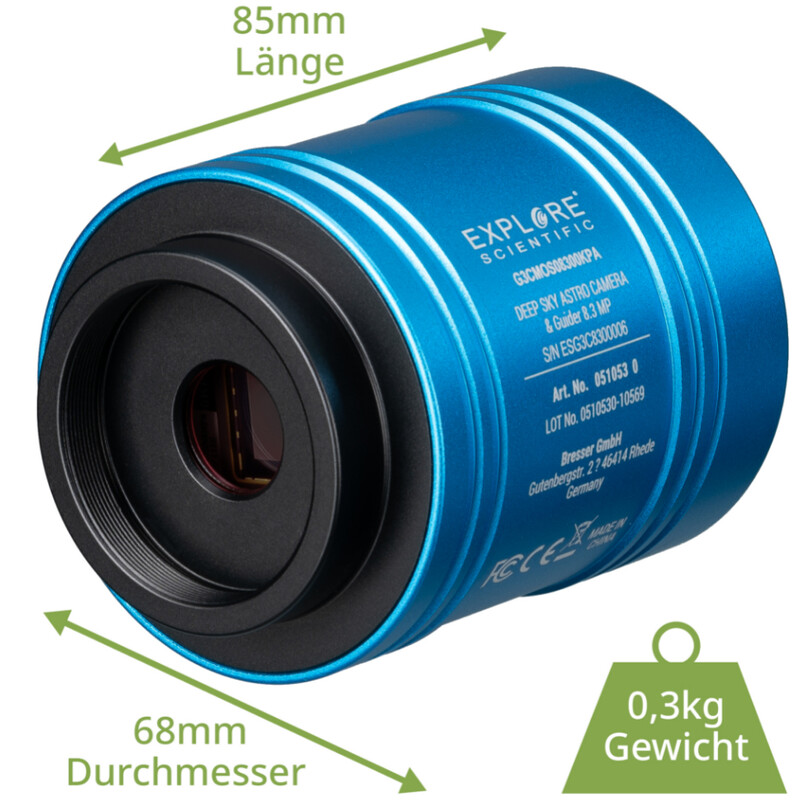

Weight (g)
300
Diameter (mm)
68
Length (mm)
85
Outer material
Aluminium

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Product safety

Manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de
