Astronomy > Telescope accessories > Astrophotography > Cameras > Astronomical Cameras > Omegon > Omegon Camera CCD Solar System Imager
( 1 / 5 )
Product no.: 18877

Camera CCD Solar System Imager

$ 149.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

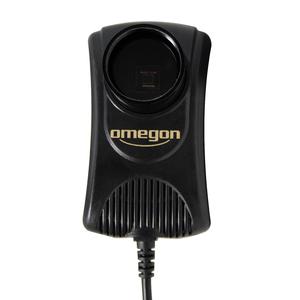

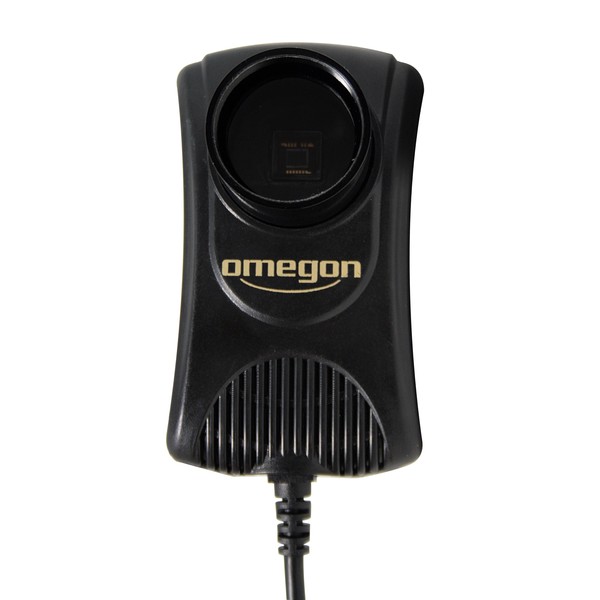

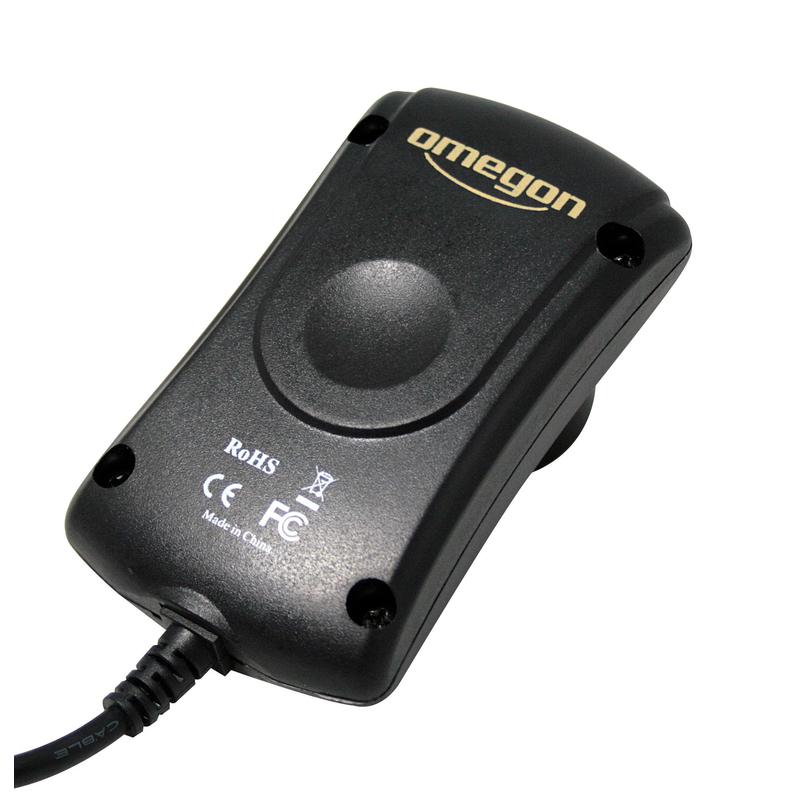

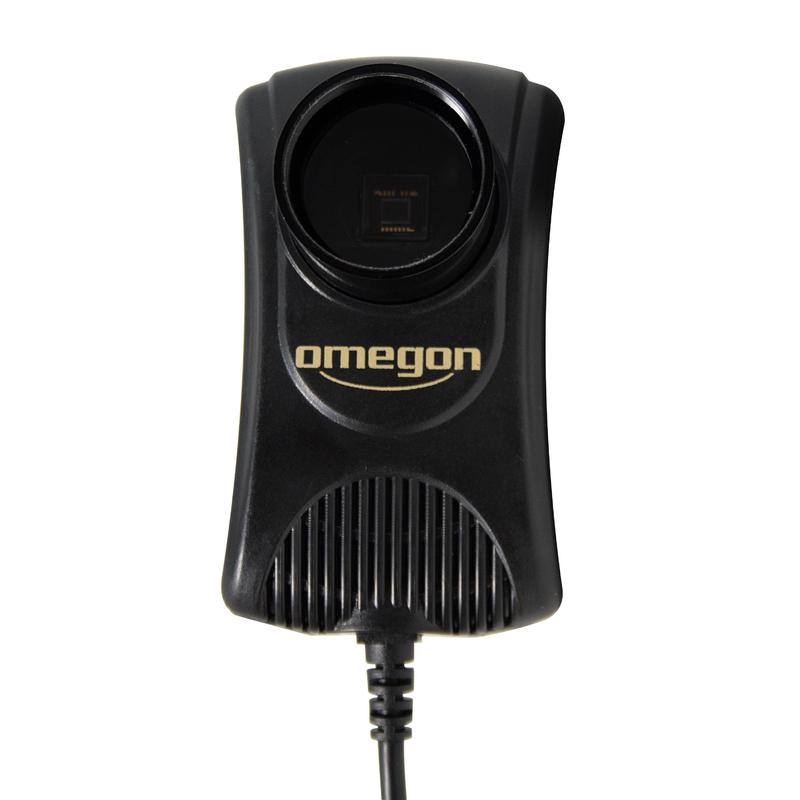

Omegon Webcam Soloar System Imager - Now you can take crystal clear photos of planets
The Omegon webcam offers you an easy way to take photos of planets and the moon. Even if you have no experience in astrophotography, you will be able to show off your first beautiful planetary images after just one night. Saturn with its rings or Jupiter with the moon system will no longer be fleeting impressions. Simply capture them with the Omegon CCD webcam.

The chip makes the difference.

Webcams are an interesting option for planetary photography. Unfortunately, not every webcam is fit for this purpose. 99.9% of all webcams on the market have an unsuitable CMOS chip. Astrophotography requires a proper CCD chip. CCD chips are more sensitive and produce much less noise than CMOS chips from comparable webcams. Philips webcams set the standard for many years, but these webcams are no longer produced. In response, Omegon has brought its own planetary camera - using the proven CCD chip - onto the market.

That has all now changed

The Omegon CCD Solar System Imager is certainly one of the most inexpensive ways of carrying out high-quality lunar and planetary astrophotography. There have even been some improvements made on the old Philips webcams. These include the installation of a new video controller that allows downloading at up to 30fps via USB 2.0. The camera can hence deliver up to 30 images per second if a sufficiently fast computer is connected. You can produce truly excellent planetary images using the freeware programs Giotto or RegiStax. Almost everyone involved planetary and lunar photography will want to own such a Webcam.

Getting started

Setting up the webcam is easy. Connection is made via a USB interface. The low weight of the camera means even basic mounts will not be overloaded. A 1.25 inch telescope adapter is included so that you can connect the camera directly to the telescope, in place of an eyepiece.

Do I need anything else?

When the camera is first connected to the telescope, the planets will appear too small. We would therefore recommend using a Barlow in conjunction with any webcam. This increases the focal length and hence the planetary images become much larger. We would also recommend using an Omegon infrared cut-out filter - this can be purchased along with the camera as a set.

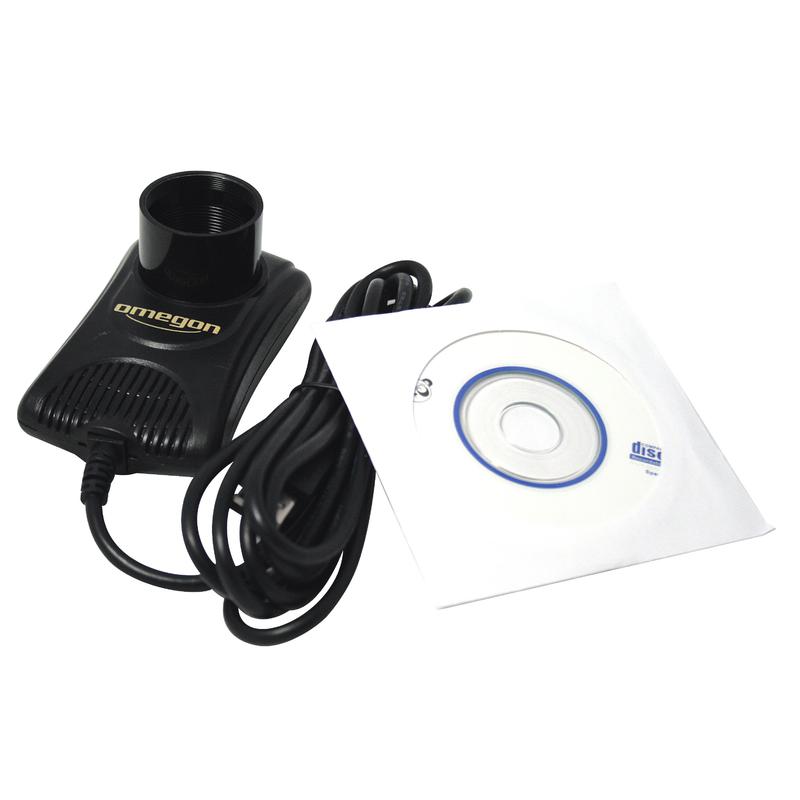

Your can make optimal use of your new Omegon CCD Solar System Imager using the Omegon software CD supplied. Simply insert the CD in your CD drive and a user-friendly interface will automatically start up. You can then select between German, English, French and Polish. There is also a range of different drivers and software - for Windows 7/8/10 64-Bit).

Note: The camera does not yet function with Apple computers.

CD contents:

  • Windows 7/8/10 64-Bit drivers
  • AMcap imaging software
  • RegiStax image processing software
  • installation and software manuals

Our expert comment:

The current version of AMcap does not seem to work on some computers.
This appears to be a local configuration problem, as most of our customers
have no problems.

In this case, we recommend Giotto as recording software:
http://www.astroshop.de/blog/?p=6391]


[http://www.giotto-software.de/giotto.htm#z_download]


[http://www.astroshop.de/beratung/astrowissen/tipps-und-tricks/software---tipps/c,8755

Screenshots of the recording settings can be found at:
http://www.silvia-kowollik.de/astro/webcam/giotto-2-03/giotto-2-03.htm

The camera 19237 with reducer does not work if a Newton telescope is used.

In this case, the alternative

http://www.astroshop.de/webcams-%26-usb-okulare/omegon-ccd-solar-system-imager-set-i/p,19236

without reducer would be preferable

(Bernd Gährken)

This camera uses a Sony CCD ICX098 sensor. The supplied instruction manual may mention other sensors as it applies for several cameras

Specifications

Capacity


Size of chip (mm)
3,6 x 2,7
Sensitivity to light (lx)
< 1
Bit depth (Bit)
8
Interfaces
USB 2.0
Supported operating systems
Windows 2000, Windows XP, Windows Vista, and Windows 7
Cable length (m)
2,1
Images per second
30
Image format
JPEG, BMP, RAW
Pixel size
5,6
Resolution Photograph (Pixel)
640x480
Video function
yes
Video format
MPEG, AVI
Max. length of video
infinite
White balance
automatic
Chip - Diagonal (mm)
4,5
Sensor type
CCD-chip (ICX098BQ)

Equipment


Filter wheel
no

General


Colour
black
Variant name
Camera without set pieces

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de

Recommended accessories

Astronomy > Filters (3)
Blocking Filters

Omegon Blocking Filters Infrared band elimination filter

$ 24.90*
Astronomy > Other (2)

ToupTek StellaVita AstroStation Controller

$ 359.00*

*All prices include VAT plus shipping costs.

Omegon Camera CCD Solar System Imager
Omegon Camera CCD Solar System Imager
Omegon Camera CCD Solar System Imager

Customer reviews

Bad Driver

Review by valib03 on 04.09.2017 12:39:35

( 1 / 5 )

There is a problem installing the driver for windows 10. The drivers on the site are not working properly because of the following error in Windows events:
Device USB \ VID_0547 & PID_7303 \ 5 & 1d4a5fab & 0 & 2 could not be migrated.

Last Device Instance ID: USB \ VID_13FE & PID_5500 \ 070B535230176954
Class Guid: {36fc9e60-c465-11cf-8056-444553540000}
Location Path: PCIROOT (0) #PCI (1D07) #USBROOT (0) #USB (2)
Migration Rank: 0xF000FFFFFFFF0033
Present: false
Status: 0xC0000719

Is there a solution or other compatible driver?
