Astronomy > Telescope accessories > Astrophotography > Cameras > Astronomical Cameras > Starlight Xpress > Trius > Starlight Xpress Camera Trius PRO-694 Mono, Combi Set
Product no.: 44335

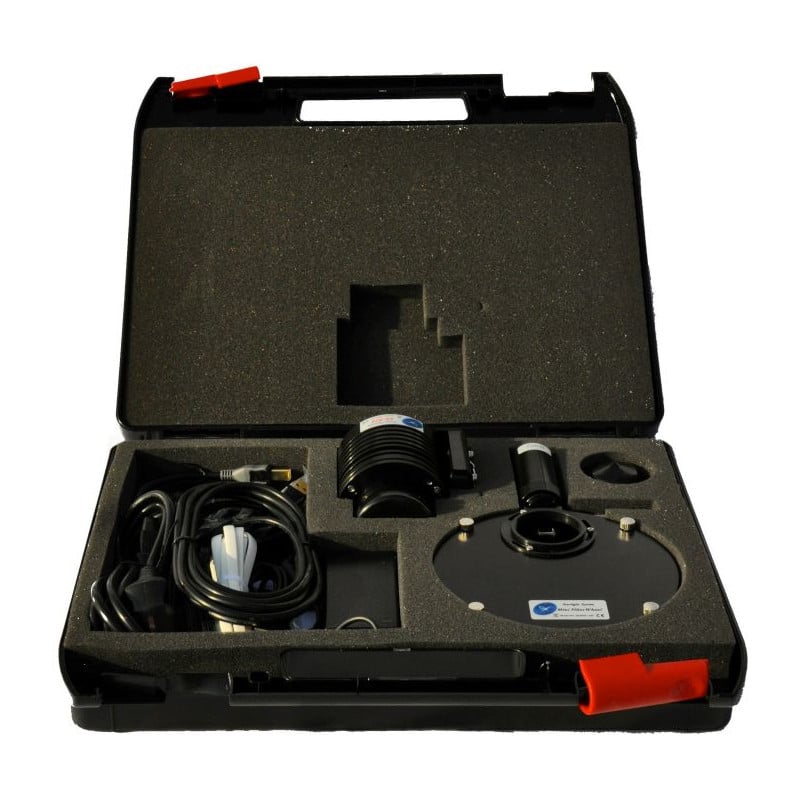

Camera Trius PRO-694 Mono, Combi Set

RRP: $ 3,890.00 Our price:
$ 3,030.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

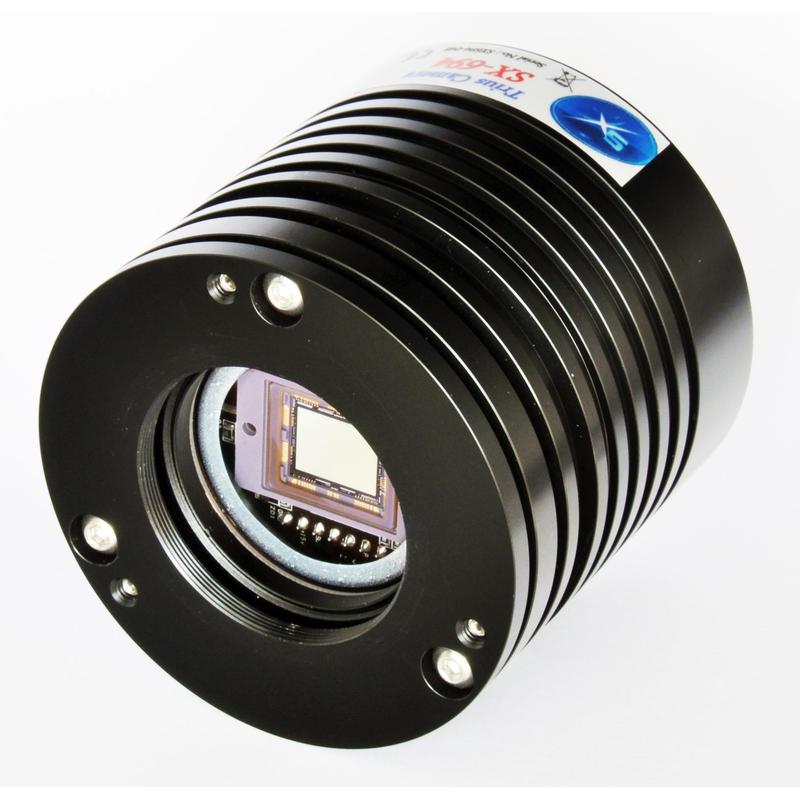

Trius: top-quality cameras from Starlight Xpress

Starlight Xpress is best known for its compact, innovative designs and outstanding quality. The new Trius series is entirely in keeping with this tradition. The cooled cameras from Starlight Xpress for deep sky photography surpass their predecessors in terms of noise performance while still maintaining fast download times of around two million pixels per second.

Some of the innovative features of the new Trius cameras include:

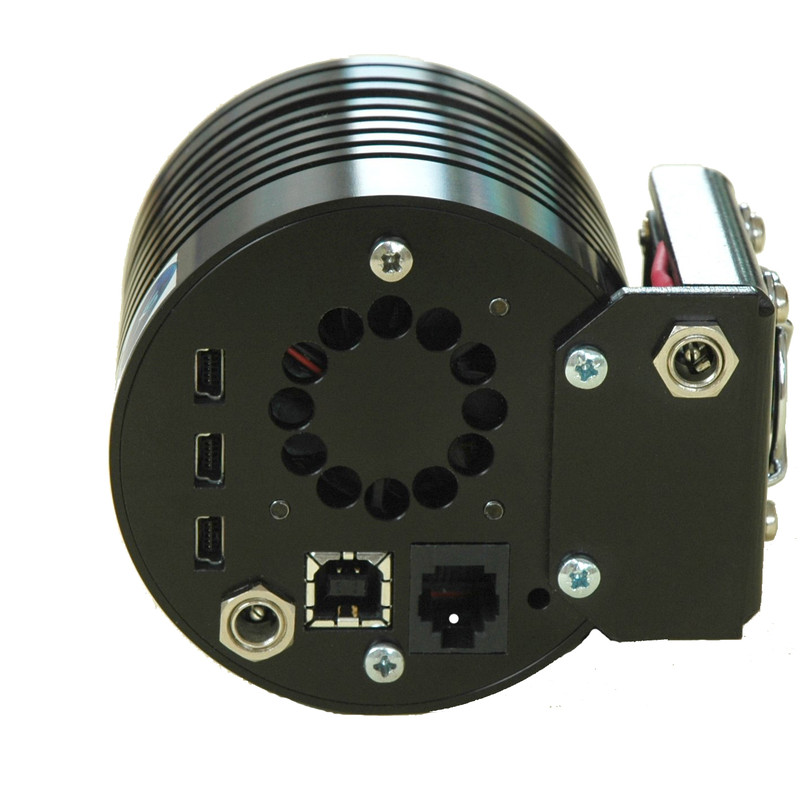

  • An integrated USB hub allows you to connect up to three peripheral devices to the camera (5V DC at a maximum of 200 mA). This means that you avoid a lot of tangled cables on the telescope. A guider can be connected via the RJ11 output.
  • The high-quality Trius cameras have a multi-coated quartz glass optical window.
  • The Peltier cooling system is the best possible available for such compact cameras. A built-in fan on the back of the camera pulls air through small holes in the front. An additional fan is attached to the side to keep the outer body of the camera cool in warmer weather.
  • The chamber in which the CCD sensor is housed is filled with argon to ensure that no moisture can condense on the sensor. Argon's low thermal conductivity also supports cooling.
  • The adjustable adapter plate on the front of the camera allows the sensor to be aligned parallel to the telescope focal plane.

Starlight Xpress uses only high-quality grade 1 or better CCDs: no dead pixels, no defective columns!

You are stepping into the world of high-end astrophotography with a Trius camera from Starlight Xpress

Specifications

Capacity


Type of camera
Astro CCD camera
Sensor type
CCD-chip (Sony ICX694AL Exview)
Size of chip (mm)
12,5x10
Megapixel
6,1
Resolution Photograph (Pixel)
2750x2200
Reading noise
4,5
Colour camera
no
Flange focal distance (mm)
17
Pixel size
4,54
Bit depth (Bit)
16
Dark current
0,002
Antiblooming
yes
Power consumption (mA)
1500
Power supply
12
Quantal efficiency
77% @500nm
Chip - Diagonal (mm)
16

Equipment


Filter wheel
yes

General


Diameter (mm)
75
Length (mm)
70
Weight (g)
400
Series
Trius
Outer material
Aluminium
