Product no.: 56556

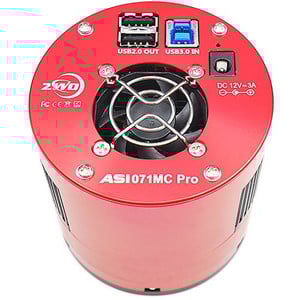

Camera ASI 071 MC Pro Color

RRP: $ 2,260.00 Our price:
$ 1,870.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

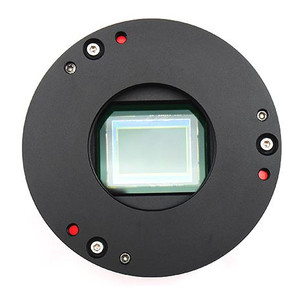

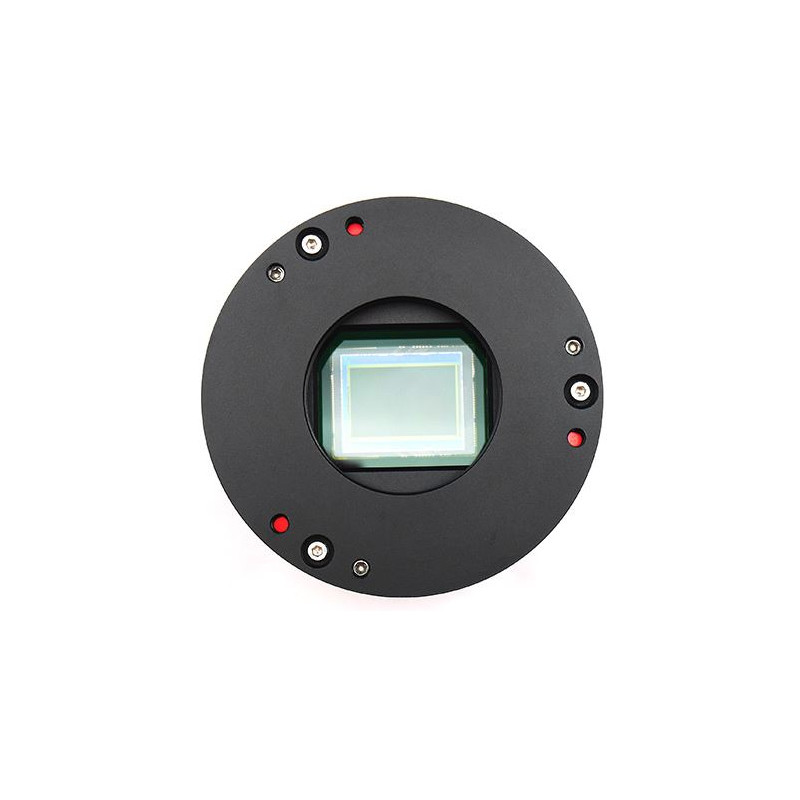

The ASI 071 MC Pro uses the proven Sony APS-C format chip, which is used in SLR cameras.The relatively large APS-C sensor (diameter: 28.4mm) in the ASI 071 MC Pro is combined with the advantages of an astronomy camera:

  • electronic shutter - unlike DSLR cameras, there are no vibration problems with the mechanics.

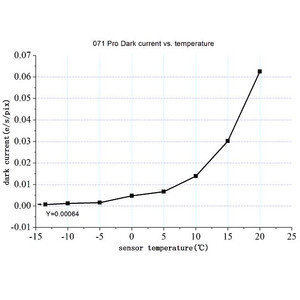

  • active cooling of up to 40°C below ambient temperature ensures low sensor noise. This allows long exposure times for dim nebulae and galaxies.
  • high speed - up to 134fps (frames per second) are possible for planetary shots! This 'freezes' the air turbulence and reveal details on the Moon and planets.
  • computer controllable - Windows, Mac OS, Linux. You can control the whole range of programs available, for example, SharpCap freeware.
  • the camera uses USB 3.0 for rapid and loss-free data transfer. It will also work with USB 2.0.
  • it comes with an AR clear glass filter to protect the camera. This allows full light transmission, including in the infrared range. Conversely, this means you will need an IR cutting filter if IR light needs to be blocked.

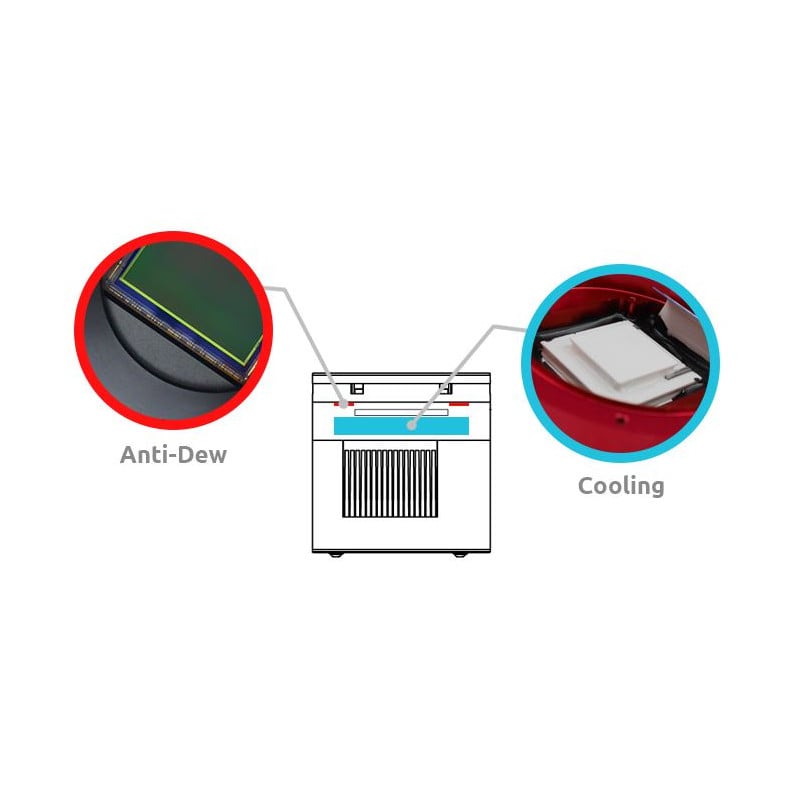

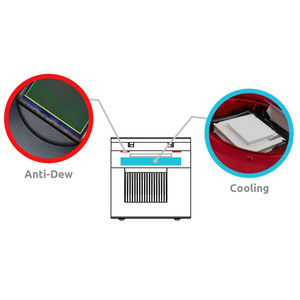

  • the clear glass filter can also be heated to prevent fogging. The delivery includes desiccant cartridges, and these can also be re-ordered.

Supported resolutions and frame rates at 14Bit ADC: 4944×3284 10fps, 1920×1200 28fps, 1280×1080 33fps, 640×480 70fps, 320×240 134fps

ZWO ASI Pro Features:

The ASI Pro cameras include a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

ZWO ASI Pro cameras have an improved casing. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable. Even when used in higher humidity environments, The camera will still work fine without dew problems.

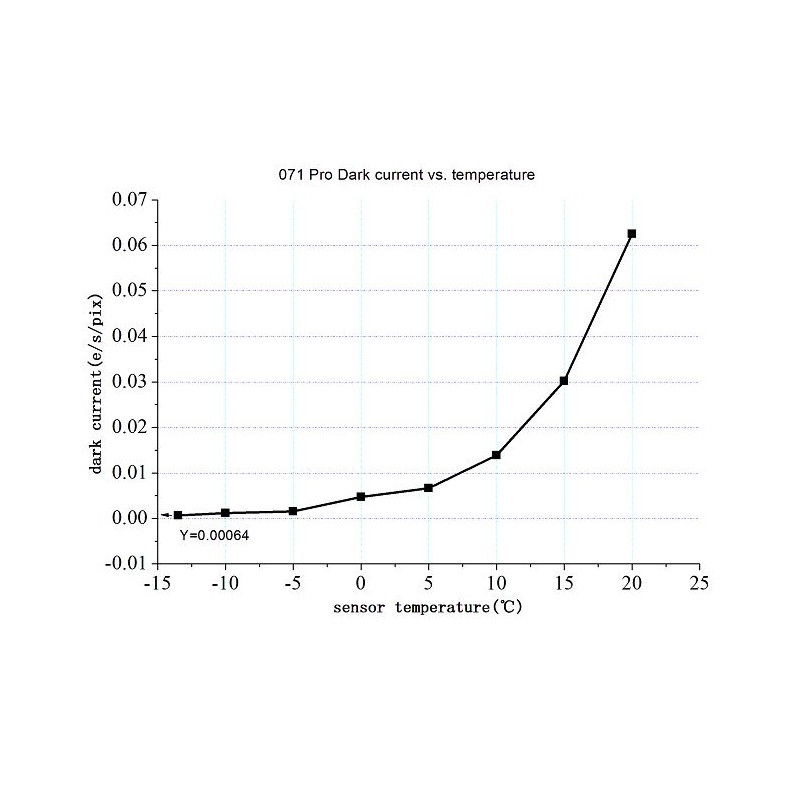

ZWO ASI Pro cameras also contain a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient Temperature). This reduces sensor noise considerably and allowes you to take breathtaking astrophotos.

Cooled ZWO ASI cameras need a 12V power supply, If you don’t have one, please check the recommended accessories for a suitable power adapter.

Colour or mono? Black and white cameras have the advantage of higher sensitivity and resolution than colour cameras. However, more effort is required to obtain a colour image. You also need colour filters and a filter wheel

Software and drivers are available for free download on the manufacturer's website: software drivers

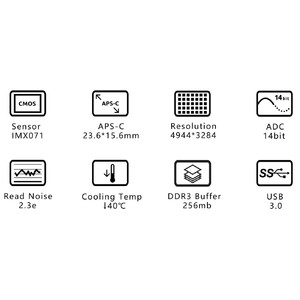

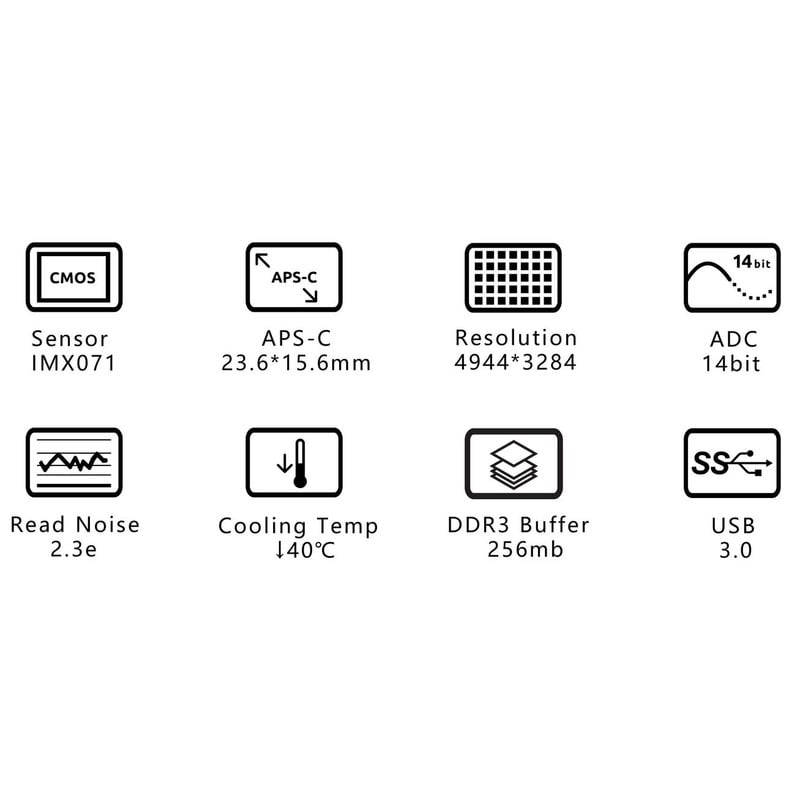

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX071)
Size of chip (mm)
23,6 x 15,6 (APS-C)
Megapixel
16
Pixel size
4,78
Resolution Photograph (Pixel)
4944 x 3284
Bit depth (Bit)
14
Active cooling
yes
Interfaces
USB 3.0 & USB 2.0
Connection (to the telescope)
T2
Colour camera
yes
Operating temperature
-5 - 45
Max. cooling difference below room temperature
40
Max. exposure time (min)
33,3
Min. exposure time
64µ
Images per second
10 (at full resolution)

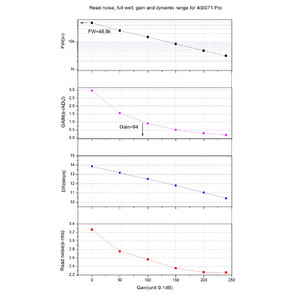

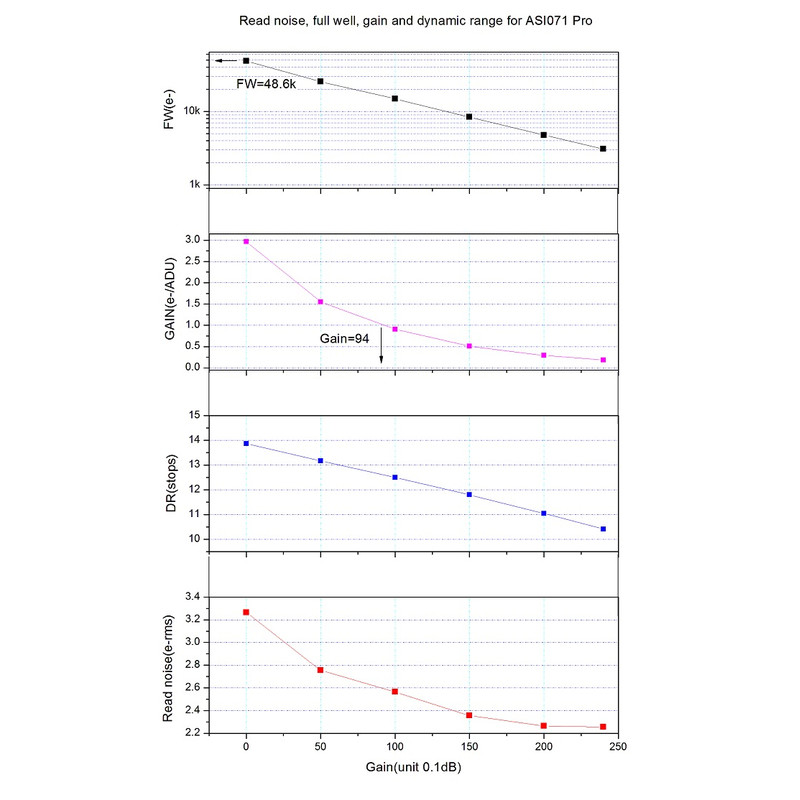

Reading noise
2,3
Full Well Capacity
46.000
Flange focal distance (mm)
17,5
Power supply
12
Chip - Diagonal (mm)
28,4
buffer memory (Megabyte)
256
Internal memory
DDR3 RAM

Equipment


Filter wheel
no

General


Weight (g)
640
Series
ASI 071
Diameter (mm)
86
Length (mm)
87,3

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Media (1)

Springer Inside PixInsight

$ 26.90*
Astronomy (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

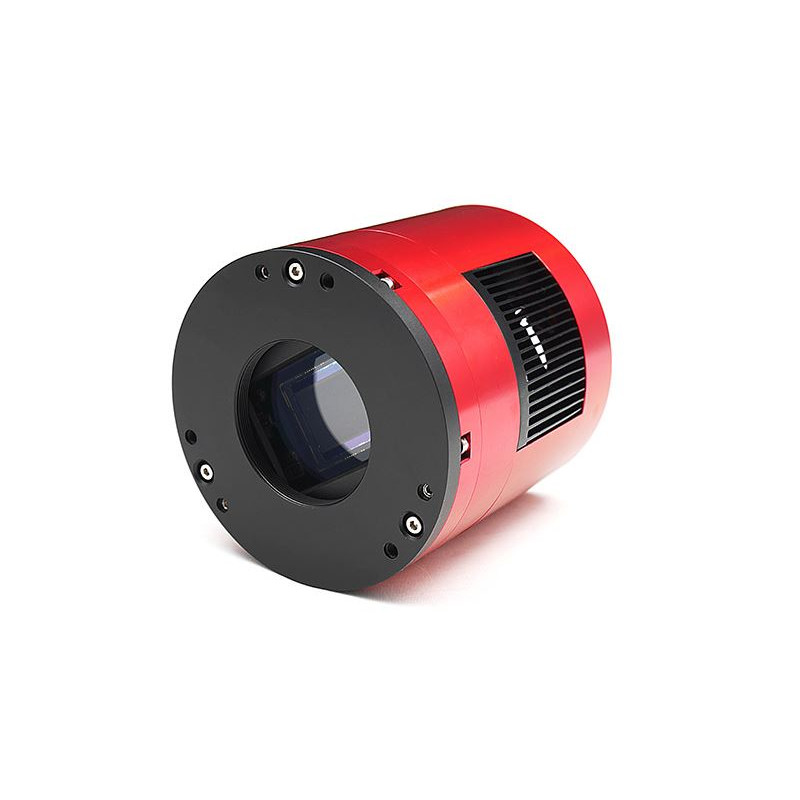

ZWO Camera ASI 071 MC Pro Color
Overview

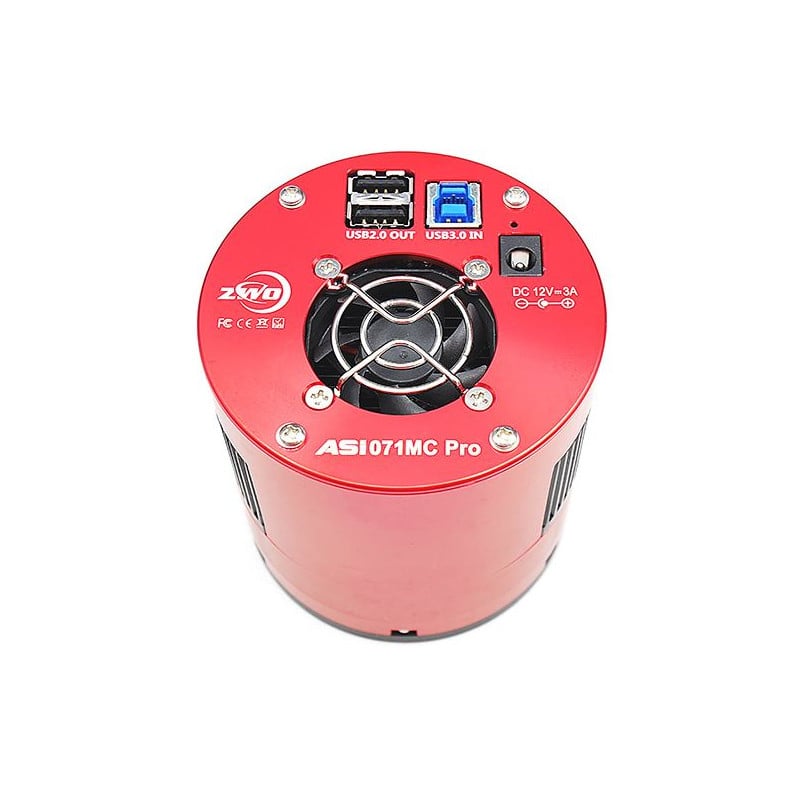

ZWO Camera ASI 071 MC Pro Color

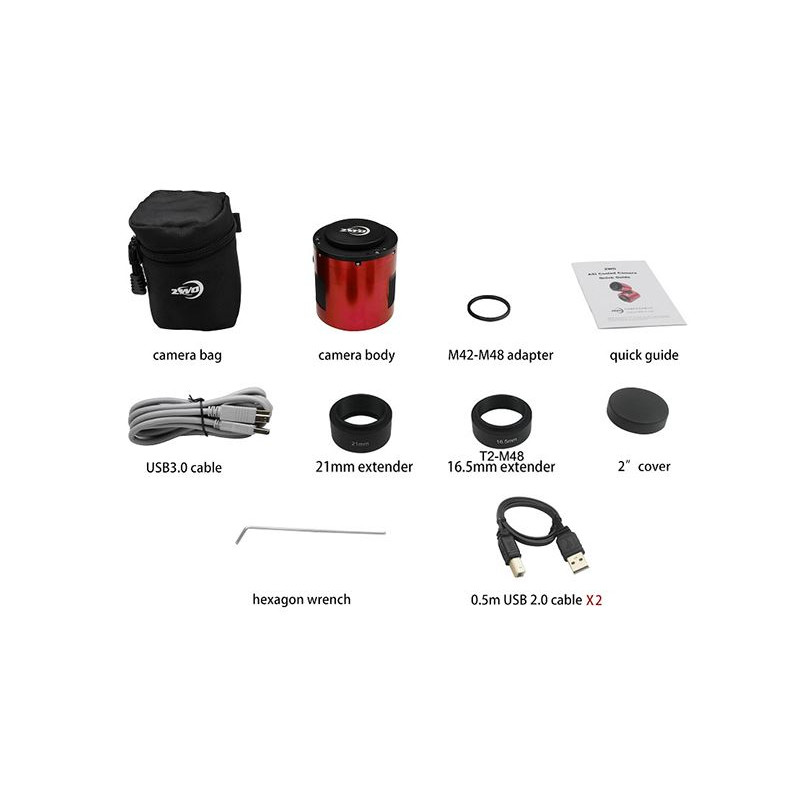

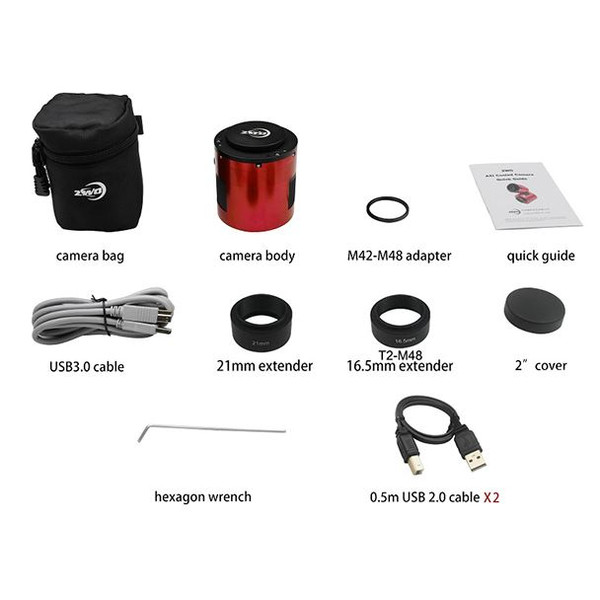

Includes
ZWO Camera ASI 071 MC Pro Color

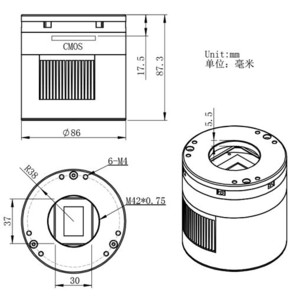

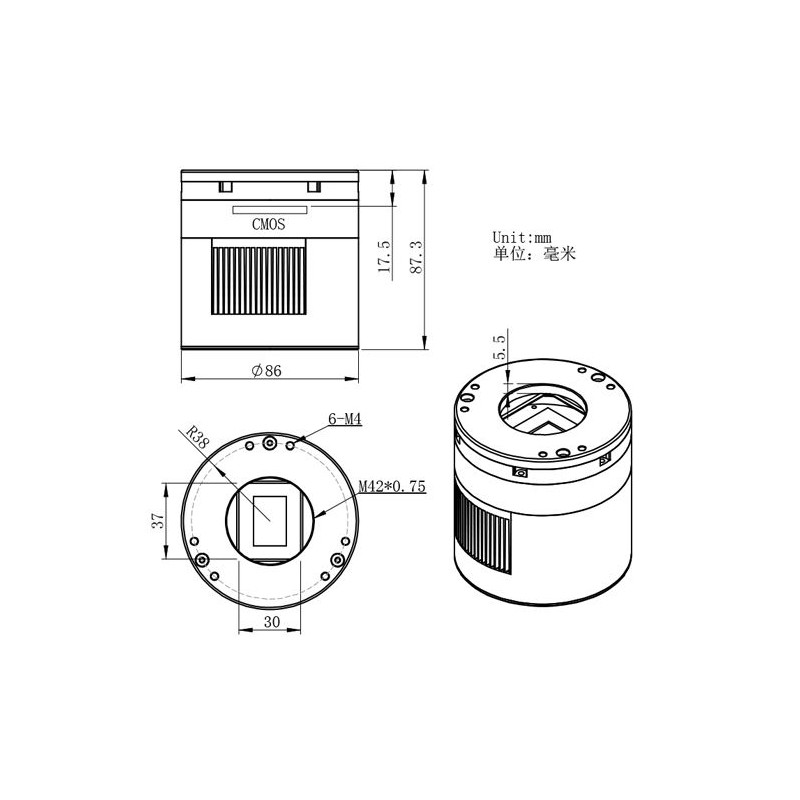

Dimensions
ZWO Camera ASI 071 MC Pro Color

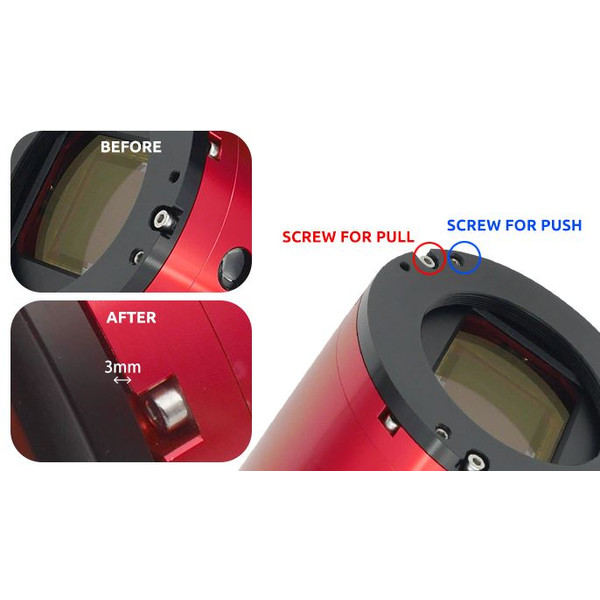

Tilt Adapter
