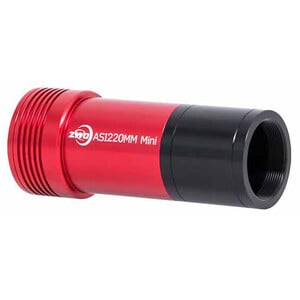

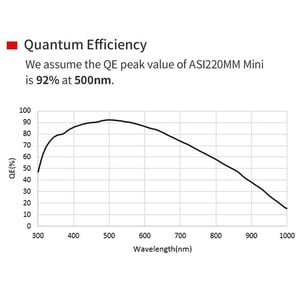

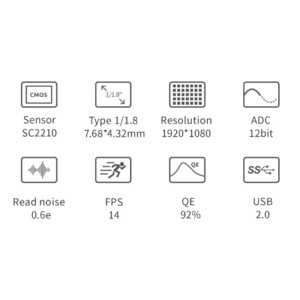

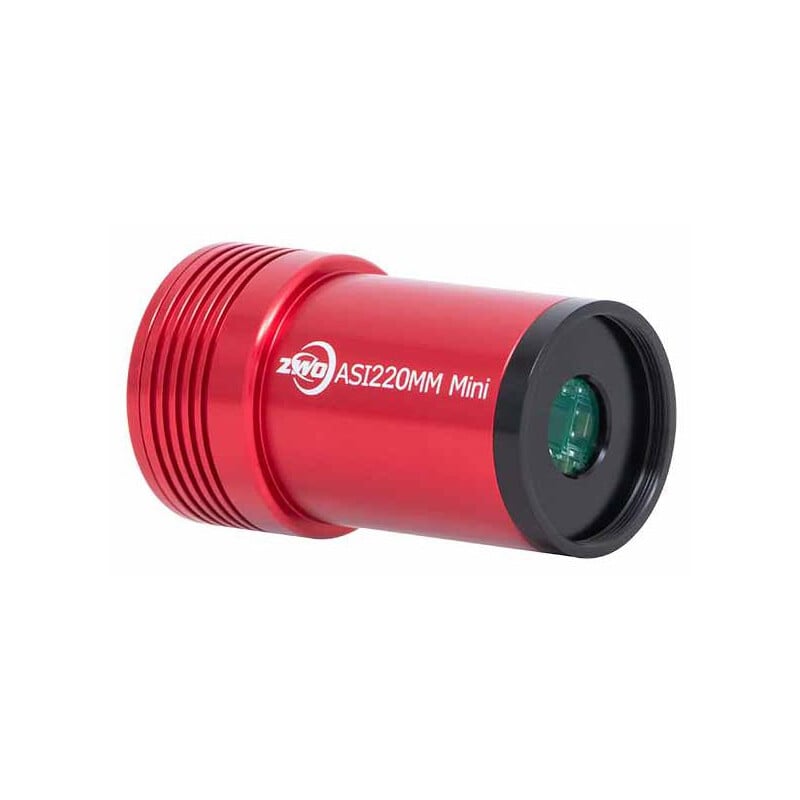

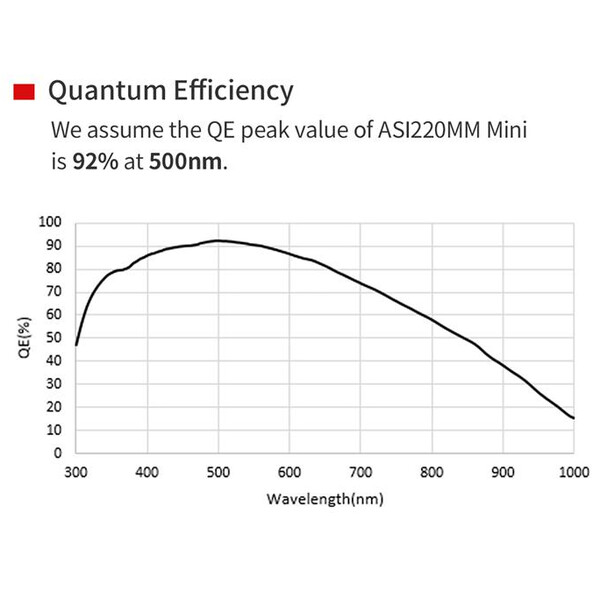

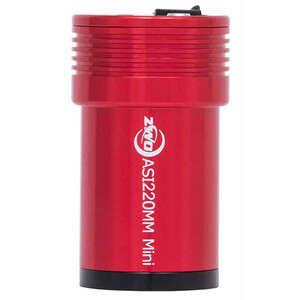

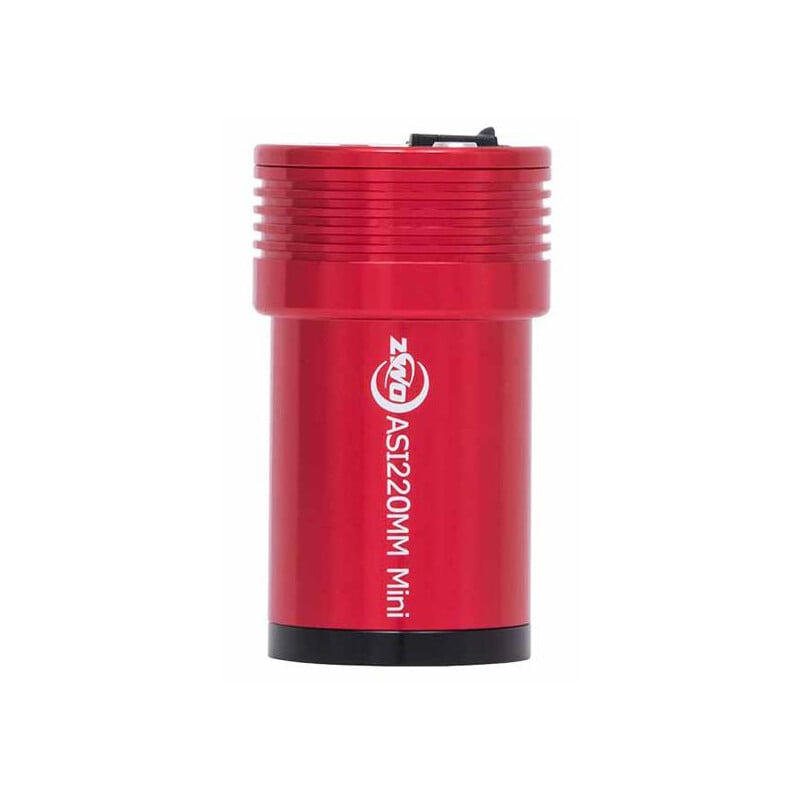

The ASI220MM Mini can be seen as an improved version of the ASI290MM Mini, featuring a larger sensor format and larger pixels with better NIR sensitivity.
The advantages of the ASI220MM Mini as an autoguider
- Thanks to its high light sensitivity, you will always find a guide star, even with off-axis guiding – guaranteed!
- The practical 1.25" housing makes adaptation easy. Plug the camera into the 1.25" mount, focus and get started.

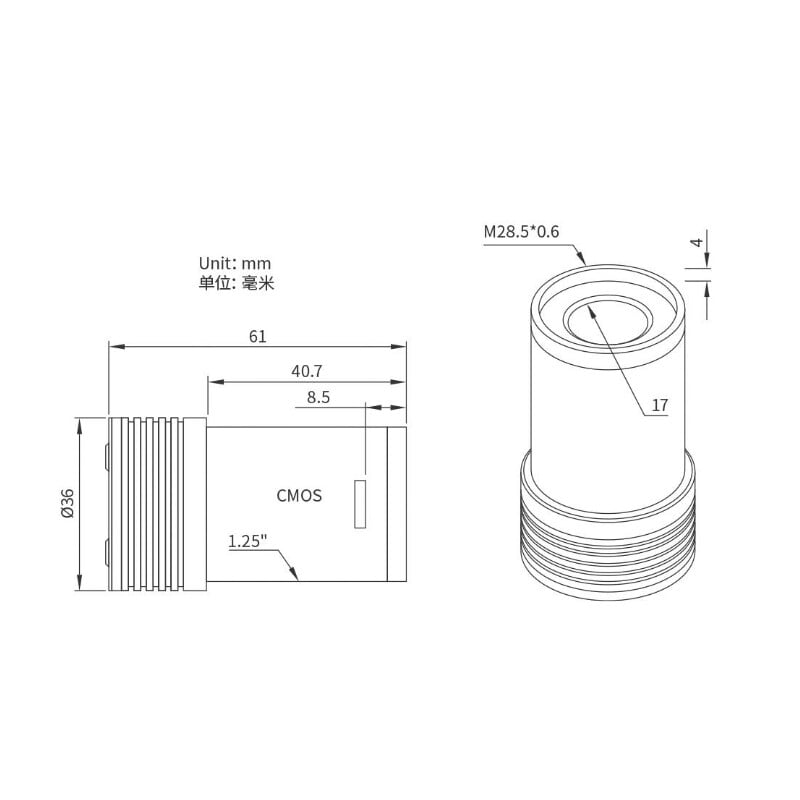

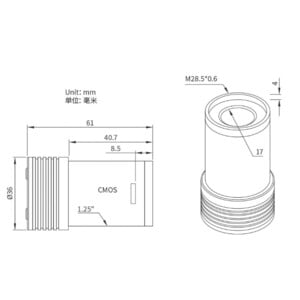

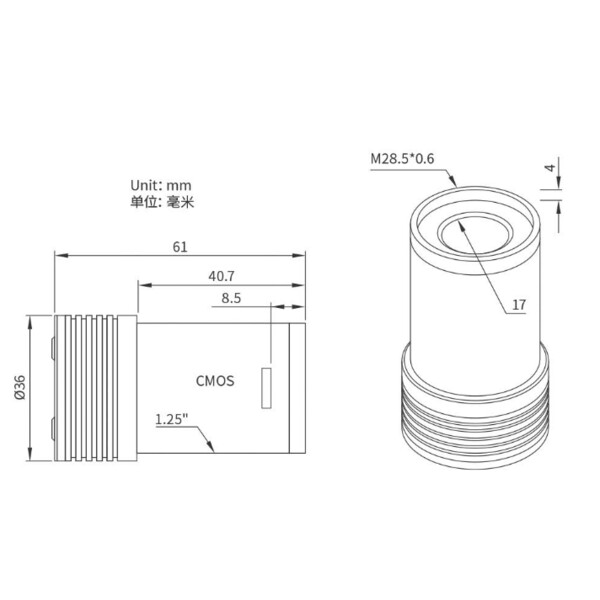

- Only 8.5 mm working distance from the front edge to the chip – so you can focus even at short distances.
- Weighing only 60 grams, the focuser is hardly any burden.

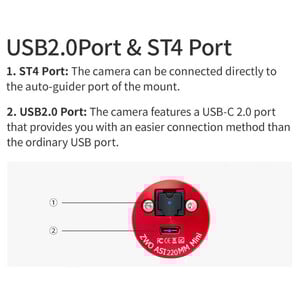

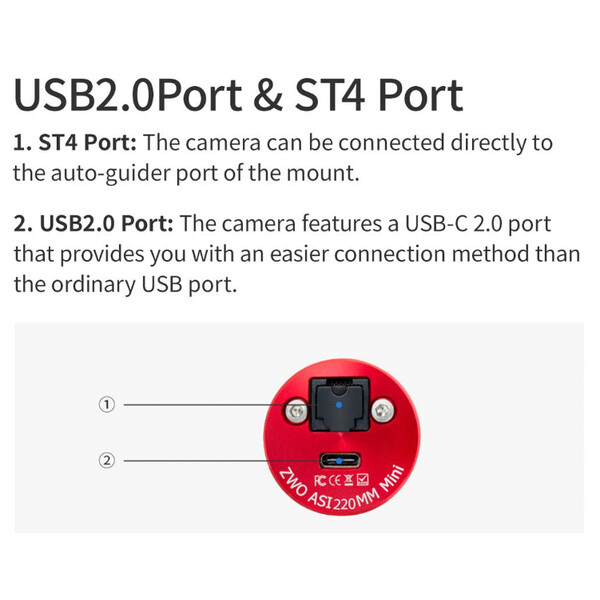

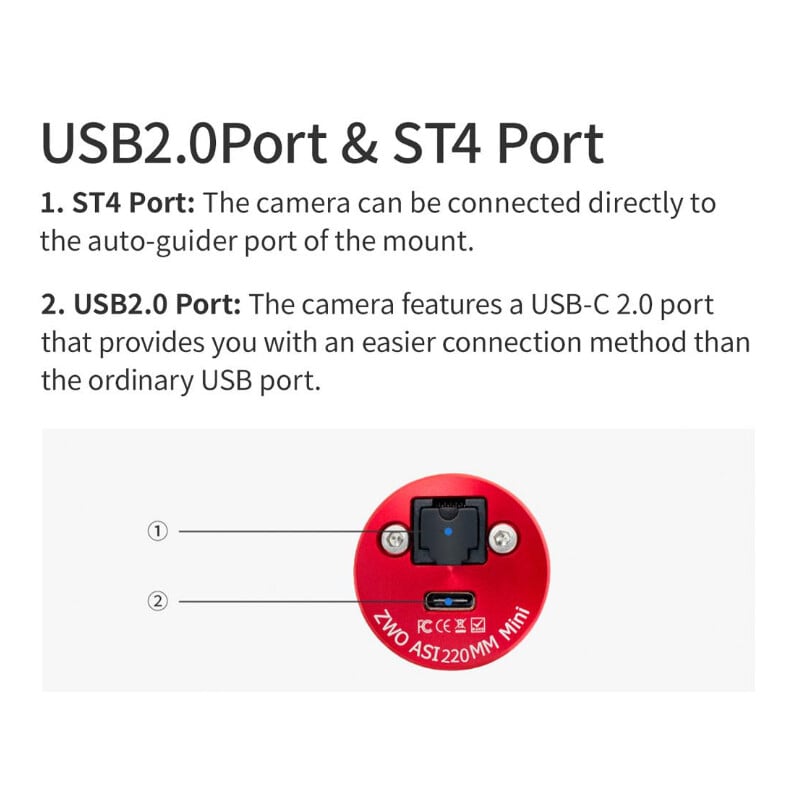

- The ST4 cable and ST4 port are of course included in the delivery. Connect the camera directly to the autoguiding port of the mount.
The autoguider software is not included in the delivery. The camera is ASCOM-compatible and suitable for PHD Guiding, Guidedog, Metaguide, Guidemaster (freeware), APT or AstroArt, MaxIm DL (subject to a fee), among others.
The advantages of the ASI220MM Mini as an astro camera
- Highly sensitive sensor for good moon and planet photos.

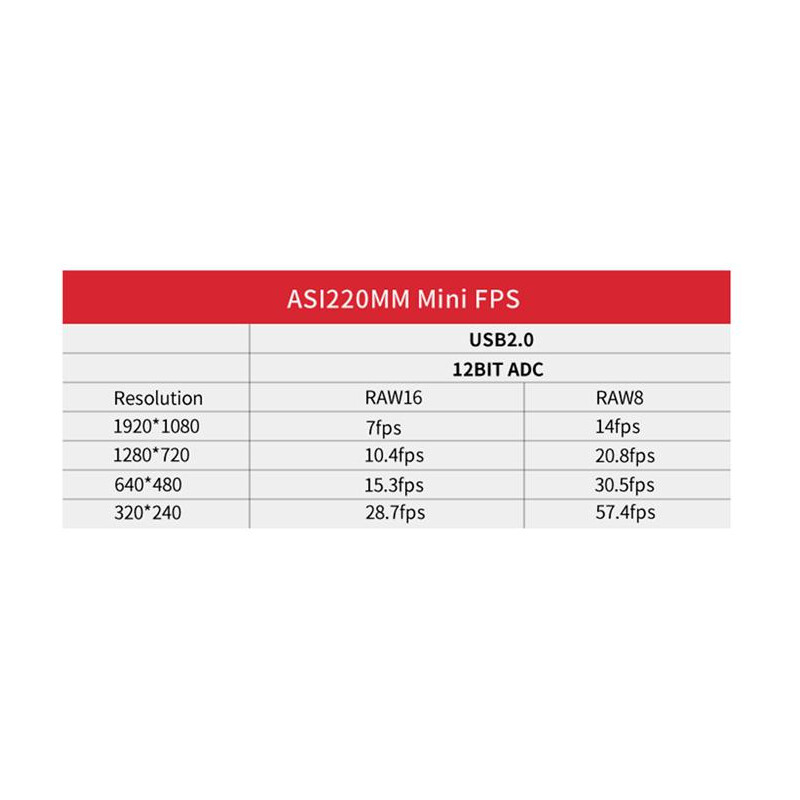

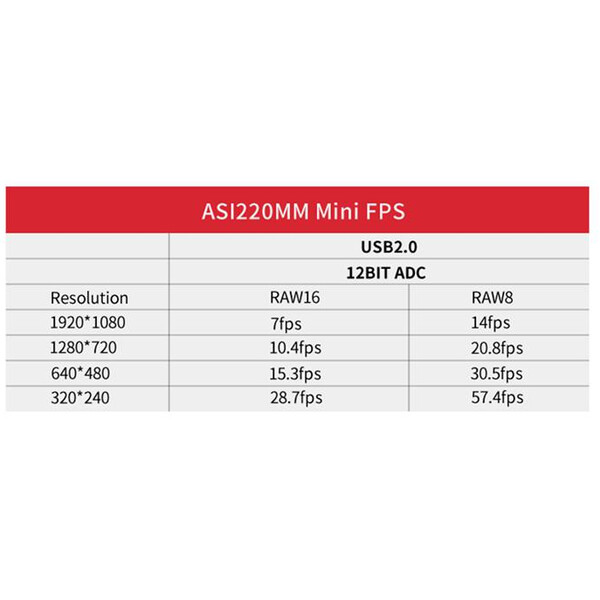

- High frame rate in the planetary range
- The camera fits into any 1.25" focuser. Clamp the camera like an eyepiece, focus and start astrophotography.
- Thanks to its high sensitivity, the ASI220MM Mini is also suitable for photographing nebulae and galaxies.
- The camera is equipped with a clear glass filter that is also transparent to infrared light. This makes exciting infrared photography possible.
Scope of delivery:
- camera
- 1.25" cover
- Quick start guide in English
- 0,5-Meter-USB2.0-Kabel
- 2-metre USB 2.0 cable
- ST4 cable
- M28.5 CS adaptors
- 1.25" extension
Software and drivers are available for free download on the manufacturer's website: software drivers
