Product no.: 48570

Camera ASI 224 MC Color

RRP: $ 335.00 Our price:
$ 313.00 incl. VAT, plus shipping costs
too expensive?
short-term
Product can be shipped as of 15.03.2024 + lead time

Product description

An excellent camera for discerning planetary photographers!

The ASI224MC colour camera has a 1.2 megapixel, 1/3" sensor equipped with Sony's Exmor and NIR technology.

The relatively small size of the sensor, extremely low readout noise, high sensitivity in the near infrared region and high frame rate, make this camera a very good choice for ambitious planetary astrophotographers. The frame rate is 64fps ('frames per second') at full resolution and 12bit ADC or even 150fps at 10bit ADC.

These features make the camera mainly of interest for planetary imaging but, in principle, it can also be used for deep sky imaging as an exposure times of up to 1000 seconds are possible.

Since this is a colour camera, you do not have to worry about any needing colour filters or a filter wheel. So, if you have limited time and are willing to make a small compromise, this is certainly the best planetary camera that you can buy in this price range.

ZWO delivers this camera with a small 2.1mm lens. This lens lets you operate the camera during the day - in order to become familiar with the software, for example.

Software and drivers are available for free download on the manufacturer's website: software drivers

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX224/IMX225)
Megapixel
1,2
Resolution Photograph (Pixel)
1304 x 976
Pixel size
3,75
Interfaces
USB 3.0
Bit depth (Bit)
12
Active cooling
no
Connection (to the telescope)
T2
Colour camera
yes
Operating temperature
(-5) - (+45)
Max. exposure time (min)
16
Min. exposure time
32 µs
Images per second
150
Supported operating systems
Windows, Linux, Mac OSX
Cable length (m)
2
Size of chip (mm)
4,8 x 3,6
Flange focal distance (mm)
12,5
Chip - Diagonal (mm)
6

Special features


Infrared filters
no

Equipment


Filter wheel
no

General


Weight (g)
120
Series
ASI 224
Diameter (mm)
62
Height (mm)
36
Outer material
Aluminium

Area of application


Autoguider
yes
Moon & Planets
yes
AllSky, Meteore
no
Nebulae & galaxies
no

Recommended accessories

Astronomy (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 224 MC Color

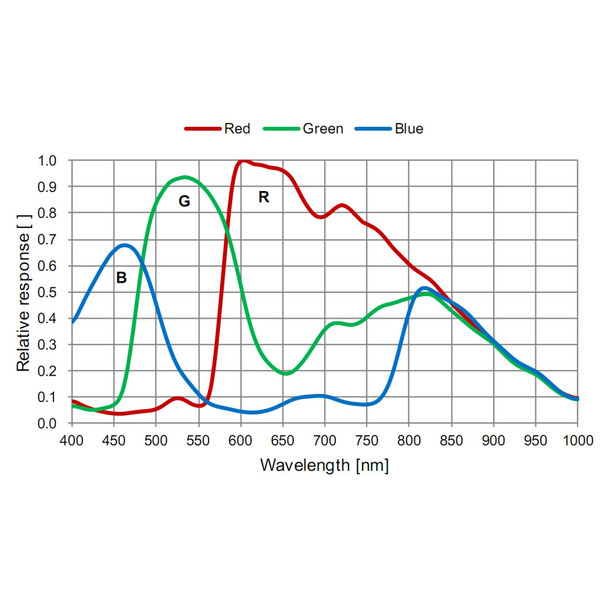

Quantum efficiency

ZWO Camera ASI 224 MC Color

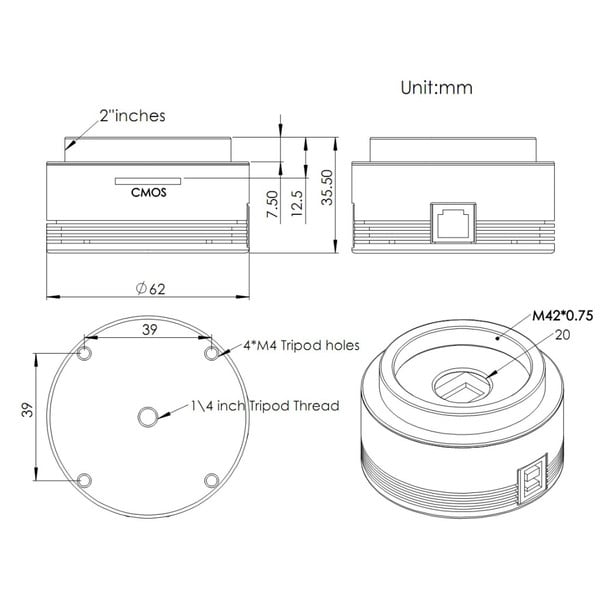

Dimensions

Customer reviews

There are no customer reviews for this product yet.

Compose your own review
