Product no.: 68797

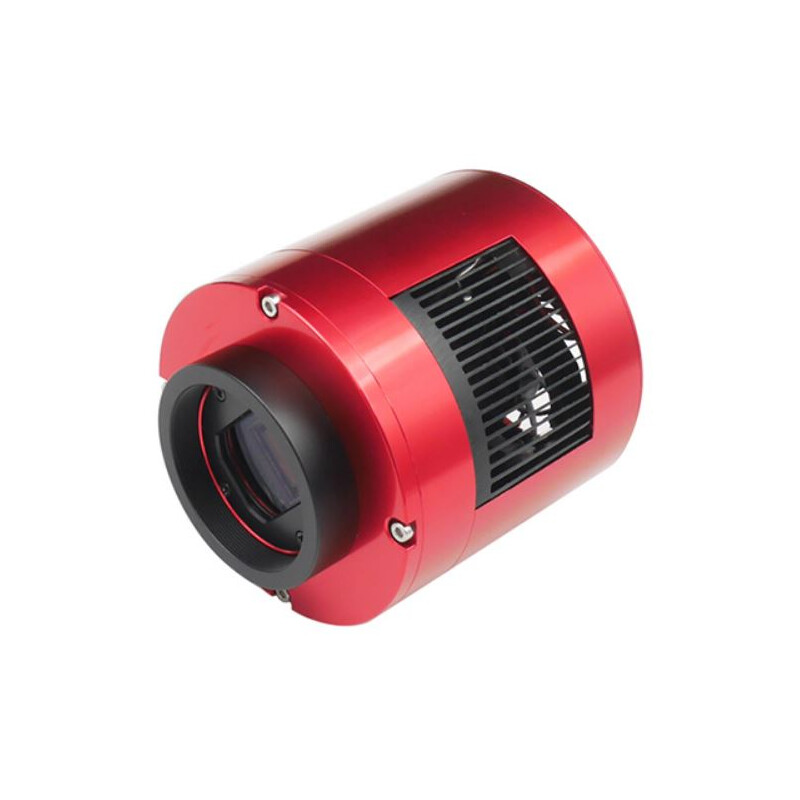

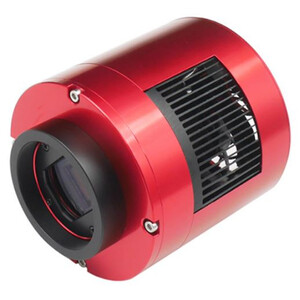

Camera ASI 294 MM Pro Mono

RRP: $ 2,260.00 Our price:
$ 2,050.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

ZWO ASI294MM Pro - cooled mono CMOS camera for many types of astrophotography.

ASI cameras stand for very good workmanship and have modern CMOS sensors built in. This versatile camera uses the modern back-illuminated Sony IMX492 sensor in Four-Thirds format.

The 4.63 µm pixels of the ZWO ASI294MM Pro make this camera an all-rounder with highest sensitivity for short exposure times in deep sky photography. Additionally, binning can be switched off, then the pixel size is only 2.32 µm, which increases the detail resolution - even planets can be photographed well this way.

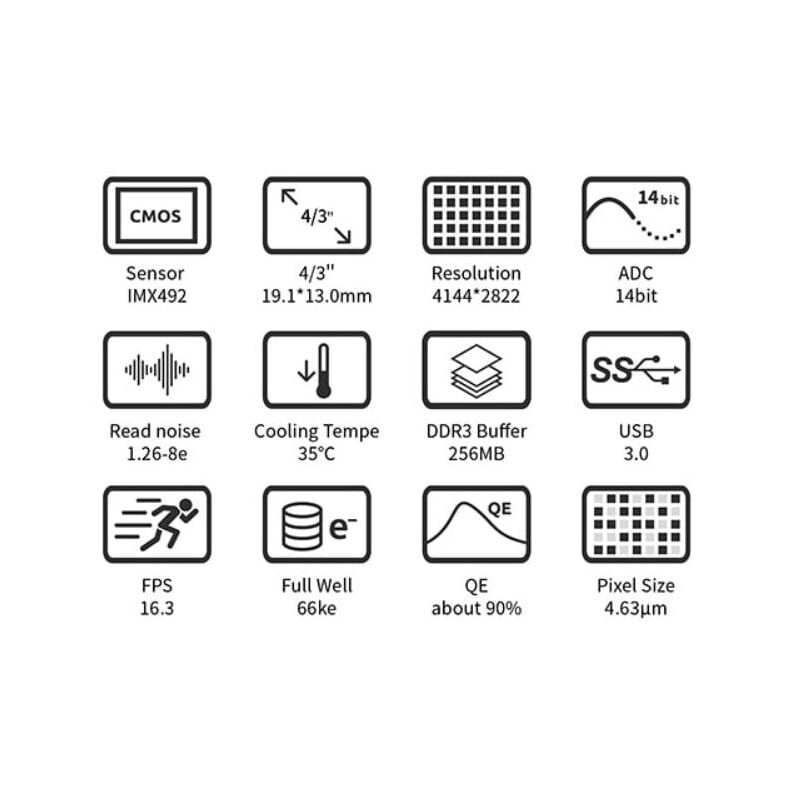

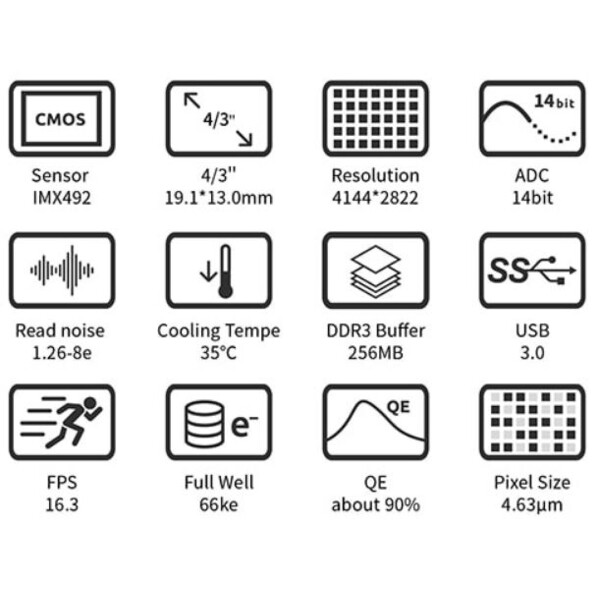

Advantages and product features of the ASI 294 MM Pro Mono:

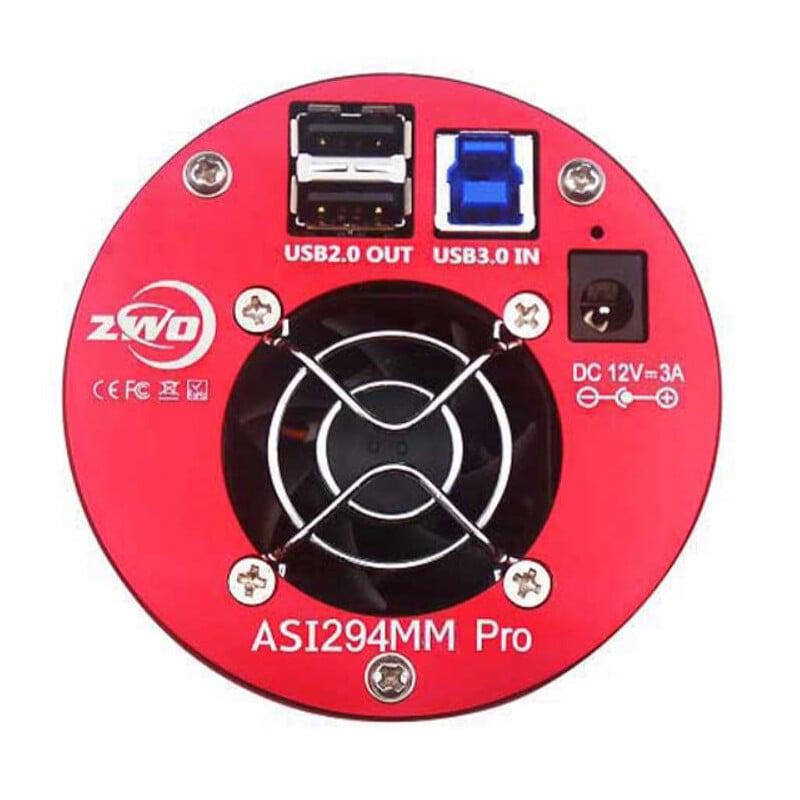

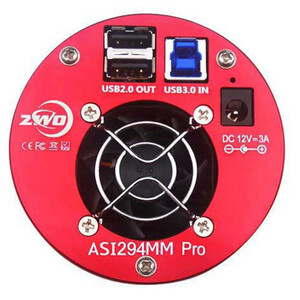

  • USB 3.0 for fast download - can also be operated with USB 2.0
  • DDR3 memory buffer for stable data transfer with USB2.0
  • Powerful Peltier cooling up to 35 °C below ambient conditions
  • Sensitive CMOS sensor with 23.2 mm diagonal - 11.7 megapixels
  • Good resolution due to 4.63 µm pixels
  • Switchable to 2.32 µm pixel size and 8288 x 5644 resolution
  • Supplied with AR clear glass filter - full transmission even in the infrared (If the IR is to be blocked, an IR blocking filter is required)
  • Distance T2 connection thread (internal thread) to camera sensor: 17.5 mm
  • Very high sensitivity - QE up to 90 % - ideal astronomy camera for faint objects
  • 14bit ADC

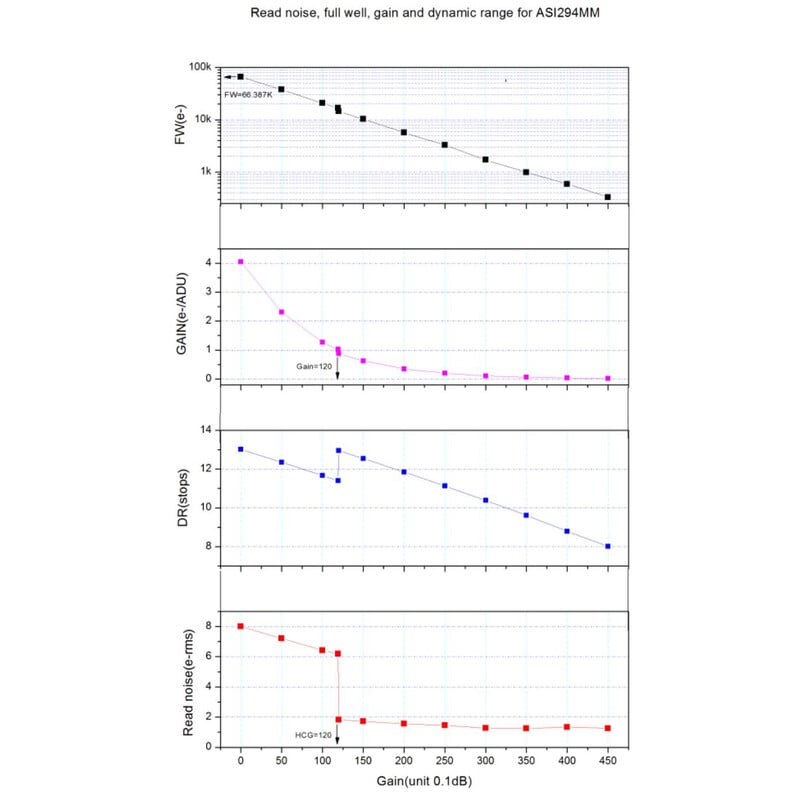

  • HCG mode - when gain (preamplification) is higher than 120 (12 dB), readout noise is reduced below 2 e-. Result: despite extremely high sensitivity you get low-noise images.
  • High Full Well Capacity - even bright stars no longer burn out, you get a better signal-to-noise ratio.

Camera application areas:

  • Deep sky imaging (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are imaged even with short exposure times. The camera can be cooled down to 35 °C below ambient. This further reduces the already low noise.
  • Lunar and planetary imaging: Extremely short exposure times due to high sensitivity freeze air turbulence. Due to the high resolution of the sensor, many details can be imaged even at shorter telescope focal lengths. Video astronomy is also possible.

Important: external power supply necessary! Please note that all ZWO cameras with cooler must be connected to an external 12V power supply to work. Even if the cooler is not used, the power supply must be present for the camera to be reliably detected.

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX492)
Size of chip (mm)
19.1 x 13.0
Chip - Diagonal (mm)
23.1
Megapixel
11,6
Pixel size
4,63
Resolution Photograph (Pixel)
4144 x 2822
Bit depth (Bit)
14
Active cooling
yes
Interfaces
USB 3.0 & USB 2.0
Connection (to the telescope)
1,25" & 2" & T2
Colour camera
no
Max. cooling difference below room temperature
35
Images per second
16,3 (at full resolution)
Reading noise
1,26 - 8
Full Well Capacity
66.000
Flange focal distance (mm)
6.5 / 17.5
Power supply
12
buffer memory (Megabyte)
256
Internal memory
DDR3 RAM

Equipment


Filter wheel
no

General


Weight (g)
410
Series
ASI 294
Diameter (mm)
78
Length (mm)
85

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Media (1)

Springer Inside PixInsight

$ 26.90*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 294 MM Pro Mono

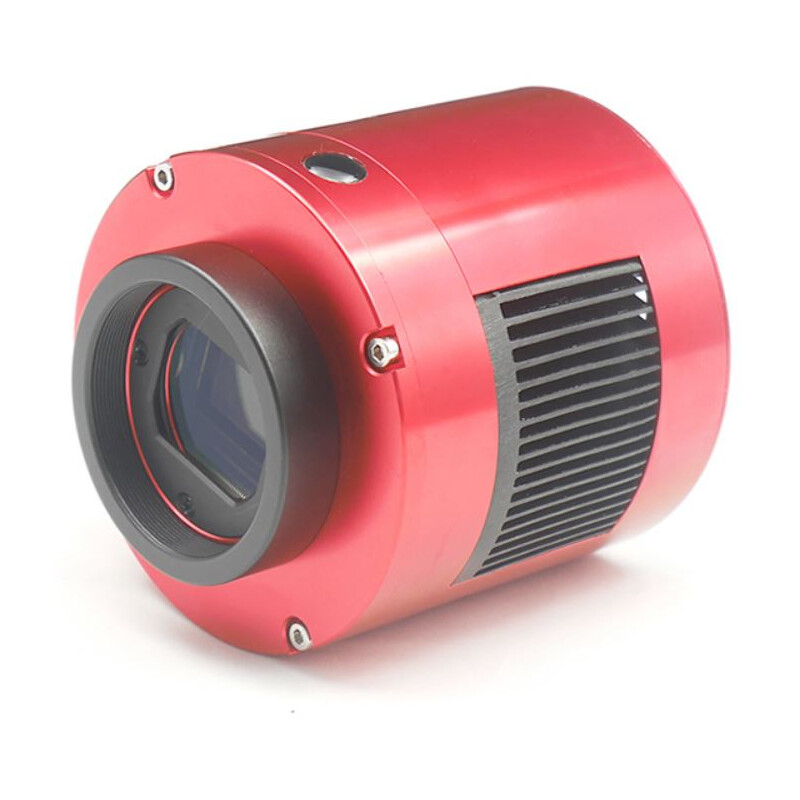

Overview
ZWO Camera ASI 294 MM Pro Mono

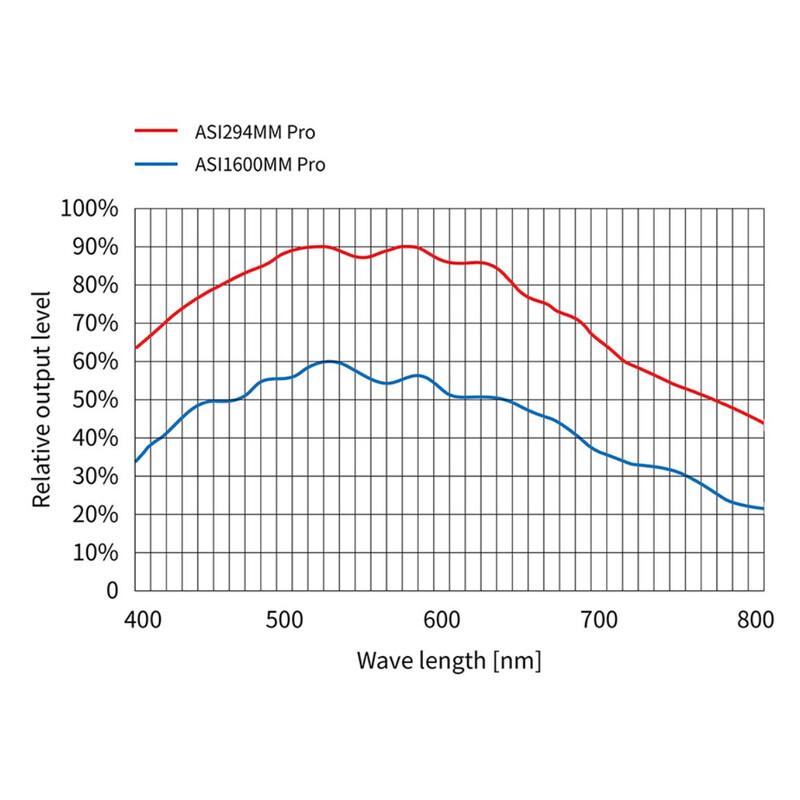

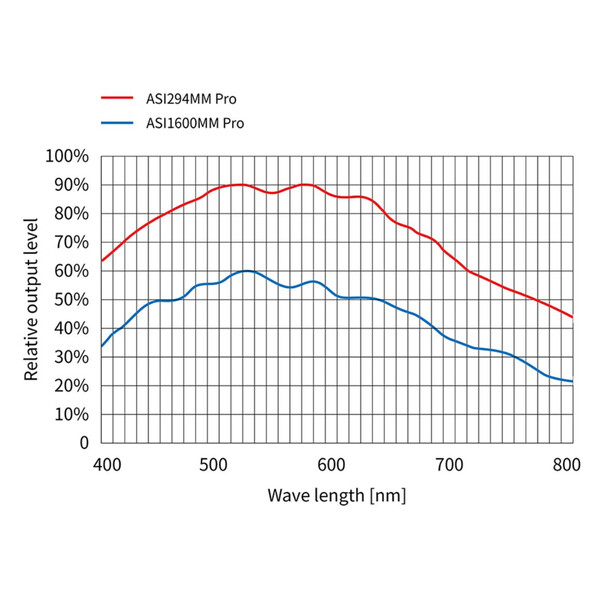

Quantal efficiency
ZWO Camera ASI 294 MM Pro Mono

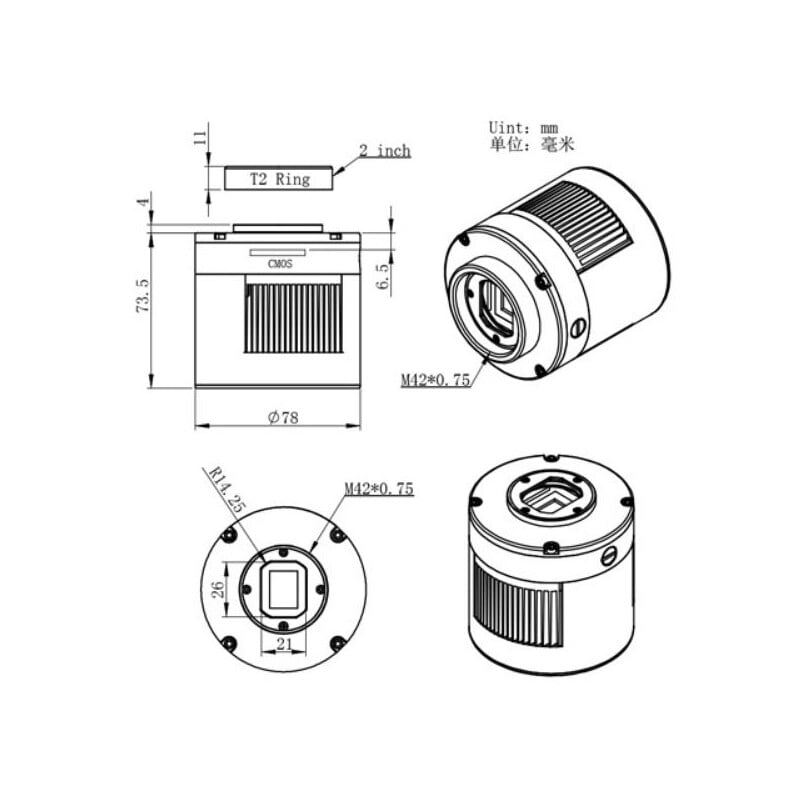

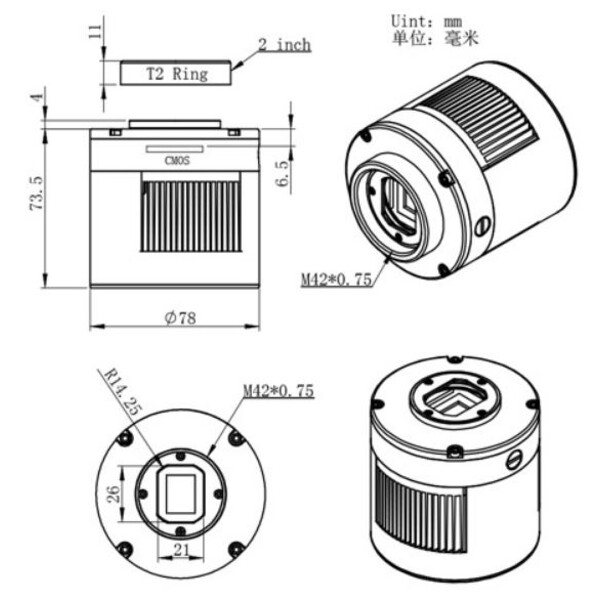

Dimensions
ZWO Camera ASI 294 MM Pro Mono

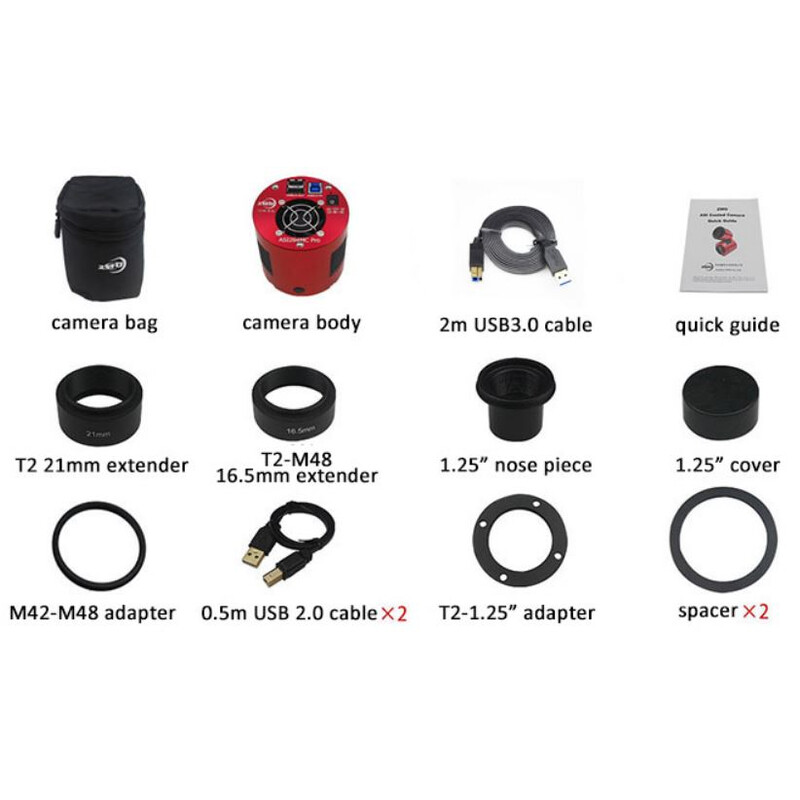

Scope of delivery
