Product no.: 77435

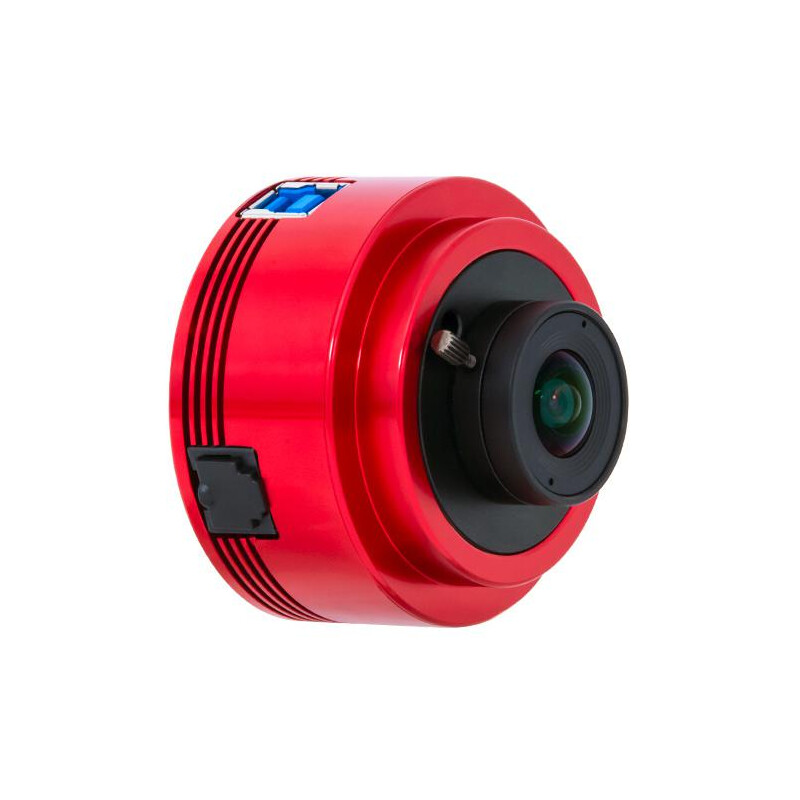

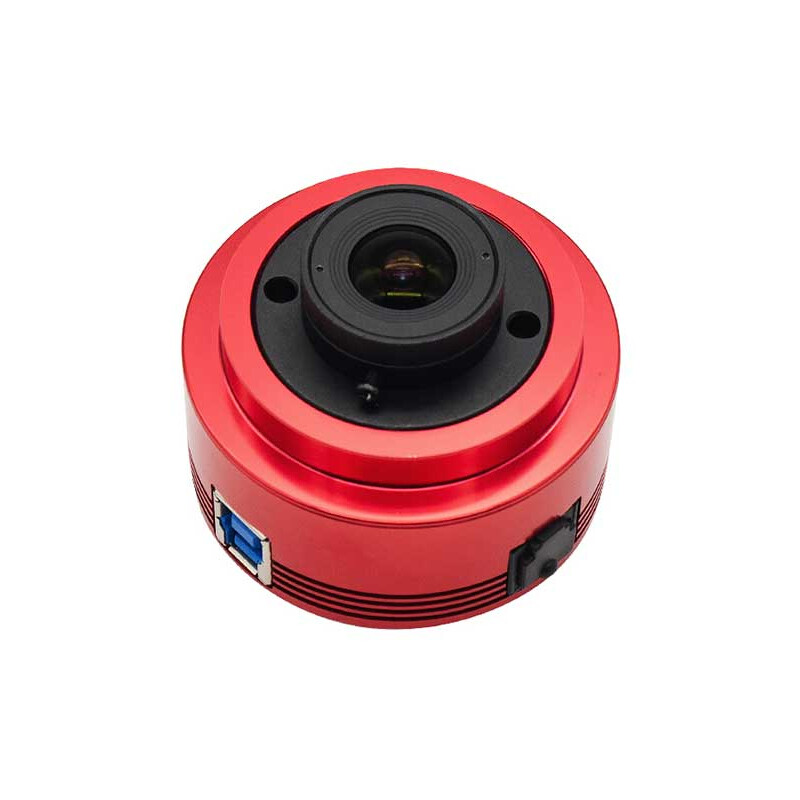

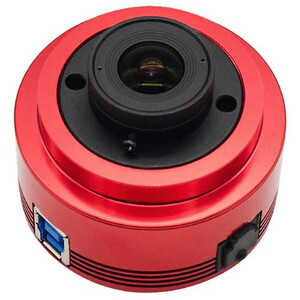

Camera ASI 462 MM Mono

RRP: $ 440.00 Our price:
$ 371.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Affordable and versatile black-and-white camera
  • Ideal for the Moon, planets and guiding
  • Excellent for infrared planetary photography

Product description

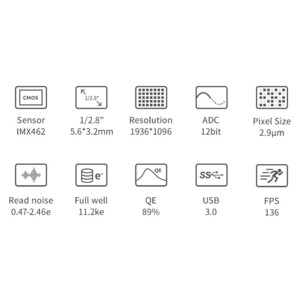

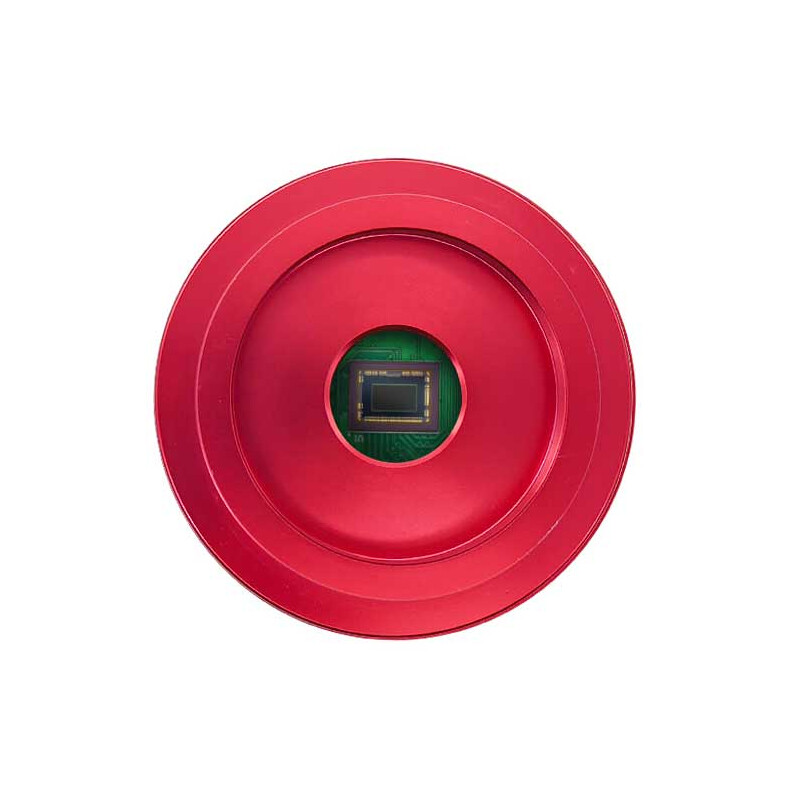

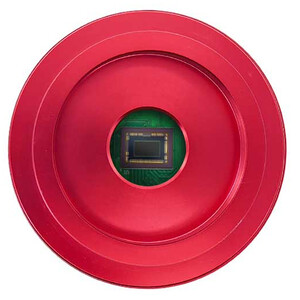

The ASI462MM is a black-and-white planetary camera that uses the 12-bit ADC sensor Sony IMX462 in 1/2.8" format. The pixel size of 2.9 µm allows a depth of 11.2 ke- with a total of 2.1 megapixels.

The camera is particularly powerful in the infrared range. With its high sensitivity, extremely low readout noise and very fast frame rate, this camera will deliver great performance for planetary, lunar and solar photography.

Like the other cameras, the ASI462MM impresses with its versatile application possibilities, such as:

  • Planetary photography – here, the extremely high frame rates help with data acquisition for stacking, while IR luminance images reduce the influence of air turbulence in every single image.
  • Moon photography – the features that are valued in planetary photography are also helpful when photographing details on the moon.
  • Sun photography (with suitable filtering!) – the high frame rate reduces the influence of air turbulence
  • Deep sky photography (the camera is uncooled, but the CMOS sensor offers good noise performance)
  • Autoguiding camera
  • Thanks to oaCapture, the camera can also be used with a Mac.

System requirements: USB 3.0 should be available and supported by the operating system. Support is available from

  • Windows 8
  • Mac OS X 10.8
  • Linux kernel 2.6.31

Scope of delivery:

  • camera
  • T2 adaptor (M42x0.75) to 1.25"
  • 1.25" cover
  • T2 adaptor to CS mount (already mounted)
  • Large field lens (already mounted)
  • USB 3.0 cable
  • ST4 cable
  • Quick start guide in English

Software and drivers are available for free download on the manufacturer's website: software drivers

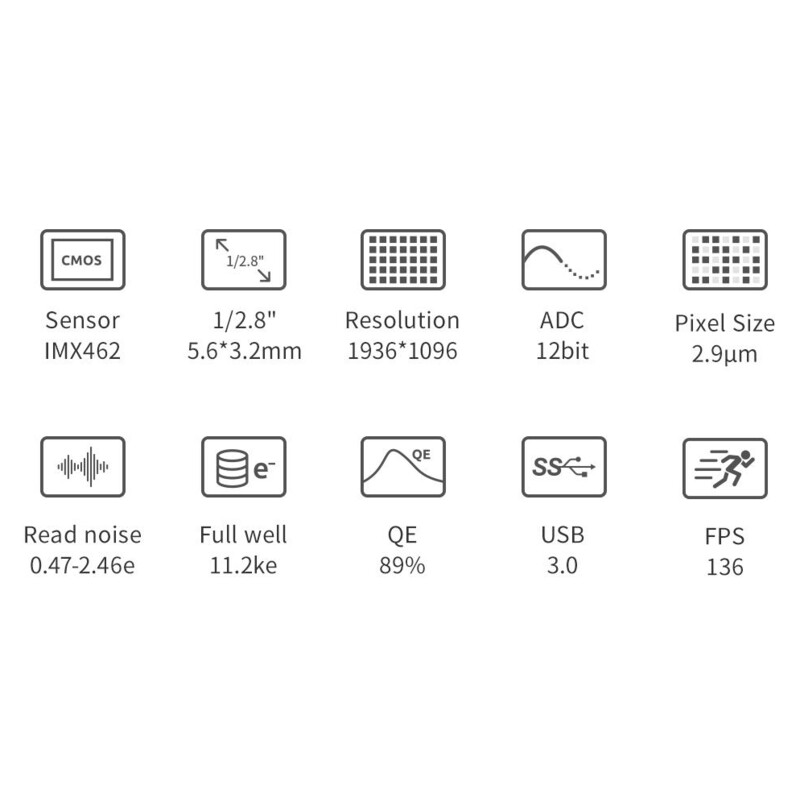

Specifications

Capacity


Sensor type
CMOS Chip (IMX462)
Megapixel
2,1
Resolution Photograph (Pixel)
1936 x 1096
Pixel size
2,9
Interfaces
USB 3.0
Bit depth (Bit)
12
Active cooling
no
Connection (to the telescope)
T2
Colour camera
no
Operating temperature
-5 - 45
Max. exposure time (min)
30
Min. exposure time
32 µs
Images per second
136 (at full resolution)
Quantal efficiency
89%
Size of chip (mm)
5,6 x 3,2
Chip - Diagonal (mm)
6,46
Full Well Capacity
11200
Reading noise
0,47-2,46
ROI support
yes
Flange focal distance (mm)
12,5
Shutter
Rolling Shutter

Special features


Autoguider interface
yes

Equipment


Filter wheel
no
Barrel adaptors
1,25"

General


Series
ASI 462
Weight (g)
110
Diameter (mm)
36
Length (mm)
61

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
no

Product safety

Manufacturer: Suzhou ZWO Co., Ltd., Moon bay road 6, SuZhou Industrial Park, 215123 SuZhou, CN, www.zwoastro.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (3)

Omegon ADC atmospheric dispersion corrector

$ 149.00*
Astronomy > Other (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*

*All prices include VAT plus shipping costs.

ZWO Camera ASI 462 MM Mono

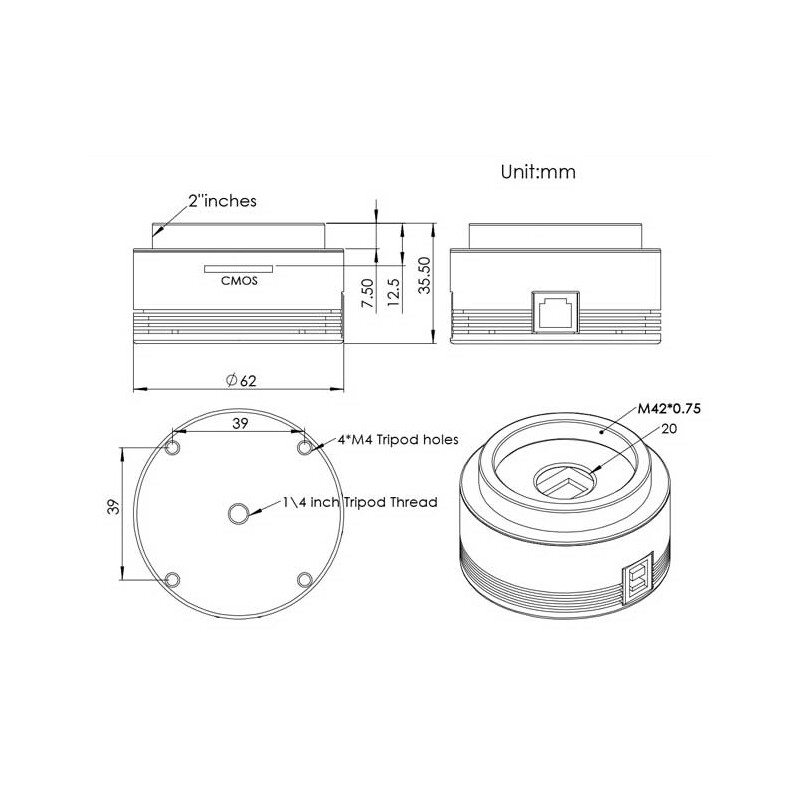

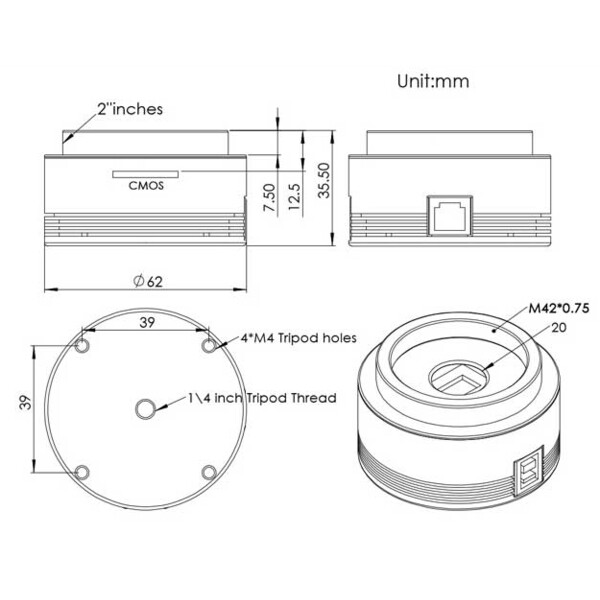

Dimensions
ZWO Camera ASI 462 MM Mono

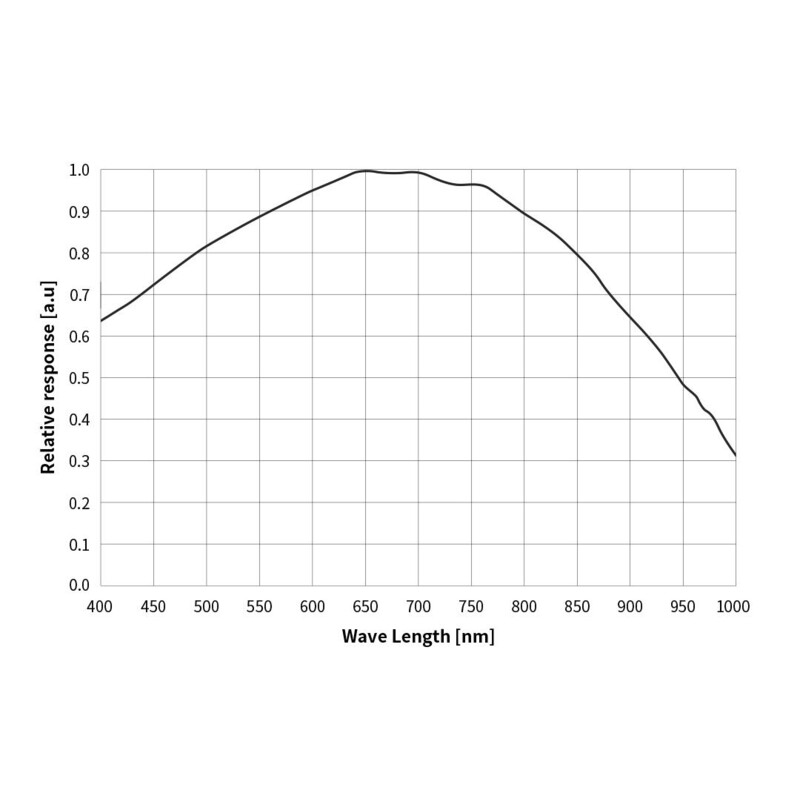

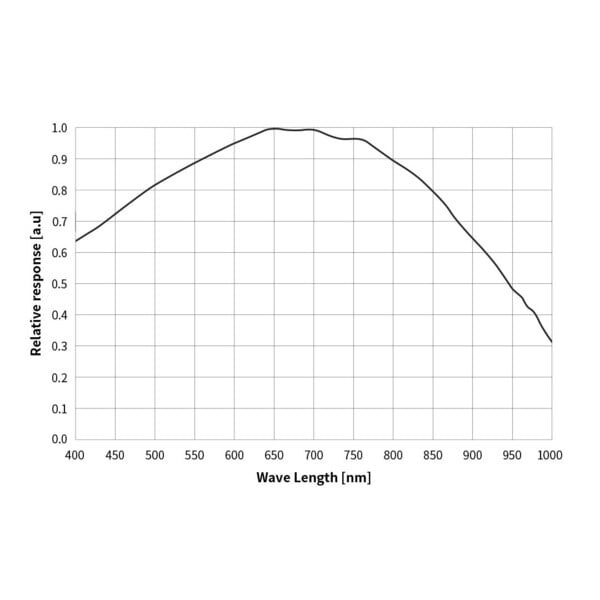

Quantum efficiency

ZWO Camera ASI 462 MM Mono

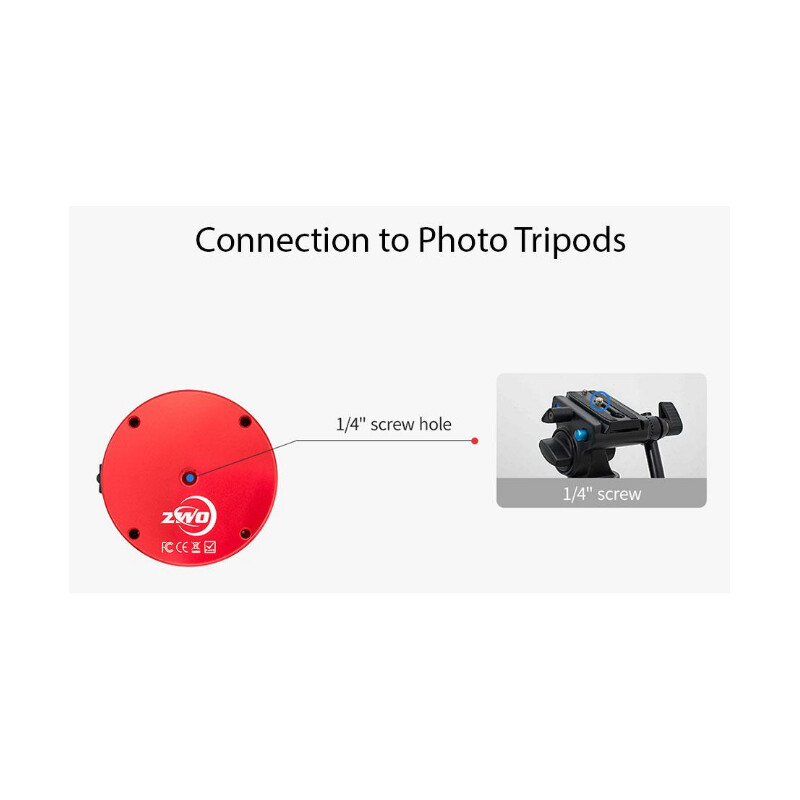

Tripod thread 1/4"
