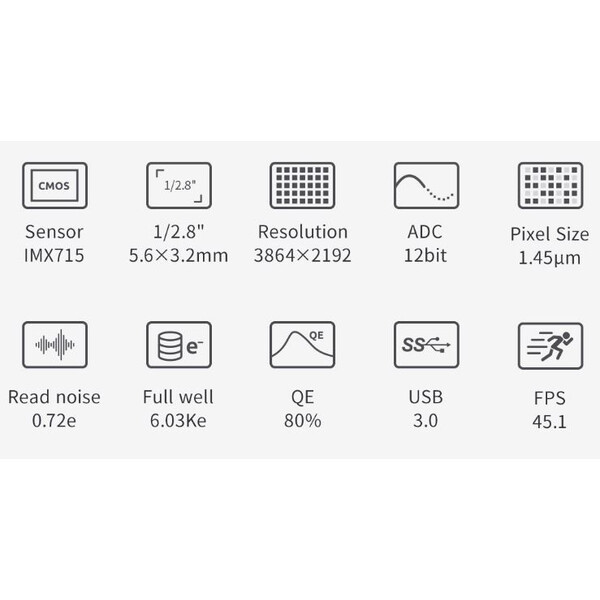

This camera is equipped with the modern Sony IMX715 sensor. In addition to Starvis 2 technology (back illumination), the IMX715 offers an extremely smooth image without amplifier glow, but its most impressive feature is its very high resolution of 1.4 µm pixels. This makes the camera particularly suitable for high-resolution photography directly in the focus of telescopes without focal length extension (e.g. Barlow lenses).
The clear glass filter prevents dust from entering the sensor. It also allows UV and infrared light to pass through, so that the ASI715MC can also be used for infrared photography.

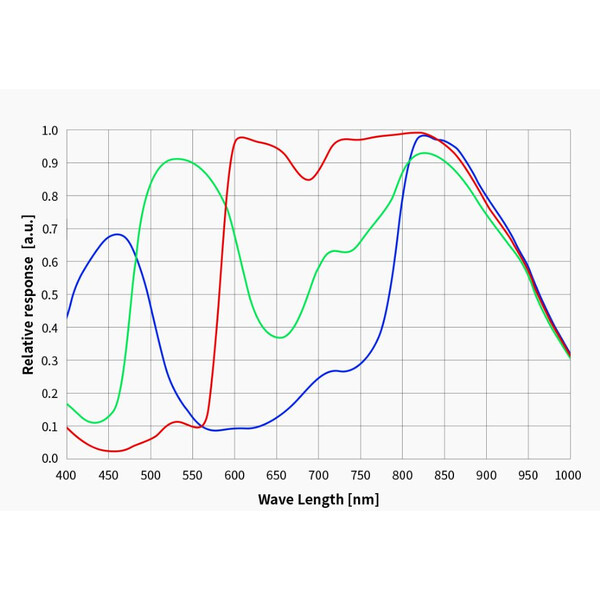

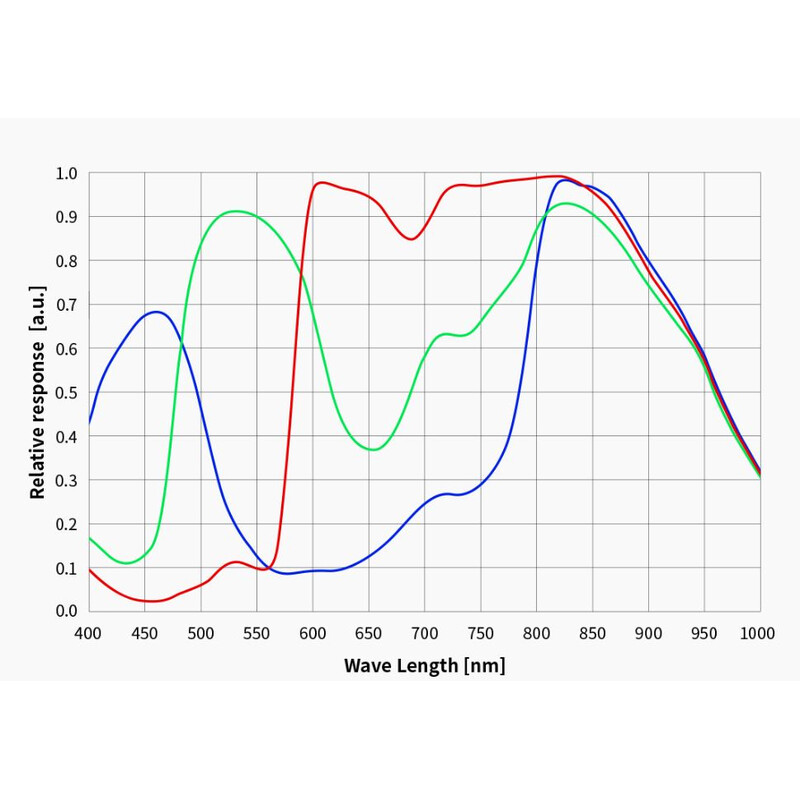

The comparatively small sensor, extremely low readout noise, high sensitivity in the near IR range and high frame rate make this camera a good choice for ambitious planetary photographers! You can achieve very high light yield in astrophotography and high image quality not only in visible light but also in the near infrared range (to improve seeing).
Although the ASI 715MC is an uncooled camera, the innovative integrated PCS dissipates heat from the sensor to the outside via a heat conduction pad. This reduces the sensor temperature by up to 15 degrees Celsius compared to other cameras without PCS!
One advantage of the back-illuminated CMOS sensor is the significantly lower readout noise and improved sensitivity. You can achieve very high light efficiency in astrophotography and high image quality not only in visible light but also in the near infrared range (to reduce seeing). In addition, the low readout noise and high full-well capacity ensure a wider dynamic range.
The low noise and anti-amp glow circuitry also make this camera interesting for capturing small deep sky objects.

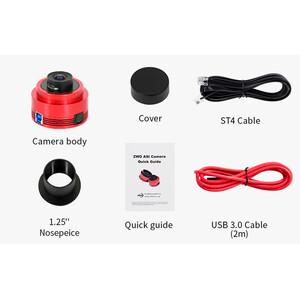

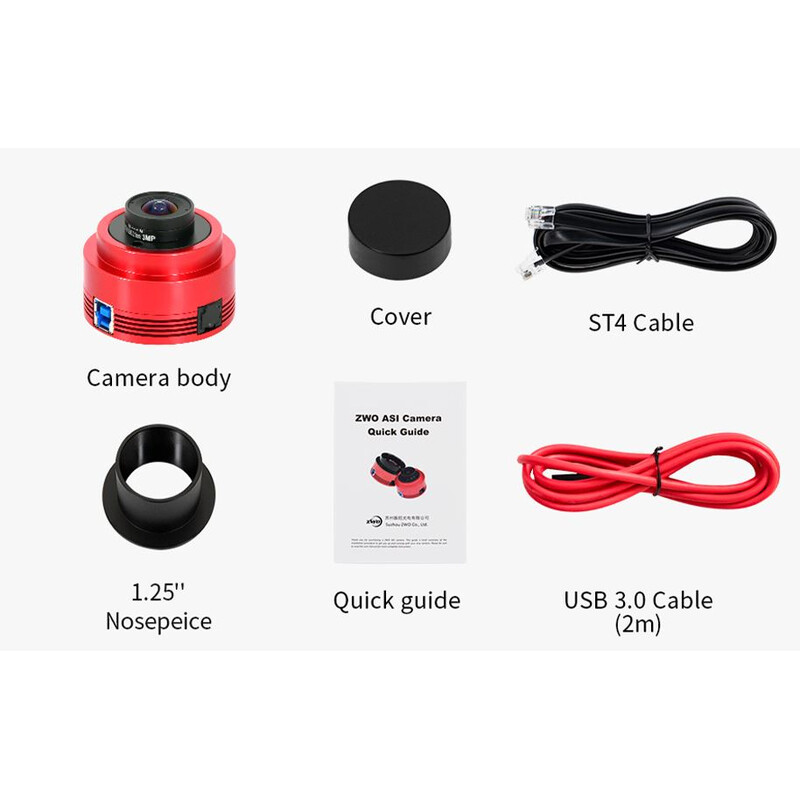

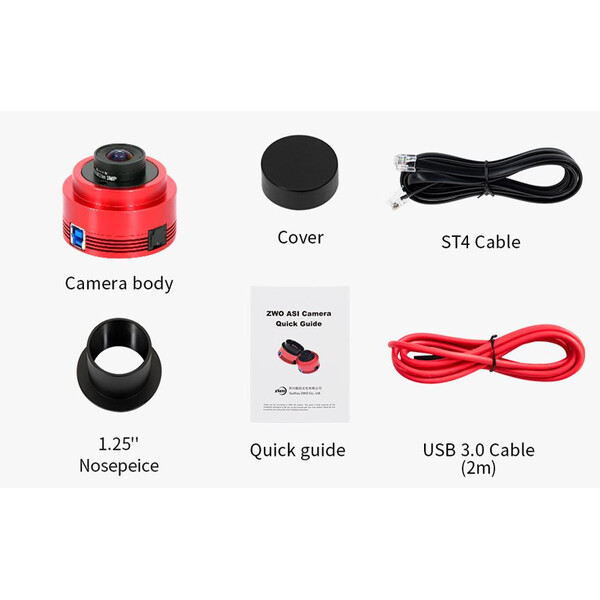

Scope of delivery:
ASI camera

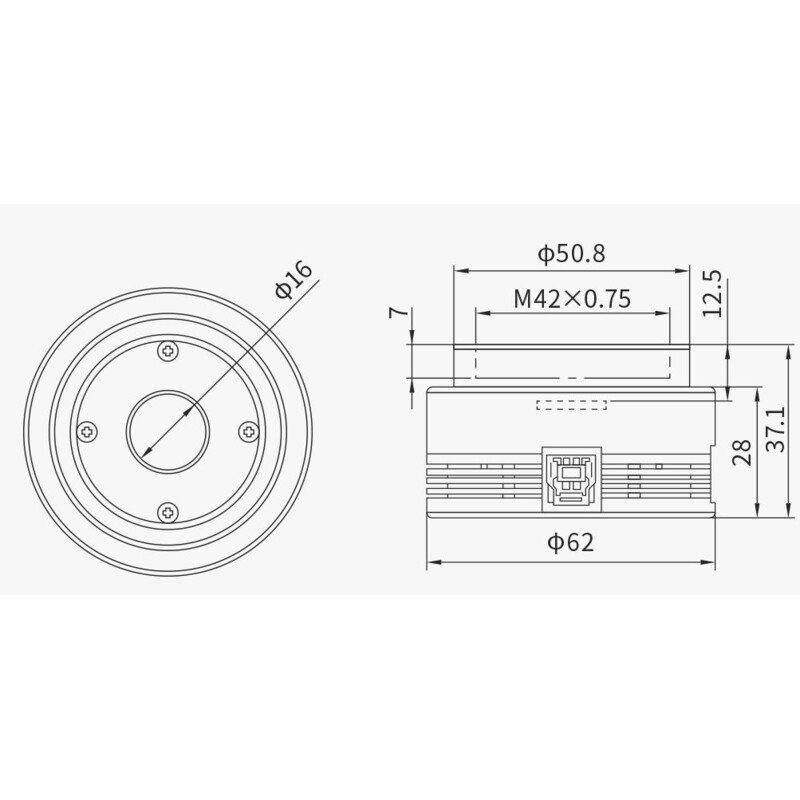

Adaptor T2 (M42x0.75) to 1.25"
1.25" cover
Adaptor T2 to CS mount (mounted)
Large field lens (mounted)

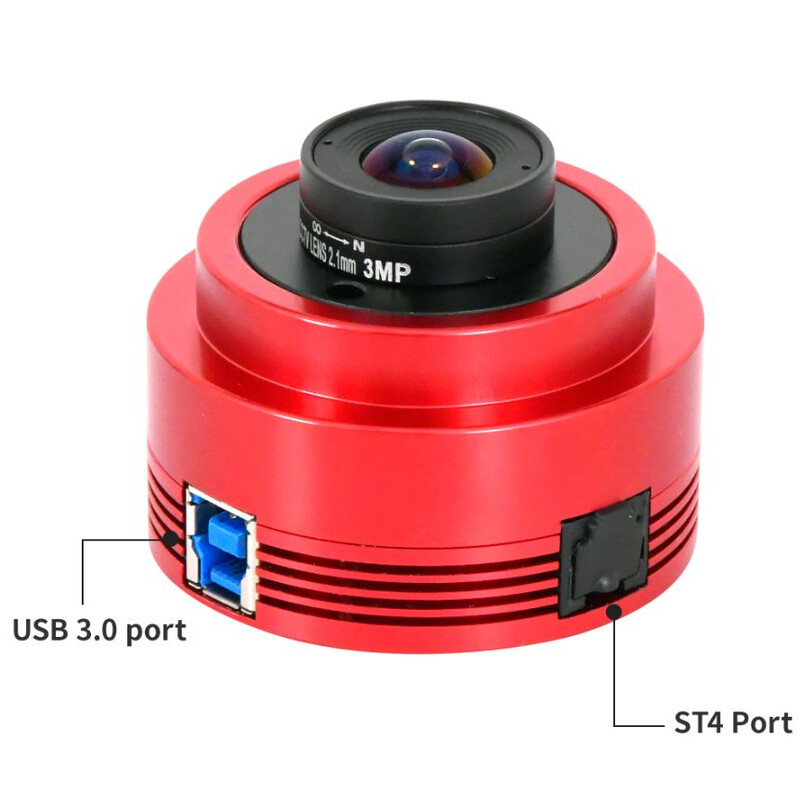

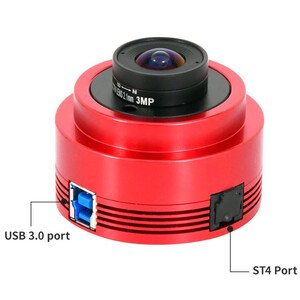

USB 3.0 cable
ST4 cable
Quick start guide (in English)
