Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Bresser > Erudit > Bresser Microscope Erudit Basic, mono, 40x-400x
Product no.: 52986

Microscope Erudit Basic, mono, 40x-400x

$ 217.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Erudit...

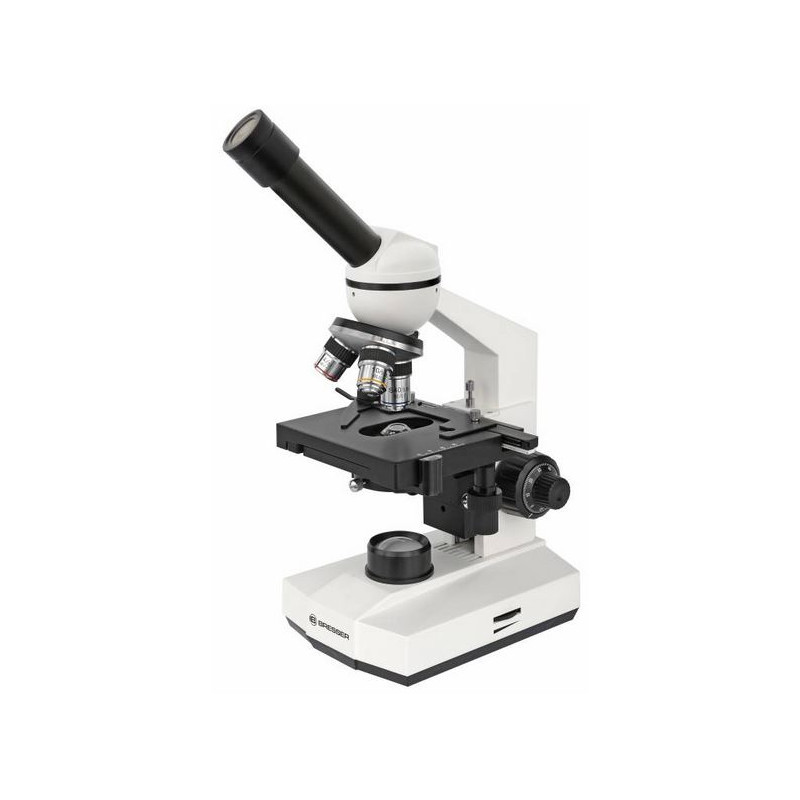

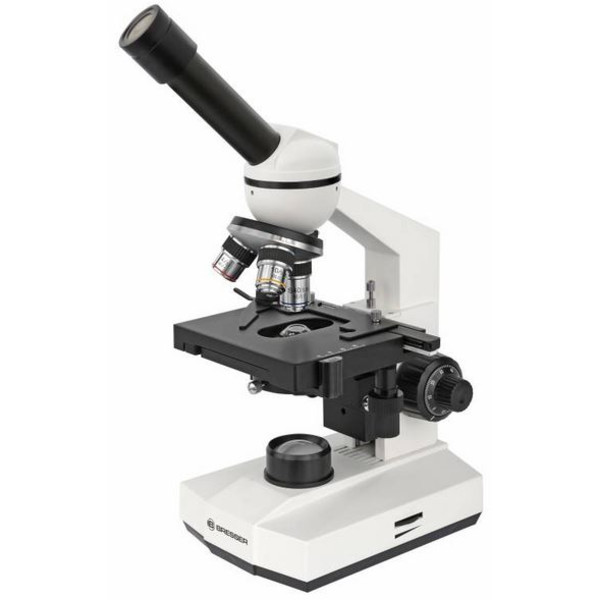

Erudit Basic Mono 40x-400x microscope

The BRESSER Erudit Basic Mono is a versatile biological microscope. With its high quality optics it is the perfect choice for use in school or hobby. With battery powered LED lighting it can be used anywhere, e.g. for fieldwork or excursions.

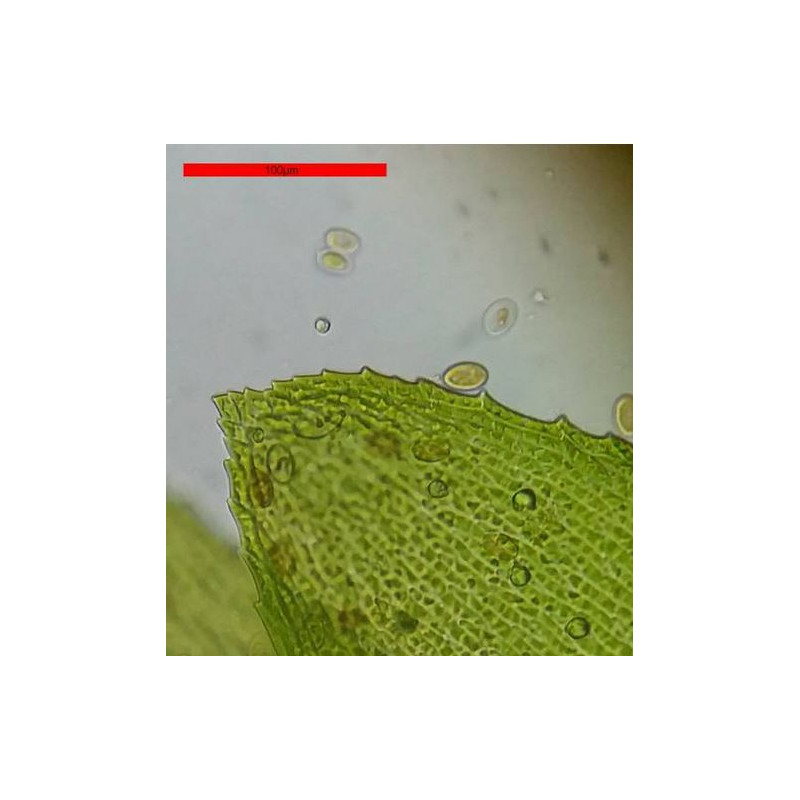

The microscope can be used on a great variety of subjects, for example thin sections, pond life, or blood smears. It is also a useful tool to look at parasites of pets and livestock (coccidia, helminths, skin and fur parasites).
Three magnifications (40x, 100x, 400x) deliver good resolution to see small details. There is no need to work with immersion oil. The achromatic DIN objectives deliver sharp images with nice detail. The 40x objective is spring loaded to minimize the risk of damage to specimen or objective.

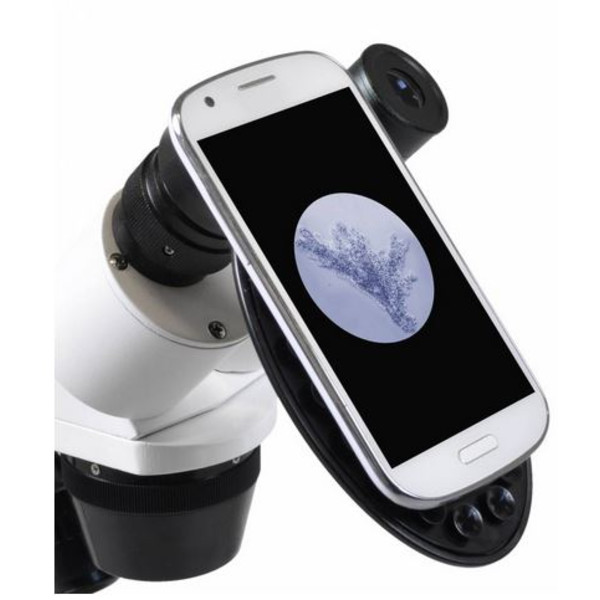

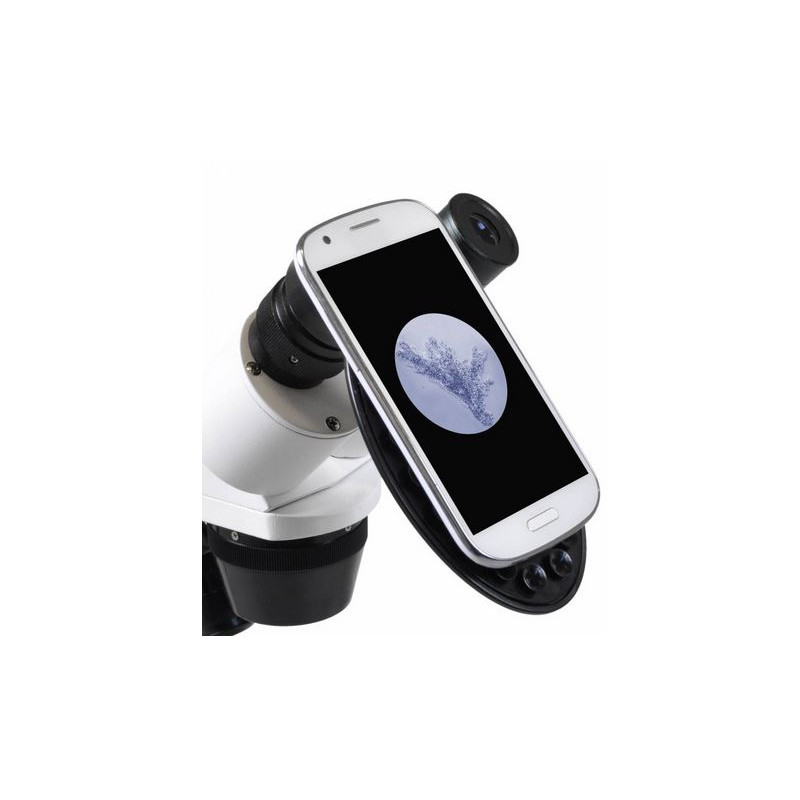

The BRESSER Erudit Basic mono comes with a sturdy case for transport and storage, as well as with a smartphone holder for easy and convenient documentation of microscopic images and video.

FEATURES

  • Type: Biological microscope, transmitted light
  • Application: Biology
  • Battery powered long life LED light for mobile use
  • Coarse and fine focus, coaxial
  • Coaxial mechanical desk
  • Adjustable Abbe condenser with diaphragm and filter holder
  • Comfortable eyepiece tube, 360° rotatable
  • Sturdy carry case

SPECIFICATIONS

  • Magnifications: 40x, 100x, 400x
  • Achromatic DIN-Objectives
  • Eyepiece barrel diameter 23,2mm, field number 18mm
  • Battery powered LED light

SCOPE OF DELIVERY

  • Microscope body with LED light
  • WF 10x eyepiece
  • Achromatic DIN-Objectives (4x, 10x, 40x)
  • Abbe-Condenser N.A. 1,25, adjustable, with diaphragm and filter holder

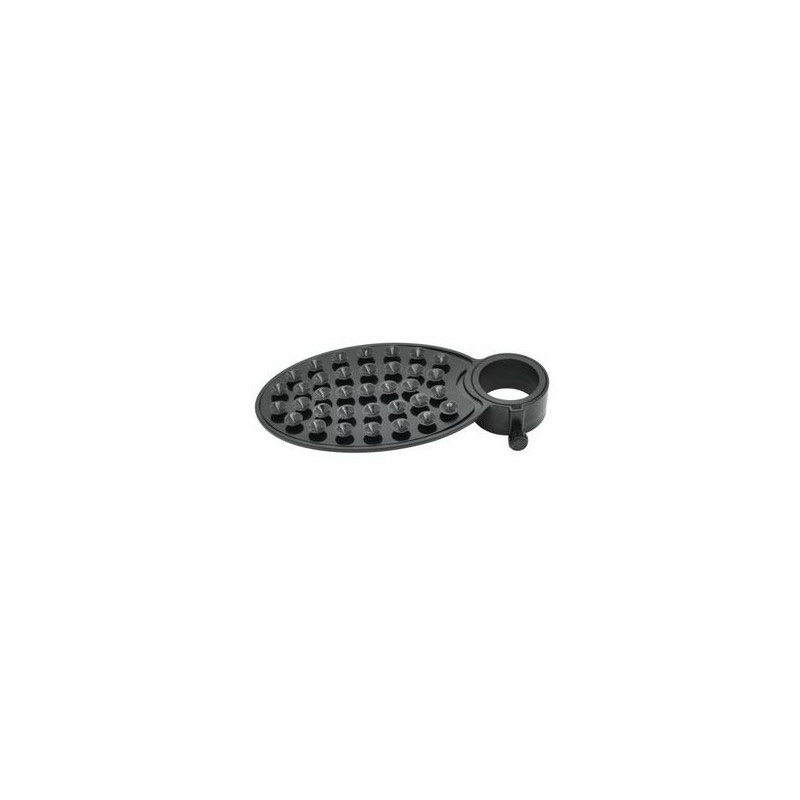

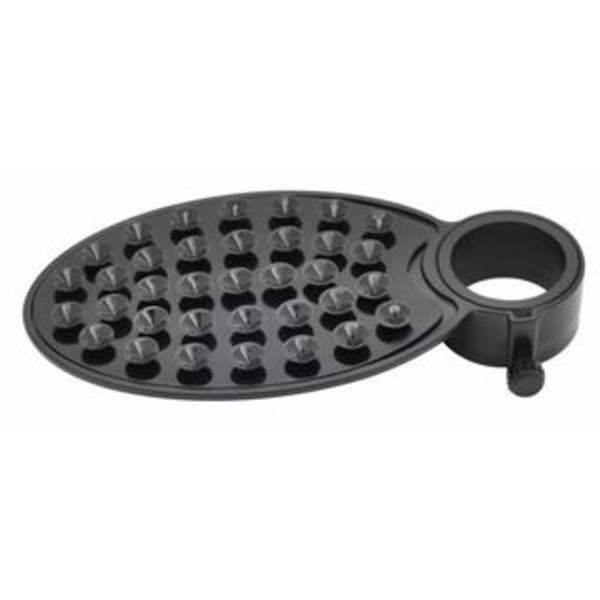

  • Smartphone holder

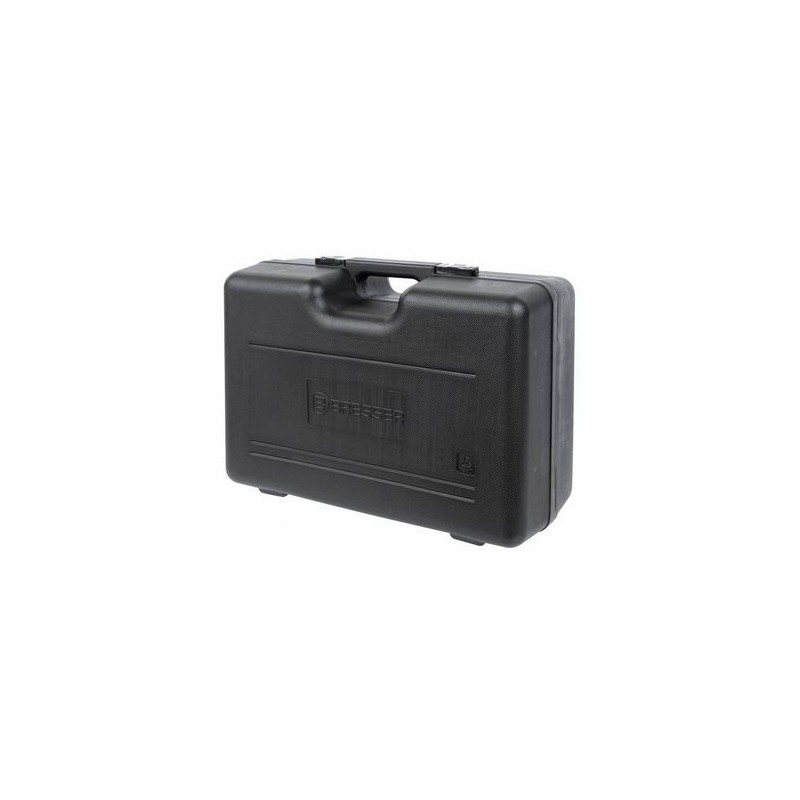

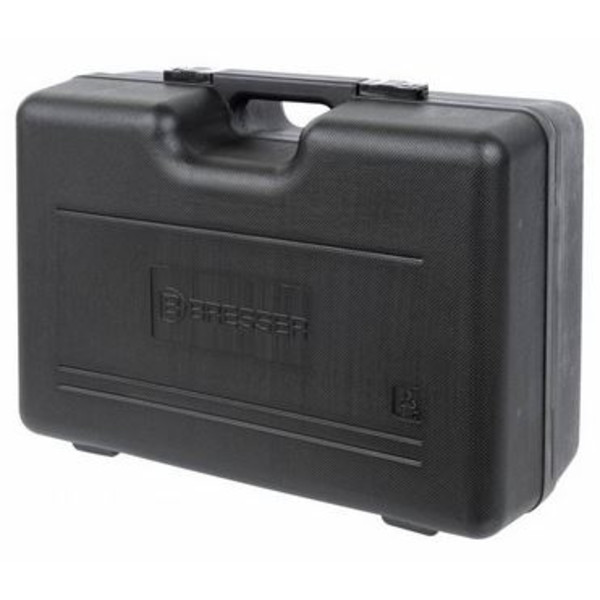

  • Carry case
  • Box with preparations, empty slides and cover glasses

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED (6V/20W, continuously adjustable)
Magnification
40,100,400
Image scale
4,10,40
Eyepiece
10 (Extra wide-field eyepiece)
Condensor
Abbe (height adjustable)
Lens type
Achromatic
Power supply
Power plug
Optical system
DIN (160mm)

Capacity


brightfield
yes

Mechanics


Specimen stage
Cross table (with vernier scale)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement (coaxial)
Type of build
Monocular

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
yes
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Colour
beige-black
Series
Erudit
Suitable from
12
Length (mm)
225
Width (mm)
345
Height (mm)
175
Weight (g)
2400

Suitable for


Pros
-
Beginners
yes
Advanced
yes

Field of application


Education
yes

Area of application


Phase contrast
-
Polarization
-
Fluorescence
-
Dark field
-
Interference contrast
-
Metallurgy
-
school
yes
kids
yes
