Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Euromex > MicroBlue > Euromex Microscope MicroBlue, MB.1001-LCD, 5.6 inch LCD screen, Achr. 4/10/S40x Lenses, DIN 35mm perf., 40x - 400x, LED 1W, simple specimen stage
Product no.: 74109

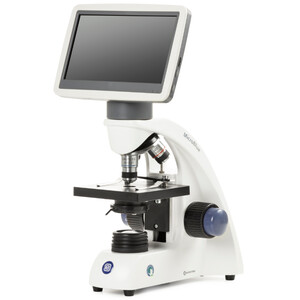

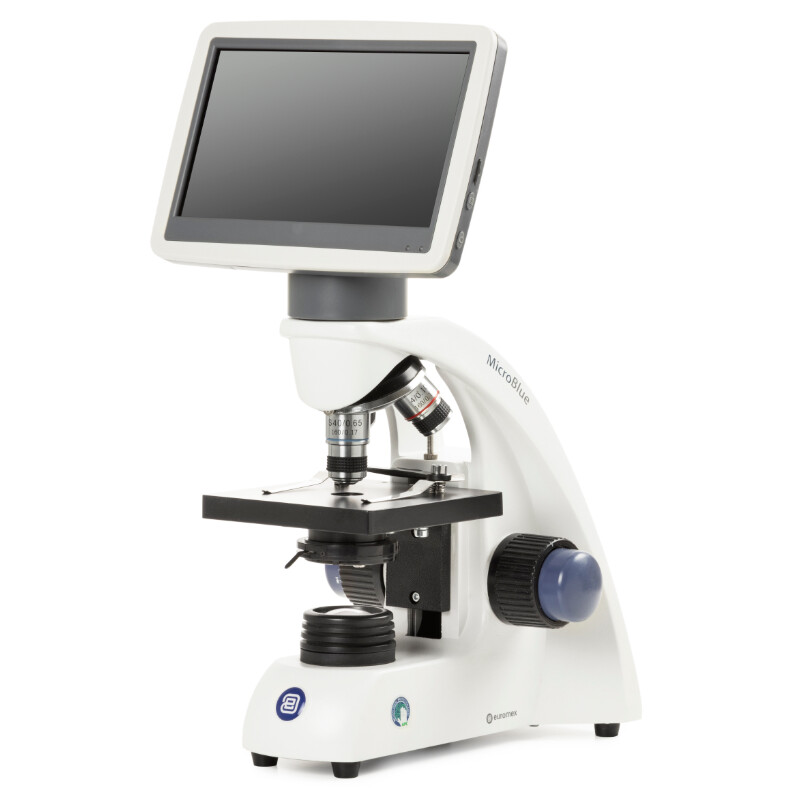

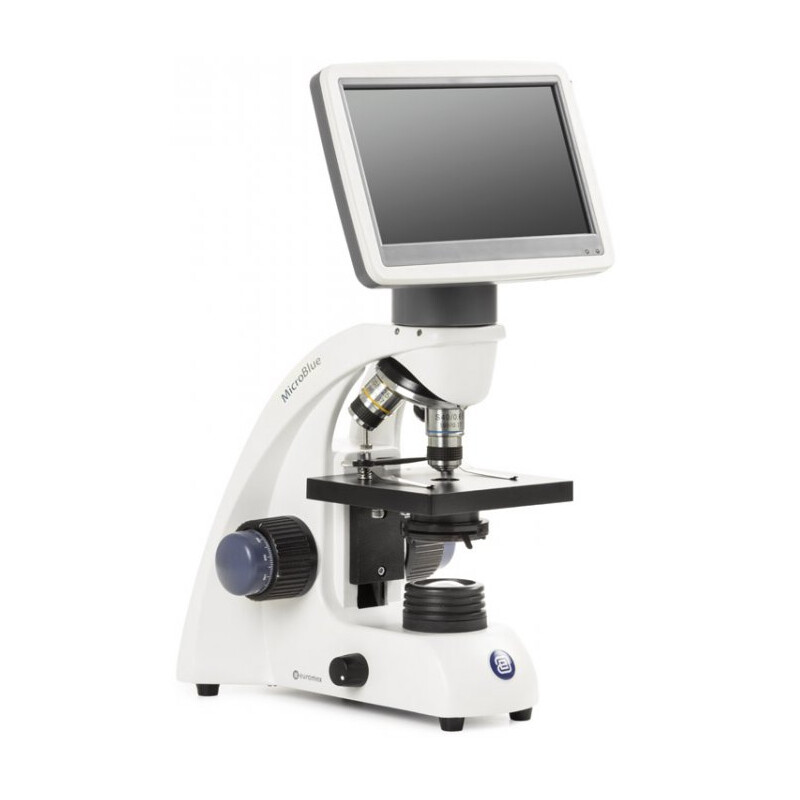

Microscope MicroBlue, MB.1001-LCD, 5.6 inch LCD screen, Achr. 4/10/S40x Lenses, DIN 35mm perf., 40x - 400x, LED 1W, simple specimen stage

$ 600.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series MicroBlue...

MicroBlue with LCD screen

The modern microscopes of the MicroBlue series have been specially developed for education and schools. Microscopes for teaching must be easy to use and withstand intensive use.

The MicroBlue is an entry-level microscope and is particularly appreciated when the budget is limited. The basic model has a fixed lens condenser and a simple stage. The models with integrated mechanical stage are supplied with an Abbe condenser. All models are equipped with 35 mm achromatic lenses. The built-in rechargeable batteries allow cordless operation. The eyepieces are secured for use in the classroom and the microscope is equipped with an integrated table lock to prevent damage to lenses or specimens. The DIN WF 10x/18 eyepieces offer the ideal field of view. The monocular model MB.1001 has an inverted triple lens turret, while the other models have a quadruple lens turret. All models are equipped with parfocal 35 mm lenses, 4x/0.10, 10x/0.25 and S40x/0.65 as standard. When changing the magnification, the image remains centred so that the specimen is always perfectly illuminated.

APL (Anti-bacterial Protection Layer) is a revolutionary colour treatment for the most critical parts of the products. A microscope with APL significantly reduces the growth of bacteria and mould.

The entry-level models MicroBlue MB.1001 and MB.1001-LCD feature a simple 105 x 105 mm stage with 2 specimen clamps. The other models are equipped with a 115 x 100 mm microscope stage with integrated 30 x 70 mm X-Y cross table.

  • Standard 10x/18 wide-field eyepieces
  • Ball bearing turret for 3-4 lenses
  • Parfocal 35 mm lenses: 4x/0.10, 10x/0.25, S40x/0.65 (S40x spring-loaded)
  • All optics are anti-fungus treated
  • Microscope stage with locking mechanism to prevent damage to lenses and specimens
  • Coaxial coarse and fine adjustment, friction adjustment
  • 200 μm fine adjustment, 2 μm accuracy, 3 mm per revolution, spring travel approx. 15 mm
  • Fixed N.A. 0.65 condenser with iris diaphragm for models MB.1001 and MB.1001-LCD
  • All other models: height-adjustable N.A. 1.25 Abbe condenser with iris diaphragm
  • LED lighting, adjustable with rechargeable batteries and integrated power supply
  • Ergonomic carrying handle
  • Scope of delivery: Dust cover, charger, white filter and operating instructions

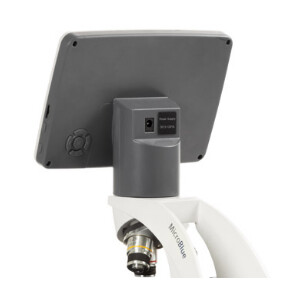

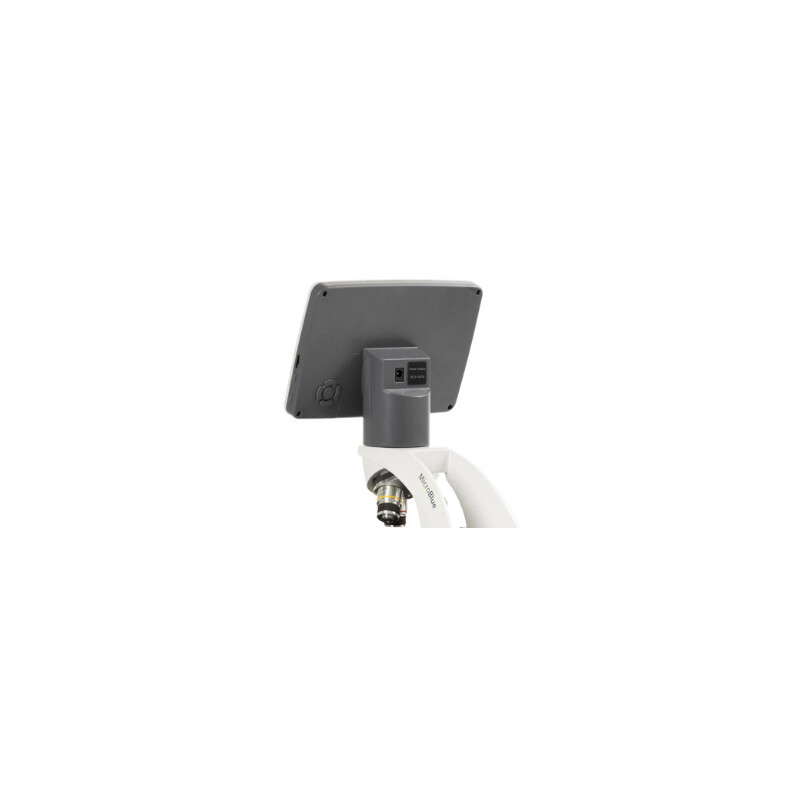

MODELS WITH LCD SCREEN

• 7" IPS LCD screen

• Screen resolution 1920 x 1080 @ 30 fps

• Save images and videos directly to a micro SD card

• Image resolution up to 1844 x 1080 in JPEG format

• Video resolution 1280 x 720 in AVI format

• Basic measurement function (line) with calibration. Object micrometer for calibration available as an option

Specifications

Optics


Image scale
40-400
Lamp type
LED
Lens type
Achromatic
Eyepiece
10x/18 (Widefield)
Magnification
40-400
Condensor
Abbe Kondensor N.A 0,65 mit Irisblende
Optical system
DIN (160mm)
Objective 1
4x/0,10
Objective 2
10x/0,25
Objective 3
40x/0,65 S gefedert
Suspension
yes

Capacity


Brightness control
yes
brightfield
yes
LCD screen
7
Coating of optical system
without
Video function
yes

Mechanics


Type of build
Digital
Focusing
Coarse and fine movement
Specimen stage
Specimen stage

Special features


Rechargeable battery operation
yes
Dust cover bag
yes

General


Series
MicroBlue

Field of application


Medicine
-
Education
yes
Hobby
yes

Area of application


Parasite analysis
yes

Miscellaneous


supplier product number
MB.1001-LCD

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
