Product no.: 73330

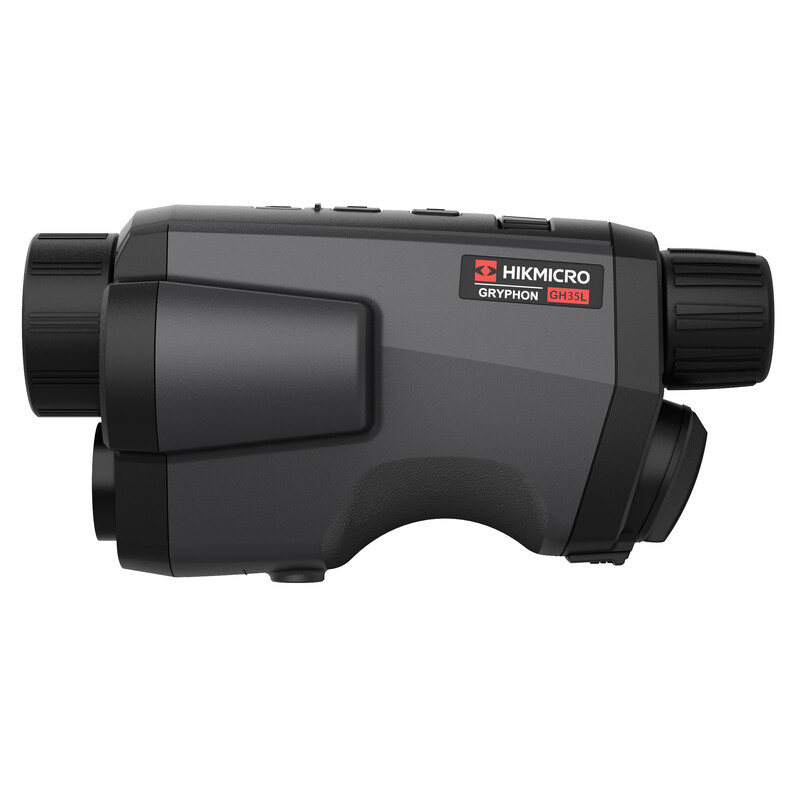

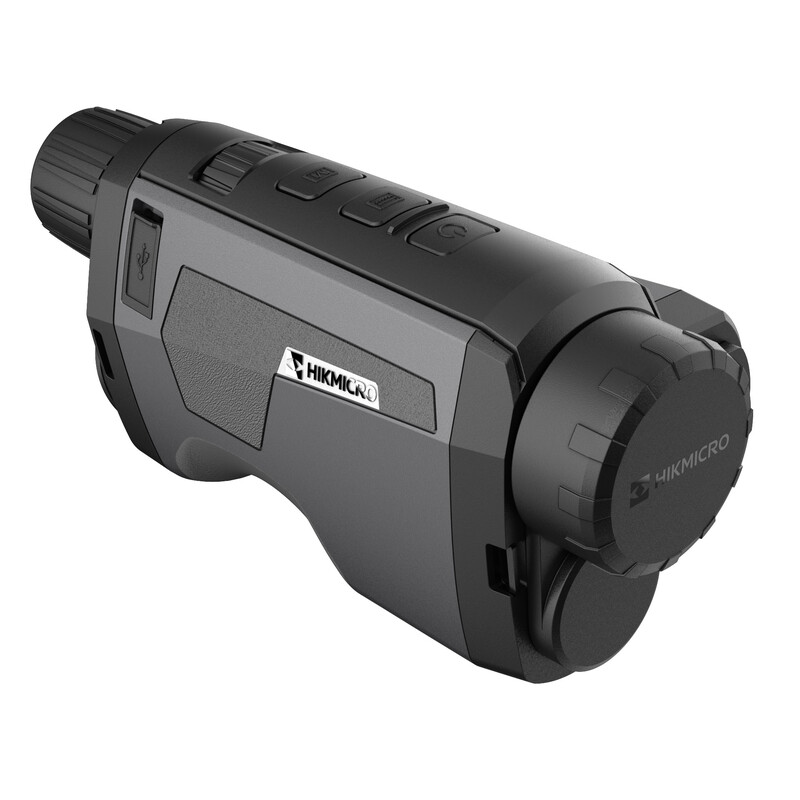

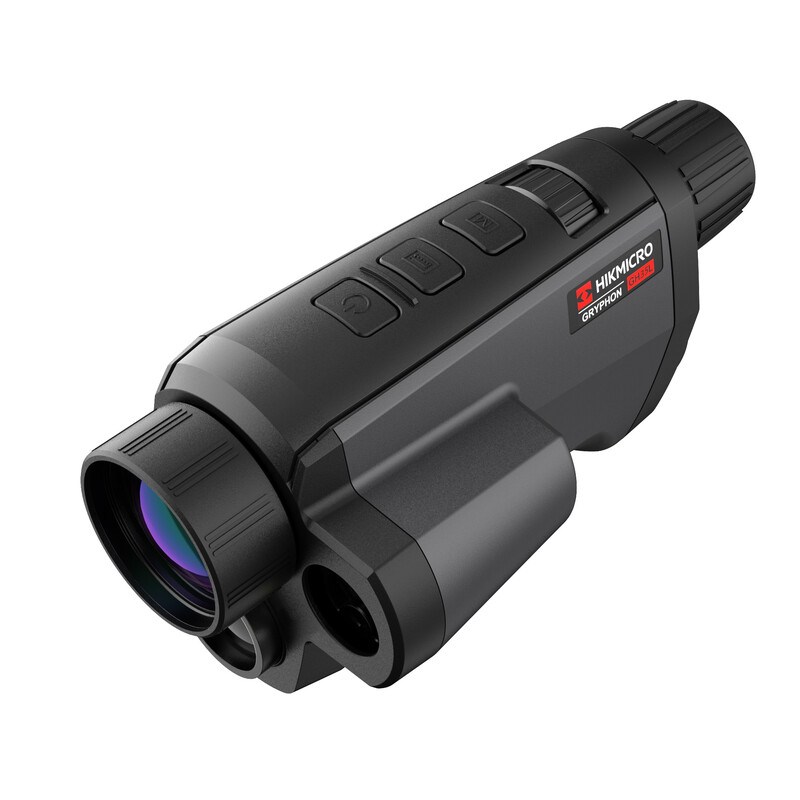

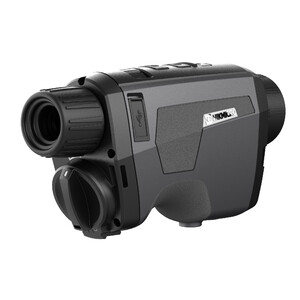

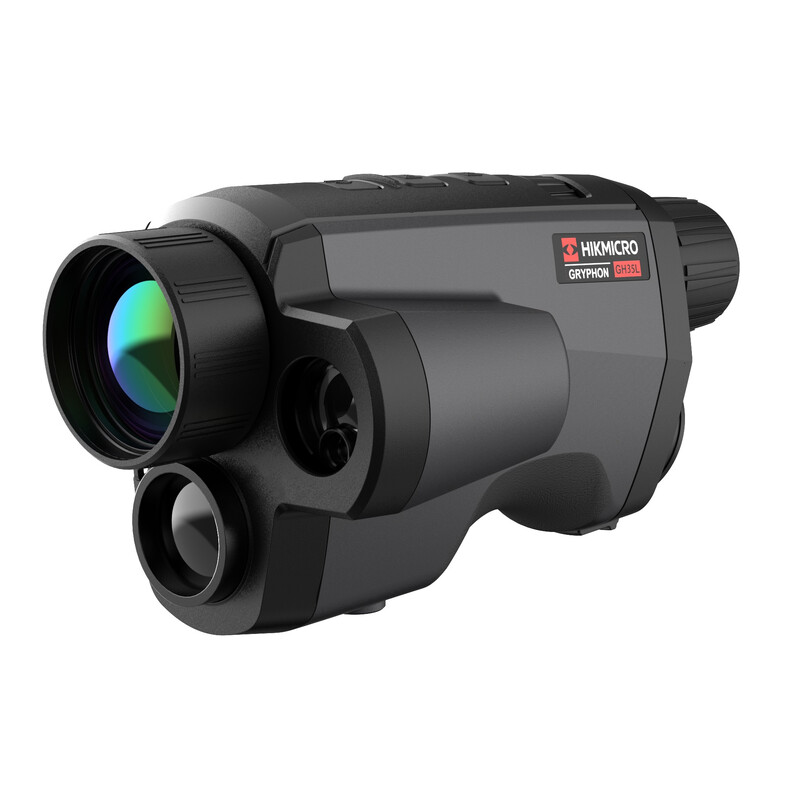

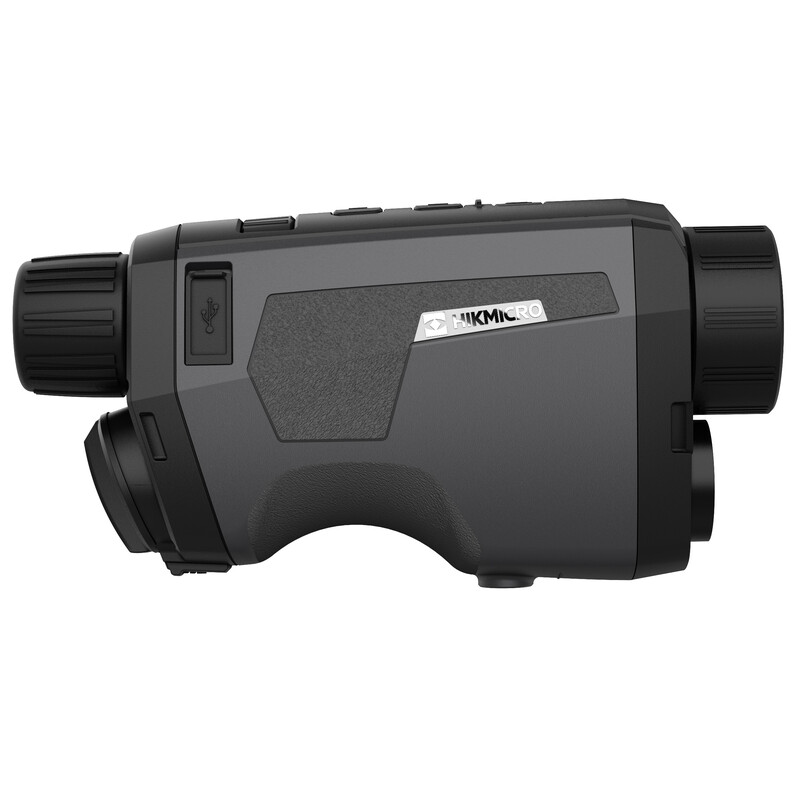

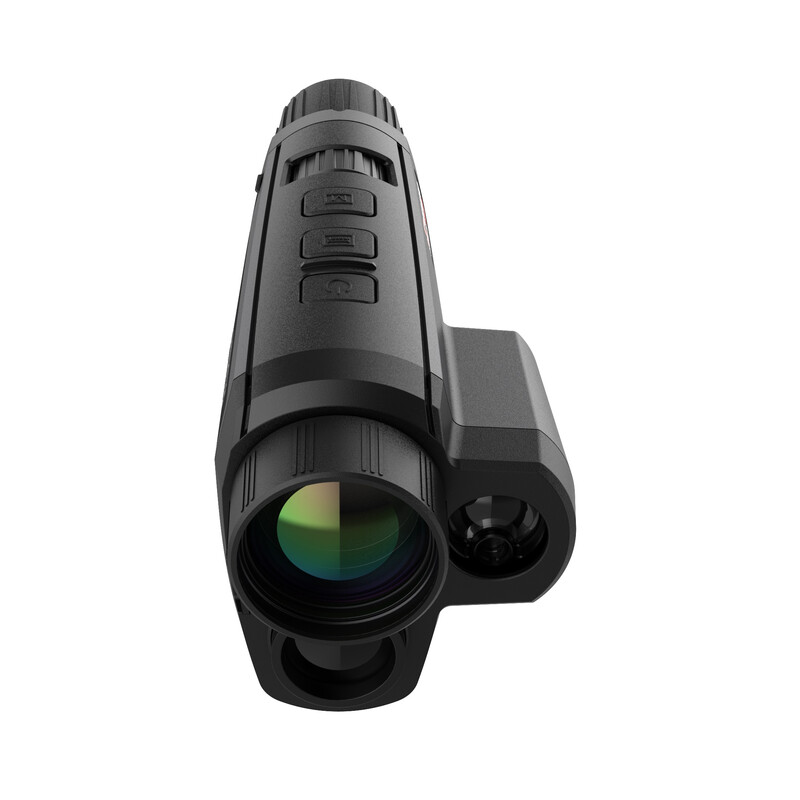

Night vision device Gryphon GH35L

RRP: $ 2,270.00 Our price:
$ 2,200.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Thermal imaging, digital night vision & laser rangefinders
  • Replaceable battery (2x included)
  • WiFi, USB Type-C interface & 16 GB EMMC memory
  • Self-developed image algorithm for a clear and detailed image

Product description

HIKMICRO GRYPHON LRF
The combination of thermal imaging, digital night vision and laser rangefinders makes this device a true allrounder.

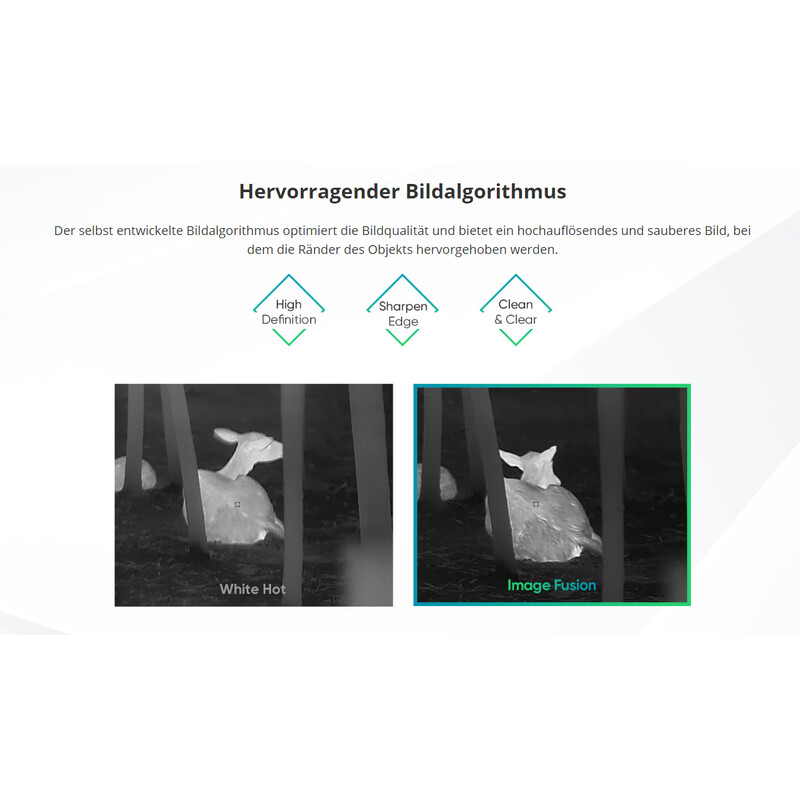

Excellent image algorithm
The proprietary image algorithm optimises image quality and provides a high-resolution, clear image that highlights the edges of the object.

The combination of thermal imaging, digital night vision and laser rangefinders make the GRYPHON LRF a true allrounder.

  • Specially developed image algorithm for a clear and detailed image, highlighting the contours of targeted objects

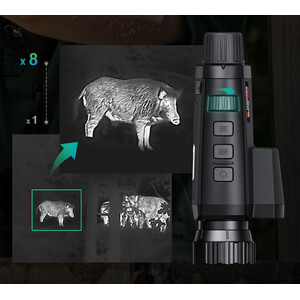

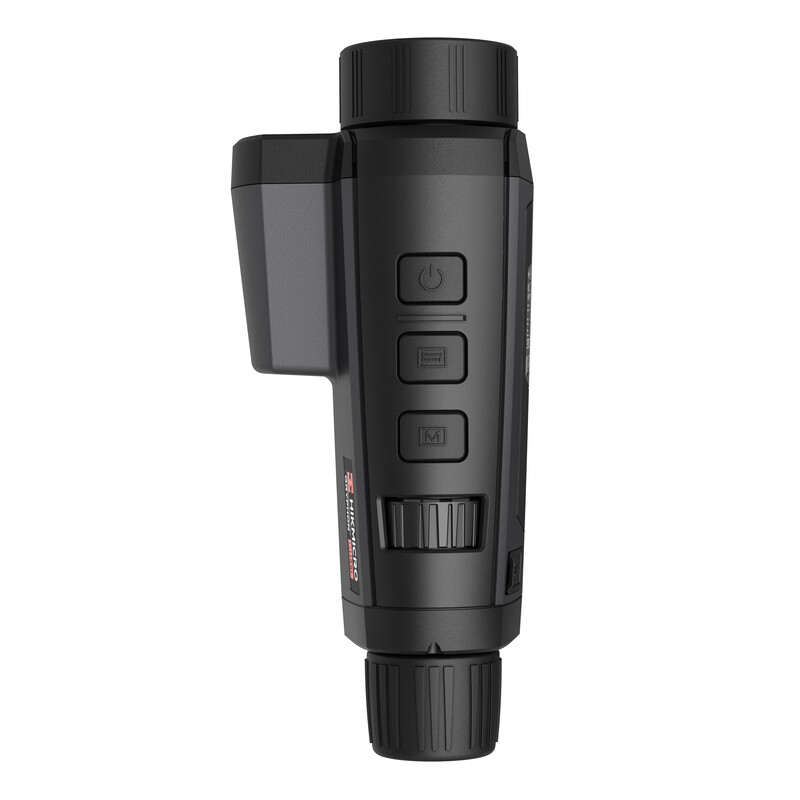

  • Innovative controls via a zoom wheel, which also serves as the menu selection
  • Advanced VOx 12 µm image sensor with NETD<35mK
  • Built-in laser rangefinder (range up to 600 m; accuracy +/- 1)
  • Two 18650 rechargeable batteries included (HIKMICRo charger included), for easy replacement for longer operating times

Advanced technology of the GRYPHON LRF models:

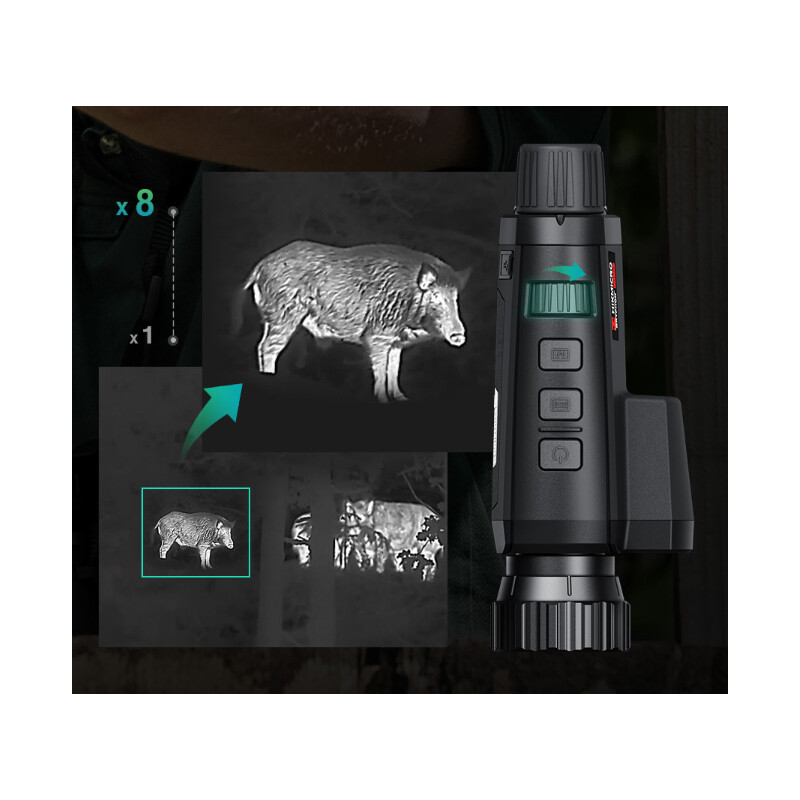

  • Innovative
    control The wheel is used for menu selection and zooming, making operation more intuitive and easier. Each turn gives the user an excellent sense of control.
  • Advanced VOx 12µm image sensor
    The powerful VOx 12µm image sensor with NETD<35mK ensures perfect target detection and delivers clear and detailed images even in complete darkness.

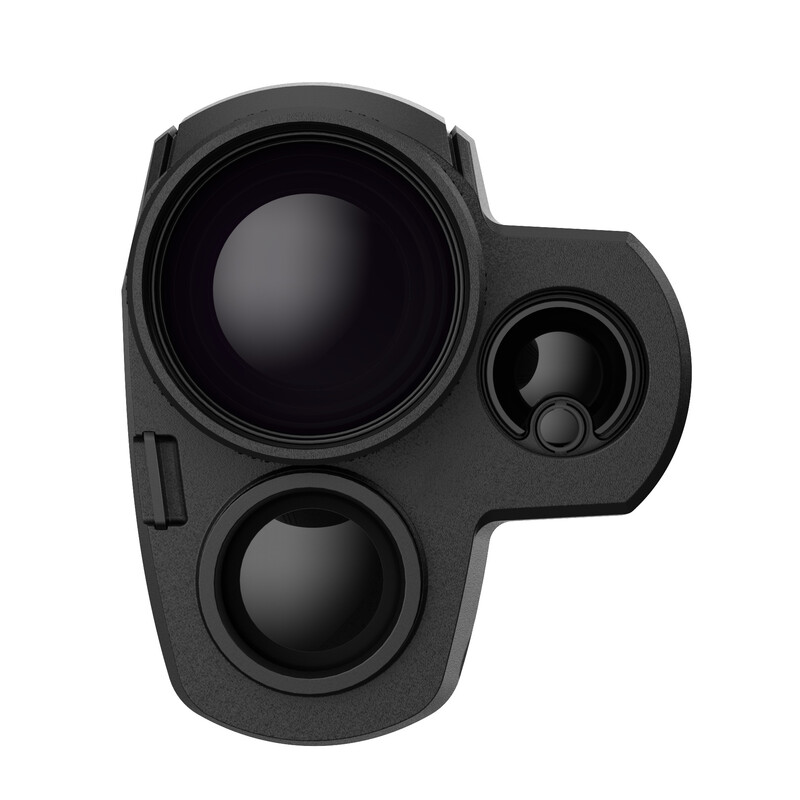

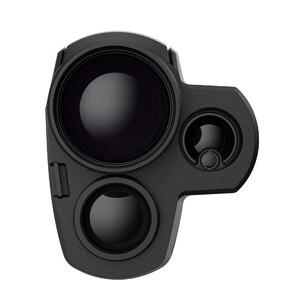

  • Built-in laser rangefinders
    The integrated laser rangefinder allows you to accurately determine the distance to game, even in complete darkness.

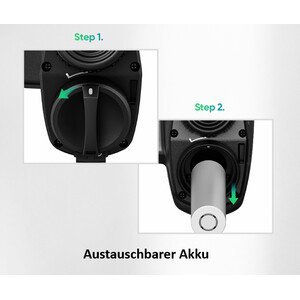

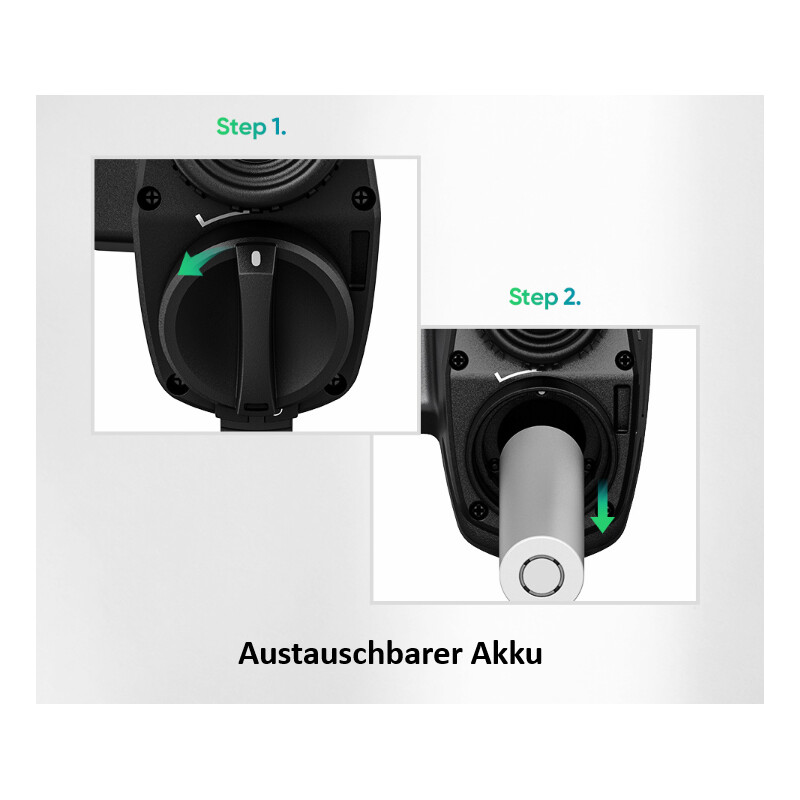

  • Replaceable battery
    Two 18650 rechargeable batteries and a HIKMICRO charger are included in the scope of delivery. This gives you up to 10 hours of operating time.

Abbreviations: Th = Thermal (thermal imaging) ; Opt = Optical (digital night vision) ; LR = Laser Rangefinder/Rangefinders

Specifications

Capacity


Type of build
Monocular
Technology
Fusion
Magnification
3,35
Zoom (digital)
1x/2x/4x/8x
Maximum operating distance (m)
600 (LR)
Detection distance (m)
1800 (Th)
objective
35mm f:1.0 (Th) / 22 mm f:1.0 (Opt)
temperature resolution (mK)
< 35
Display resolution (Pixel)
1024x768
Image display
Different versions
Image cycle rate (Hz)
50
infrared lighting wavelength (nm)
905
Battery type
18650
Battery durability (h)
5

Special features


Digital imaging
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes (IP67)
Threaded tripod connector
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes
Watertight
yes

Field of view


True field of view (°)
10,53x7,9
Field of view at 100 m (m)
18,4
Close focus limit (m)
2

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black

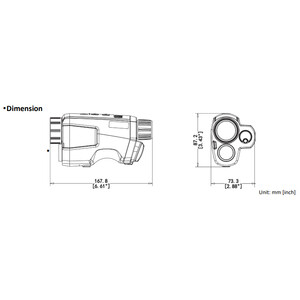

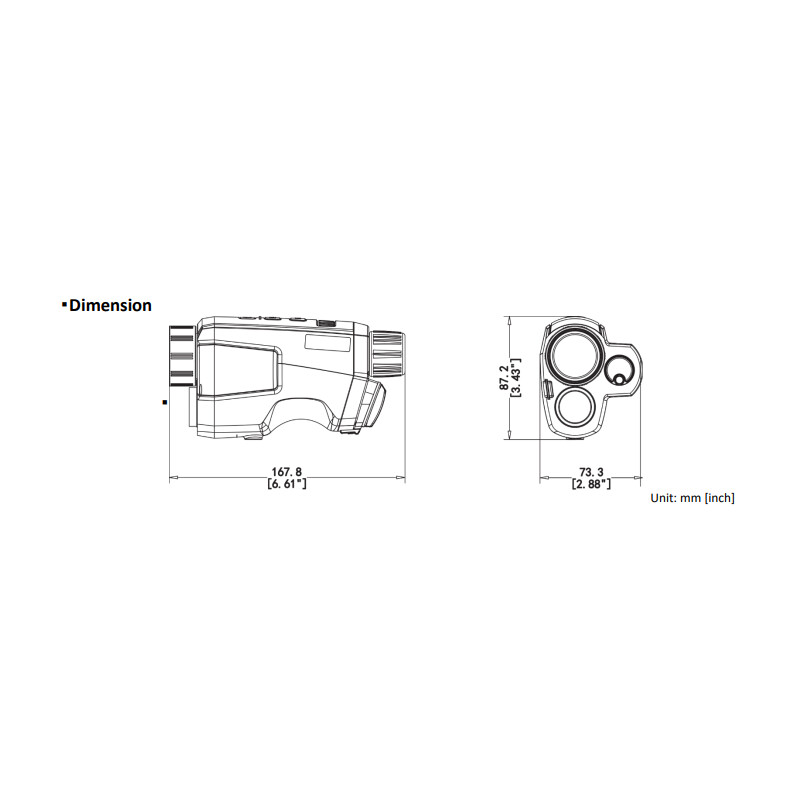

Length (mm)
167,8
Width (mm)
73
Height (mm)
87
Weight (g)
510
Series
Gryphon LRF

Product safety

Manufacturer: Hangzhou Microimage Software Co., Ltd, Gebäude A1, Nr. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, , Hangzhou, Zhejiang, CN, www.hikmicrotech.com/de/outdoor/
Responsible person: Hoptics GmbH , Lengericher Weg 37, 49584 Fürstenau, DE, [email protected]
