Riflescopes > Instruments > Kahles > Helia > Kahles Riflescope Helia 1,6-8x42i SR, 4-Dot
Product no.: 86378

Riflescope Helia 1,6-8x42i SR, 4-Dot

$ 1,720.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Helia...

HELIA 1.6-8x42i
FOR ACTIVE HUNTING

The HELIA series impresses with its uncompromising focus on what really matters: functionality, reliability, handling and aesthetics. Each model is the perfect tool for its hunting application.

With a large field of view and extra-bright reticle, the lightweight, compact HELIA 1.6-8x42i is versatile, especially for stalking and driven hunting. And with night vision accessories, it can even be used at night.

  • Lightweight and easy-to-use optics in a compact design for stalking and driven hunting
  • Ideally suited as night hunting optics in combination with night vision devices
  • Wide field of view (up to 25 m/100 m) with up to 8x magnification
  • Powerful optical system with exceptional edge sharpness
  • Extra bright day/night illuminated reticle with intelligent automatic switch-off

Additional features:

  • 2nd image plane
    When the magnification is changed, the reticle remains the same size – the size of the image changes, but not the size of the reticle. The coverage dimensions change depending on the magnification.
  • Main tube diameter 30 mm
    The main tube has a diameter of 30 mm, the standard size for hunting riflescopes.
  • Automaticlight
    The KAHLES Automaticlight function (tilt sensor) detects whether the riflescope is in a shooting position or not and transmits this information to the illumination unit without any delay. This automatically switches the reticle illumination on or off to save valuable energy when not in use.

This riflescope is equipped with an SR rail* (*Swarovski rail)

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
1,6
Maximum magnification
8
Front lens diameter (mm)
42
Exit pupil at min. enlargement (mm)
9,6
Exit pupil at max. enlargement (mm)
5,1
Eye relief (mm)
95
Diopter compensation
+2/-3,5
Lens coating
fully, multiple
Type of mounting
Swarovski SR-Rail
Central tube diameter (mm)
30

Field of view


No parallax over (m)
100
100 m adjustment per clic
1 cm
Twilight factor at min. enlargement
5,2
Twilight factor at max. enlargement
18,3
Field of view at min. enlargement (m)
25,3
Field of view at max. enlargement (m)
5,1
Reticle
4-Dot
Reticle plane
2. focal plane (SFP)
Reticle usage
Hunting

Special features


Illuminated reticle
yes
Automatic switch-off
yes
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
-
Bullet drop compensator
- (Optional)
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
323
Weight (g)
538
objective lens outside diameter (mm)
48
eyepiece outer diameter (mm)
46
Series
Helia

Area of application


Stalk hunting
very good
Raised hide
good
Drive hunting
good
Magnum caliber
good
long distance
middle
Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, www.kahles.at
Responsible person: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, [email protected]

Recommended accessories

Riflescopes > Accessories (7)

Kahles Neoprene Riflescope Protection 300x58 mm

$ 58.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Kahles Riflescope Helia 1,6-8x42i SR, 4-Dot

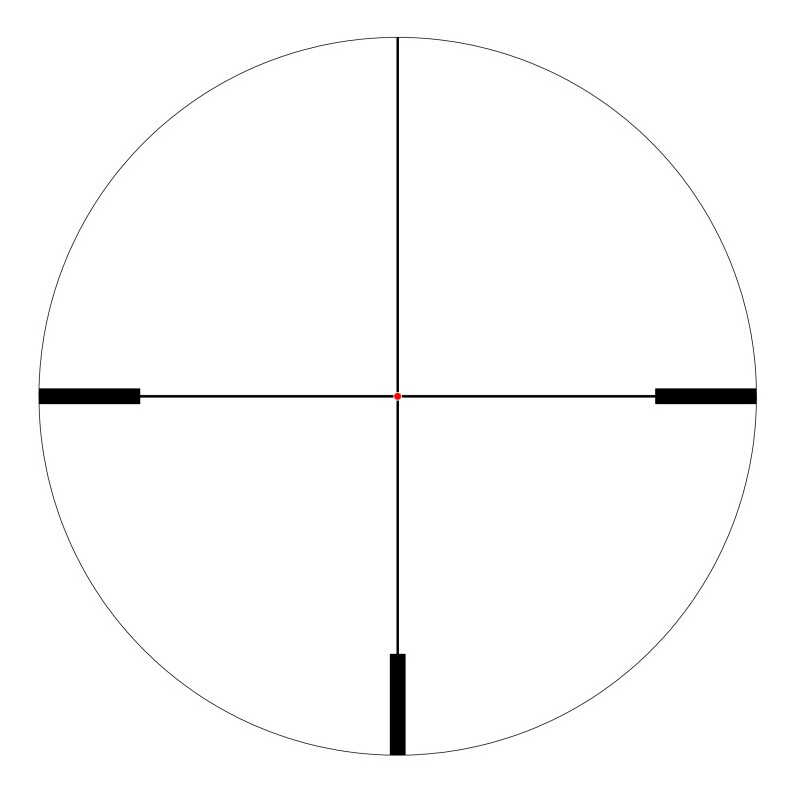

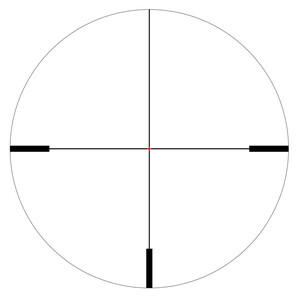

Crosshair image
Kahles Riflescope Helia 1,6-8x42i SR, 4-Dot

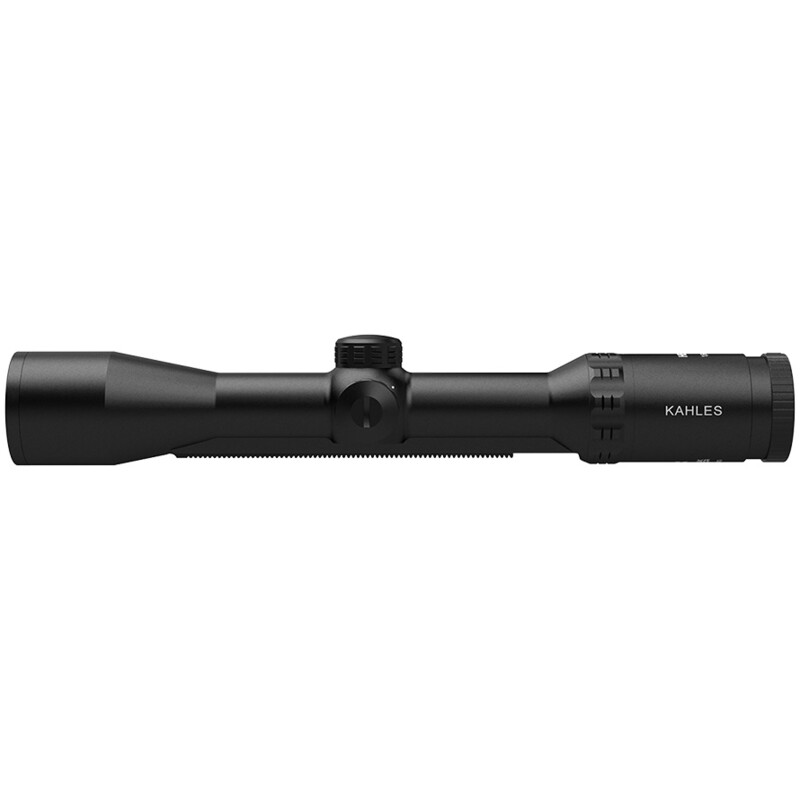

SR rail
Kahles Riflescope Helia 1,6-8x42i SR, 4-Dot

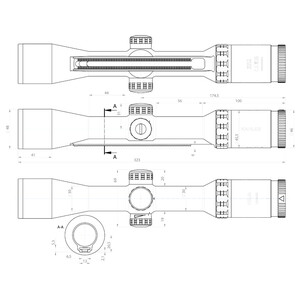

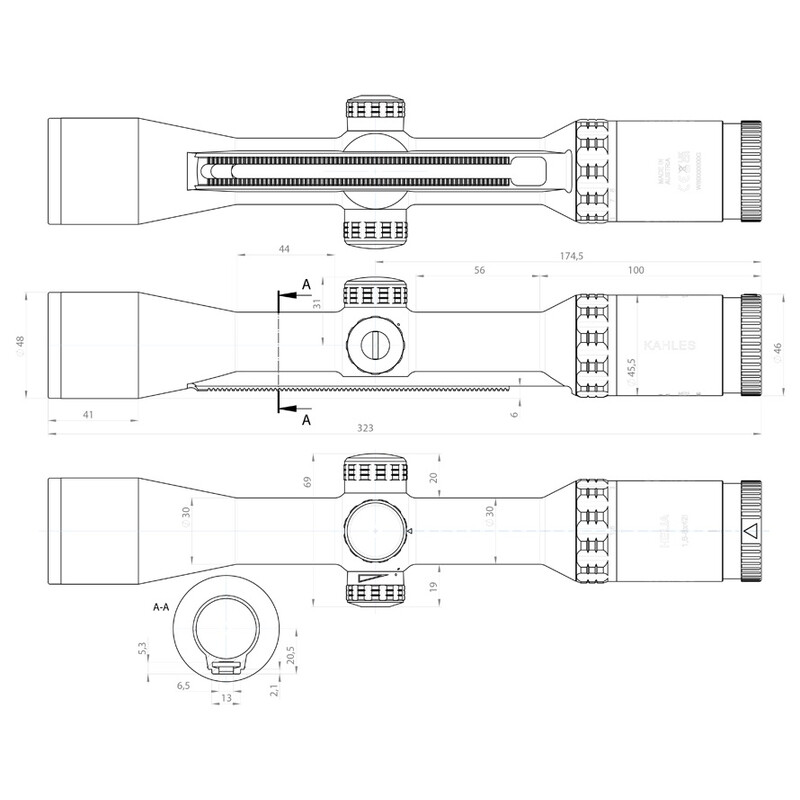

Dimensions
