Capacity

Type of build

zoomable magnification

Minimum magnification

2

Maximum magnification

10

Front lens diameter (mm)

50

Exit pupil at min. enlargement (mm)

25

Exit pupil at max. enlargement (mm)

5

Eye relief (mm)

95

Diopter compensation

+2/-3,5

Lens coating

fully, multiple

Type of mounting

Swarovski SR-Rail

Central tube diameter (mm)

30

Field of view

No parallax over (m)

100

100 m adjustment per clic

1 cm

Twilight factor at min. enlargement

6,2

Twilight factor at max. enlargement

22,4

Field of view at min. enlargement (m)

21

Field of view at max. enlargement (m)

4,1

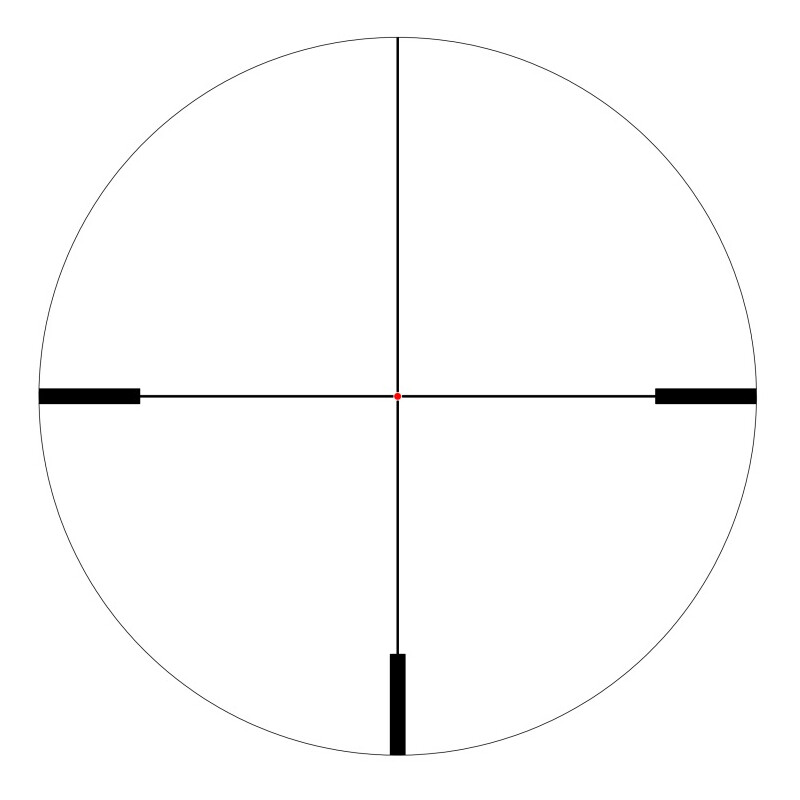

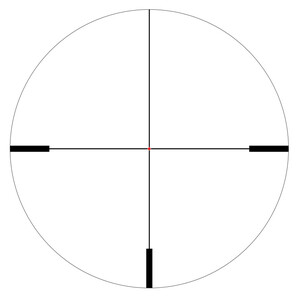

Reticle

4-Dot

Reticle plane

2. focal plane (SFP)

Special features

Illuminated reticle

yes

Automatic switch-off

yes

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

-

Bullet drop compensator

- (Optional)

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

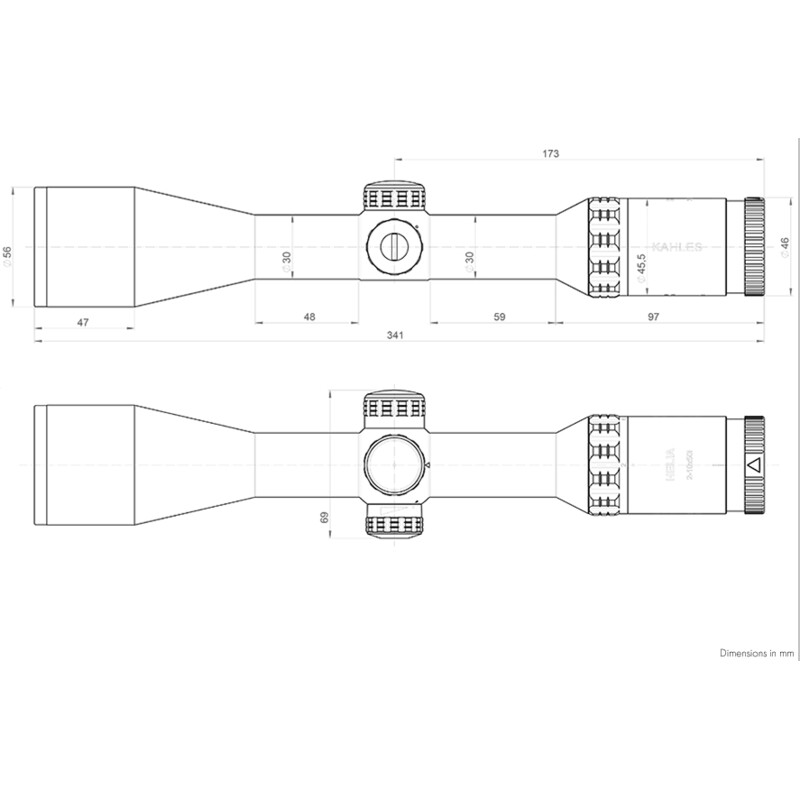

Length (mm)

341

Weight (g)

585

objective lens outside diameter (mm)

56

eyepiece outer diameter (mm)

46

Series

Helia

Area of application

Stalk hunting

good

Raised hide

very good

Drive hunting

good

Magnum caliber

very good

long distance

good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

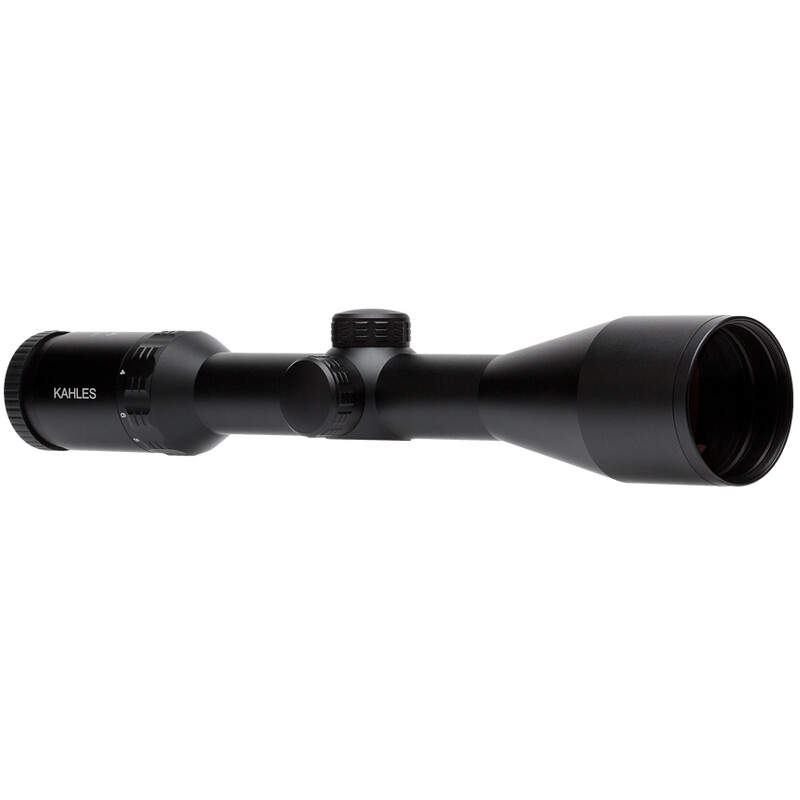

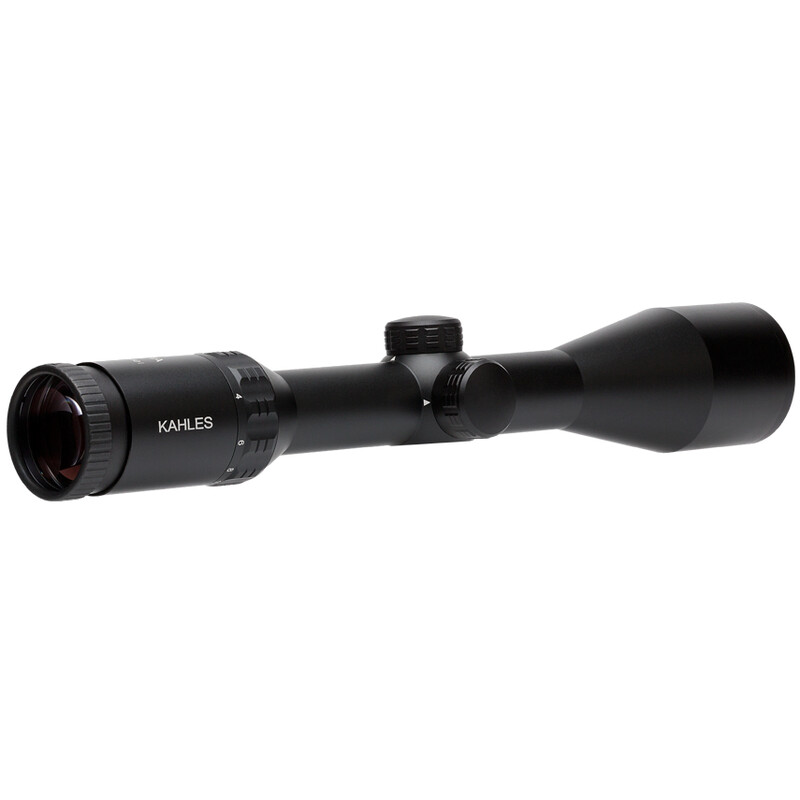

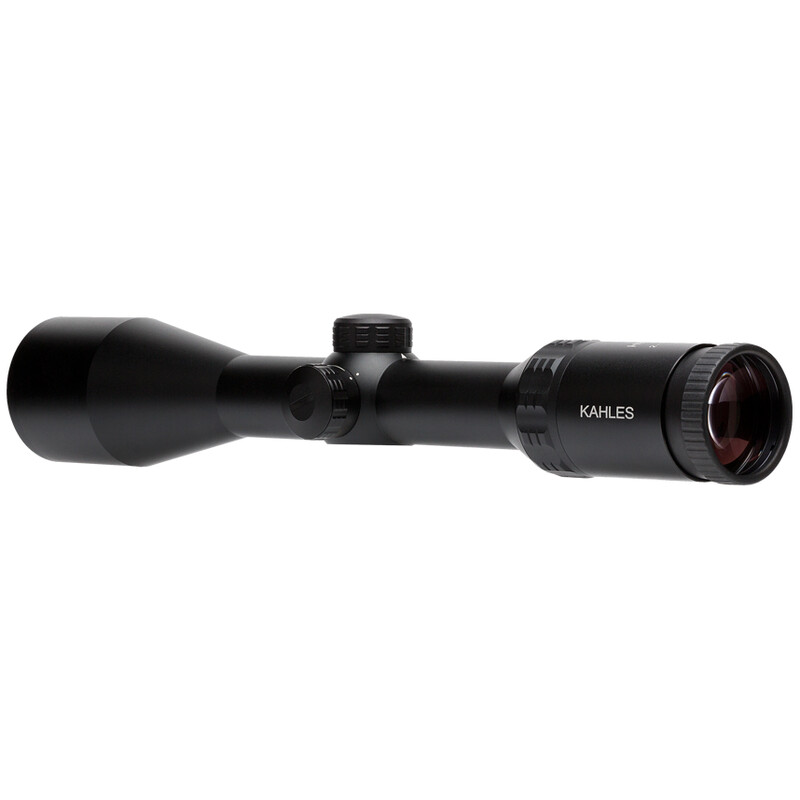

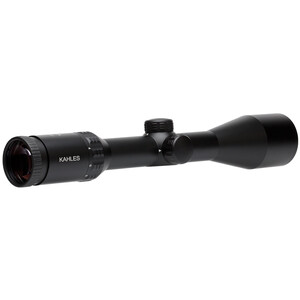

Riflescope Helia 2-10x50i SR
