Riflescopes > Instruments > Kahles > K18i > Kahles Riflescope K18i 1-8x24, 3GR

Product description

K18i - 1-8x24i
PERFECT FOR COMPETITION

Uncompromisingly optimised for IPSC and 3-Gun matches, the K18i with 8x zoom offers an ultra-wide field of view, special extra-bright illuminated reticles with unique MAX LIGHT function and an individually adjustable adjustment lever.

  • Uncompromisingly optimised for IPSC and 3-Gun matches
  • Ultra-wide field of view, 8x zoom and true 1.0x magnification
  • Magnification adjustment lever in 2 different sizes with freely selectable position
  • Extra bright day/night illuminated reticle in the 2nd image plane with MAX LIGHT function for extreme backlighting
  • Rings developed with top shooters specifically for IPSC and 3-Gun

This model features the 3GR reticle, which was specially developed for 3-gun and IPSC competitions.

Additional features:

  • 2nd image plane
    When the magnification is changed, the reticle remains the same size – the size of the image changes, but not the size of the reticle. The coverage dimensions change depending on the magnification.
  • Main tube diameter 30 mm
    The main tube has a diameter of 30 mm, the standard size for hunting riflescopes.
  • Adjustment direction CW
    The adjustment direction of the elevation and windage turrets is clockwise (CW).
  • MIL
    Click resolution in MRAD. A 0.1 MRAD click corresponds to a point of impact shift of 1 cm at a distance of 100 metres.
  • MAX LIGHT
    Extra bright day/night reticle in the second image plane with MAX LIGHT function for extreme backlighting.

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
1
Maximum magnification
8
Front lens diameter (mm)
24
Exit pupil at min. enlargement (mm)
8,1
Exit pupil at max. enlargement (mm)
3,0
Eye relief (mm)
95
Diopter compensation
-3 / +2
Lens coating
fully, multiple
Type of mounting
Mounts not included in delivery
Central tube diameter (mm)
30

Field of view


No parallax over (m)
100
100 m adjustment per clic
1 cm
Twilight factor at min. enlargement
2,9
Twilight factor at max. enlargement
13,9
Field of view at min. enlargement (m)
42,5
Field of view at max. enlargement (m)
5,3
Reticle
3GR
Reticle plane
2. focal plane (SFP)
Reticle usage
Sporting shooters

Special features


Illuminated reticle
yes
Automatic switch-off
-
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
-
Bullet drop compensator
-
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
300
Weight (g)
555
objective lens outside diameter (mm)
34
eyepiece outer diameter (mm)
46
Series
K18i

Area of application


Stalk hunting
good
Raised hide
middle
Drive hunting
good
long distance
-
Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, www.kahles.at
Responsible person: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, [email protected]

Recommended accessories

Riflescopes > Accessories (7)

Kahles Neoprene Riflescope Protection 215x62 mm

$ 58.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Kahles Riflescope K18i 1-8x24, 3GR

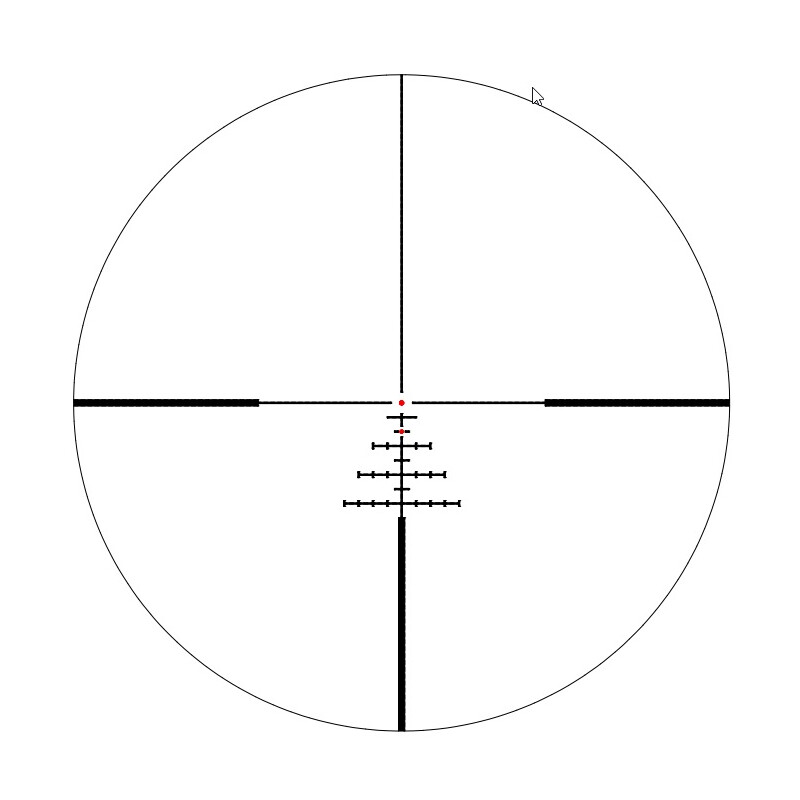

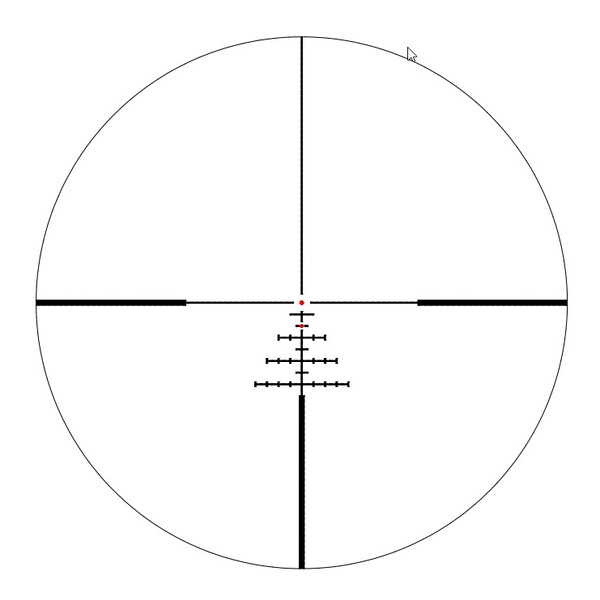

Crosshair image
Kahles Riflescope K18i 1-8x24, 3GR

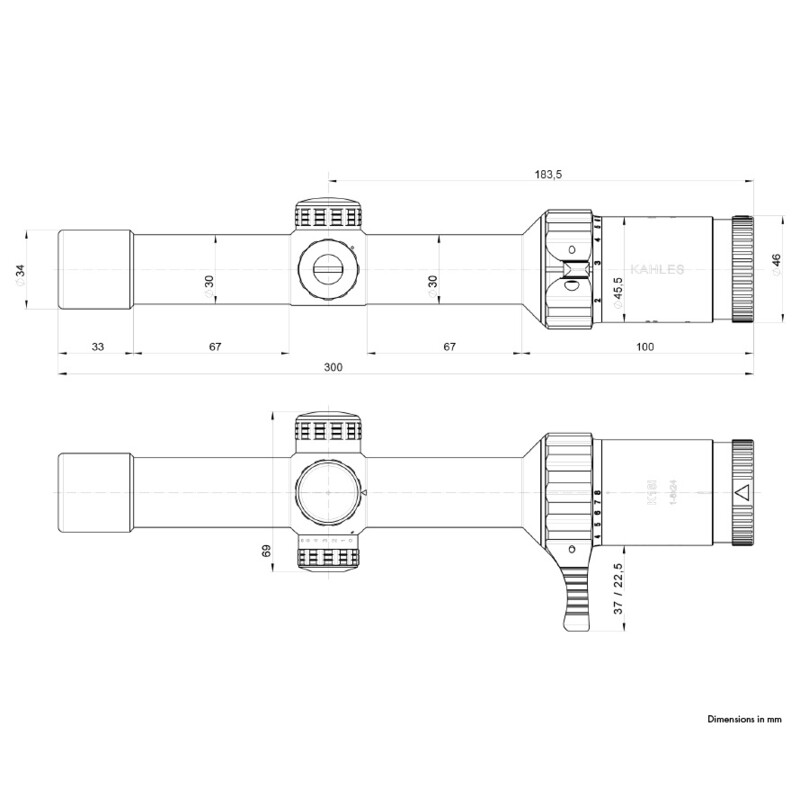

Dimensions
Kahles Riflescope K18i 1-8x24, 3GR

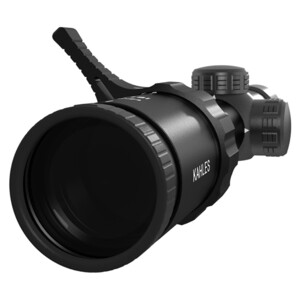

Throw lever, long ...
