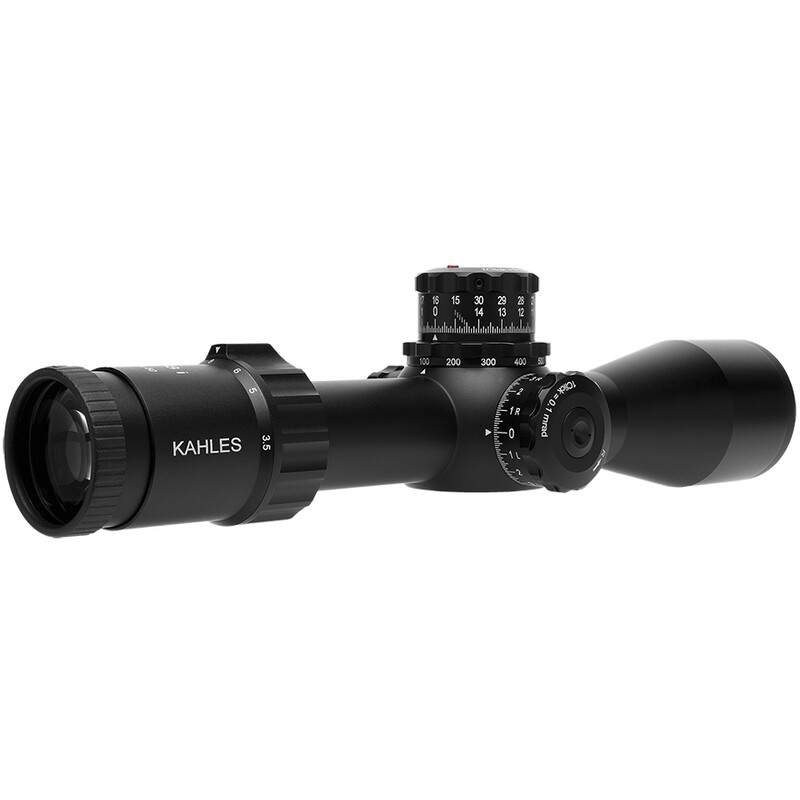

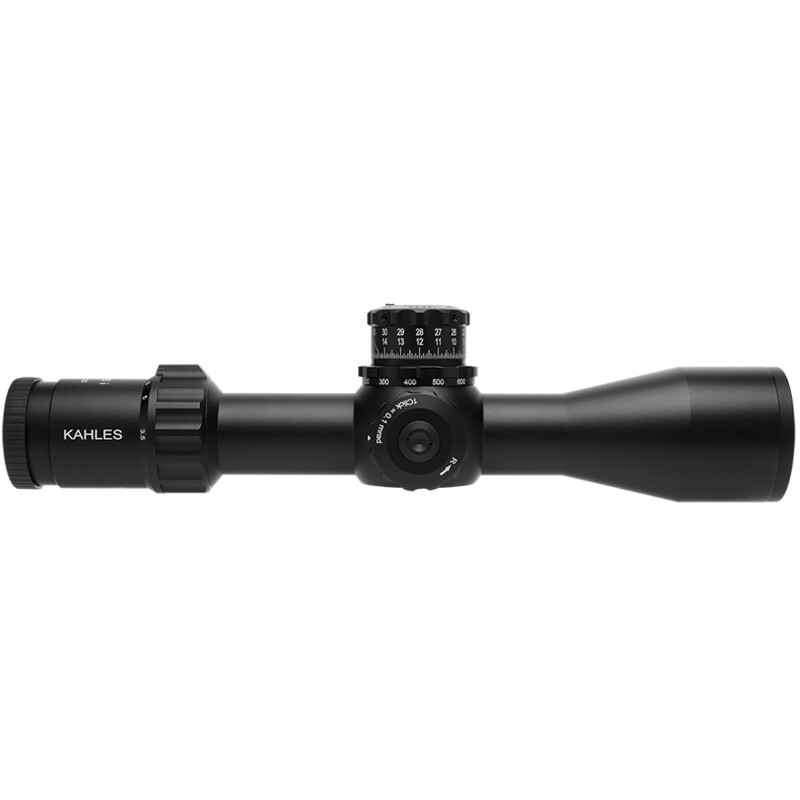

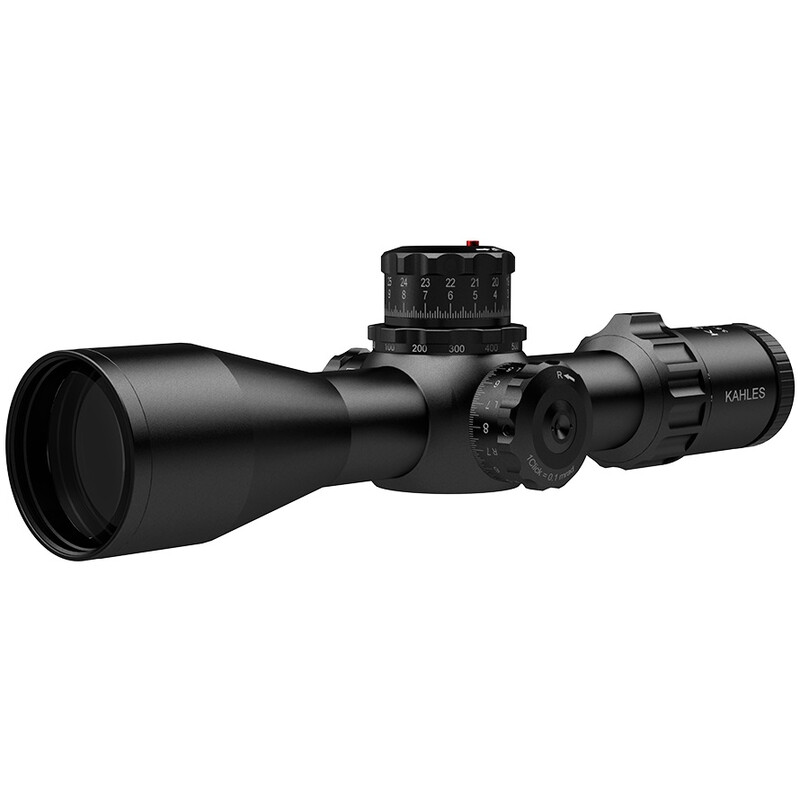

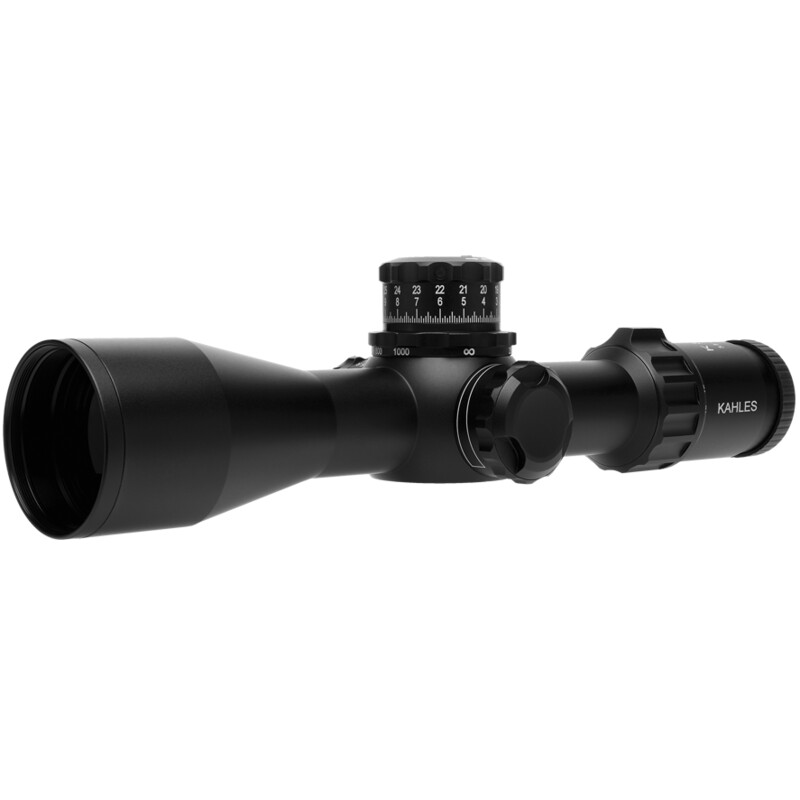

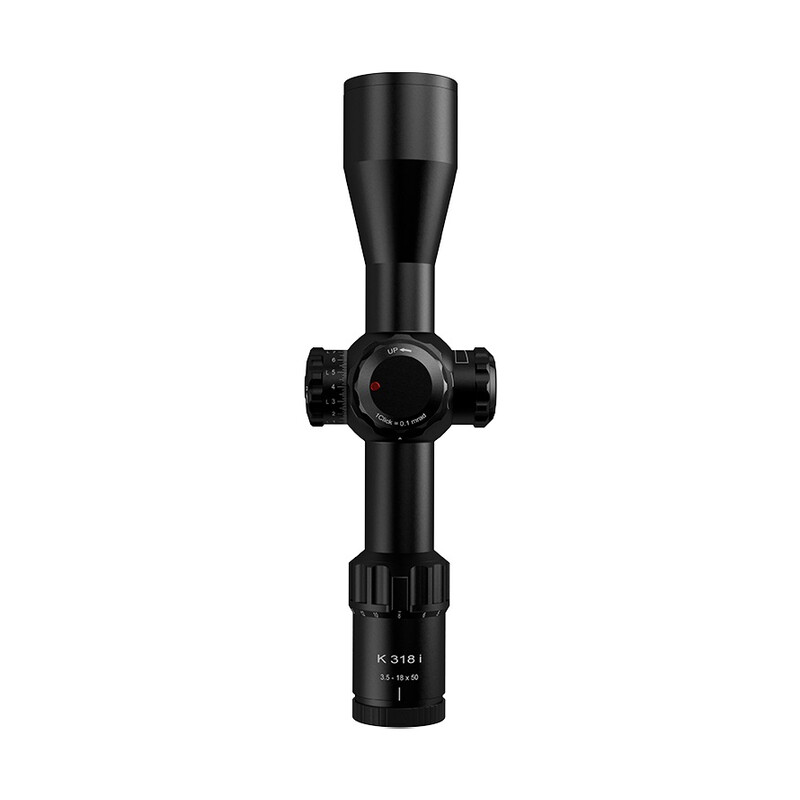

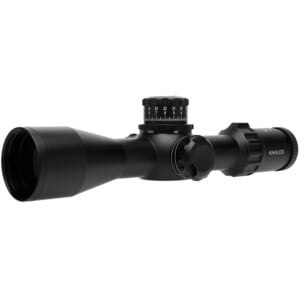

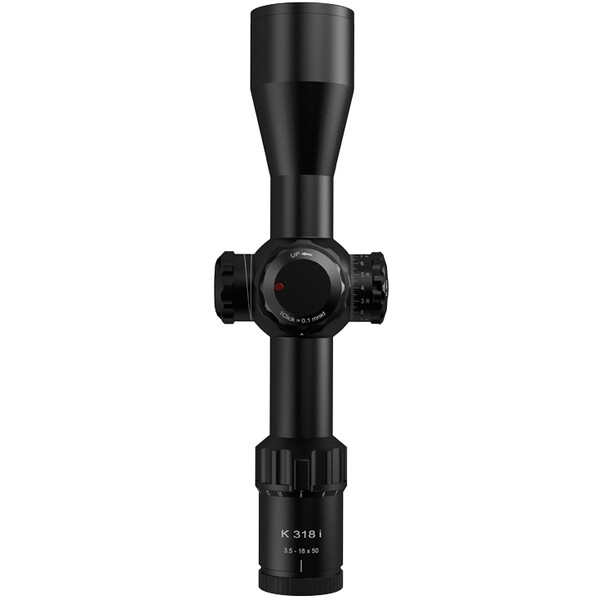

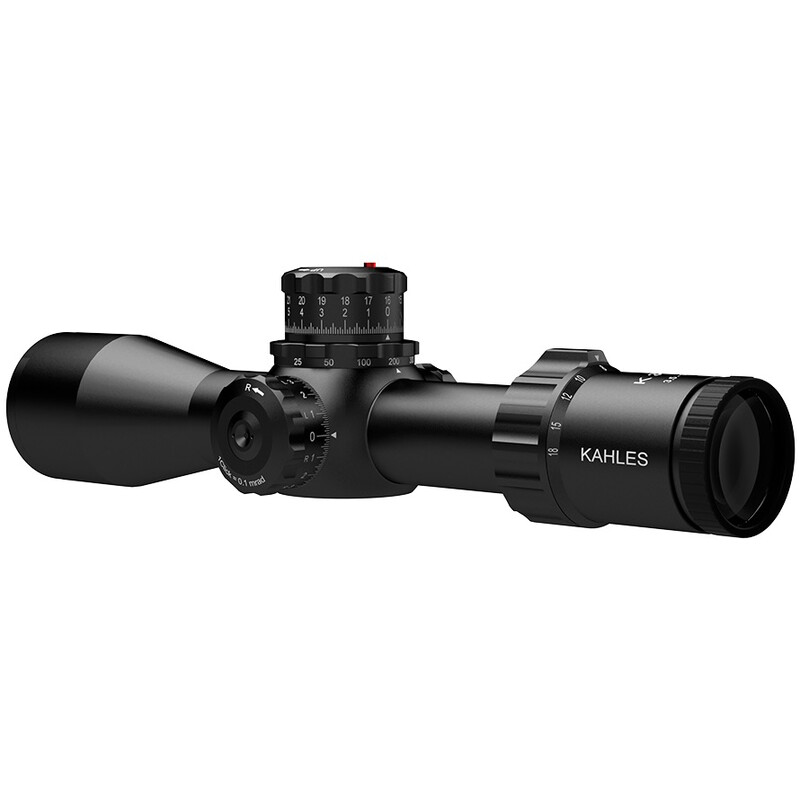

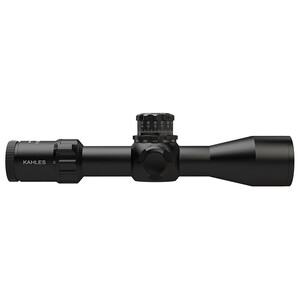

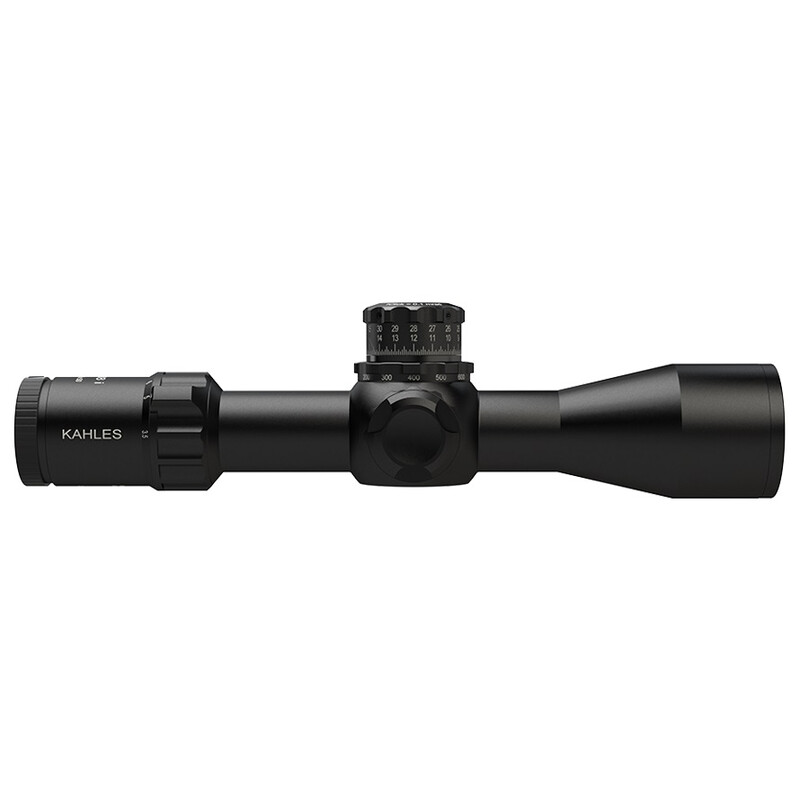

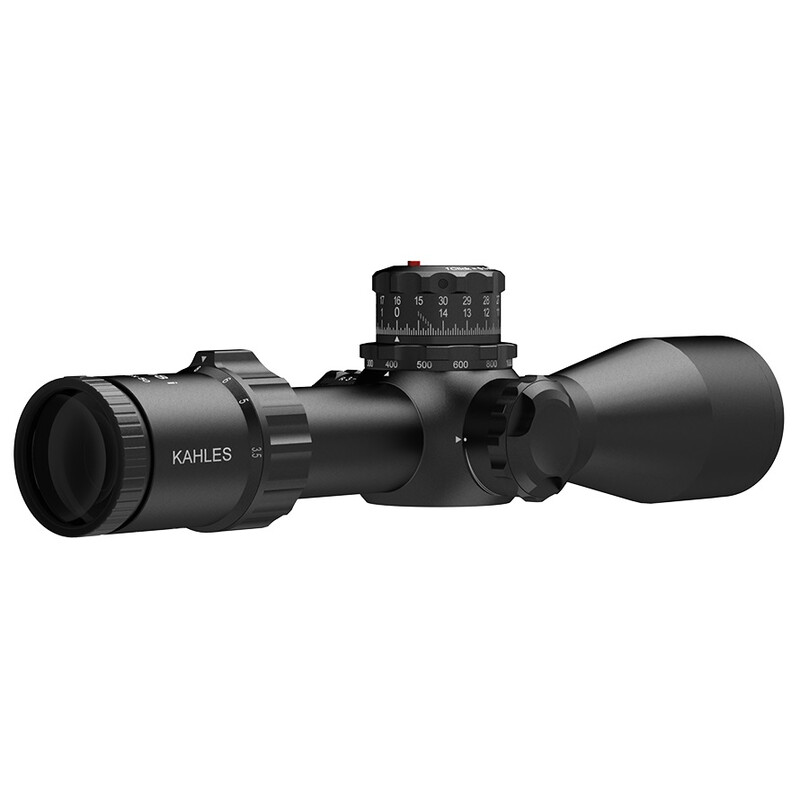

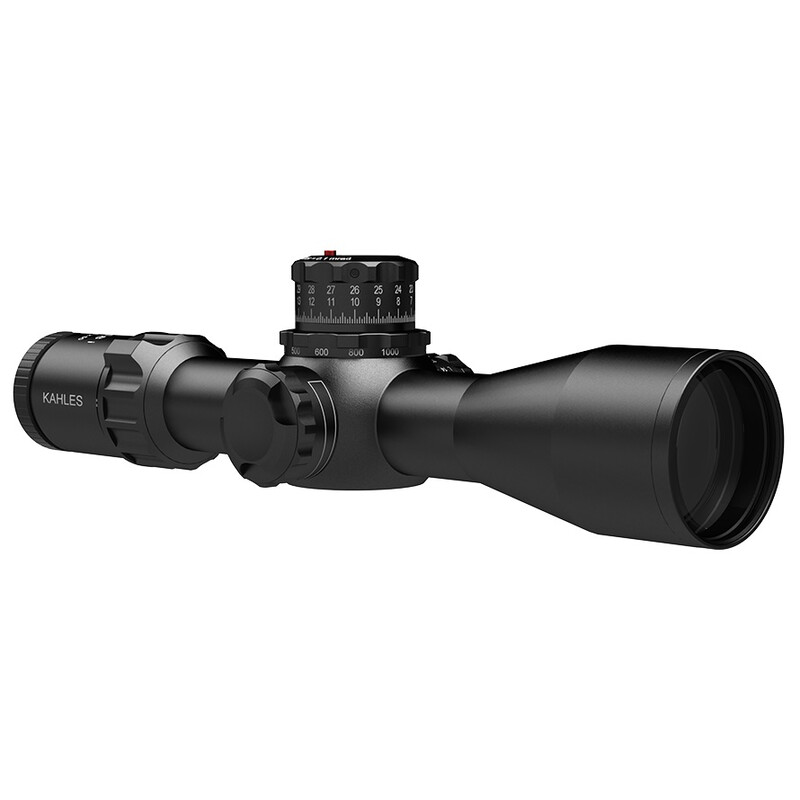

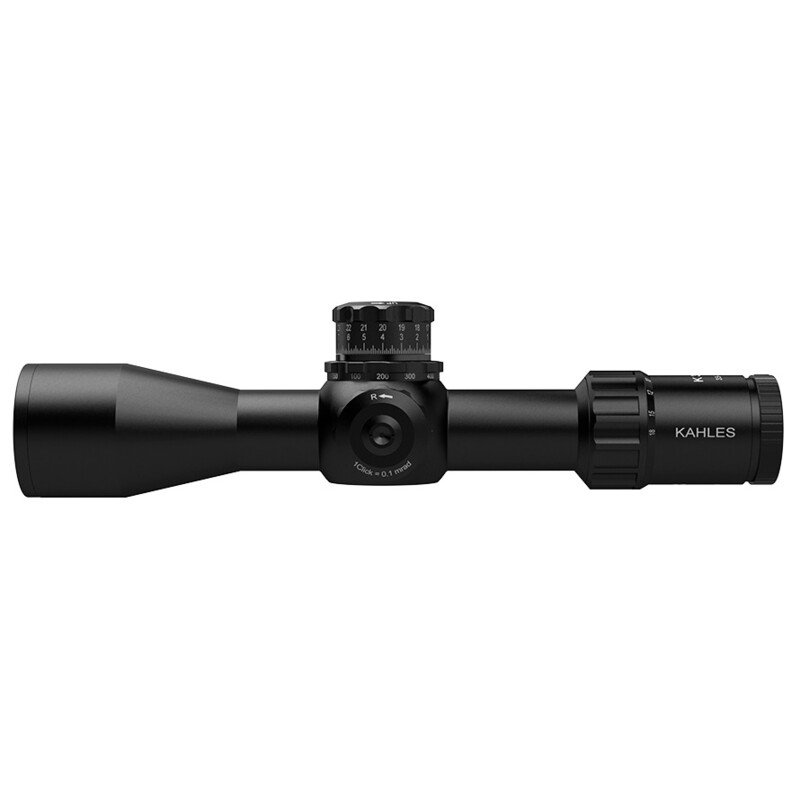

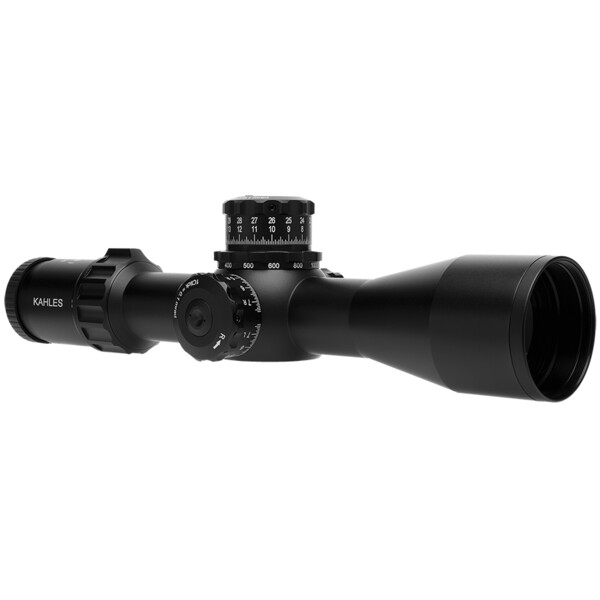

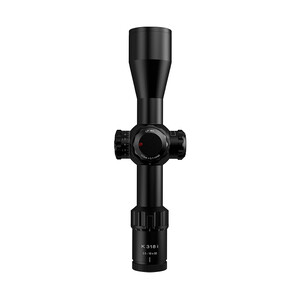

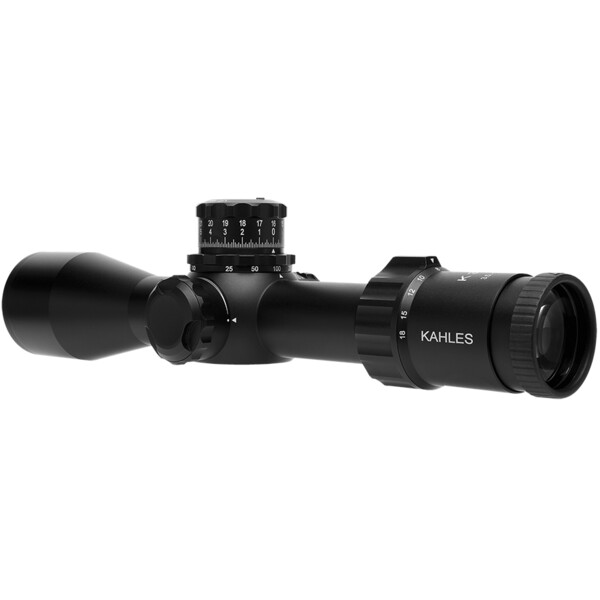

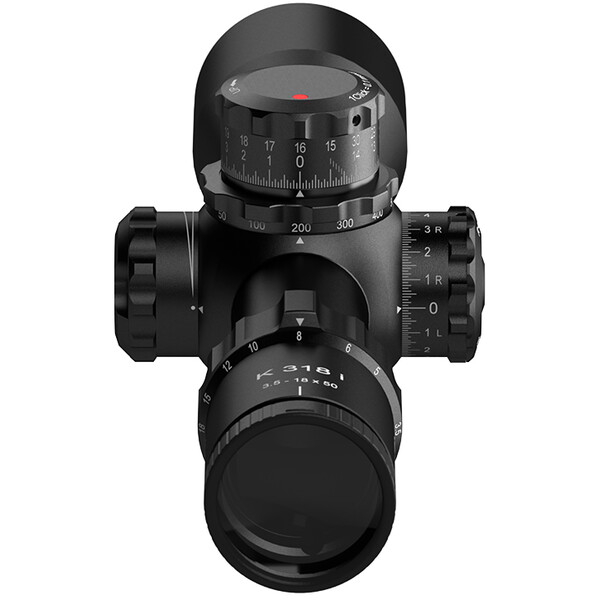

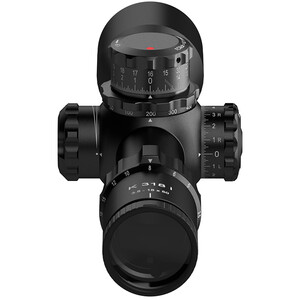

This riflescope offers tangible optical and mechanical precision packed in an ultra-short housing. With precise illuminated reticles in the first focal plane and unique TWIST GUARD anti-twist protection.
- Ultra-short, lightweight riflescope with a large field of view and a high-contrast image
- Absolutely reliable repeatability and precise, clearly defined clicks
- Optionally left or right windage
- Innovative TWIST GUARD anti-twist protection (patented)
- Patented parallax adjustment integrated into the top turret (25m to ∞)
- Precise illuminated reticles in the first focal plane

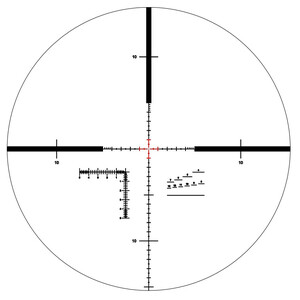

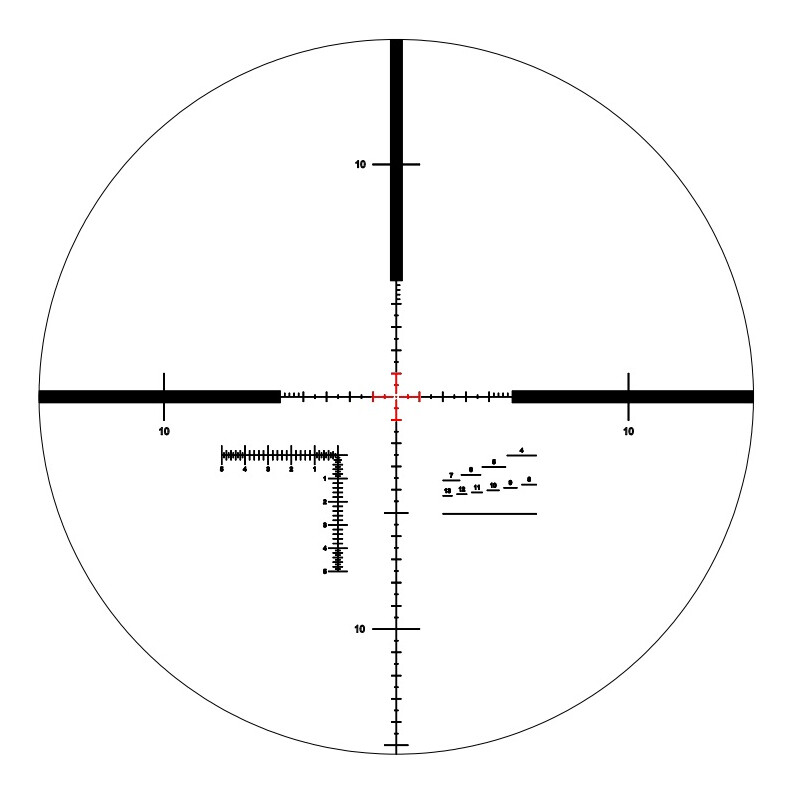

This model features the MSR/Ki reticle
The side adjustment is located on the right-hand side
The adjustment is designed for MIL
The adjustment is counterclockwise CCW
Additional features:
- 1st imageplane
When looking through the 1st image plane (lens image plane), the reticle magnifies as the magnification changes. The bar spacing remains the same, as do the coverage dimensions. - Main tube diameter 34 mm

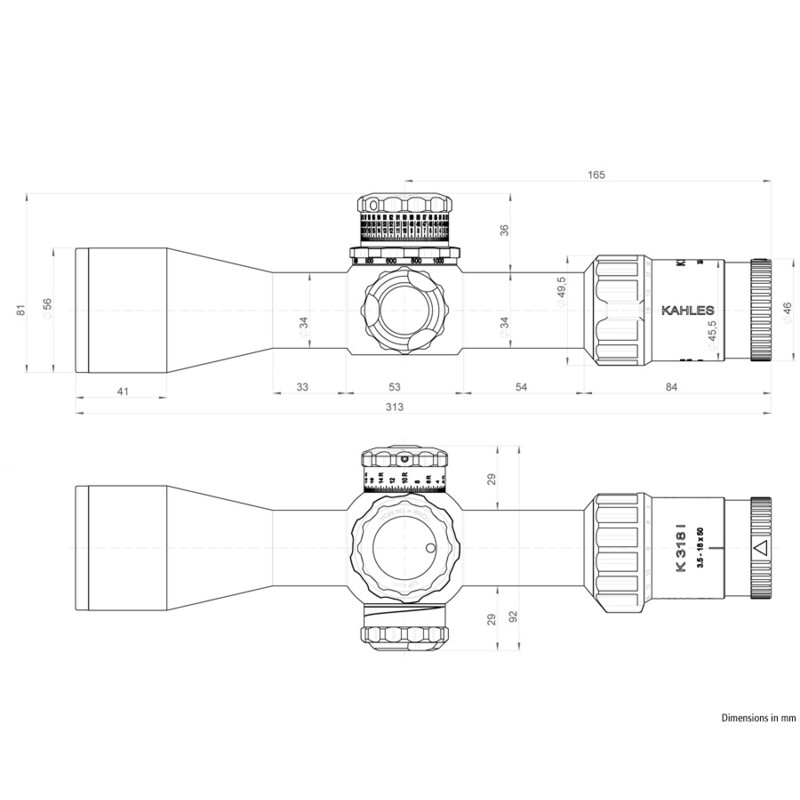

The main tube has a diameter of 34 mm, the standard size for tactical riflescopes. - Adjustment direction CW or CCW
Depending on the model, the elevation and windage adjustment is designed to be clockwise (CW) or counter-clockwise (CCW). - Zero Stop
The zero stop or mechanical zero point (stop) is located 3 or 4 clicks below the zero indicator and can be activated after sighting in. This feature allows quick and intuitive location of the zero indicator (e.g. in poor light) and precise adjustment to specific conditions (such as high temperatures or closer targets). - TWIST GUARD anti-twist protection
Patented TWIST GUARD anti-twist protection for side adjustment
The innovative TWIST GUARD anti-twist protection reliably prevents accidental adjustment of the side tower thanks to a freely rotating cap. This simple solution maintains the quick and easy operation of the side adjustment without annoying "locking" or "unlocking". - Side adjustment left or right
Superior handling and ergonomics thanks to unique arrangement of the controls.

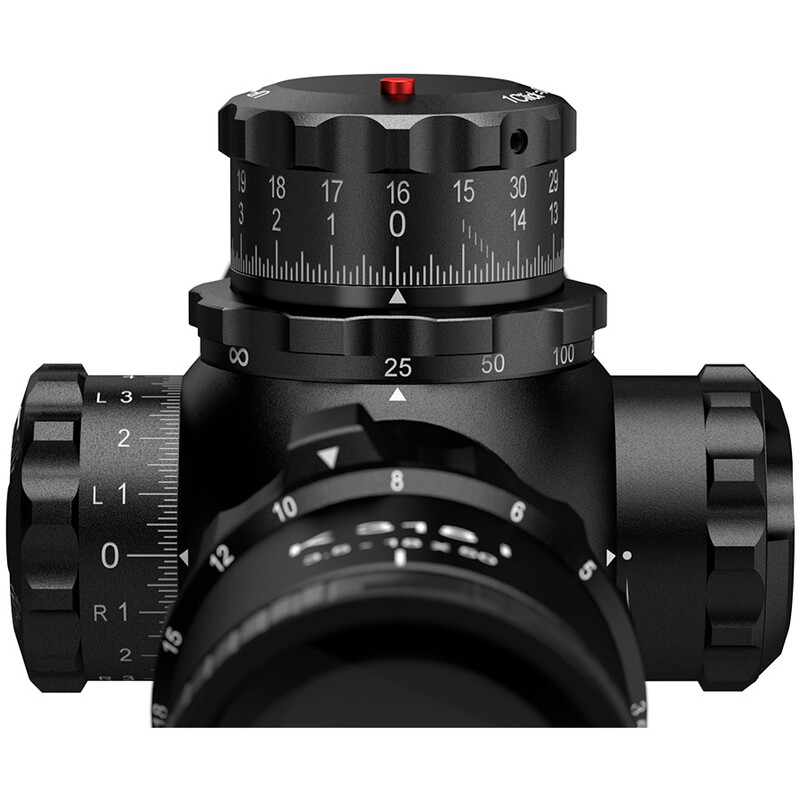

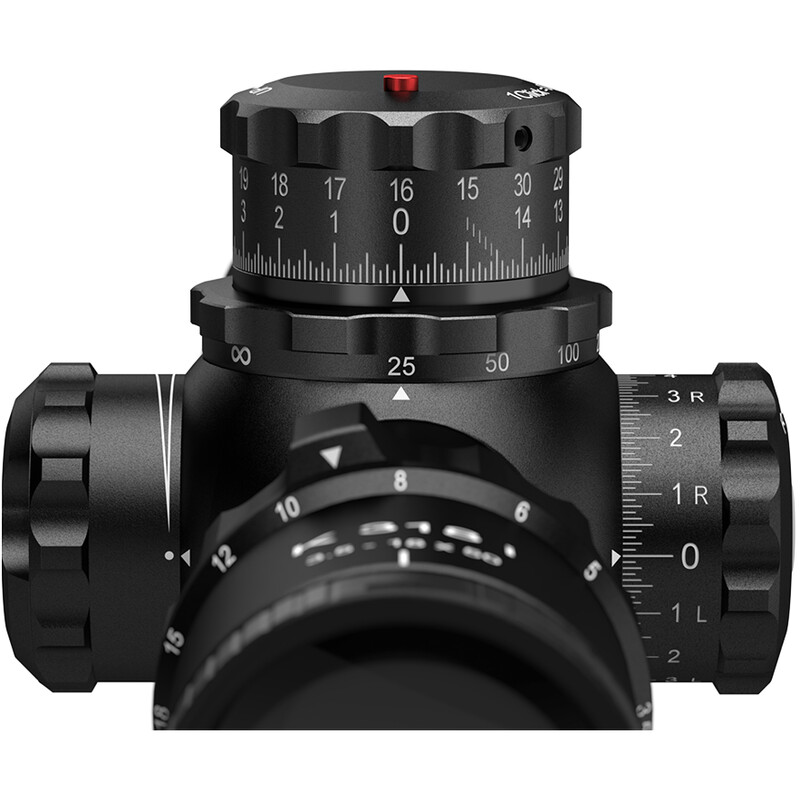

Thanks to the special arrangement, all controls can be operated easily and comfortably from the shooting position with the intuitively preferred hand without reaching over, and all adjustment information is always in the field of view. The parallax wheel is integrated into the elevation adjustment tower on all K-series riflescopes. The patented central arrangement allows for comfortable left- and right-handed operation. For right-handed shooters, the side adjustment is ergonomically positioned on the left side, and for left-handed shooters, it is on the right side. - MOA or MIL
The click resolution is available in MOA or MRAD, depending on the model. A ¼ MOA click corresponds to a point of impact shift of 0.73 cm at a distance of 100 metres, while a 0.1 MRAD click corresponds to a point of impact shift of 1 cm at a distance of 100 metres.
Our expert comment:
ATTENTION: Similar images!
May show models with the turret on the wrong side and the wrong direction of rotation. Please refer to the product name and description for details.
