Riflescopes > Instruments > Kahles > K318i > Kahles Riflescope K318i 3.5-18x50, SKMR4, ccw, left
Product no.: 86374

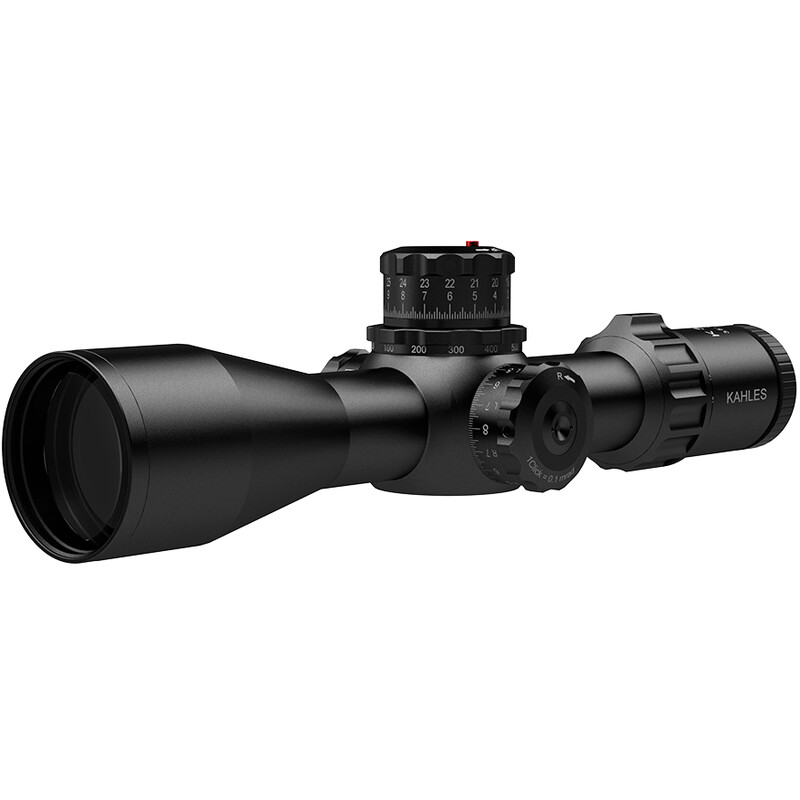

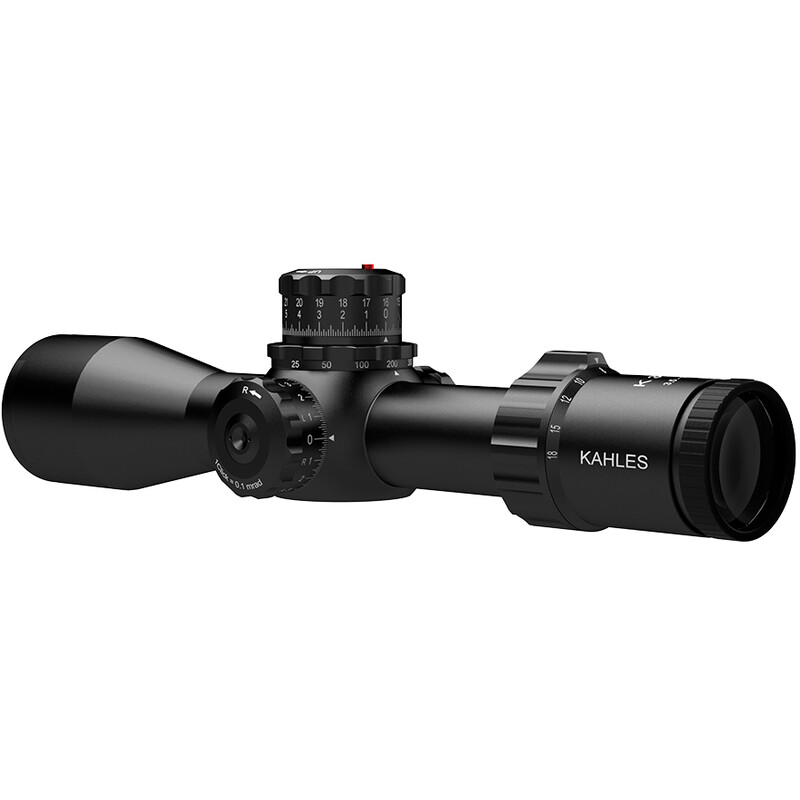

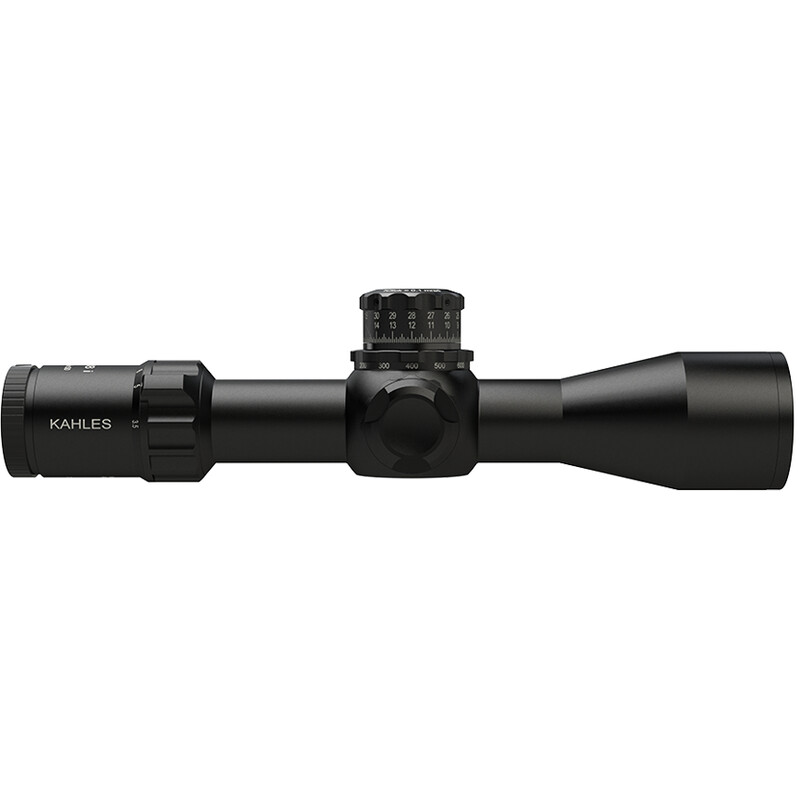

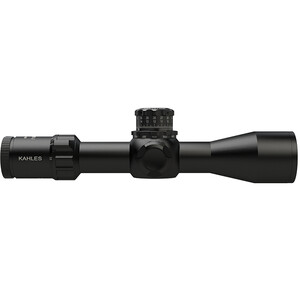

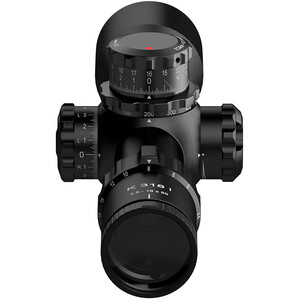

Riflescope K318i 3.5-18x50, SKMR4, ccw, left

$ 3,880.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

This riflescope offers tangible optical and mechanical precision packed in an ultra-short housing. With precise illuminated reticles in the first focal plane and unique TWIST GUARD anti-twist protection.

  • Ultra-short, lightweight riflescope with a large field of view and a high-contrast image
  • Absolutely reliable repeatability and precise, clearly defined clicks
  • Optionally left or right windage
  • Innovative TWIST GUARD anti-twist protection (patented)
  • Patented parallax adjustment integrated into the top turret (25m to ∞)
  • Precise illuminated reticles in the first focal plane

This riflescope has the SKMR4 reticle
The side adjustment is located on the left side
The rotation direction is CCW, i.e. counterclockwise

Additional features:

  • 1st imageplane
    When looking through the 1st image plane (lens image plane), the reticle magnifies as the magnification changes. The bar spacing remains the same, as do the coverage dimensions.
  • Main tube diameter 34 mm
    The main tube has a diameter of 34 mm, the standard size for tactical riflescopes.
  • Adjustment direction CW or CCW
    Depending on the model, the elevation and windage adjustment is designed to be clockwise (CW) or counter-clockwise (CCW).
  • Zero Stop
    The zero stop or mechanical zero point (stop) is located 3 or 4 clicks below the zero indicator and can be activated after sighting in. This feature allows quick and intuitive location of the zero indicator (e.g. in poor light) and precise adjustment to specific conditions (such as high temperatures or closer targets).
  • TWIST GUARD anti-twist protection
    Patented TWIST GUARD anti-twist protection for side adjustment
    The innovative TWIST GUARD anti-twist protection reliably prevents accidental adjustment of the side tower thanks to a freely rotating cap. This simple solution maintains the quick and easy operation of the side adjustment without annoying "locking" or "unlocking".
  • Side adjustment left or right
    Superior handling and ergonomics thanks to unique arrangement of the controls.

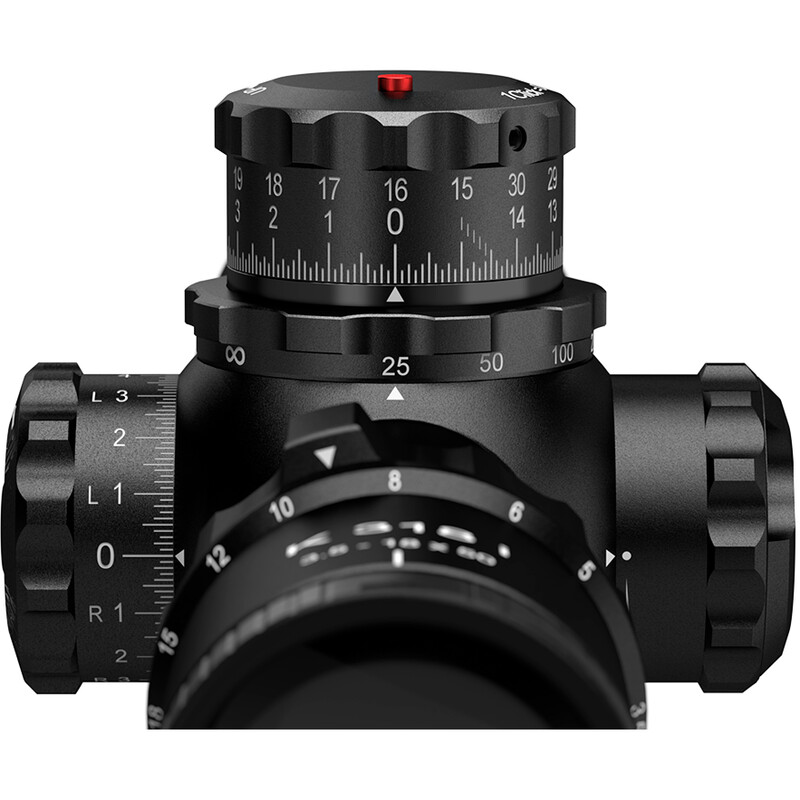

    Thanks to the special arrangement, all controls can be operated easily and comfortably from the shooting position with the intuitively preferred hand without reaching over, and all adjustment information is always in the field of view. The parallax wheel is integrated into the elevation adjustment tower on all K-series riflescopes. The patented central arrangement allows for comfortable left- and right-handed operation. For right-handed shooters, the side adjustment is ergonomically positioned on the left side, and for left-handed shooters, it is on the right side.
  • MOA or MIL
    The click resolution is available in MOA or MRAD, depending on the model. A ¼ MOA click corresponds to a point of impact shift of 0.73 cm at a distance of 100 metres, while a 0.1 MRAD click corresponds to a point of impact shift of 1 cm at a distance of 100 metres.

What does cw or ccw stand for? Depending on the model, the adjustment direction of the windage and elevation turret is configured either clockwise (cw) or counterclockwise (ccw). Please check the details in the product description.

Our expert comment:

ATTENTION: Similar images!

May show models with the turret on the wrong side and the wrong direction of rotation. Please refer to the product name and description for details.
Stefan Rieger

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
3,5
Maximum magnification
18
Front lens diameter (mm)
50
Eye relief (mm)
92
Diopter compensation
13,2-30,0
Central tube diameter (mm)
34

Field of view


Twilight factor
13,2-30,0
Field of view at 100 m (m)
9,3-2,0
Field of view at min. enlargement (m)
9,3
Field of view at max. enlargement (m)
2,0
Reticle
SKMR4
Reticle plane
1st focal plane (FFP)

Special features


Illuminated reticle
yes
Automatic switch-off
-
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
-
Bullet drop compensator
-
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
313
Weight (g)
940
Series
K318i

Area of application


Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, www.kahles.at
Responsible person: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, [email protected]

Recommended accessories

Riflescopes > Accessories (7)

Kahles Neoprene Riflescope Protection 310x60 mm

$ 58.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Kahles Riflescope K318i 3.5-18x50, SKMR4, ccw, left

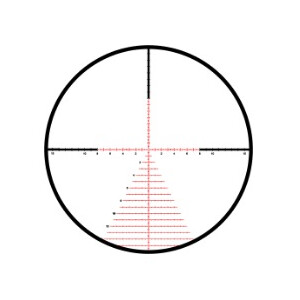

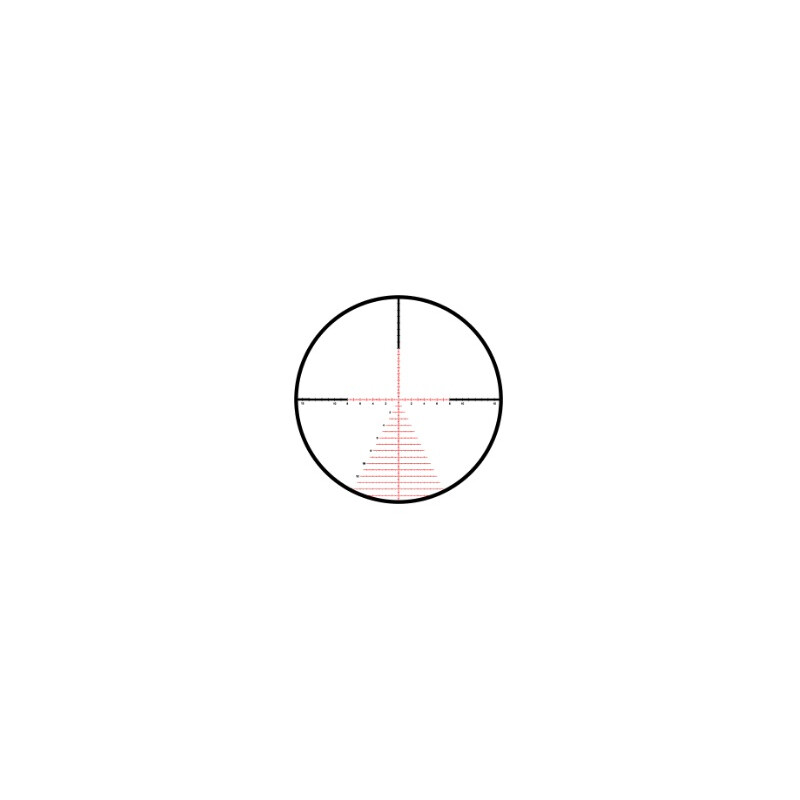

Crosshair image
Kahles Riflescope K318i 3.5-18x50, SKMR4, ccw, left

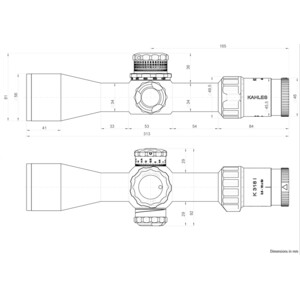

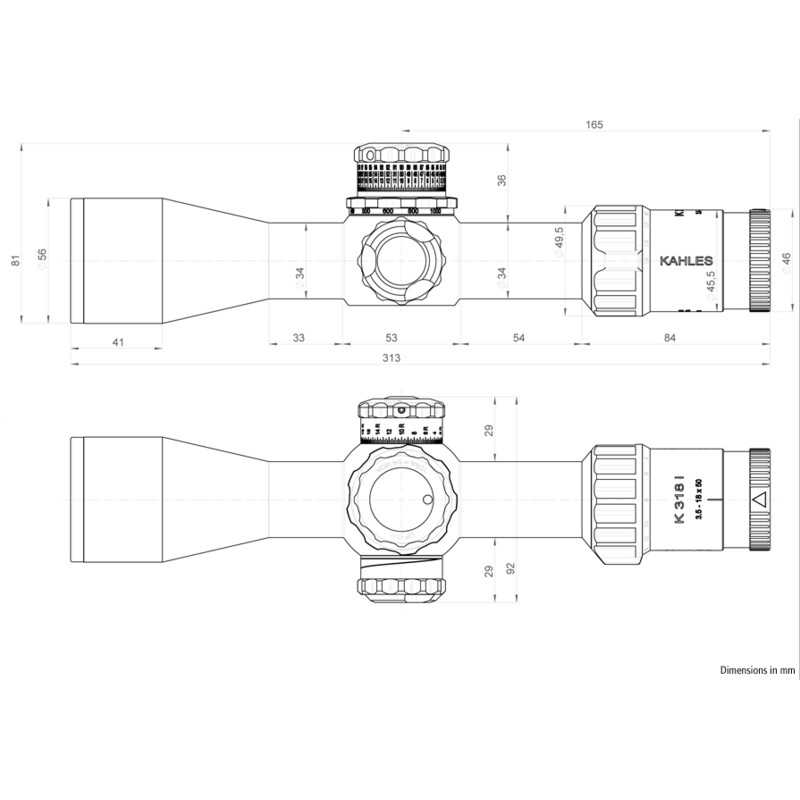

Dimensions
