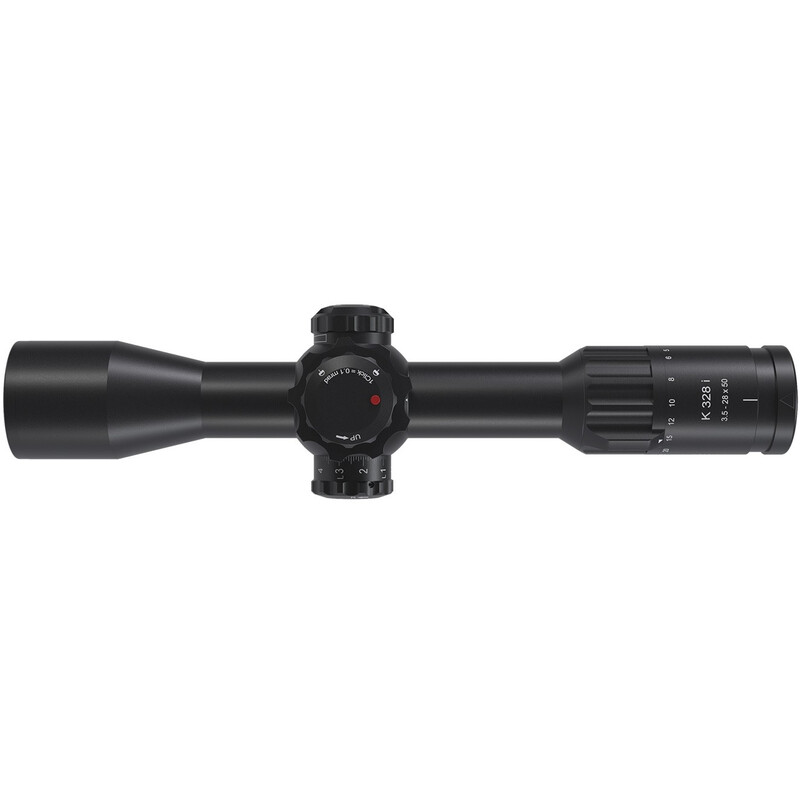

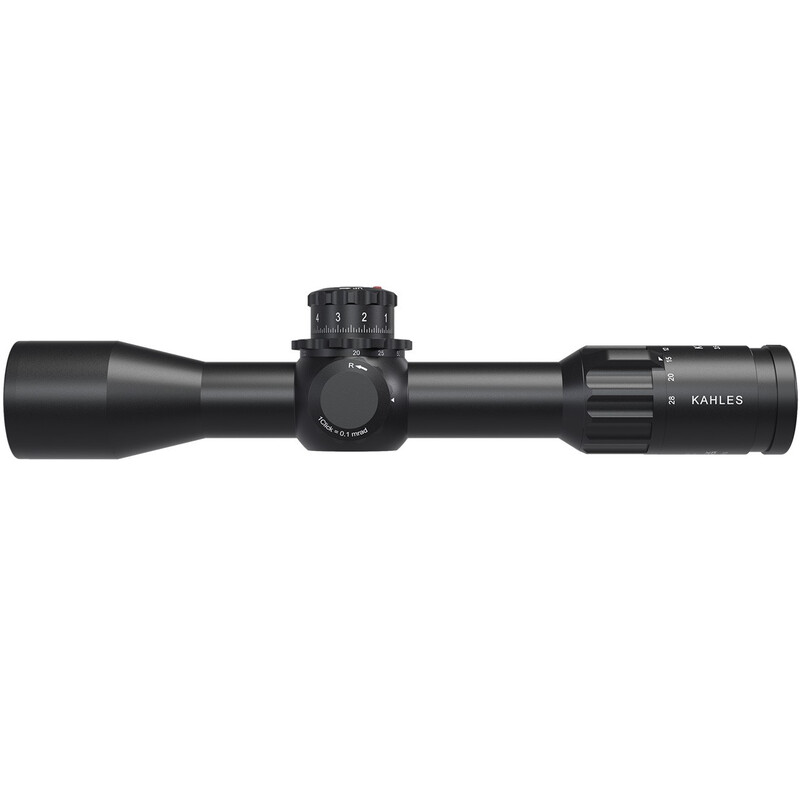

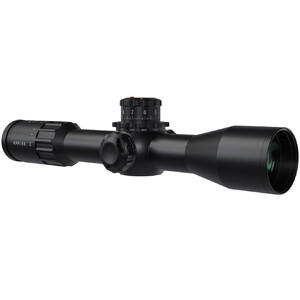

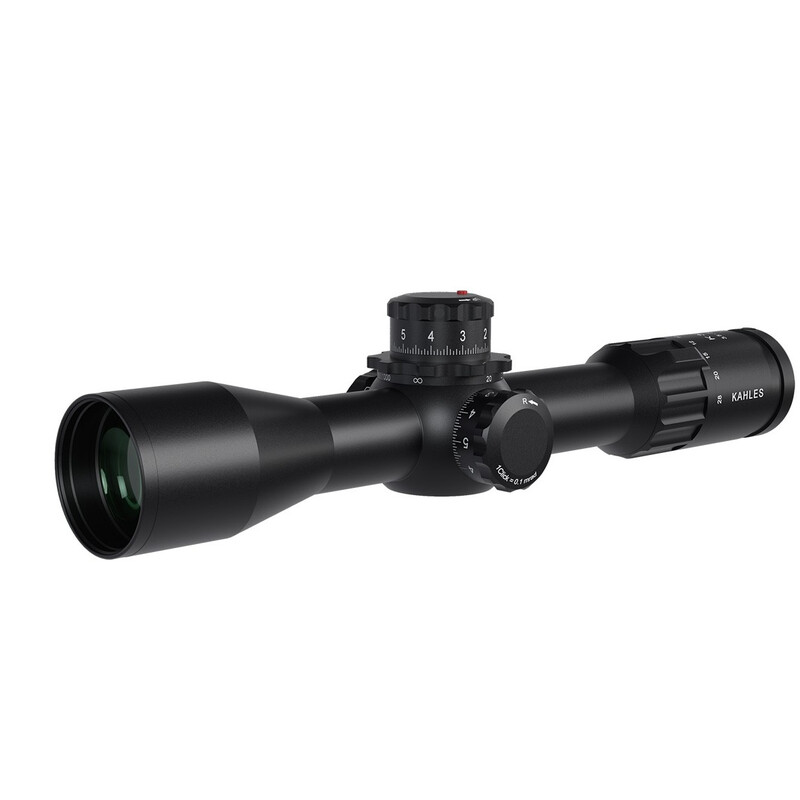

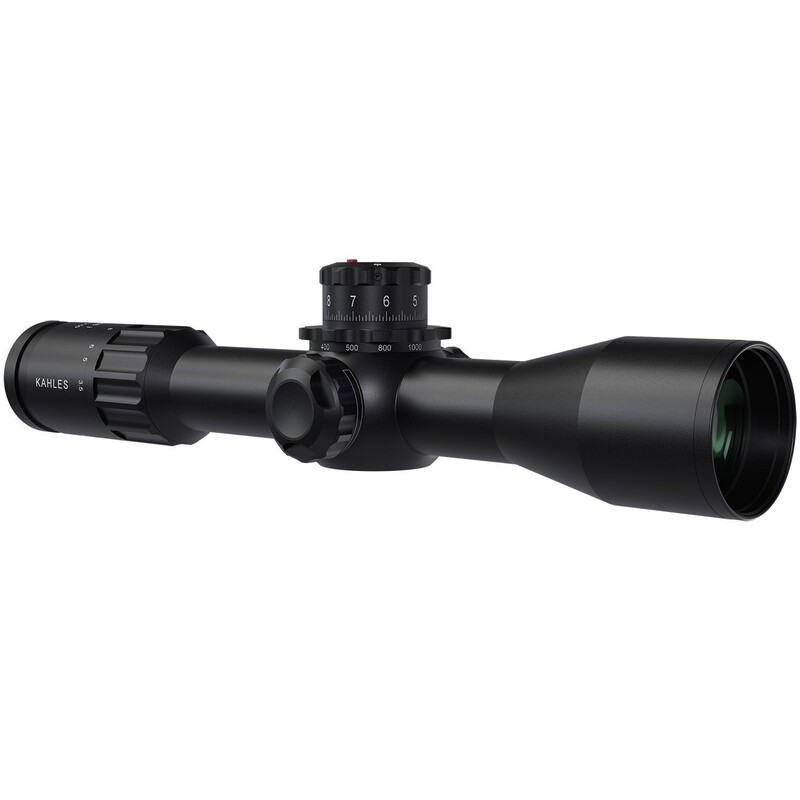

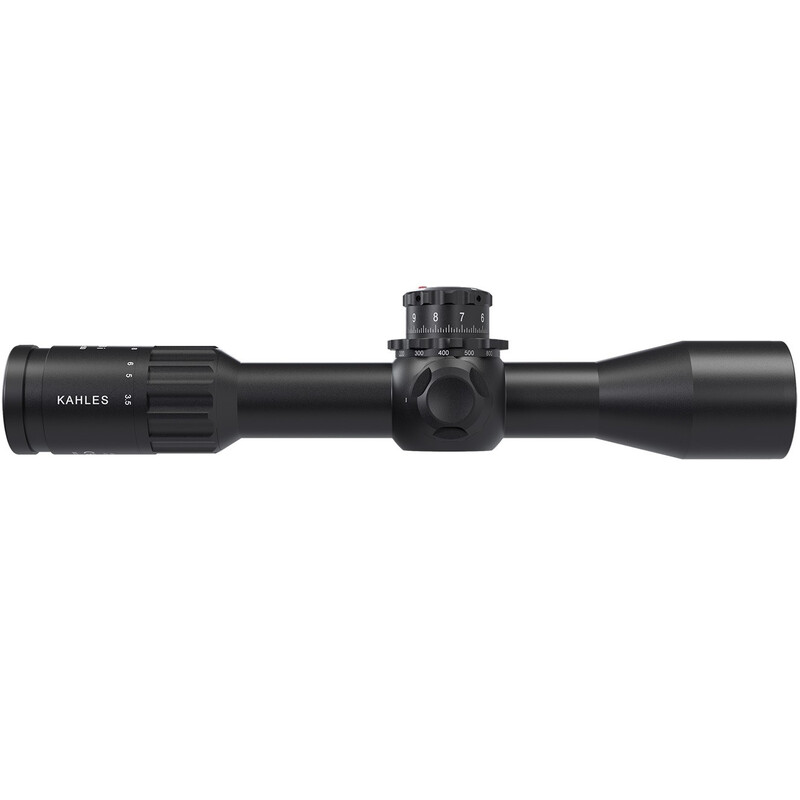

Kahles K328i REFINED 3.5–28×50 – Allround riflescope with extended field of view
The Kahles K328i REFINED is a versatile sports and long-range riflescope that combines maximum optical performance with a new generation of optical design. It offers an exceptionally wide magnification range of 3.5–28× with an extremely generous field of view and comfortable eyebox, which supports natural, fatigue-free aiming over long periods of time. This new development is aimed at sport shooters and tactical users who expect broad flexibility of use and precise readability over changing distances.
The REFINED models from Kahles are based on the proven features of the K series and specifically improve operation and overview without changing the familiar handling. Redesigned turrets with a uniform 10-MIL concept, optimised ergonomics of the controls and an enlarged field of view ensure faster orientation and more intuitive settings in practical use.
In addition, parallax adjustment and reticles have been further refined to ensure more precise handling and better readability. The aim of the REFINED series is not to redefine, but to consistently optimise details for greater control, clarity and efficiency in sporting shooting.
This riflescope has the SKMR+ reticle.
The side adjustment is located on the right-hand side
The adjustment is CCW, i.e. counterclockwise
Large magnification range and 8x zoom:
With an 8x zoom, the K328i REFINED covers a very wide range – from clear close-range targets to challenging long-range targets – and delivers high optical performance across the entire range without compromise.
Reticle in the first image plane:
The finely structured, illuminated reticle in the first image plane (FFP) remains true to scale at any magnification. This allows for accurate distance measurements and hold points regardless of the magnification.
Visionflex optics for a wide field of view:
A newly developed Visionflex optical design significantly expands the field of view compared to classic models (approx. 40% wider than comparable riflescopes). This ensures a better overview, faster target acquisition and a natural viewing experience.

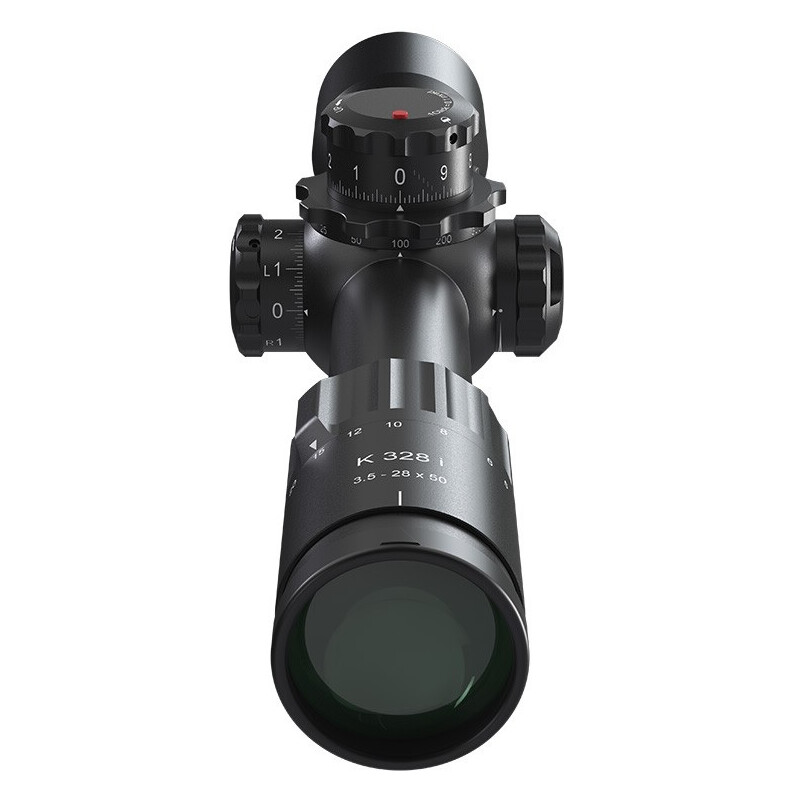

Ergonomic operating concept:
The controls are ergonomically arranged to allow adjustments to be made directly from the firing position without having to reach across. The side adjustment can be mounted on either the left or right, and parallax adjustment is integrated into the elevation turret.

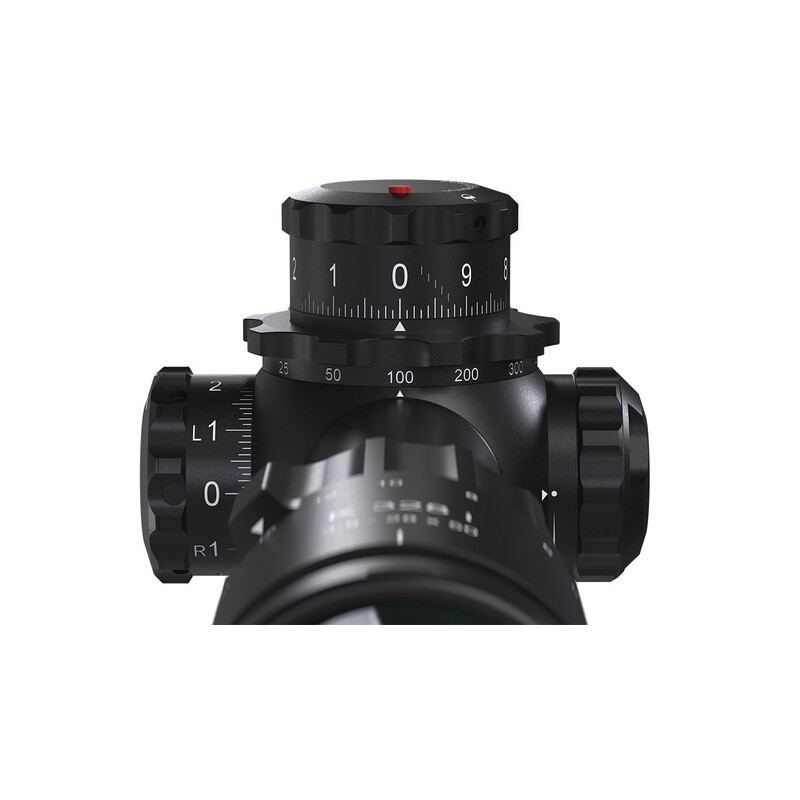

Precise adjustment and feedback:
Elevation and windage adjustment turrets with clearly defined clicks and EASYREAD markings ensure fast, tactile and reproducible adjustments under demanding conditions. The mechanical zero-stop function allows a secure return to the set zero position, and the TwistGuard twist protection prevents accidental adjustments.
Robust construction:
With its sturdy 36 mm main tube and high-quality workmanship, the K328i REFINED offers high reliability, robustness and durability – designed for tough use in sports operations.
Technical highlights
- Magnification: 3.5–28× (8× zoom)
- Objective lens diameter: 50 mm
- Reticle: first image plane, with lighting
- Parallax adjustment: 20 m – ∞
- Adjustment clicks: 0.1 MRAD per click
- Zero stop: Yes
- TwistGuard anti-twist protection: Yes
- Main tube diameter: 36 mm

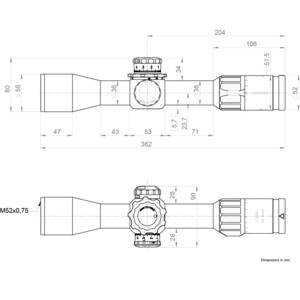

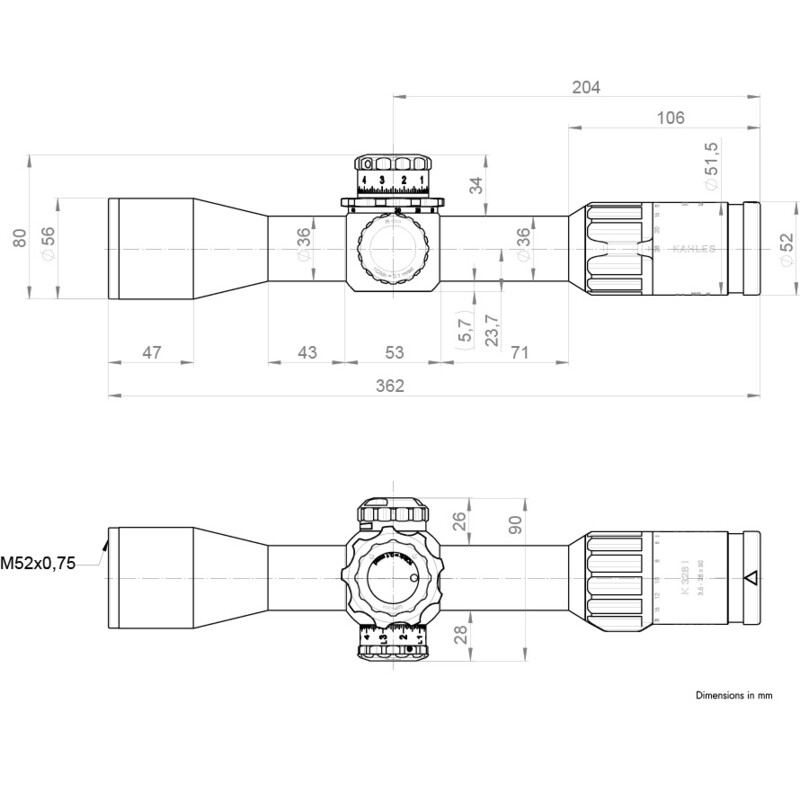

- Length/weight: approx. 360 mm / approx. 1040 g
Area of application:
The K328i REFINED is a true allrounder for demanding sport shooters and dynamic long-range disciplines. It combines high optical performance and a wide field of view with a wide adjustment range for variable distances. If you are looking for a riflescope that combines precise target acquisition, high repeat accuracy and comfortable operation even under changing conditions, you will find a distinctive solution here.
