Riflescopes > Instruments > Kahles > K525i DLR > Kahles Riflescope K525i DLR 5-25x56, SKMR, ccw, right
Product no.: 86371

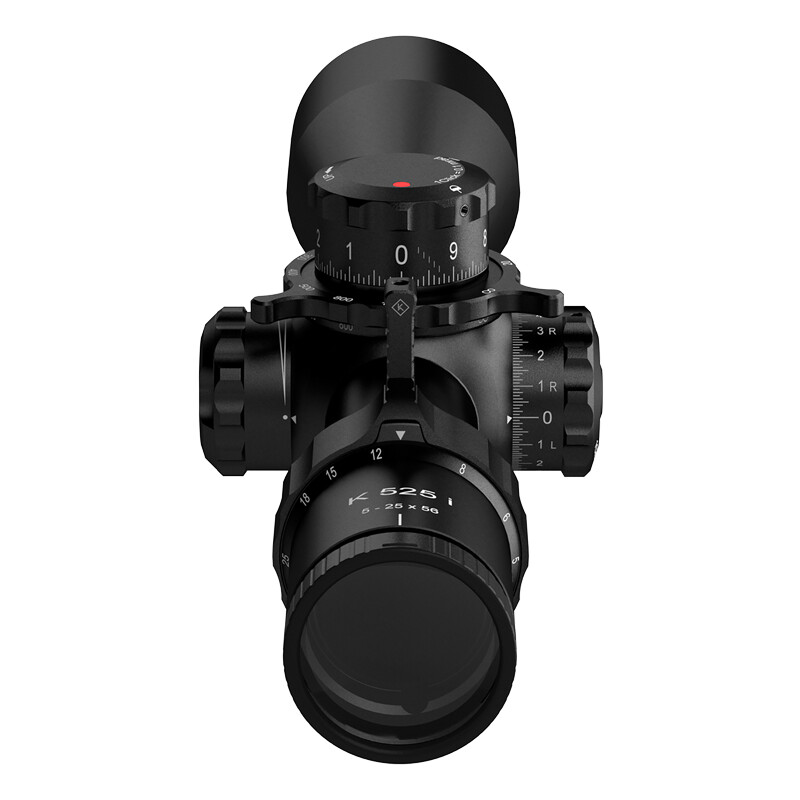

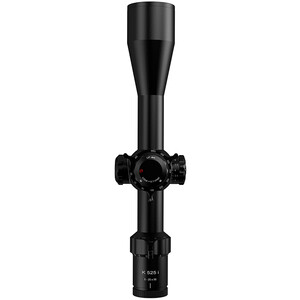

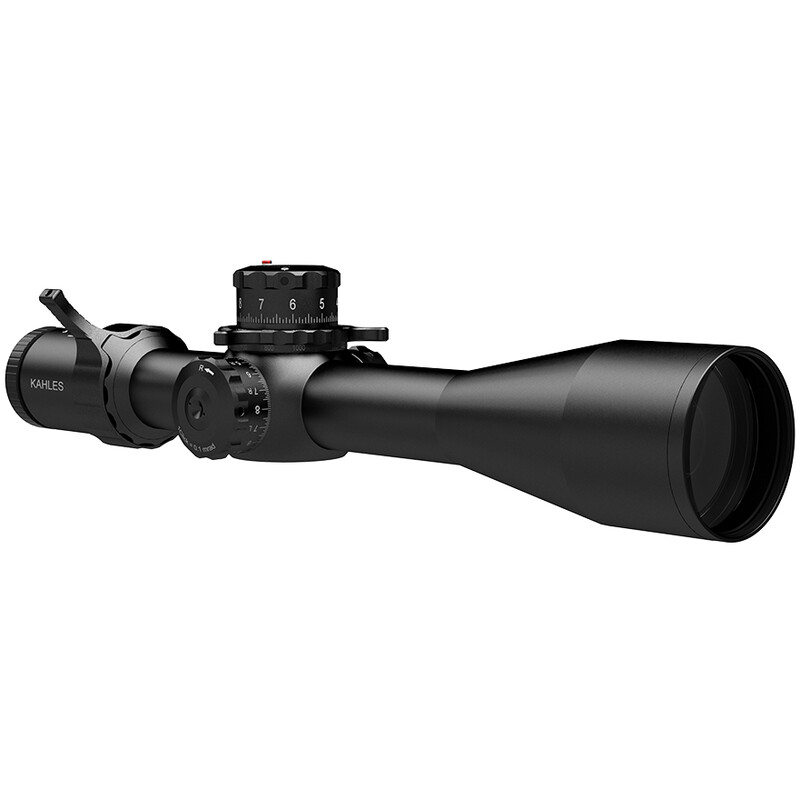

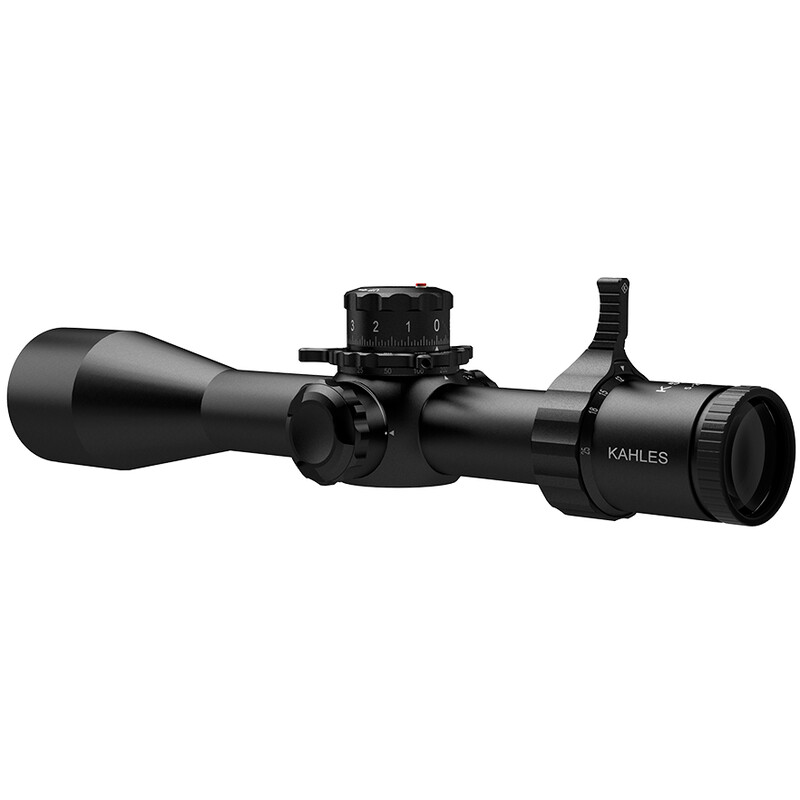

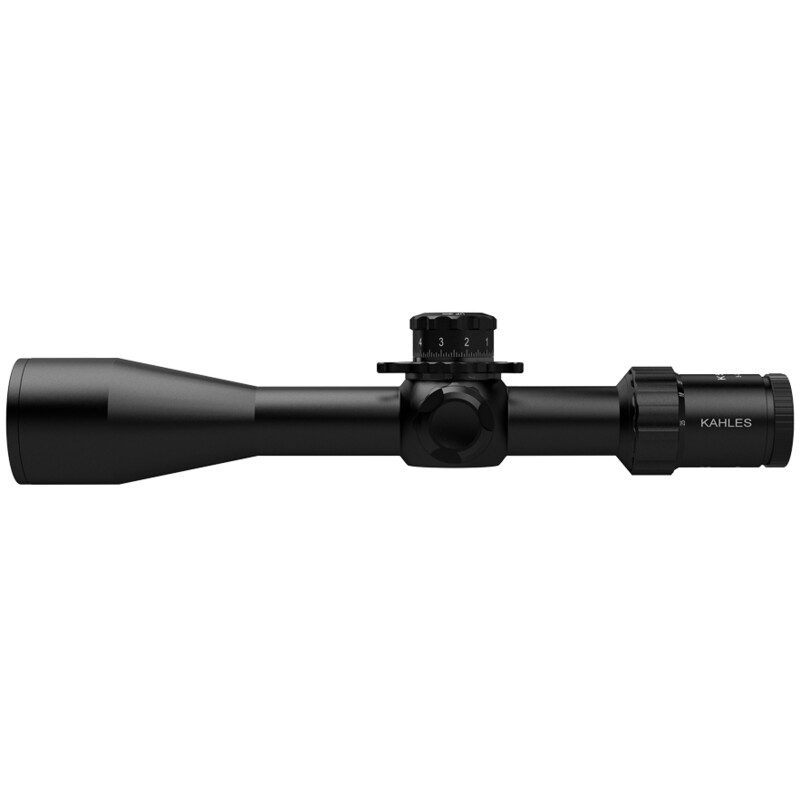

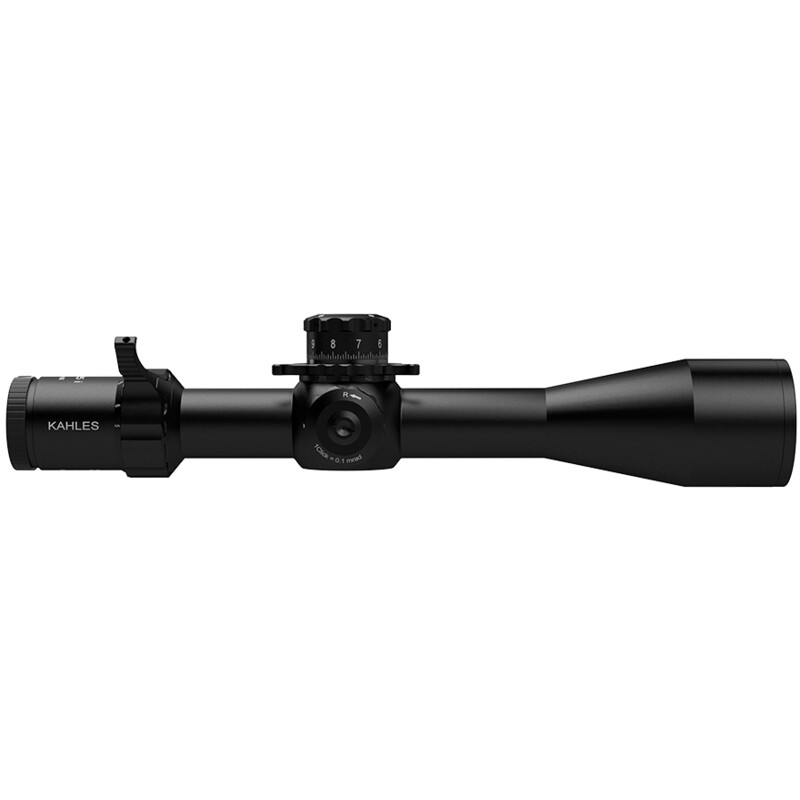

Riflescope K525i DLR 5-25x56, SKMR, ccw, right

$ 4,110.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

K525i DLR - 5-25x56i
DYNAMIC LONG RANGE

The K525i combines maximum optical performance and precision with unique handling and ergonomics. The DLR model has been optimised for the high demands of fast-paced dynamic long-range competitions and is equipped with an extra-wide field of view, easy-to-read clicks, an extra-long adjustment lever and a parallax spinner.

  • Maximum optical performance with extra-wide field of view
  • 100 clicks per turn – absolutely reliable repeat accuracy and clearly defined clicks
  • Extra-large tower markings for easy and quick readability
  • Optional left or right side adjustment with TWIST GUARD anti-twist protection
  • Optional extras: extra-long adjustment lever and parallax spinner for quick adjustment
  • Precise SKMR / SKMR4 illuminated reticle in the 1st image plane

This riflescope has the SKMR reticle
The side adjustment is located on the right-hand side
The adjustment is CCW, i.e. counterclockwise

SPECIALIST FOR DYNAMIC LONG RANGE DISCIPLINE

  • DLR = EasyRead elevation
    The EasyRead elevation with only 100 clicks per rotation plane makes it particularly easy, quick and safe to read the clicks thanks to large click intervals in combination with extra-large lettering.

    Compared to the KAHLES standard elevation with 140 or 160 clicks for fast clicking over long adjustment ranges, calculating the clicks in the second rotation plane is also much easier.

Additional features:

  • 1st image plane
    When looking through the 1st image plane (lens image plane), the reticle magnifies as the magnification changes. The bar spacing remains the same, as do the coverage dimensions.
  • Main tube diameter 34 mm
    The main tube has a diameter of 34 mm, the standard size for tactical riflescopes.
  • Adjustment direction CCW
    The adjustment direction of the elevation and windage turrets is counter-clockwise (ccw).
  • MIL
    Click resolution in MRAD. A 0.1 MRAD click corresponds to a point of impact shift of 1 cm at a distance of 100 metres.
  • Side adjustment left or right
    Superior handling and ergonomics thanks to unique arrangement of controls
    Thanks to the special arrangement, all controls can be operated easily and comfortably from the firing position with the intuitively preferred hand without reaching over, and all adjustment information is always in the field of view. The parallax wheel is integrated into the elevation adjustment tower on all K-series riflescopes. The patented central arrangement allows for comfortable operation by both left- and right-handed users. For right-handed shooters, the side adjustment is ergonomically positioned on the left side, and for left-handed shooters, it is on the right side.
  • Zero Stop
    The Zero Stop or mechanical zero point (stop) is located 3 or 4 clicks below the zero indicator and can be activated after sighting in. This feature allows quick and intuitive location of the zero indicator (e.g. in poor light) and precise adjustment to specific conditions (such as high temperatures or closer targets).
  • TWIST GUARD Anti-twist protection
    Patented TWIST GUARD anti-twist protection for side adjustment
    The innovative TWIST GUARD anti-twist protection reliably prevents accidental adjustment of the side tower thanks to a freely rotating cap. This simple solution maintains the quick and easy operation of the side adjustment without annoying "locking" or "unlocking".

What does cw or ccw stand for? Depending on the model, the adjustment direction of the windage and elevation turret is configured either clockwise (cw) or counterclockwise (ccw). Please check the details in the product description.

Our expert comment:

ATTENTION: Similar images!

May show models with the turret on the wrong side and the wrong direction of rotation. Please refer to the product name and description for details.
Stefan Rieger

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
5
Maximum magnification
25
Front lens diameter (mm)
56
Eye relief (mm)
95
Diopter compensation
+2/-3,5
Central tube diameter (mm)
34

Field of view


Twilight factor
16,7-37,4
Field of view at 100 m (m)
7,7-1,6
Field of view at min. enlargement (m)
7,7
Field of view at max. enlargement (m)
1,6
Reticle
SKMR
Reticle plane
1st focal plane (FFP)

Special features


Illuminated reticle
yes
Automatic switch-off
-
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
-
Bullet drop compensator
-
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
377
Weight (g)
995
Series
K525i DLR

Area of application


Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, www.kahles.at
Responsible person: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, [email protected]

Recommended accessories

Riflescopes > Accessories (7)

Kahles Neoprene Riflescope Protection 375x75 mm

$ 58.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Kahles Riflescope K525i DLR 5-25x56, SKMR, ccw, right

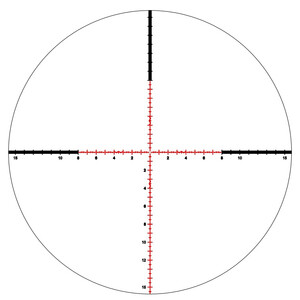

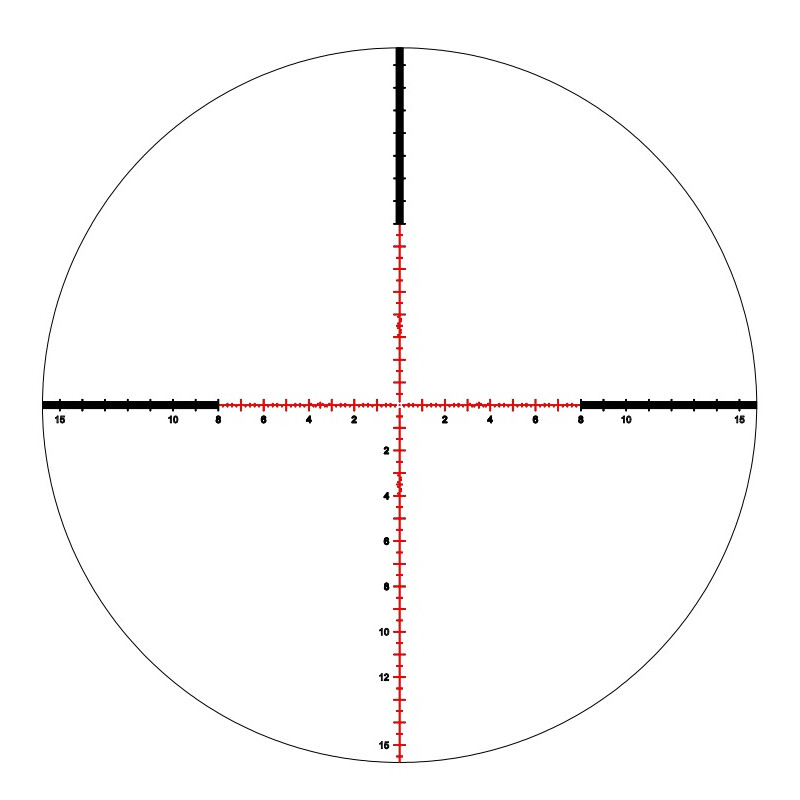

Crosshair image
Kahles Riflescope K525i DLR 5-25x56, SKMR, ccw, right

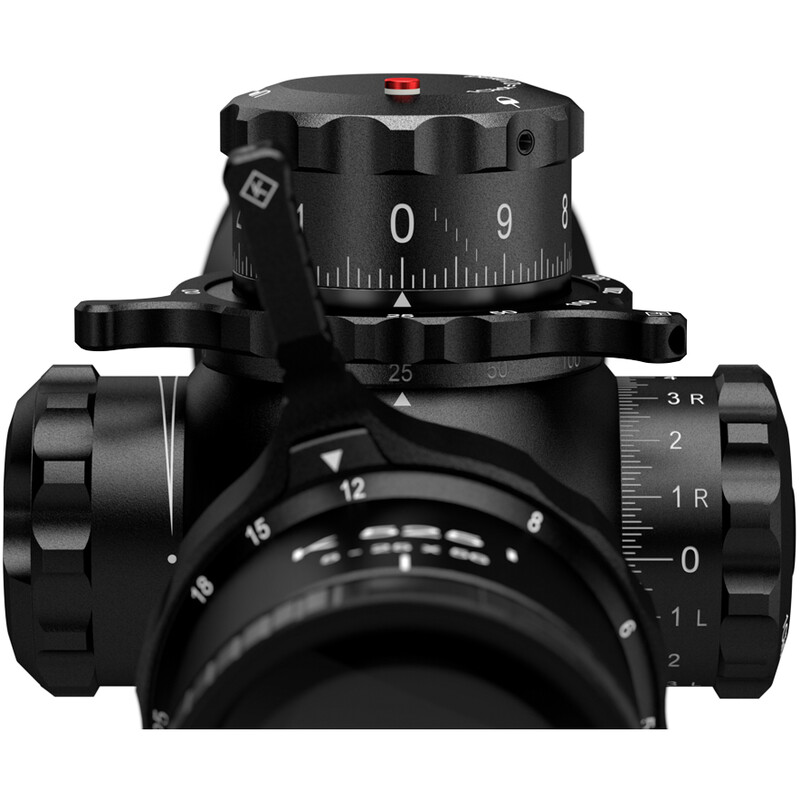

Optimised for DLR discipline
Kahles Riflescope K525i DLR 5-25x56, SKMR, ccw, right

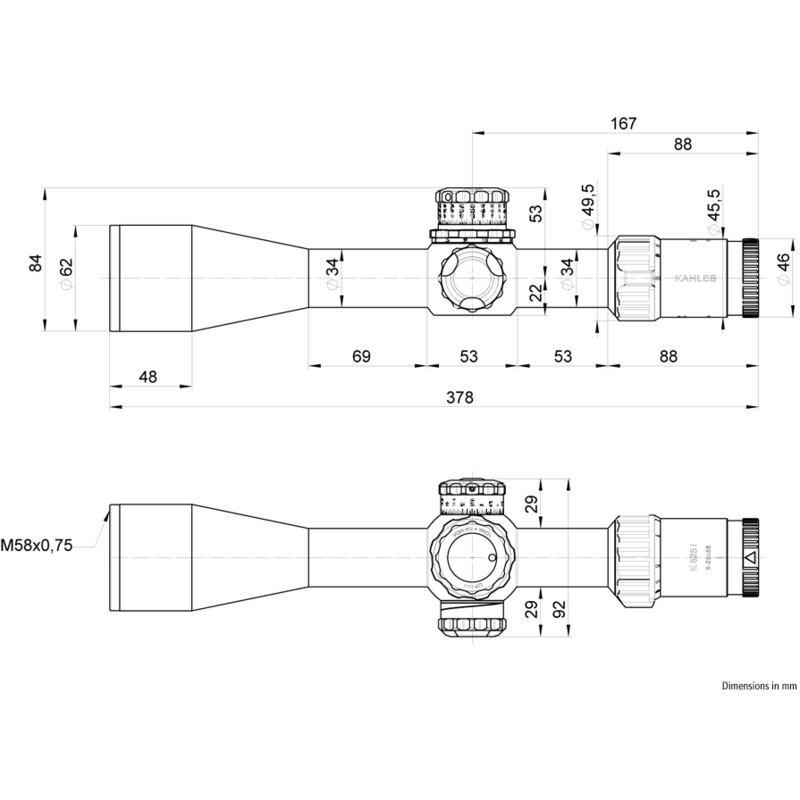

Dimensions
