Capacity

Type of build

zoomable magnification

Minimum magnification

5

Maximum magnification

40

Front lens diameter (mm)

56

Exit pupil at min. enlargement (mm)

7,7

Exit pupil at max. enlargement (mm)

1,4

Eye relief (mm)

92

Diopter compensation

+2 / -3

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

36

Field of view

No parallax over (m)

20m - ∞

100 m adjustment per clic

1 cm

Twilight factor at min. enlargement

13,9

Twilight factor at max. enlargement

47,3

Field of view at min. enlargement (m)

10,2

Field of view at max. enlargement (m)

1,3

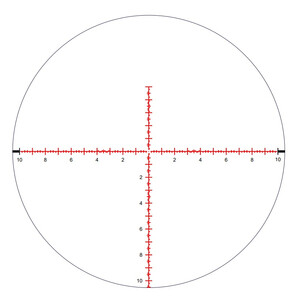

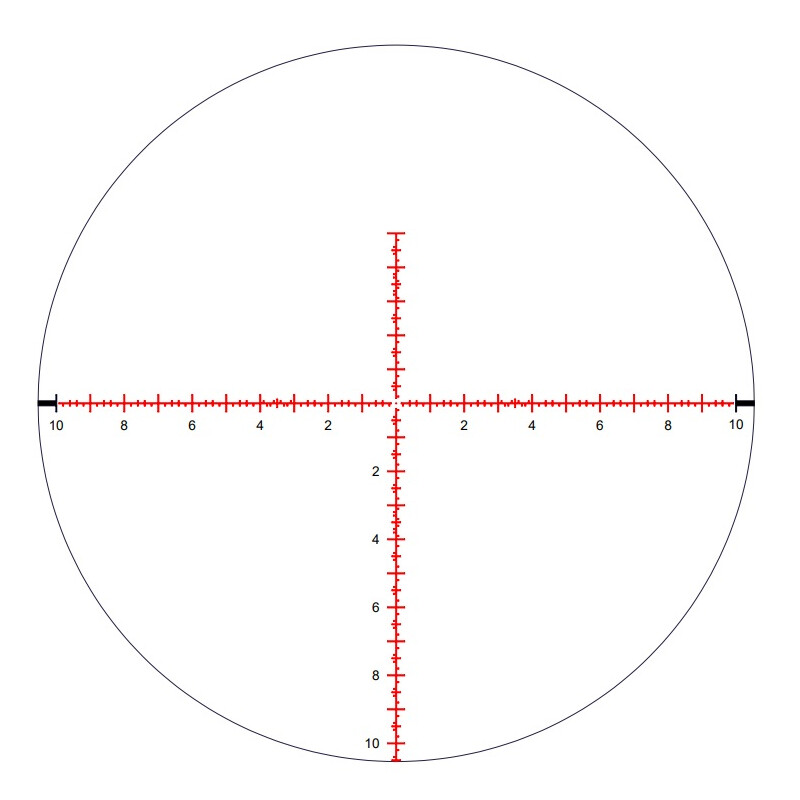

Reticle

SKMR+

Reticle plane

1st focal plane (FFP)

Reticle usage

Sporting shooters

Special features

Illuminated reticle

yes

Automatic switch-off

yes

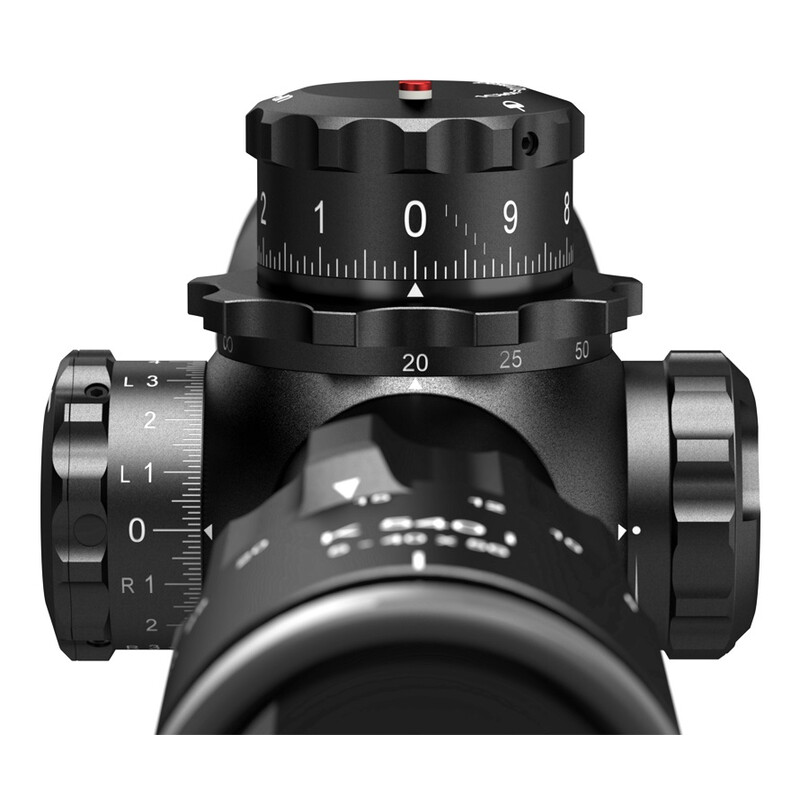

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

yes

Bullet drop compensator

yes

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

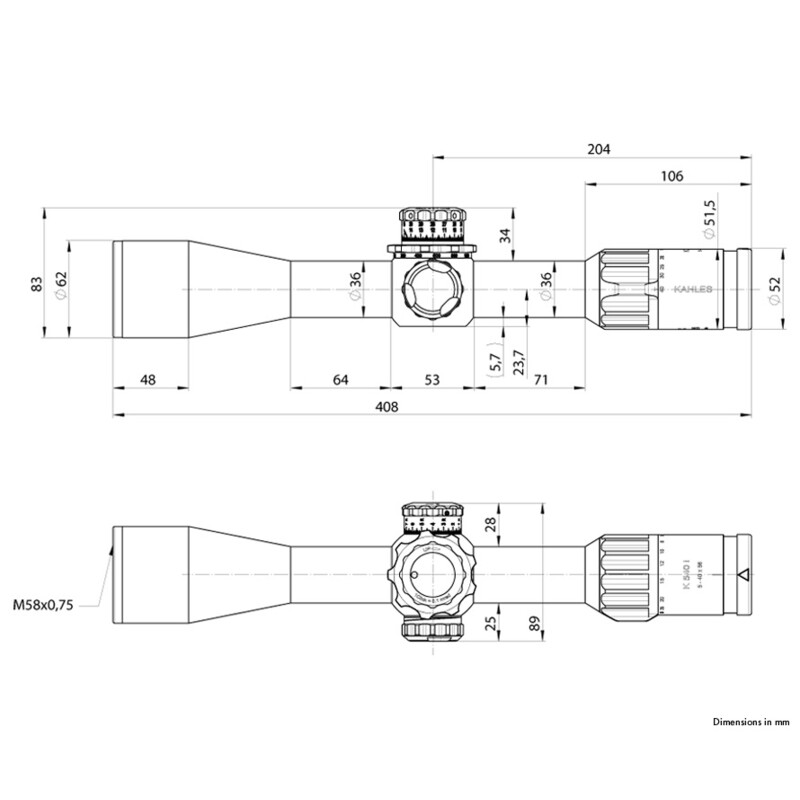

Length (mm)

408

Central tube length (mm)

188

Weight (g)

1110

objective lens outside diameter (mm)

62

eyepiece outer diameter (mm)

52

Series

K540i DLR

Area of application

Stalk hunting

middle

Raised hide

middle

Drive hunting

-

Magnum caliber

very good

long distance

very good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

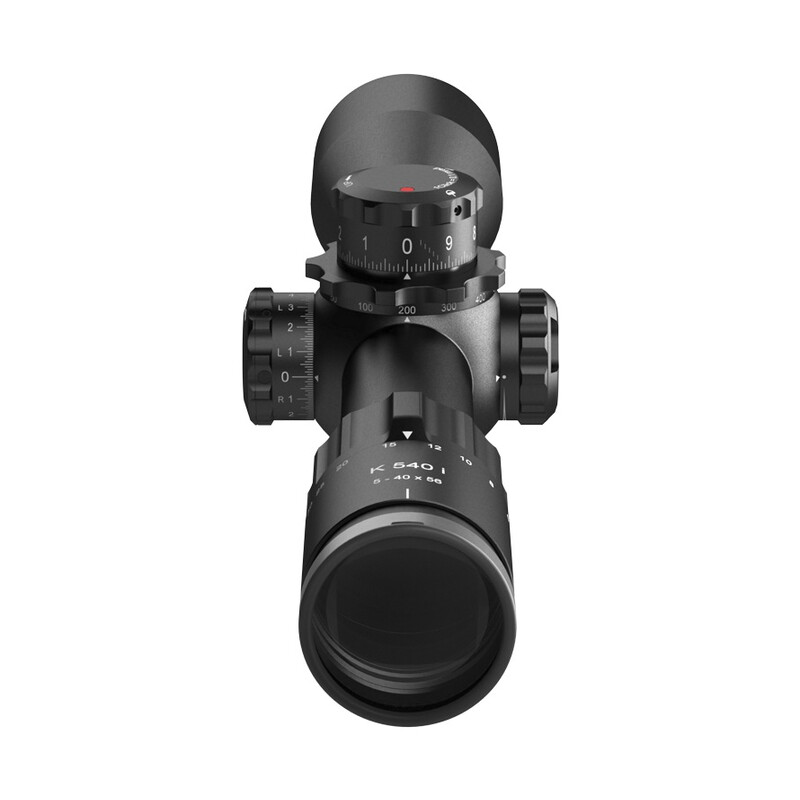

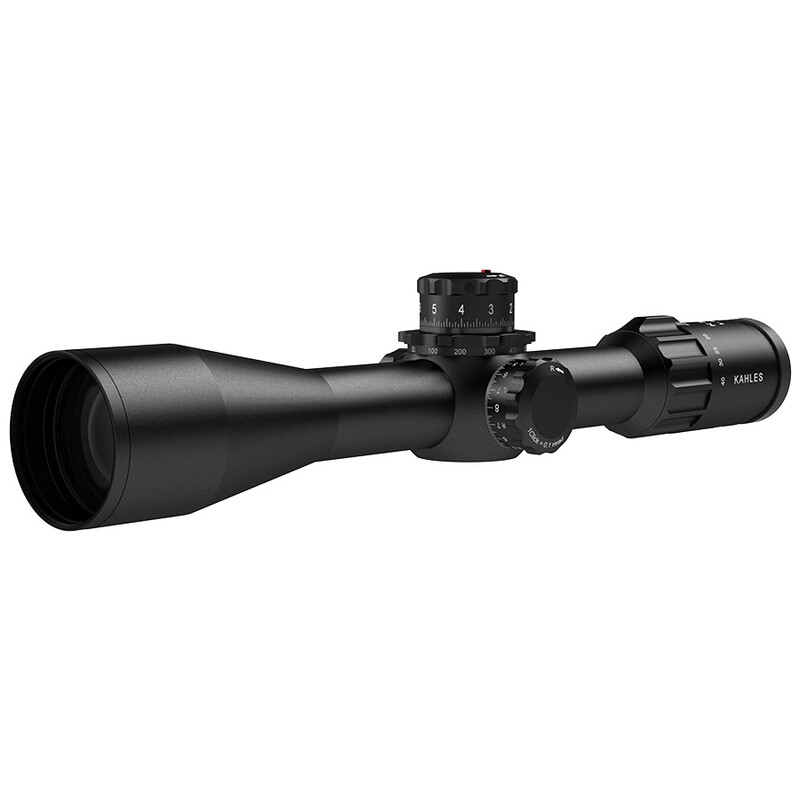

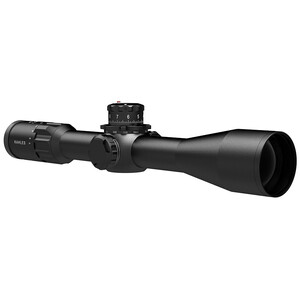

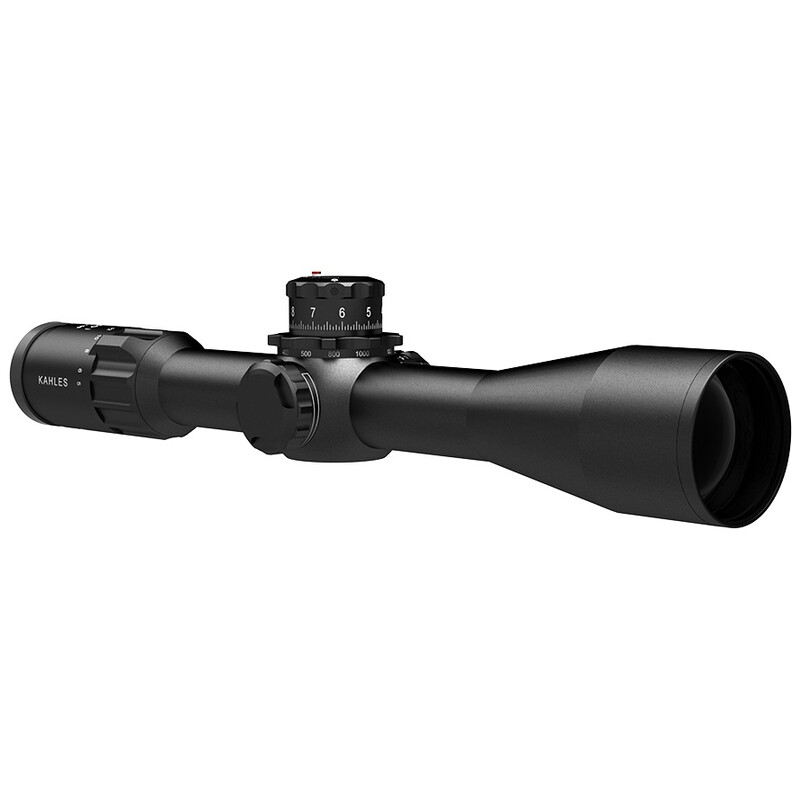

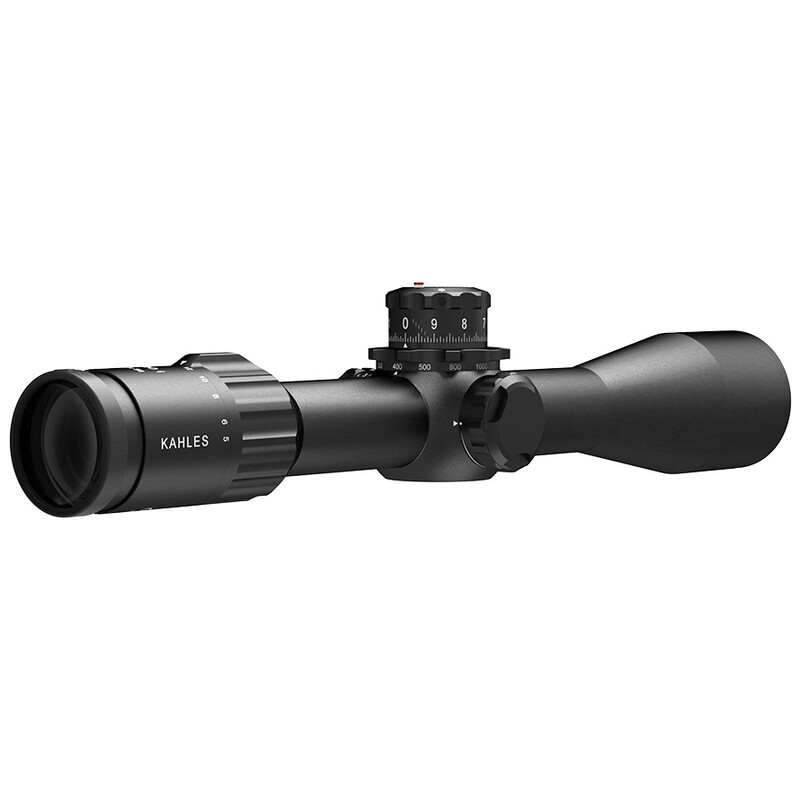

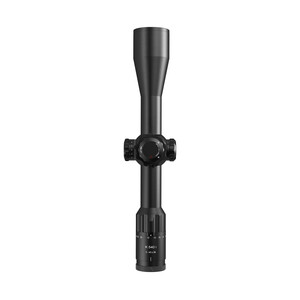

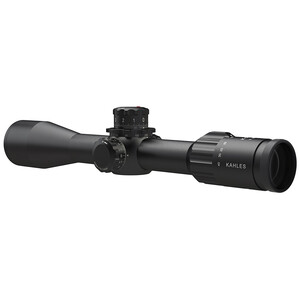

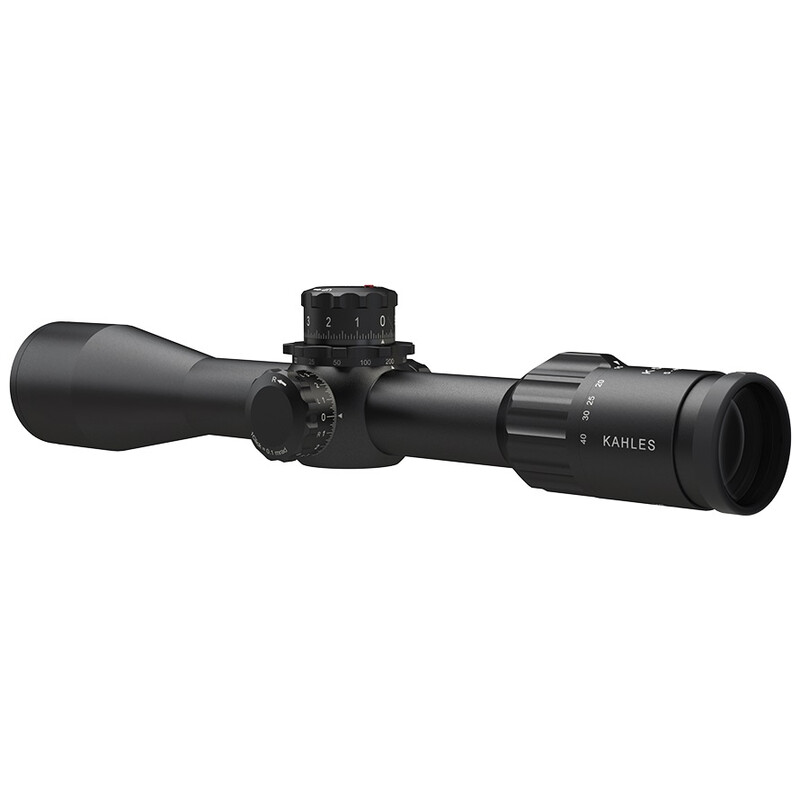

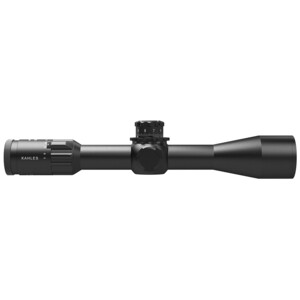

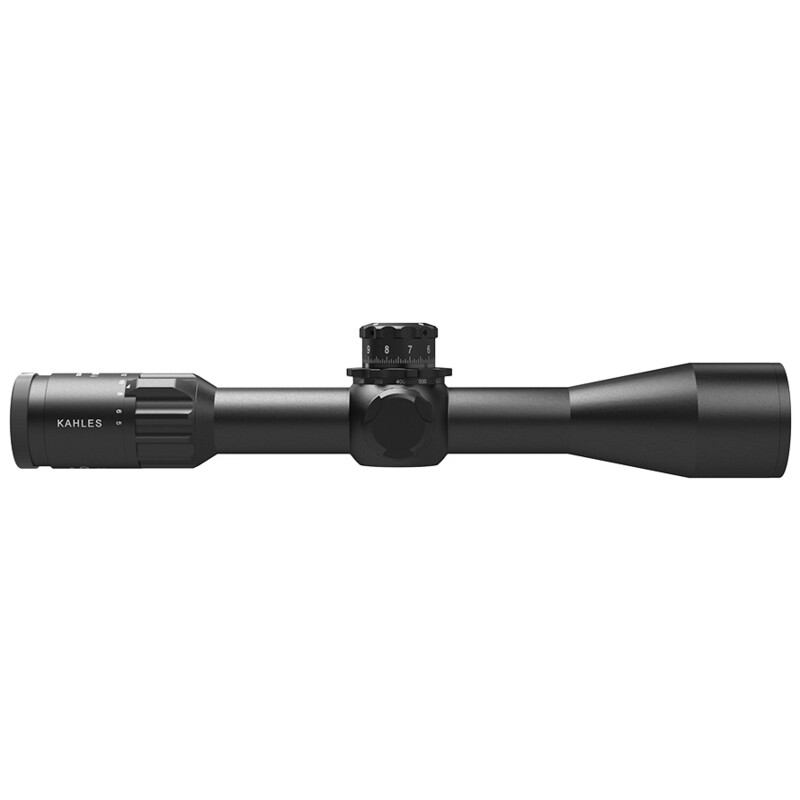

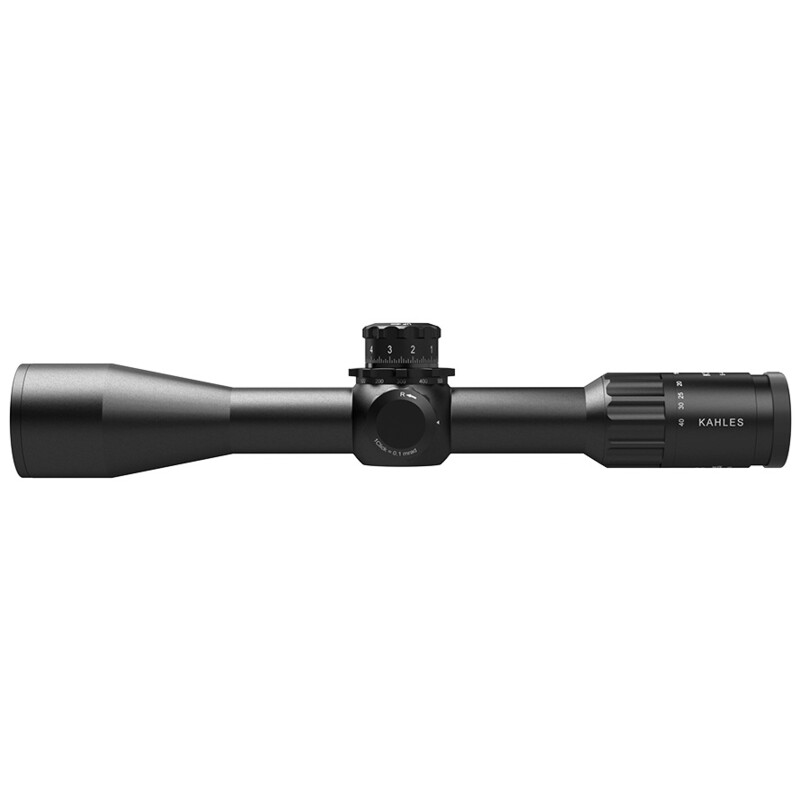

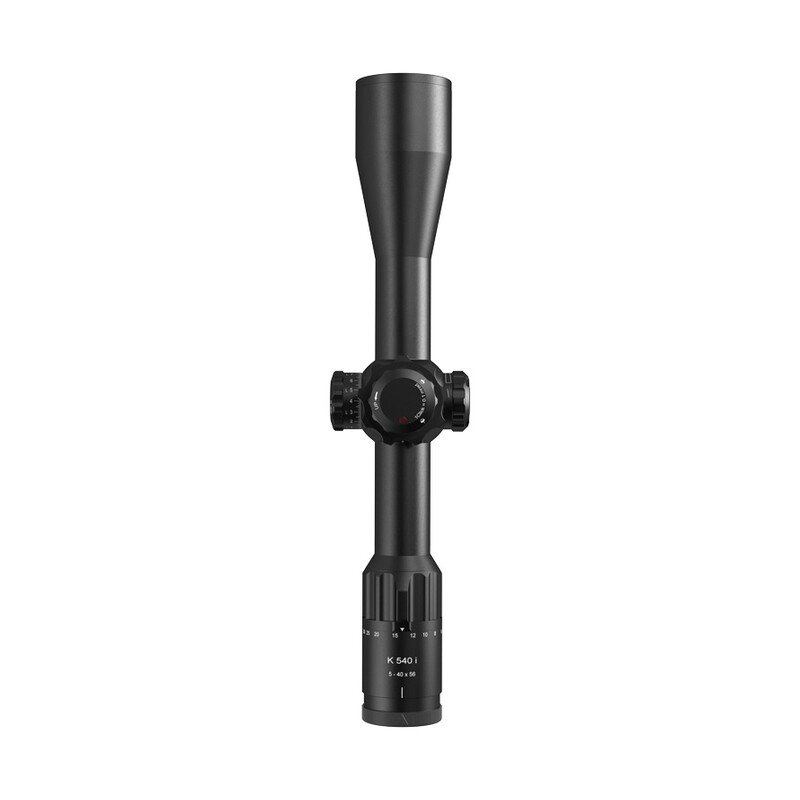

Riflescope K540i DLR 5-40x56i, SKMR+, ccw, left
