Riflescopes > Instruments > Kahles > K540i DLR > Kahles Riflescope K540i DLR 5-40x56i, SKMR+, ccw, right
Product no.: 86367

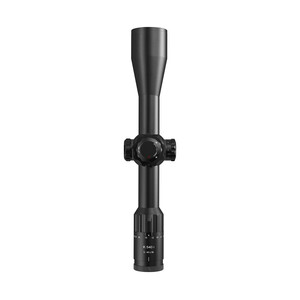

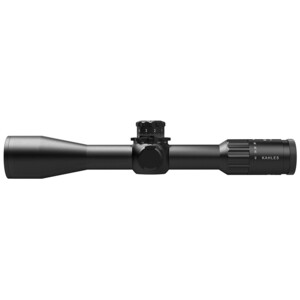

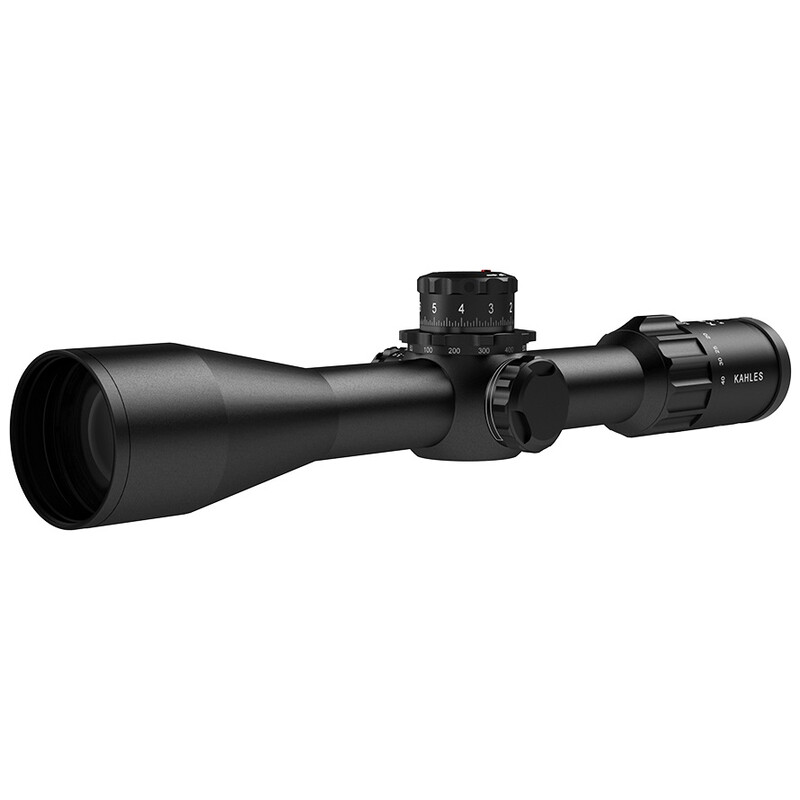

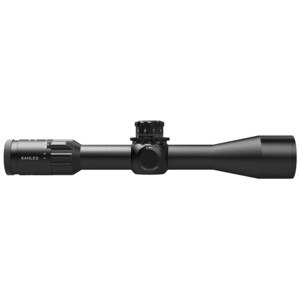

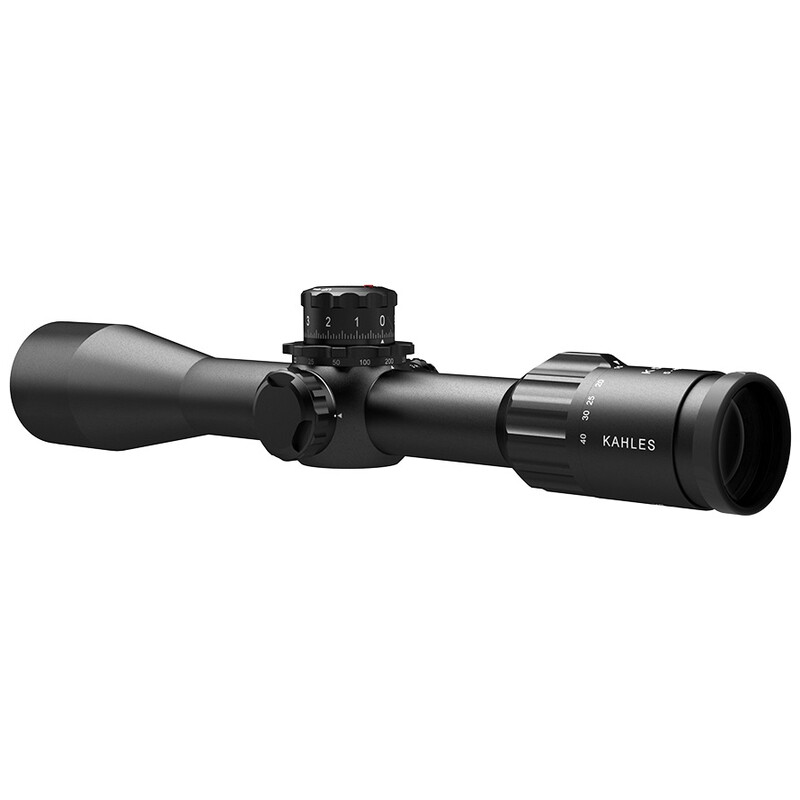

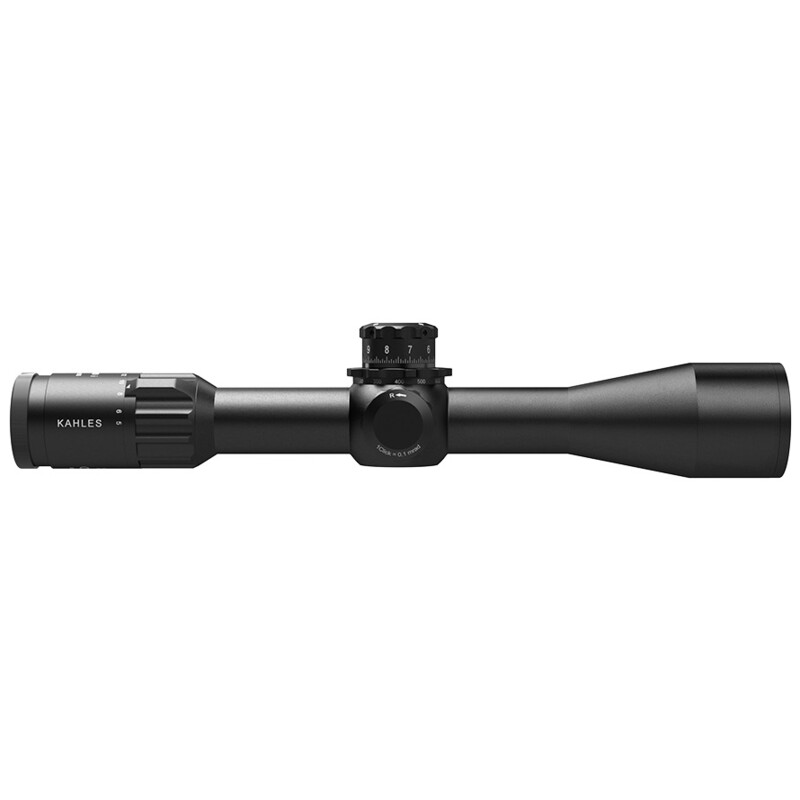

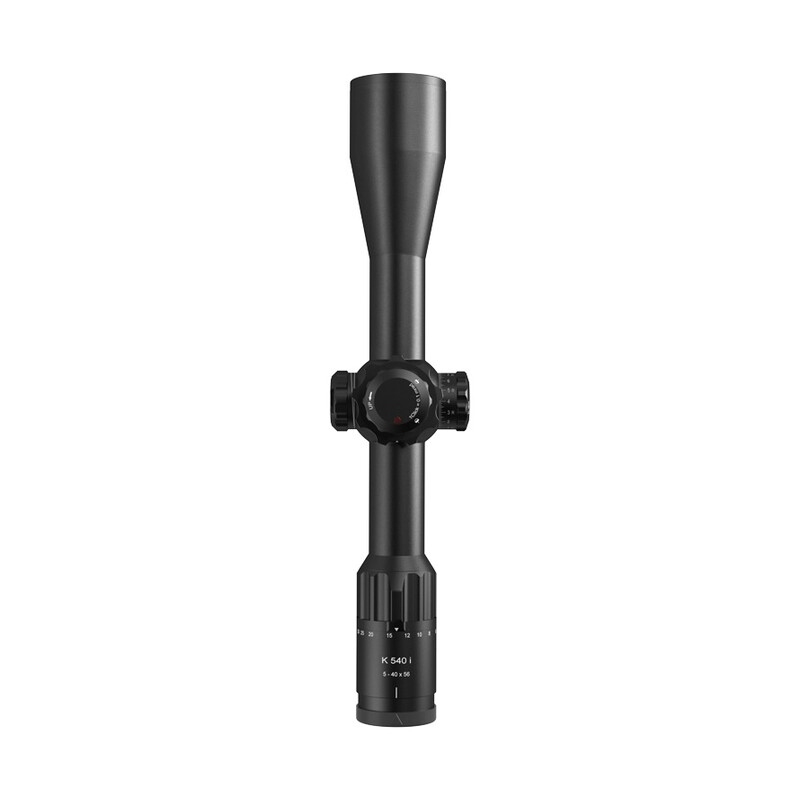

Riflescope K540i DLR 5-40x56i, SKMR+, ccw, right

$ 5,200.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

K540i DLR - 5-40x56i
THE GAME CHANGER - 40X

The groundbreaking K 540i DLR sets new performance standards with a pioneering new generation of optical design. It offers 40% more field of view*, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range.

With "EasyRead" height elevation specially optimised for dynamic long-range competitions designed for speed.

  • Revolutionary optical design with 40% more field of view
  • Perfect optical performance with 8x zoom across the entire adjustment range
  • Particularly generous eyepiece even at 40x magnification
  • Choice of left or right side adjustment, patented parallax adjustment integrated in the height tower
  • 100 clicks per turn – absolutely reliable repeat accuracy and clearly defined clicks
  • Extra-large tower markings for easy and quick readability
  • Precise illuminated reticles in the 1st image plane


(* compared to the K525i)

This riflescope has the SKMR+ reticle
The side adjustment is located on the right-hand side
The adjustment is CCW, i.e. counter-clockwise

SPECIALIST FOR DYNAMIC LONG RANGE DISCIPLINE

  • DLR = EasyRead elevation
    The EasyRead elevation with only 100 clicks per rotation plane makes it particularly easy, quick and safe to read the clicks thanks to large click intervals in combination with extra-large lettering.

    Compared to the KAHLES standard elevation with 140 or 160 clicks for fast clicking over long adjustment ranges, calculating the clicks in the second rotation plane is also much easier.

Additional features:

  • 1st image plane
    When looking through the 1st image plane (lens image plane), the reticle magnifies as the magnification changes. The bar spacing remains the same, as do the coverage dimensions.
  • Main tube diameter 36 mm
    The main tube has a diameter of 36 mm.
  • Adjustment direction CW or CCW
    Depending on the model, the elevation and windage adjustment is clockwise (CW) or counter-clockwise (CCW).
  • MIL
    Click resolution in MRAD. A 0.1 MRAD click corresponds to a point of impact shift of 1 cm at a distance of 100 metres.
  • Side adjustment left or right
    Superior handling and ergonomics thanks to unique arrangement of controls
    Thanks to the special arrangement, all controls can be operated easily and comfortably from the shooting position with the intuitively preferred hand without reaching over, and all adjustment information is always in the field of view. The parallax wheel is integrated into the elevation adjustment tower on all K-series riflescopes. The patented central arrangement allows for comfortable operation by both left- and right-handed users. For right-handed shooters, the side adjustment is ergonomically positioned on the left side, and for left-handed shooters, it is on the right side.
  • Zero Stop
    The Zero Stop or mechanical zero point (stop) is located 3 or 4 clicks below the zero indicator and can be activated after sighting in. This feature allows quick and intuitive location of the zero indicator (e.g. in poor light) and precise adjustment to specific conditions (such as high temperatures or closer targets).
  • TWIST GUARD Anti-twist protection
    Patented TWIST GUARD anti-twist protection for side adjustment
    The innovative TWIST GUARD anti-twist protection reliably prevents accidental adjustment of the side tower thanks to a freely rotating cap. This simple solution maintains the quick and easy operation of the side adjustment without annoying "locking" or "unlocking".

Our expert comment:

ATTENTION: Similar images!

May show models with the turret on the wrong side and the wrong direction of rotation. Please refer to the product name and description for details.
Stefan Rieger

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
5
Maximum magnification
40
Front lens diameter (mm)
56
Exit pupil at min. enlargement (mm)
7,7
Exit pupil at max. enlargement (mm)
1,4
Eye relief (mm)
92
Diopter compensation
+2 / -3
Lens coating
fully, multiple
Type of mounting
Mounts not included in delivery
Central tube diameter (mm)
36

Field of view


No parallax over (m)
20m - ∞
100 m adjustment per clic
1 cm
Twilight factor at min. enlargement
13,9
Twilight factor at max. enlargement
47,3
Field of view at min. enlargement (m)
10,2
Field of view at max. enlargement (m)
1,3
Reticle
SKMR+
Reticle plane
1st focal plane (FFP)
Reticle usage
Sporting shooters

Special features


Illuminated reticle
yes
Automatic switch-off
yes
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
yes
Bullet drop compensator
yes
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
408
Central tube length (mm)
188
Weight (g)
1110
objective lens outside diameter (mm)
62
eyepiece outer diameter (mm)
52
Series
K540i DLR

Area of application


Stalk hunting
middle
Raised hide
middle
Drive hunting
-
Magnum caliber
very good
long distance
very good
Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, www.kahles.at
Responsible person: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, [email protected]

Recommended accessories

Riflescopes > Accessories (9)

Kahles Neoprene Riflescope Protection 429x67 mm

$ 58.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Kahles Riflescope K540i DLR 5-40x56i, SKMR+, ccw, right

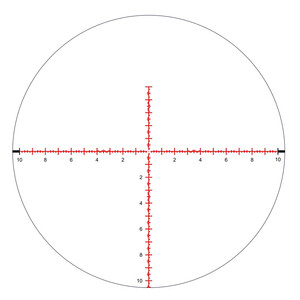

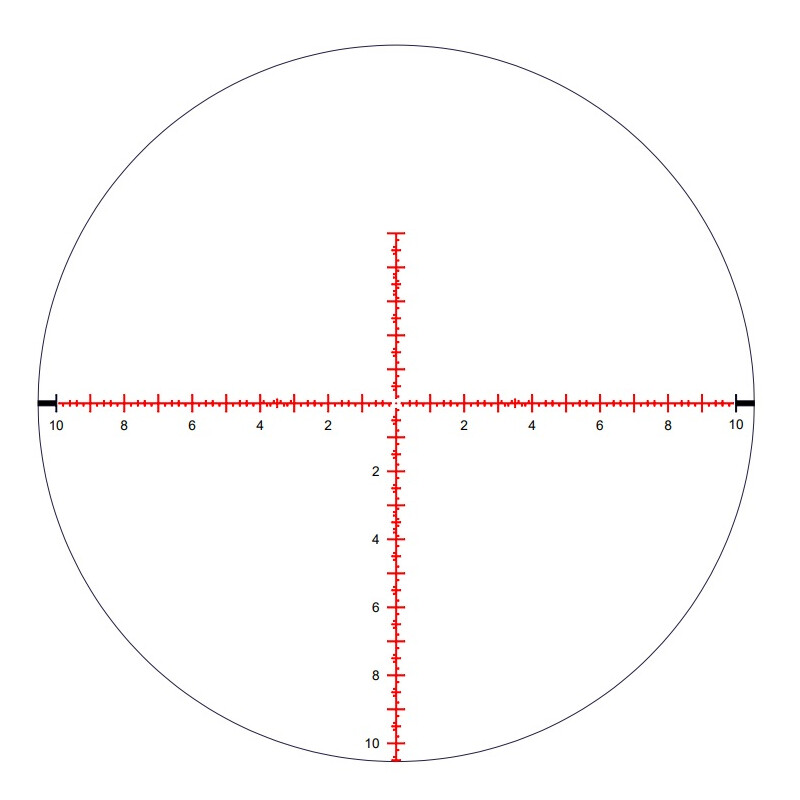

Crosshair image
Kahles Riflescope K540i DLR 5-40x56i, SKMR+, ccw, right

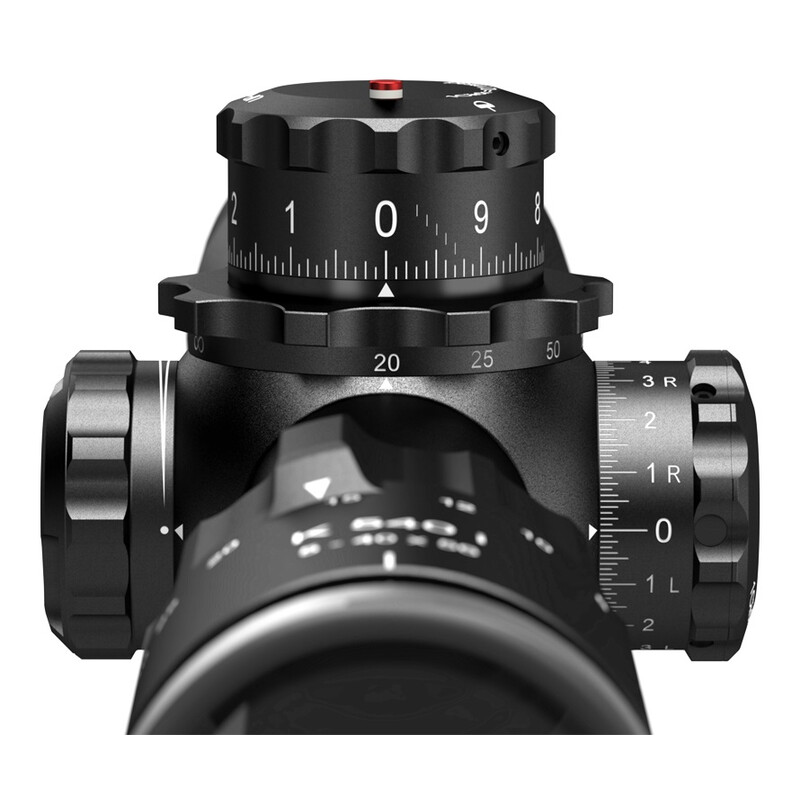

Optimised for DLR discipline
Kahles Riflescope K540i DLR 5-40x56i, SKMR+, ccw, right

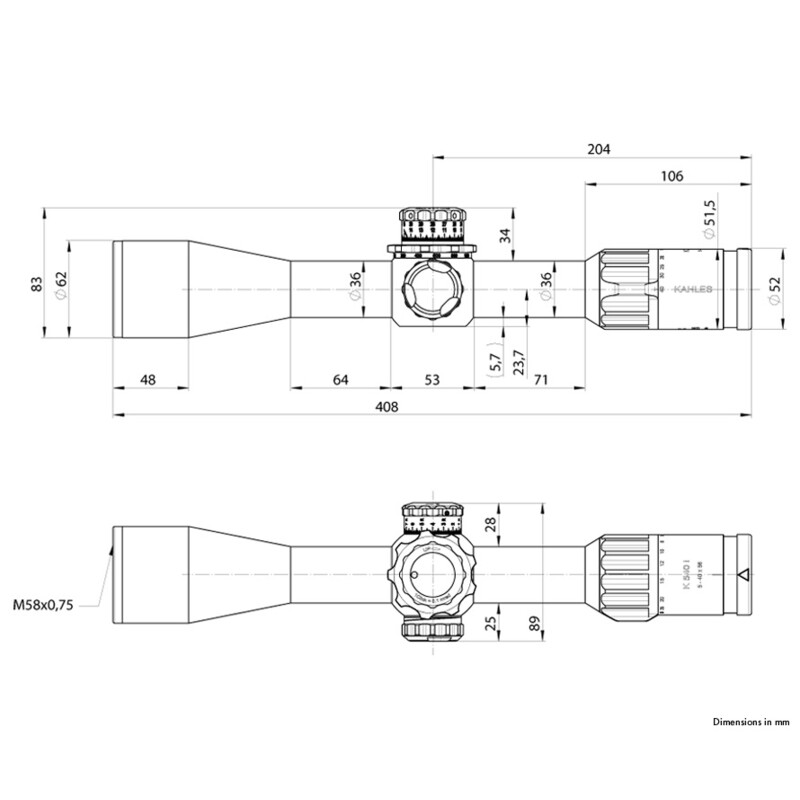

Dimensions
