Riflescopes > Instruments > Kahles > K540i > Kahles Riflescope K540i DLR 5-40x56i, SKMR4+, ccw, left
Product no.: 86364

Riflescope K540i DLR 5-40x56i, SKMR4+, ccw, left

$ 5,200.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

K540i - 5-40x56i
THE GAME CHANGER – 40X

The groundbreaking K540i sets new performance standards with a pioneering new generation of optical design. It offers 40% more field of view*, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range.

Maximum precision, repeatability and unique handling for maximum accuracy at long distances.

  • Revolutionary optical design with 40% more field of view*
  • Perfect optical performance with 8x zoom across the entire adjustment range
  • Particularly generous eyebox even at 40X magnification
  • Optional left or right side adjustment with TWIST GUARD anti-twist protection
  • Patented parallax adjustment integrated in the elevation tower (20 m to ∞)
  • Absolutely reliable repeat accuracy and clearly defined clicks
  • Precise illuminated reticles in the 1st image plane

This riflescope has the SKMR4+ reticle
The side adjustment is located on the left side
The adjustment is CCW, i.e. counterclockwise

Additional features:

  • 1st image plane
    When looking through the 1st image plane (lens image plane), the reticle magnifies as the magnification changes. The bar spacing remains the same, as do the coverage dimensions.
  • Main tube diameter 36 mm
    The main tube has a diameter of 36 mm.
  • Adjustment direction CW or CCW
    Depending on the model, the elevation and windage adjustment is clockwise (CW) or counter-clockwise (CCW).
  • MIL
    Click resolution in MRAD. A 0.1 MRAD click corresponds to a point of impact shift of 1 cm at a distance of 100 metres.
  • Side adjustment left or right
    Superior handling and ergonomics thanks to unique arrangement of controls

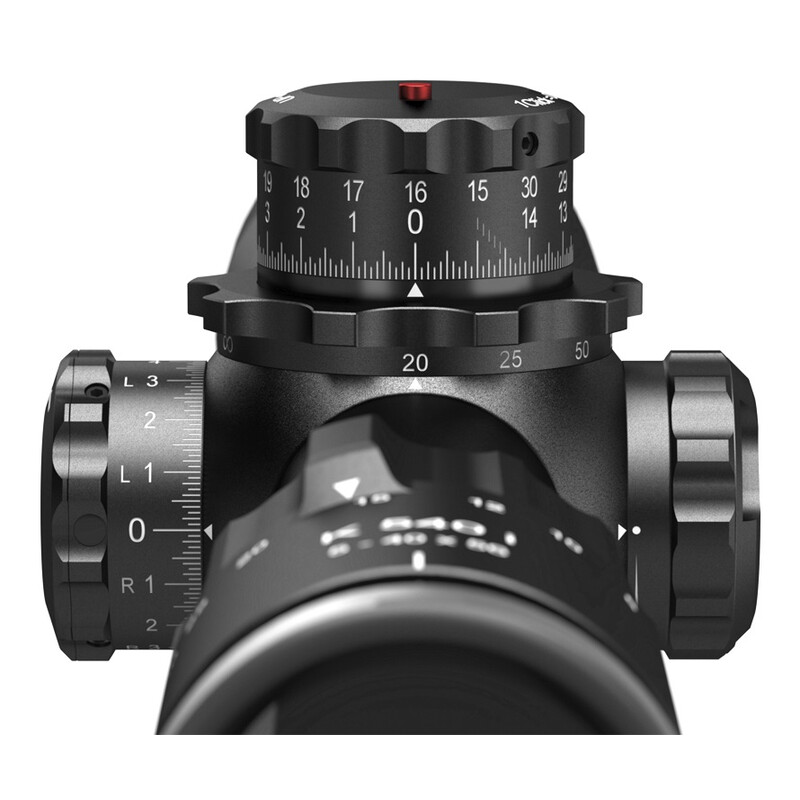

    Thanks to the special arrangement, all controls can be operated easily and comfortably from the shooting position with the intuitively preferred hand without reaching over, and all adjustment information is always in the field of view. The parallax wheel is integrated into the elevation adjustment tower on all K-series riflescopes. The patented central arrangement allows for comfortable operation by both left- and right-handed users. For right-handed shooters, the side adjustment is ergonomically positioned on the left side, and for left-handed shooters, it is on the right side.
  • Zero Stop
    The Zero Stop or mechanical zero point (stop) is located 3 or 4 clicks below the zero indicator and can be activated after sighting in. This feature allows quick and intuitive location of the zero indicator (e.g. in poor light) and precise adjustment to specific conditions (such as high temperatures or closer targets).
  • TWIST GUARD Anti-twist protection
    Patented TWIST GUARD anti-twist protection for side adjustment
    The innovative TWIST GUARD anti-twist protection reliably prevents accidental adjustment of the side tower thanks to a freely rotating cap. This simple solution maintains the quick and easy operation of the side adjustment without annoying "locking" or "unlocking".

Our expert comment:

ATTENTION: Similar images!

May show models with the turret on the wrong side and the wrong direction of rotation. Please refer to the product name and description for details.
Stefan Rieger

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
5
Maximum magnification
40
Front lens diameter (mm)
56
Exit pupil at min. enlargement (mm)
7,7
Exit pupil at max. enlargement (mm)
1,4
Eye relief (mm)
92
Diopter compensation
+2 / -3
Lens coating
fully, multiple
Type of mounting
Mounts not included in delivery
Central tube diameter (mm)
36

Field of view


No parallax over (m)
20m - ∞
100 m adjustment per clic
1 cm
Twilight factor at min. enlargement
13,9
Twilight factor at max. enlargement
47,3
Field of view at min. enlargement (m)
10,2
Field of view at max. enlargement (m)
1,3
Reticle
SKMR4+
Reticle plane
1st focal plane (FFP)
Reticle usage
Sporting shooters

Special features


Illuminated reticle
yes
Automatic switch-off
yes
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
yes
Bullet drop compensator
yes
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
408
Central tube length (mm)
188
Weight (g)
1110
objective lens outside diameter (mm)
62
eyepiece outer diameter (mm)
52
Series
K540i

Area of application


Stalk hunting
middle
Raised hide
middle
Drive hunting
-
Magnum caliber
very good
long distance
very good
Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Product safety

Manufacturer: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, www.kahles.at
Responsible person: KAHLES Gesellschaft m.b.H., Danfoss-Straße 5, 2353 Guntramsdorf, AT, [email protected]

Recommended accessories

Riflescopes > Accessories (9)

Kahles Neoprene Riflescope Protection 429x67 mm

$ 58.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

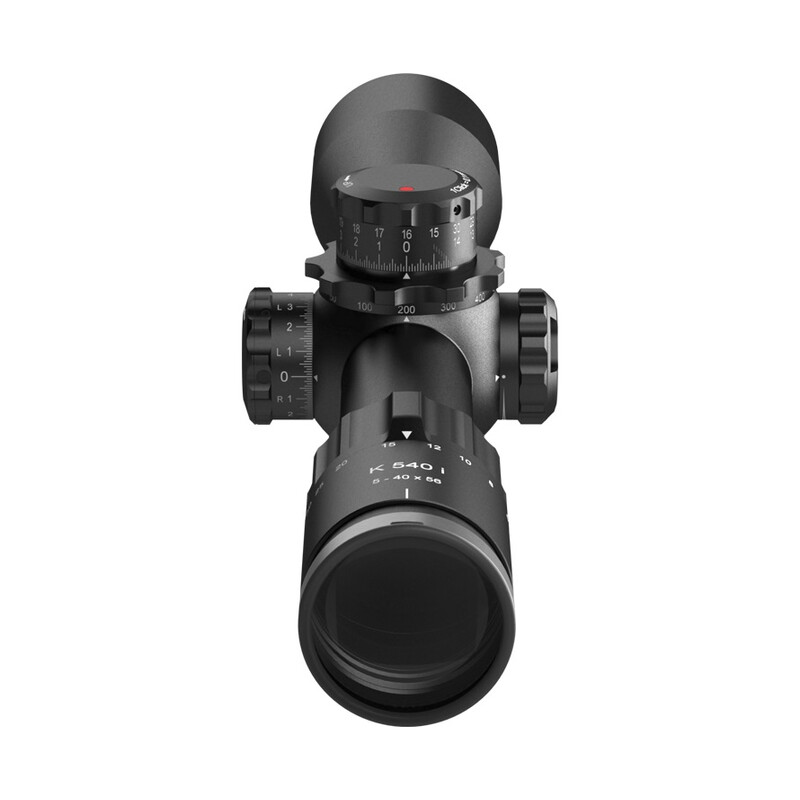

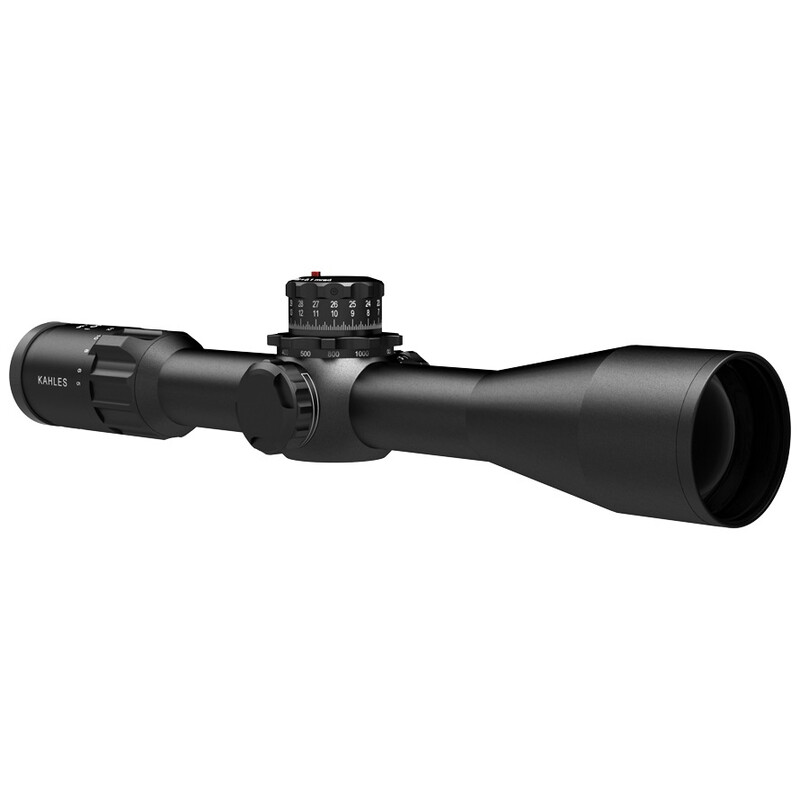

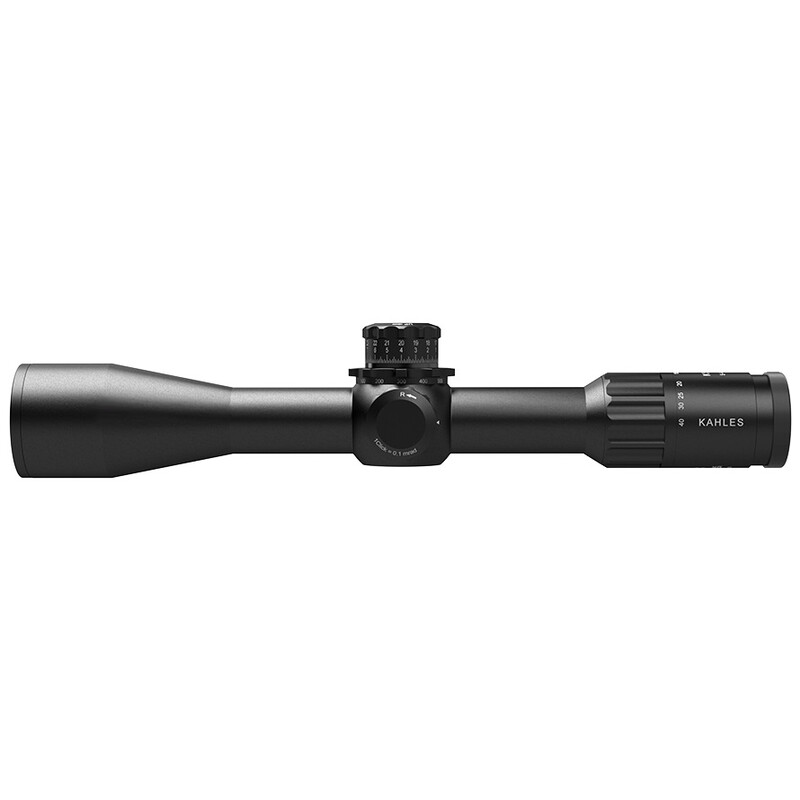

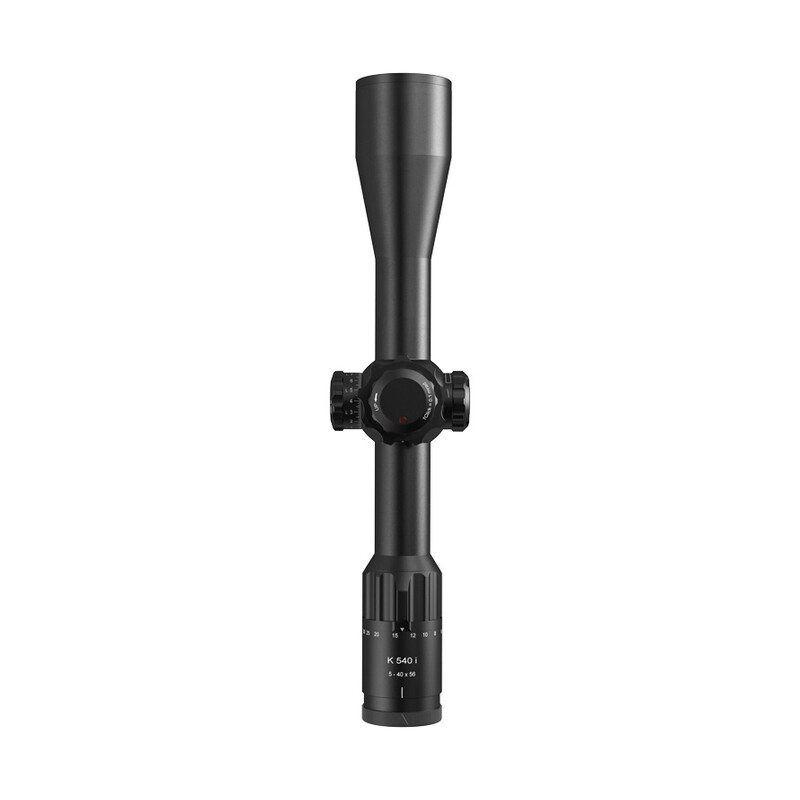

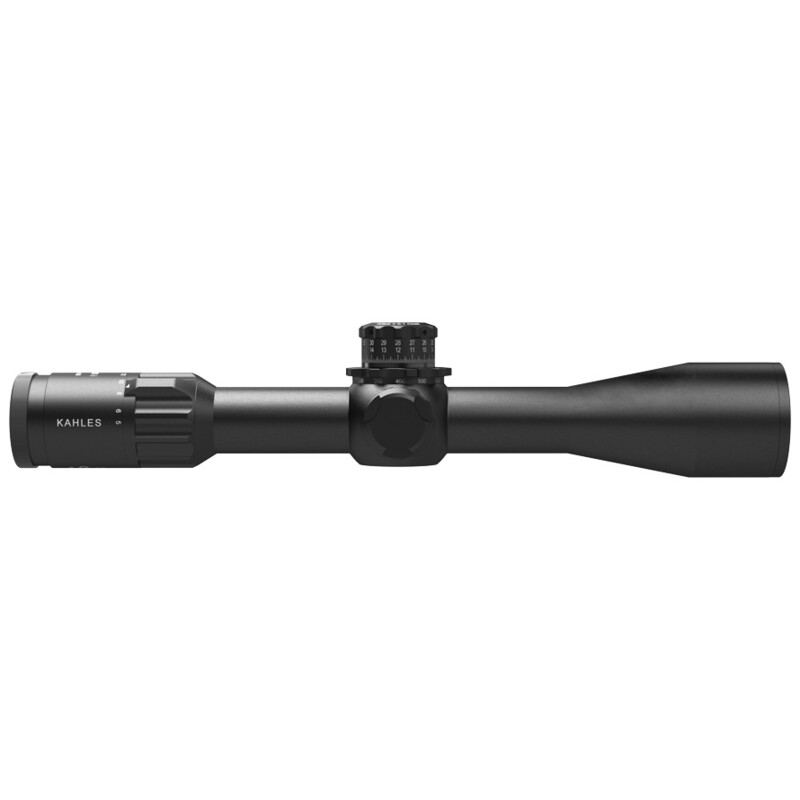

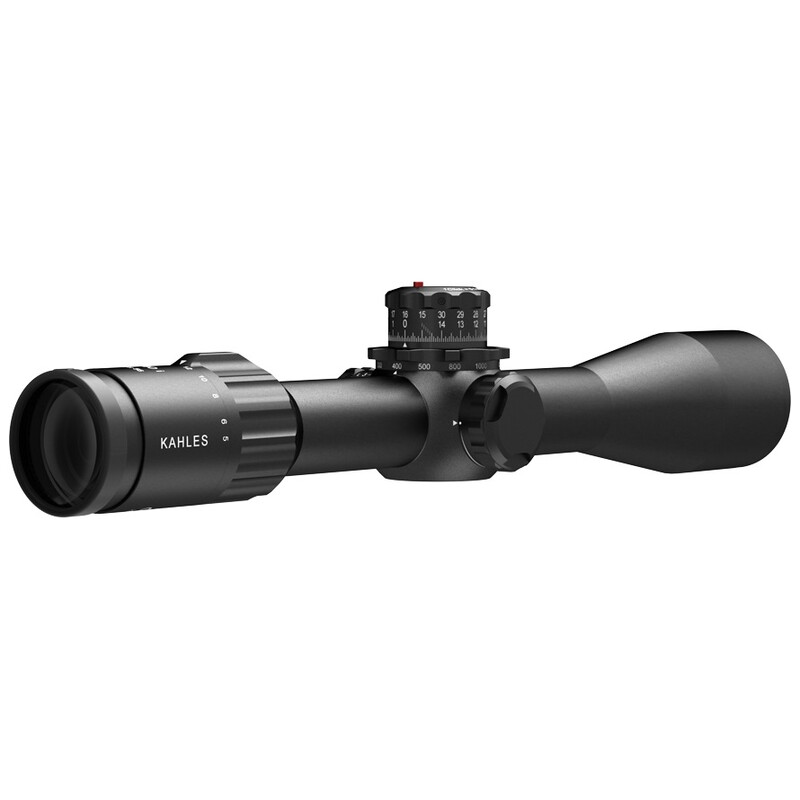

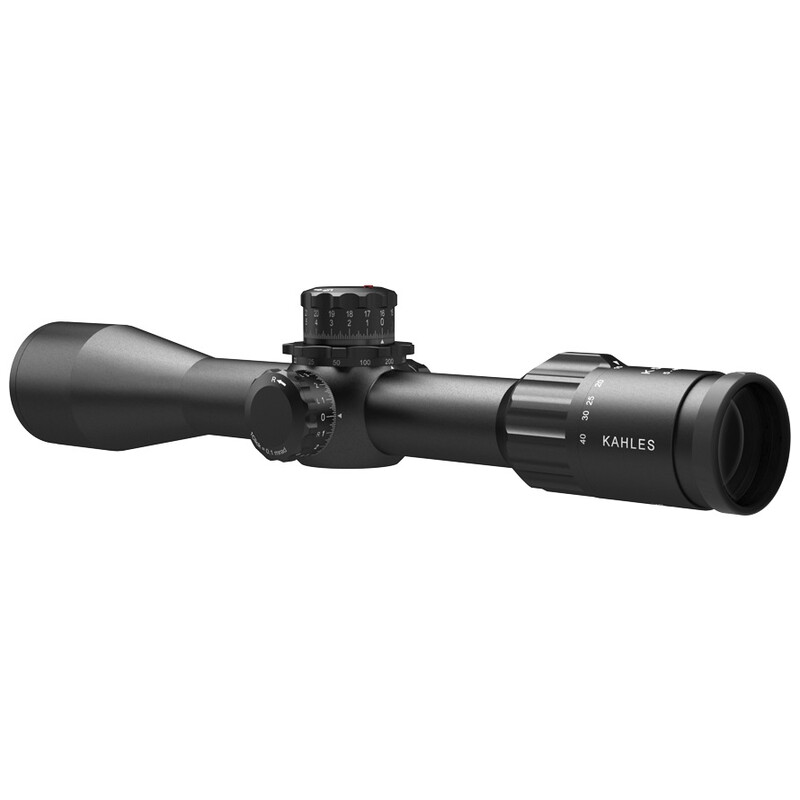

Kahles Riflescope K540i DLR 5-40x56i, SKMR4+, ccw, left

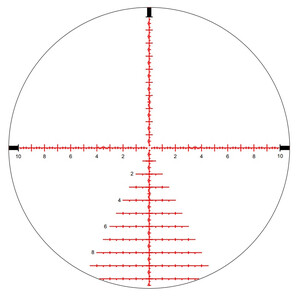

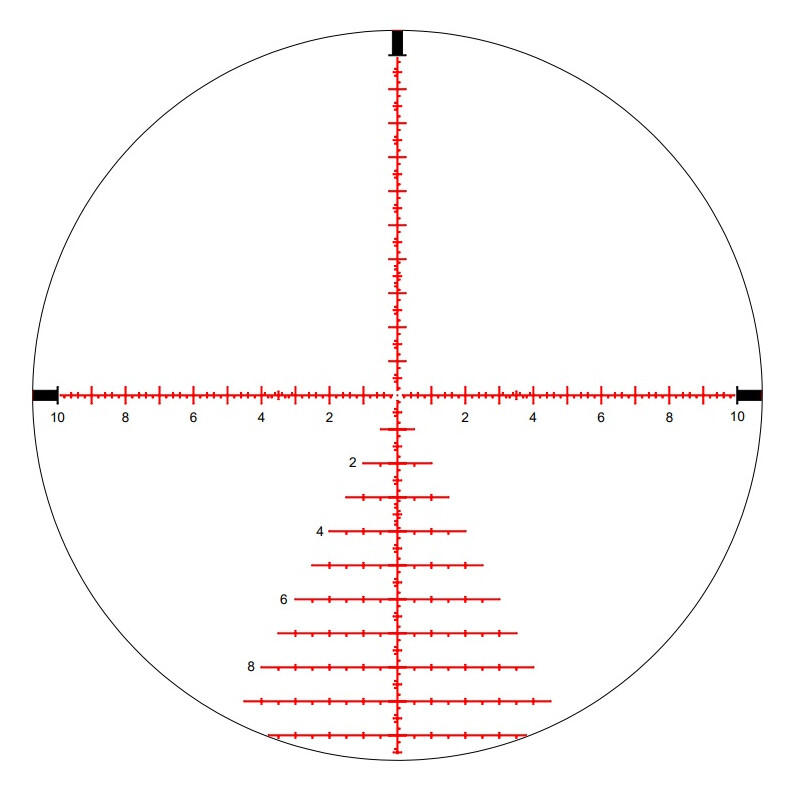

Crosshair image

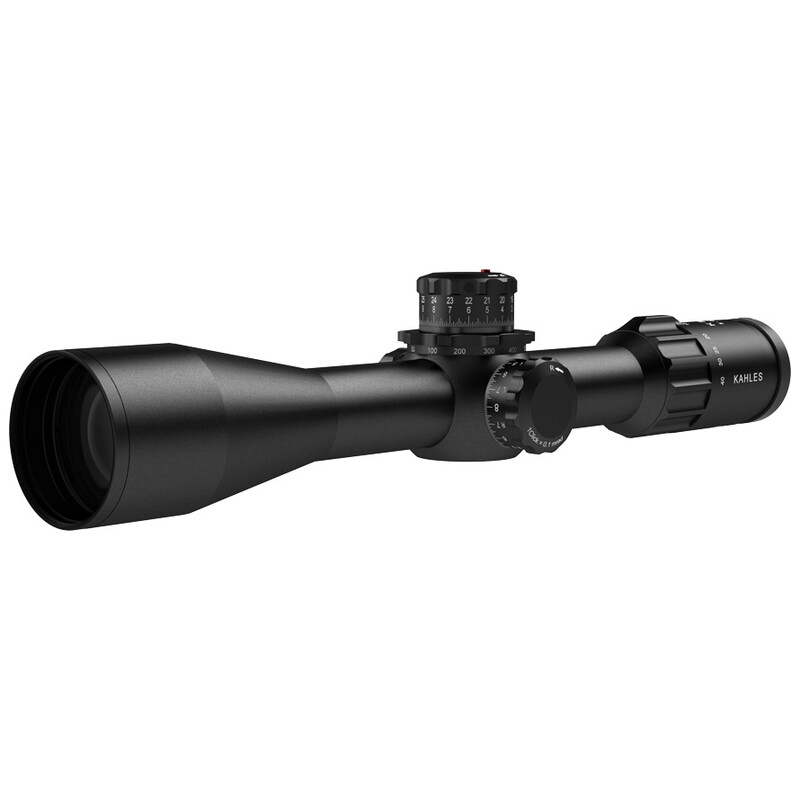

Kahles Riflescope K540i DLR 5-40x56i, SKMR4+, ccw, left

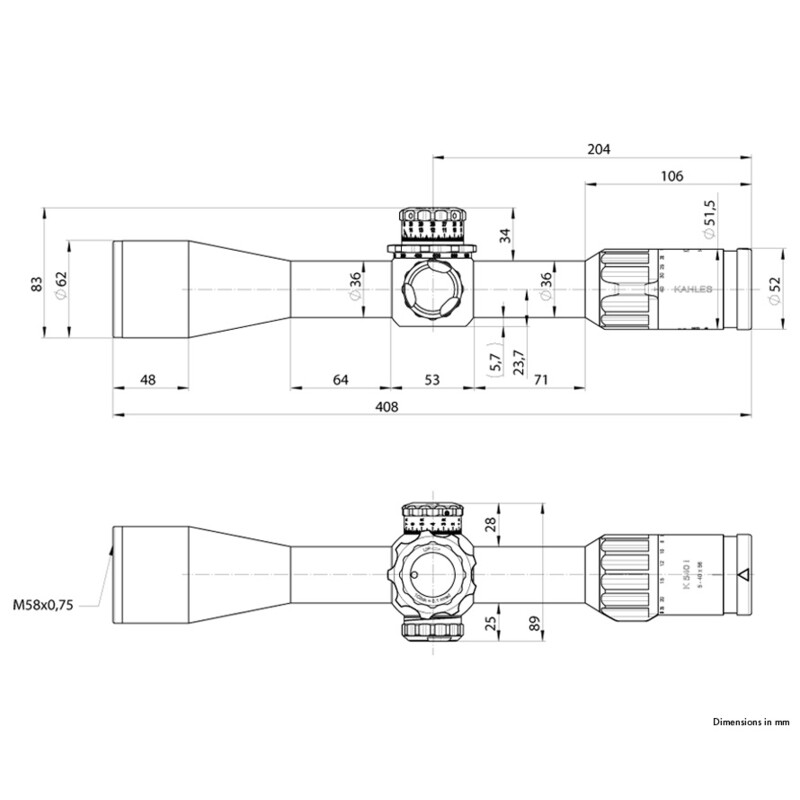

Dimensions
