Capacity

Type of build

zoomable magnification

Minimum magnification

8

Maximum magnification

64

Front lens diameter (mm)

56

Exit pupil at min. enlargement (mm)

7,1

Exit pupil at max. enlargement (mm)

0,9

Eye relief (mm)

92

Diopter compensation

+2/-3

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

36

Field of view

No parallax over (m)

8 - ∞

100 m adjustment per clic

1/8 MOA

Twilight factor at min. enlargement

21,2

Twilight factor at max. enlargement

59,9

Field of view at min. enlargement (m)

6,1

Field of view at max. enlargement (m)

0,8

Reticle

MOAK+

Reticle plane

2. focal plane (SFP)

Reticle usage

Sporting shooters

Special features

Illuminated reticle

-

Automatic switch-off

-

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

yes

Bullet drop compensator

yes

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

Length (mm)

443

Weight (g)

1045

Series

K864

Area of application

Stalk hunting

-

Raised hide

-

Drive hunting

-

Magnum caliber

very good

long distance

very good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

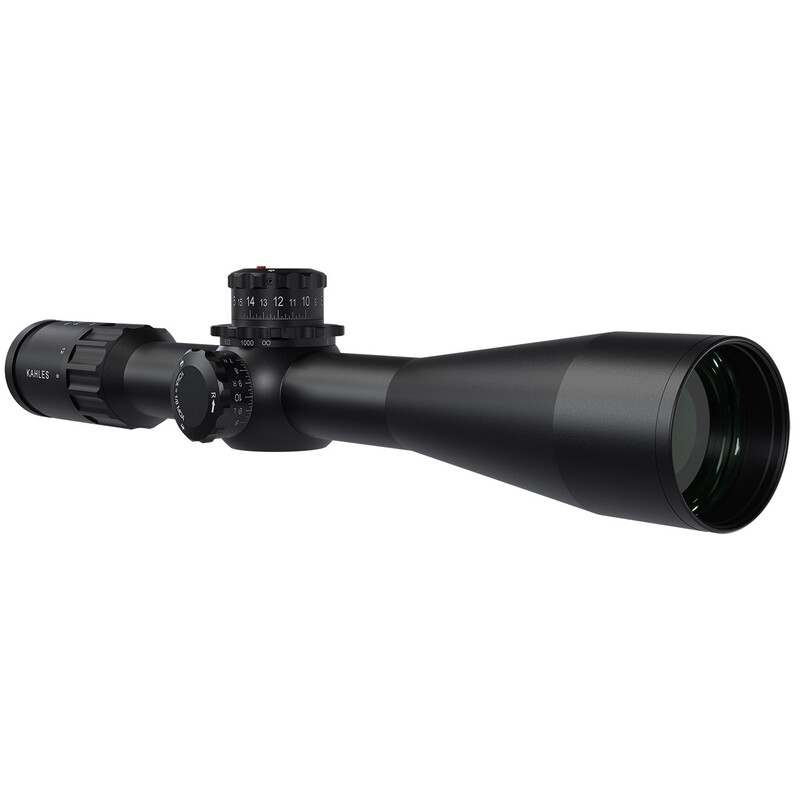

Riflescope K864 8-64x56, MOAK+, ccw, rechts
