Binocular holder with integrated vertical and horizontal tilt suitable for binoculars of any size
More features
- Support angle adjustable from 30° to -15°
- smooth vertical and horizontal panning
- adjustable horizontal friction
- Vertical swivel lockable
- Non-slip rubber cork pad

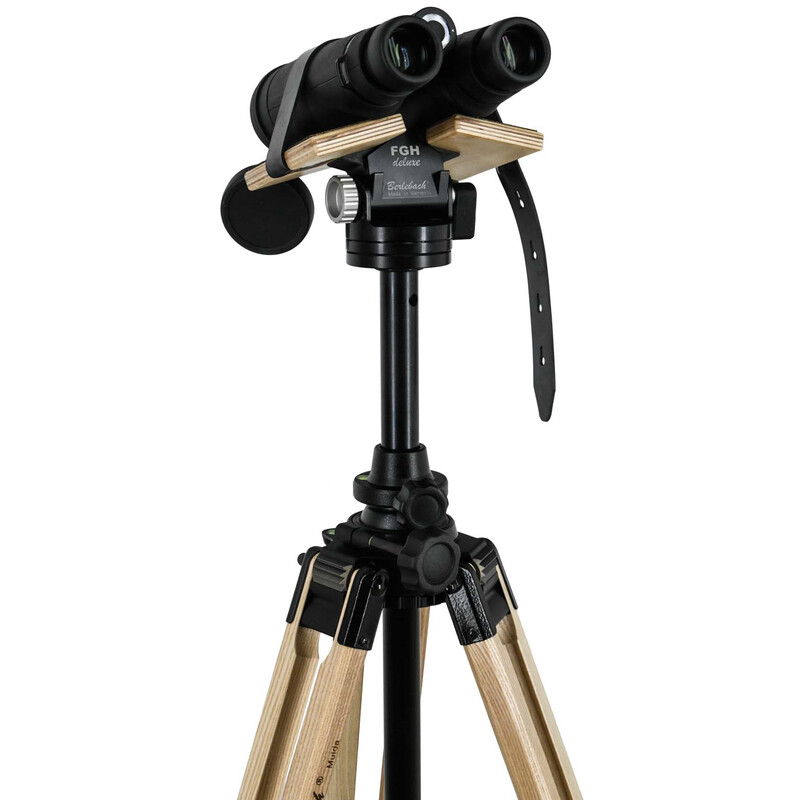

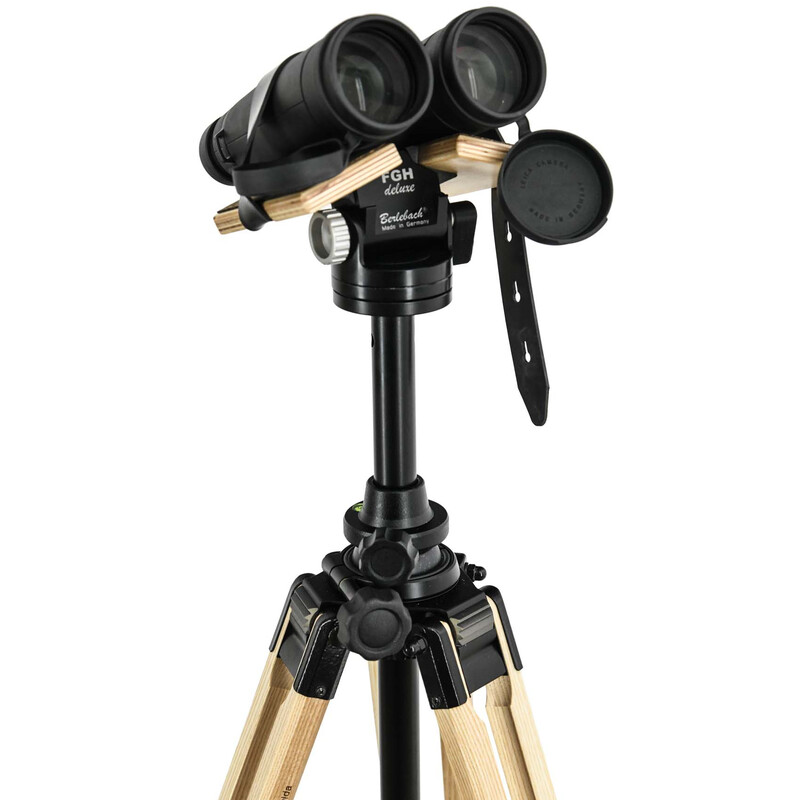

The binocular holder FGH deluxe from Berlebach leaves nothing to be desired. It connects binoculars securely to any photo tripod and enables precise panning and tilting of the binoculars. The 2-way tilt head, which is optimized for observation, is completely integrated in the binocular holder, which guarantees a very compact size with maximum stability.

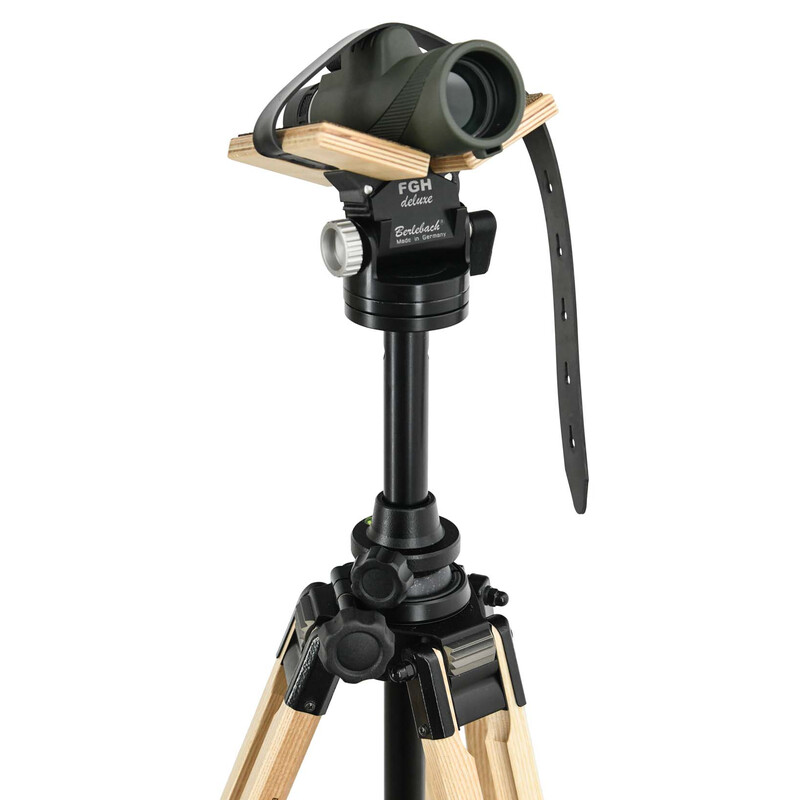

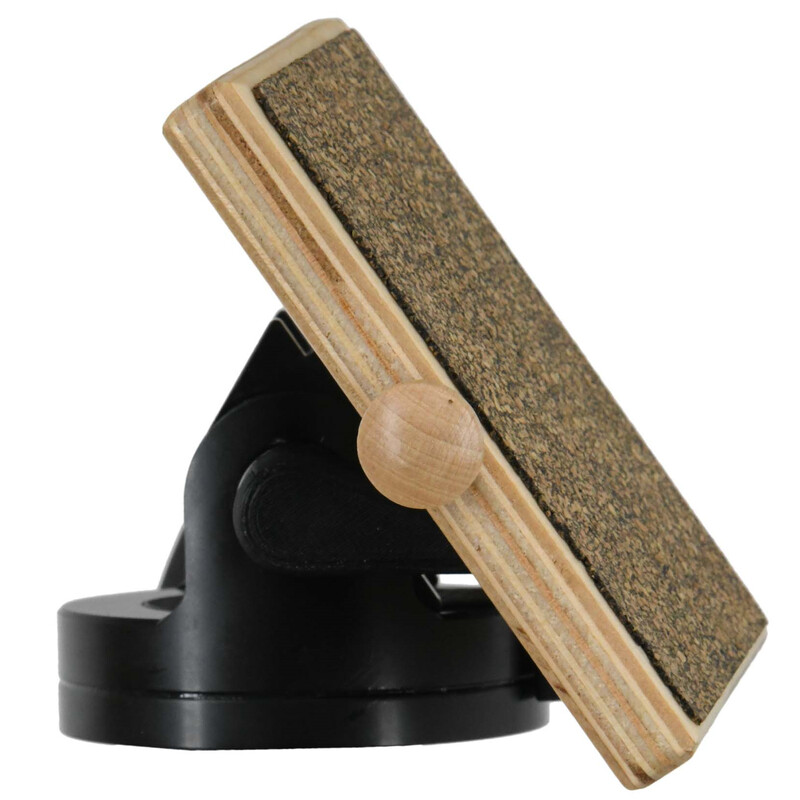

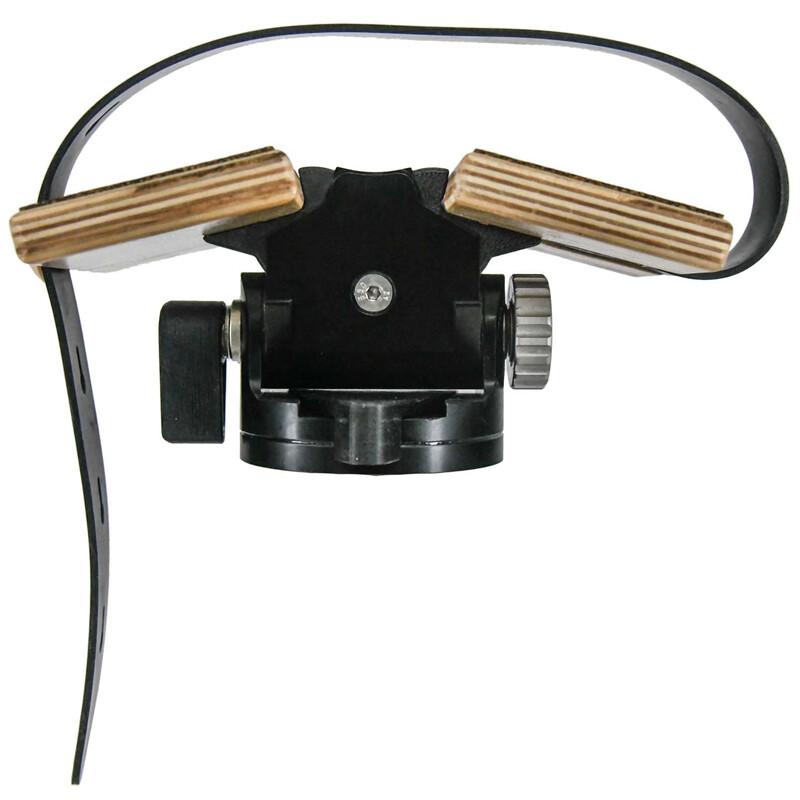

The contact surface for binoculars is 2 x 65 x 100 mm and can be precisely adapted to the respective optics by simply adjusting the knurled wheel in the range from 30° to -15°. In the V-position of the contact surfaces (-15°) it is also possible to mount monoculars . It is attached to the surfaces covered with rubber cork using a 400 mm long rubber band . For zenith observation, we recommend a tripod with a center column that can be tilted and swiveled, such as the Report 843 and Report 342.
The vertical axis can be fixed with a lock. The friction of the horizontal rotation can be adjusted using a friction lever. Thus, the binocular holder can be easily adjusted depending on the weight of the binoculars or spotting scope. The base diameter of 68 mm is optimized for Berlebach tripods, but can of course also be mounted on any other tripod with a 3/8" or ¼" connection .
