Bracket mounting Big for large binoculars

The first choice for large binoculars!

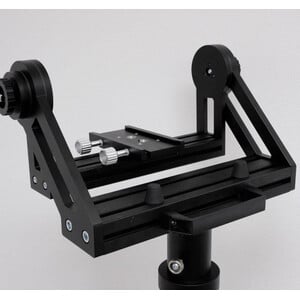

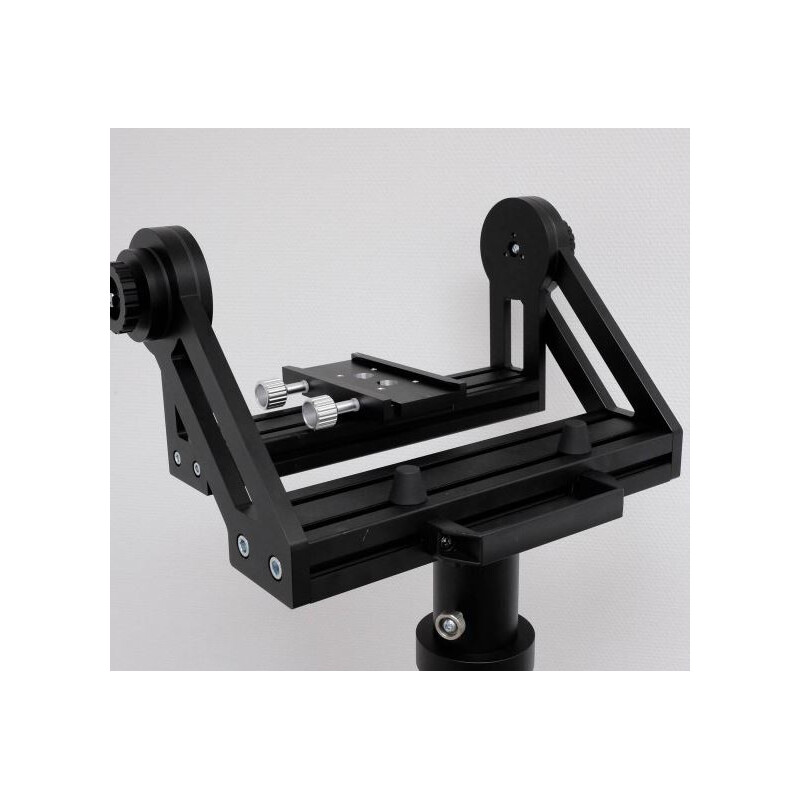

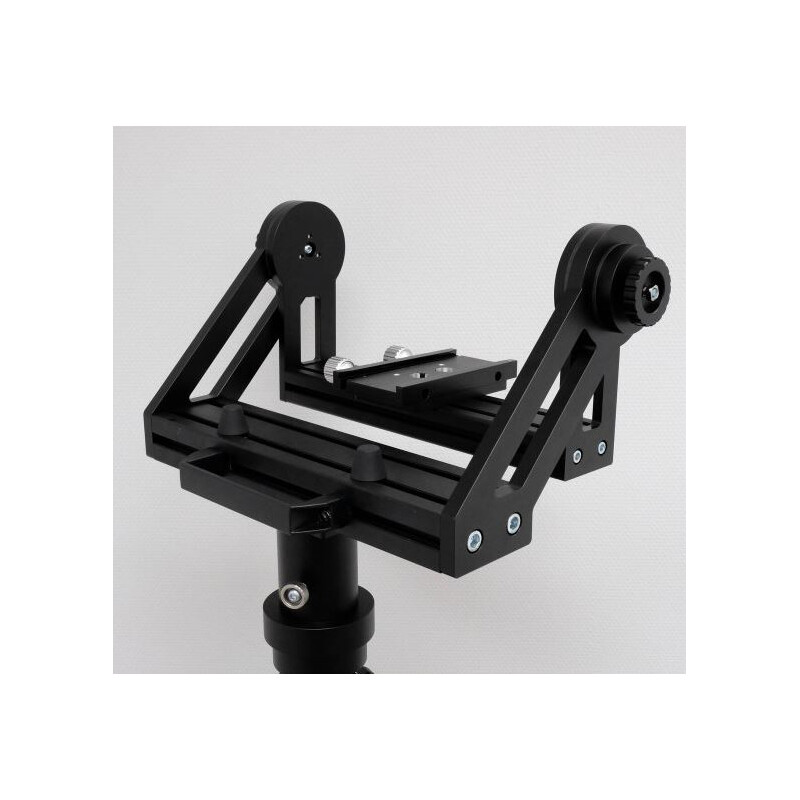

The Big fork mount is a very solid azimuth mount for astronomy - suitable, for example, for the APM ED 150 mm binoculars, but also for the APM ED 100 mm and 120 mm binoculars.

Features

• Azimuth fork mount
• 3/8" connection thread for photo tripod
• 360° horizontal rotation and free rotation from the horizon to the zenith
• Binoculars can be attached using a 3" Losmandy-style dovetail rail
• Adjustable friction in azimuth and elevation
• Free swivel range up to the zenith

The special fork shape of the APM fork mount allows free swivelling up to the zenith. This makes it perfect for both astronomy and nature observation.

Technical details:

• The pivot bearing (base) is designed as a dry bearing, making it very easy to remove the fork.
• The distance between the fork arms is 385 mm on the inside and 442 mm on the outside. This fork mount is suitable for large binoculars with a lens diameter of up to 150 mm.

Scope of delivery:

• Fork mount
• 3/8" mounting screw
