Astronomy > Telescopes > Solar telescopes > Lunt Solar Systems > Allround > Lunt Solar Systems Solar telescope ST 100/714 LS100MT FT Ha B1800 Allround OTA
Product no.: 70721

Solar telescope ST 100/714 LS100MT FT Ha B1800 Allround OTA

$ 12,800.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The LS100MT is a complete telescope for observing the Sun in H-alpha light, with a 100mm clear aperture (no central obstruction) and 714mm focal length. The H-alpha wavelength is the most impressive way of viewing the Sun - it makes solar prominence at the edge of the Sun, filaments and flares on the surface and much more visible. An internal Etalon filter, with its innovative air pressure tuning system, reaches a half width of <0.7 angstrom.

Night sky watching:Thanks to its modular construction, the solar filter can be removed from the telescope with just a few flicks of the wrist. With an optional conversion kit (see “Recommended Accessories”), the 3-lens apochromatic refracting telescope can be used as a telescope for observing and photographing the night sky. The triplet lens with special FPL-53 glass provides a pure-colour image for this. Standard 2-inch zenith mirrors can be used on the conversion kit’s very high-quality R&P focuser. This optional conversion kit is essential for using the telescope at night.

PT pressure tuner: Fine-tuning on the Etalon filter is provided via an air pressure system. A small change to air pressure within a pressure chamber inside the telescope changes the refractive index of the air, resulting in precise yet effortless adjustment to the H-alpha spectral line. The pressure tuner guarantees a uniform image with no central obstructions and a long-lasting wear-resistant etalon.

The B1800 blocking filter is very well suited to visual solar observation but can also be utilised for solar photography using cameras with a small sensor chip or which use the APS-C format. For cameras with large sensors, a telescope with a larger blocking filter should be used so that the sensor will be illuminated. For solar photography, we generally recommend so-called planetary cameras which work smoothly with this blocking filter.

In keeping with its high-quality lens, the telescope comes with a Feather Touch focuser from Starlight Instruments. It doesn’t get any better! The focuser enables accessories with 2” sleeves, such as a diagonal mirror or a camera adapter to be connected. A blocking filter, which is integrated into the supplied deflecting optics, is essential for solar observation. This allows lenses to be adapted using a 1.25” sleeve or the tightly screwed connection of a camera with a T2 thread.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Refractor
Type of build
Solar H-Alpha
Aperture (mm)
100
Focal length (mm)
714
Aperture ratio (f/)
7,1
Resolving capacity
1,38
Limit value (mag)
11,8
Light gathering capacity
200
Max. useful magnification
200
lens design
Triplet
Tube weight (kg)
6,8
Tube length (mm)
840
Carrying length (mm)
650
Coating
FMC
Double Stack
no
Blocking Filter (mm)
18
Filter systems
H-alpha

Focuser


Type of build
Starlight FeatherTouch
Connection ( to eyepiece)
1.25
Connecting threaded socket (camera-side)
T2
Gear reduction
1:10 Fine movement

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Finder scope
Solar finder
Dew Shield
yes
Deviating optics
Blockfilter
Prism rail
Vixen-Style
Carrying handle
yes
Transport cases
yes

General


Series
Allround
shipping weight (kg)
16
Carry case dimensions (cm)
78x33x23

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy (1)
Transport cases

Omegon Transport cases eyepiece case

$ 99.00*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 31.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Lunt Solar Systems Solar telescope ST 100/714 LS100MT FT Ha B1800 Allround OTA

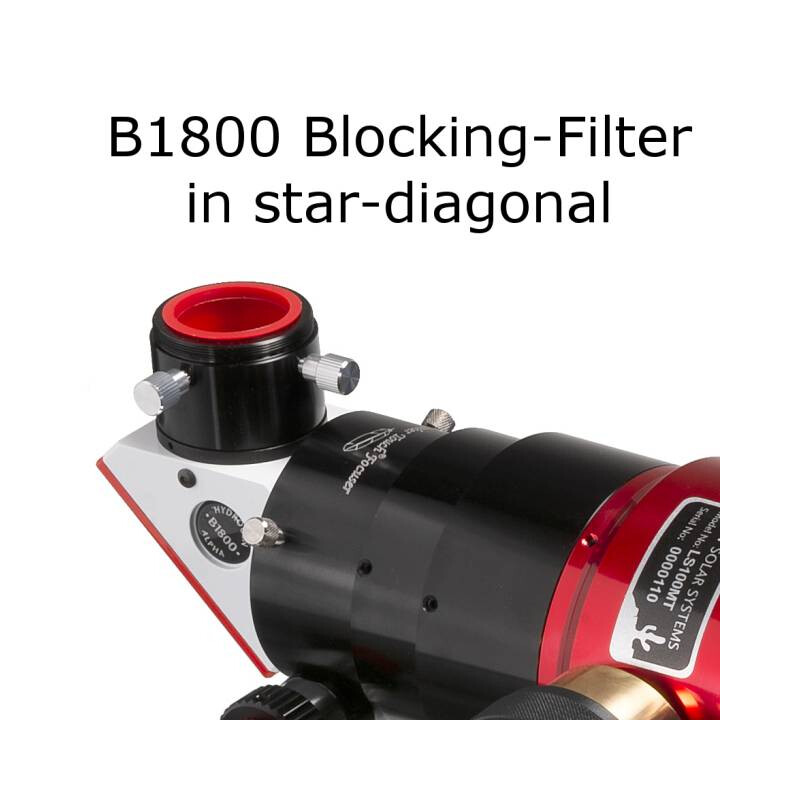

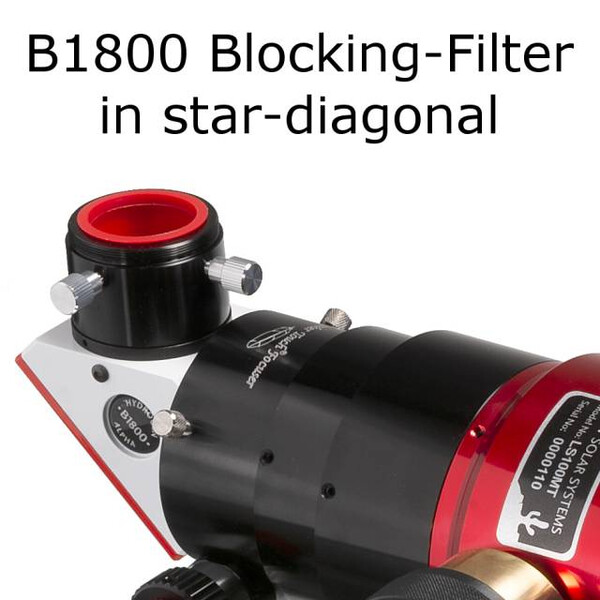

Etalon filter, focuser and blocking filter within the deflection optics
Lunt Solar Systems Solar telescope ST 100/714 LS100MT FT Ha B1800 Allround OTA

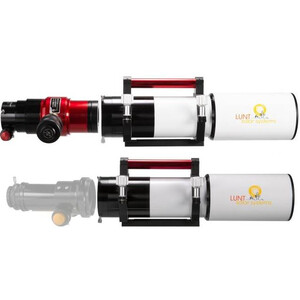

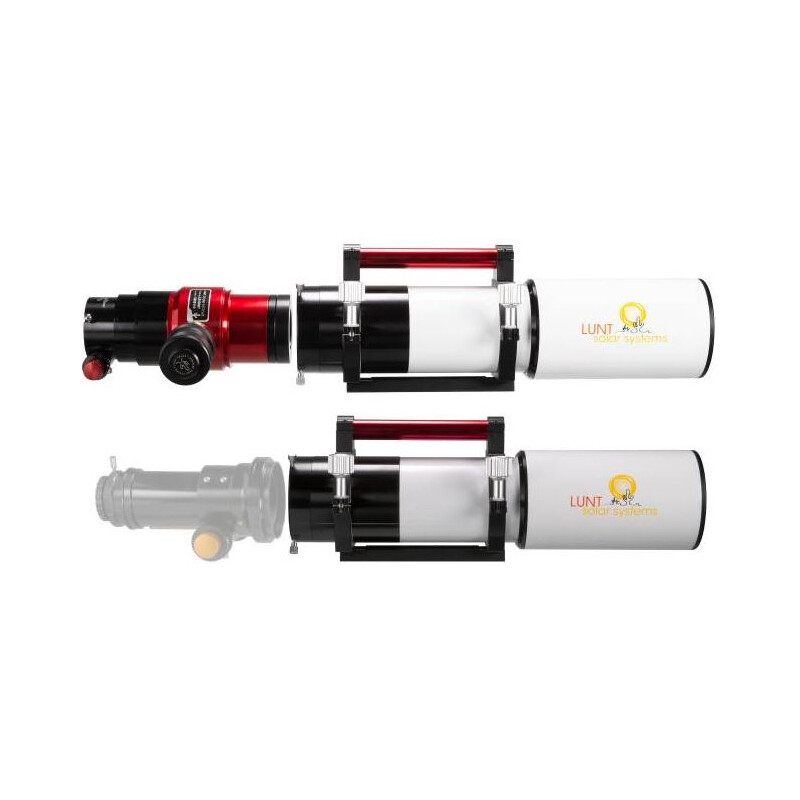

Modular system
Lunt Solar Systems Solar telescope ST 100/714 LS100MT FT Ha B1800 Allround OTA

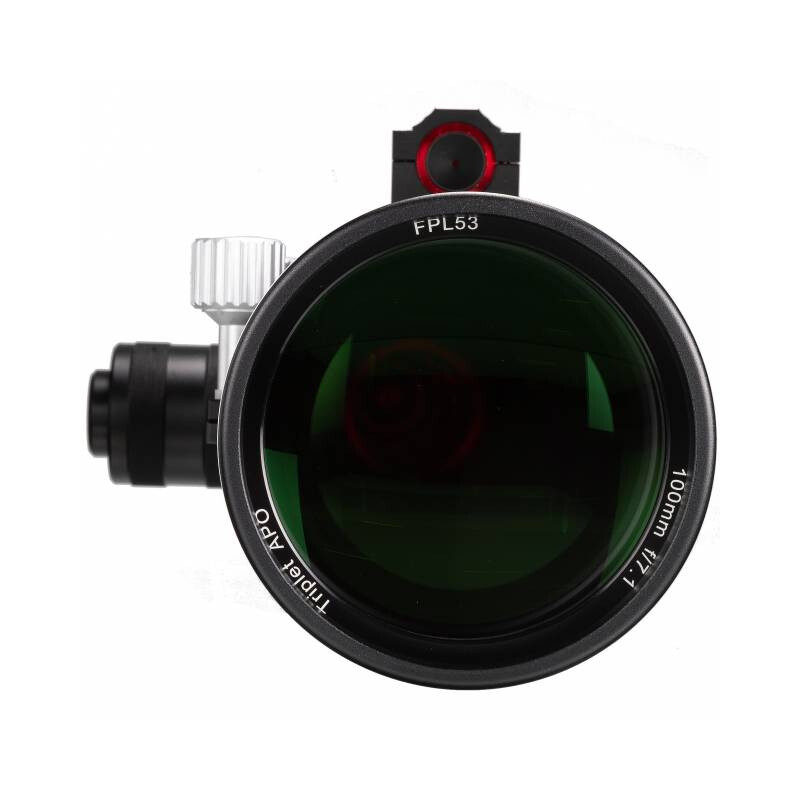

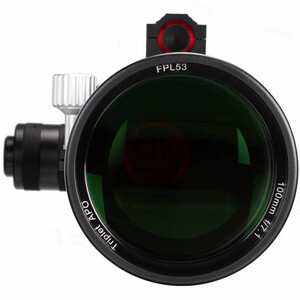

Apochromat Triplet
Lunt Solar Systems Solar telescope ST 100/714 LS100MT FT Ha B1800 Allround OTA

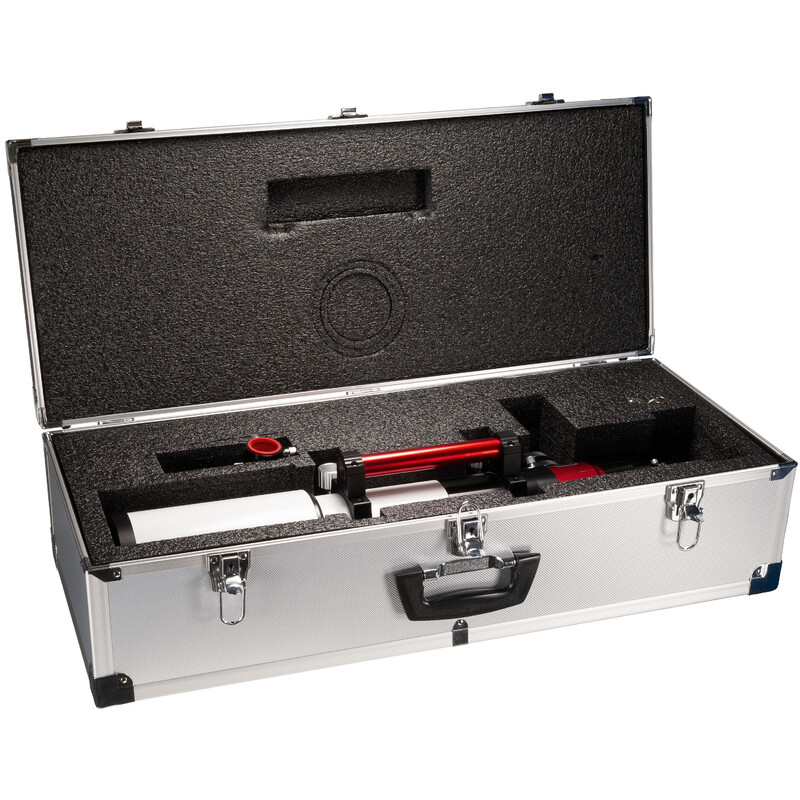

Transport cases
