Astronomy > Telescopes > Askar > PHQ > Askar AP 80/600 Apochromatic refractor 80PHQ
Product no.: 77811

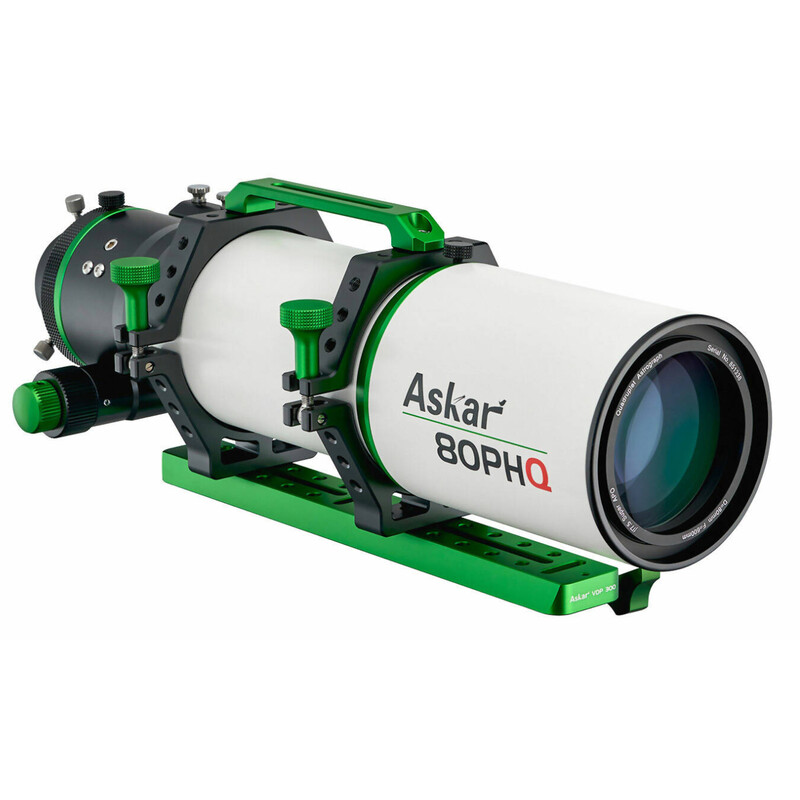

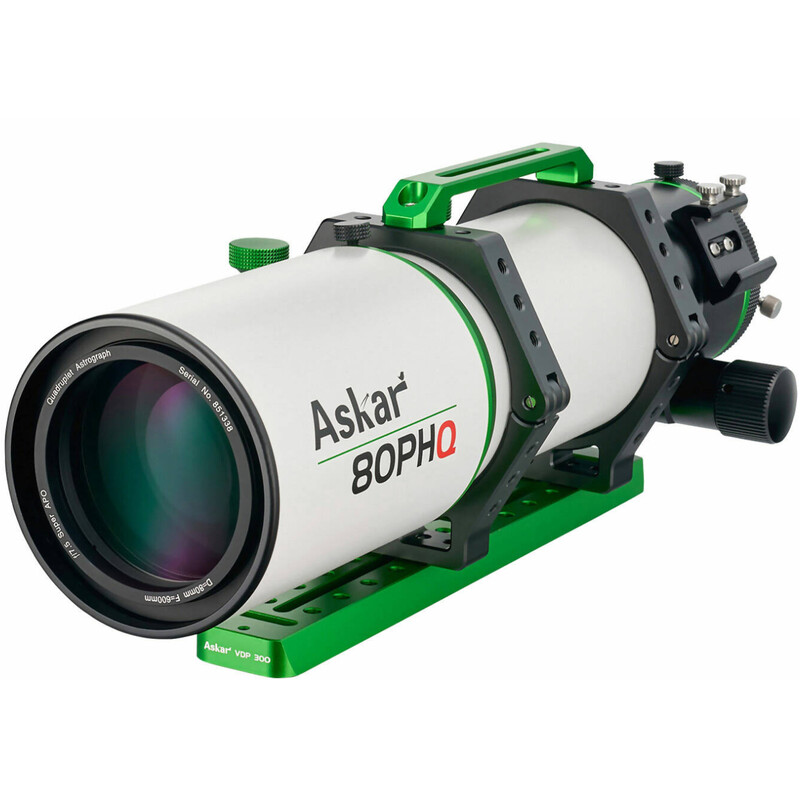

AP 80/600 Apochromatic refractor 80PHQ

RRP: $ 2,510.00 Our price:
$ 2,290.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

In brief:

  • 4-element Petzval system
  • 3" R&P focuser with reduction gear
  • Suitable for visual and photographic use

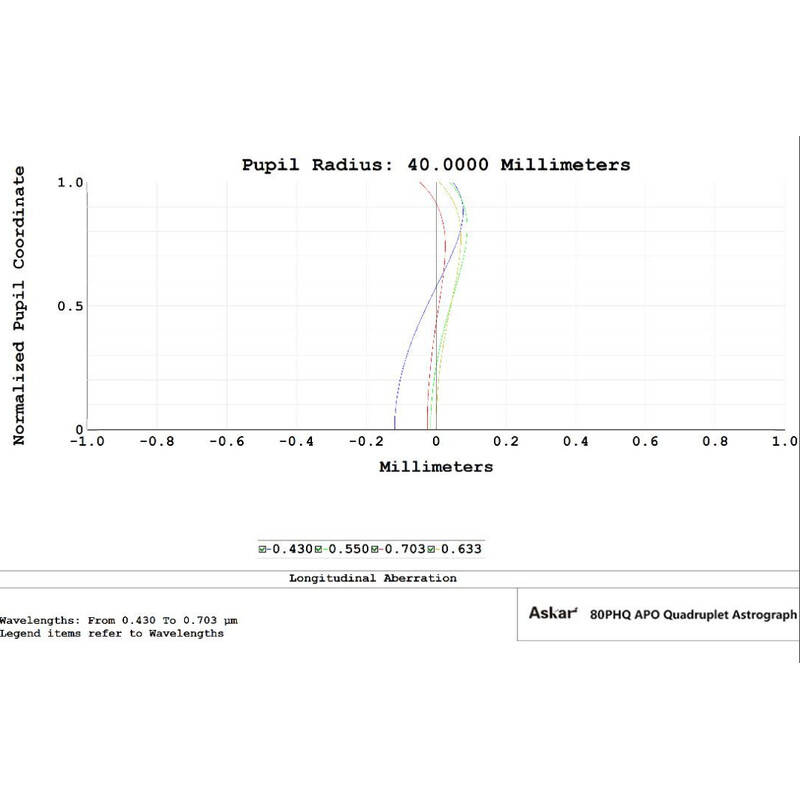

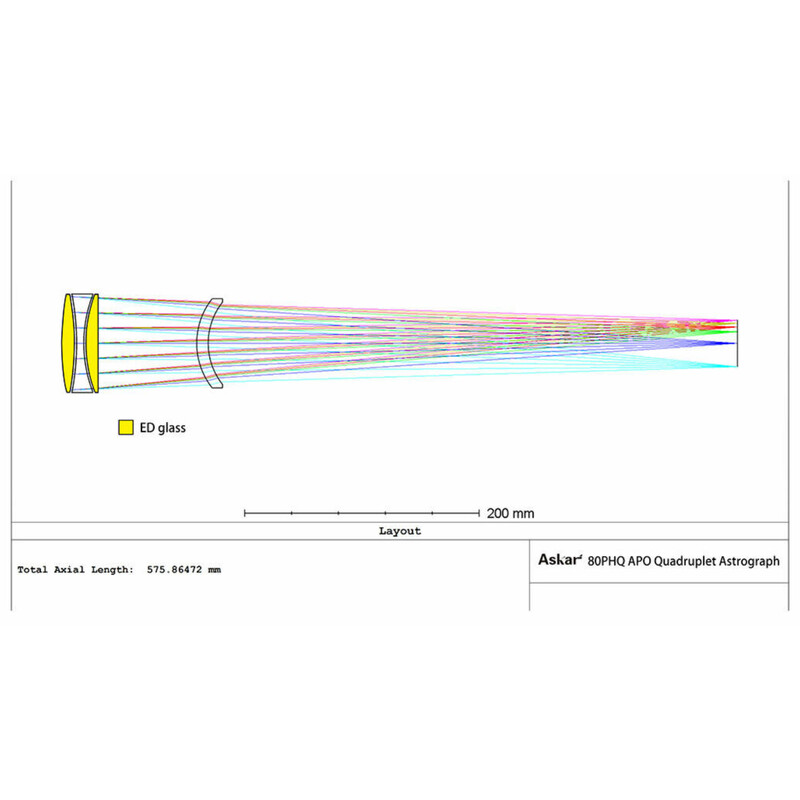

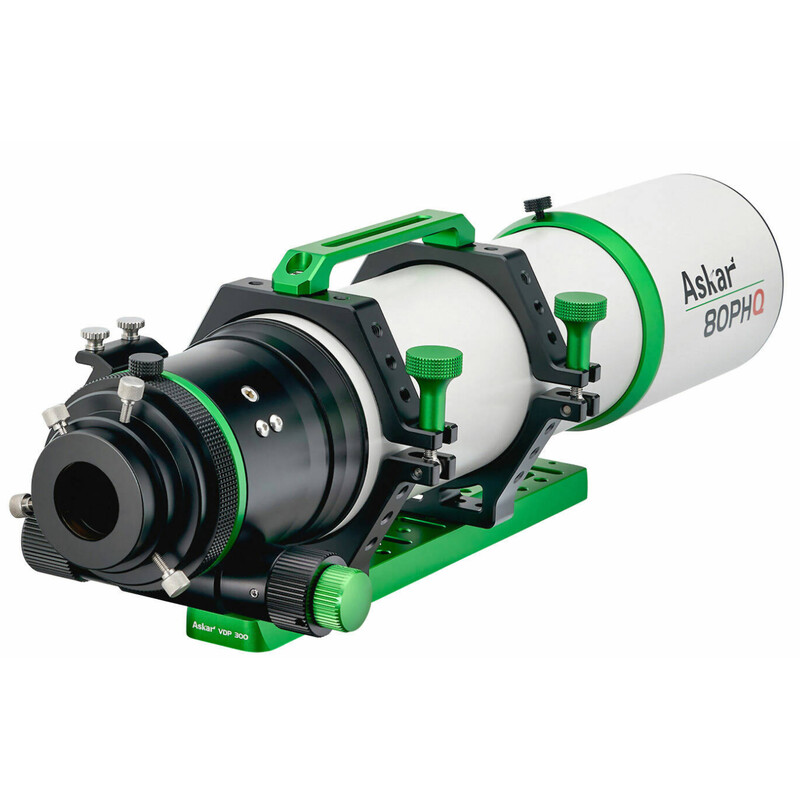

The AP 80/600 optics are a highly portable apochromatic refractor for astrophotography with a corrected image field up to full format and for observation up to the highest magnification range. The 4-element Petzval system witha colour-correctedtriplet lens and a corrector lens built into the tube is a true Flatfield Apo.

A true allrounder:

This portable telescope can be used for almost all areas of amateur astronomy and offers very good optical performance.

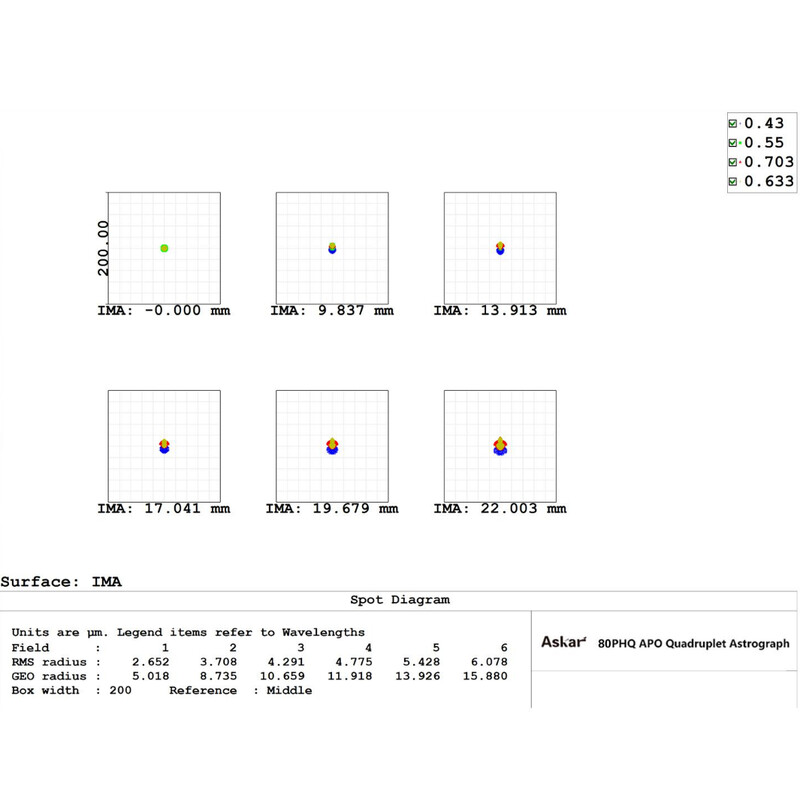

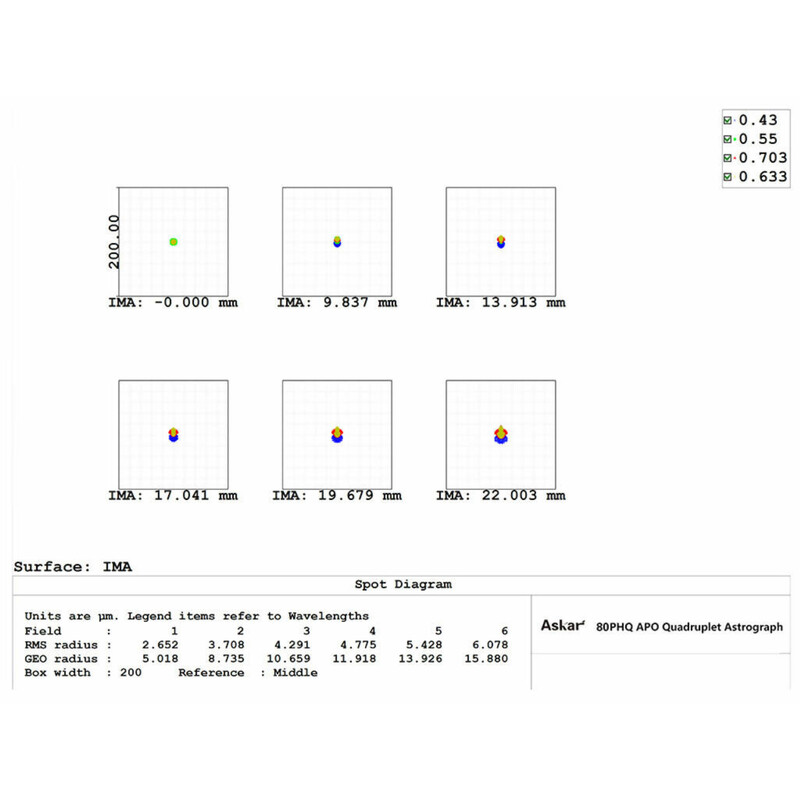

  • Deep sky astrophotography with a focal length of 600 mm and a very large corrected image field. Everything from high-resolution cameras with fine pixels to full-frame cameras can be used. Easy to use: Simply focus and you are at the optimum distance for very good field correction.
  • Planet and moon photography: thanks to the excellent correction of the optics on the axis and in the field, sharp and high-contrast images can be achieved, even with a focal length extension.
  • Visual observation: the generous working distance also allows the use of 2" accessories.

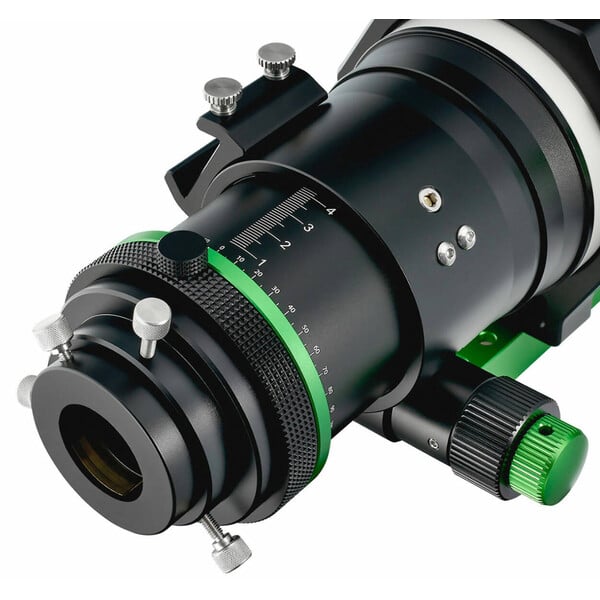

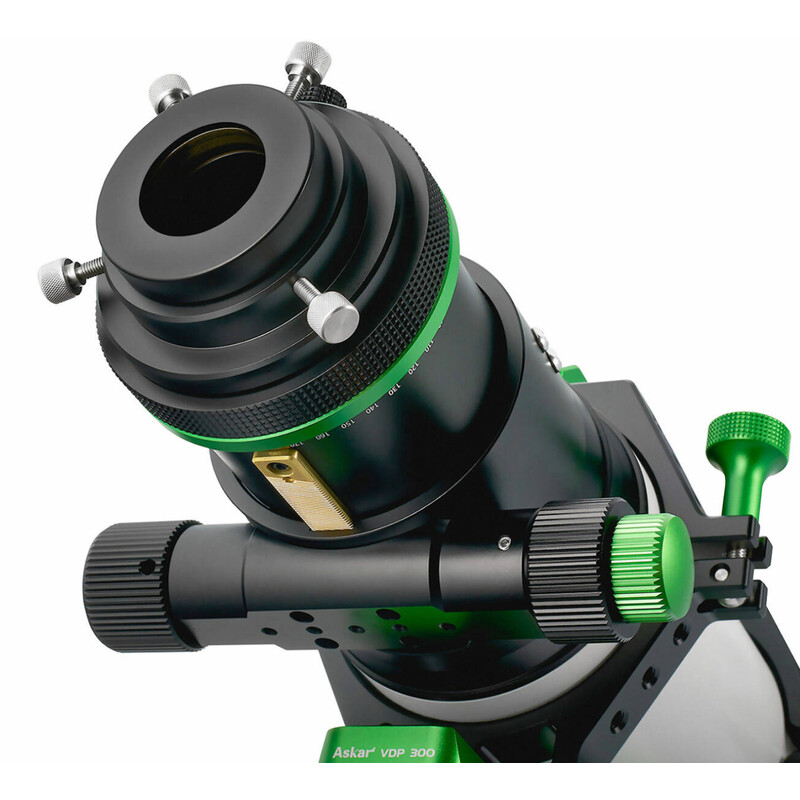

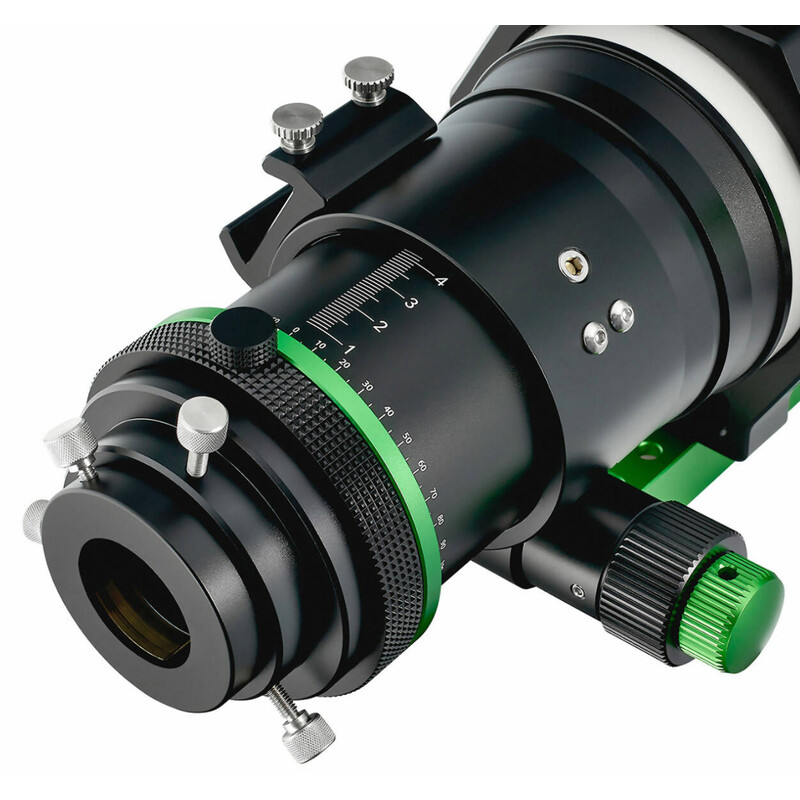

3" R&P focuser: The CNC-machined focuser is optimised for photography and can support a load of up to 8 kg. The adjustment range is very generous at 110 mm. The focuser tube is adjusted via a rack and pinion mechanism. The rack is decoupled from the focuser tube bearing. This guarantees fine and precise adjustment even at maximum payload. In addition to the 1.25" and 2" barrel extensions, the focuser also has threads for screw adapters.

Scope of delivery:

  • telescope
  • Integrated corrector
  • Tube clamps, carrying handle and prism rail
  • Viewfinder shoe
  • 4 thread adaptors

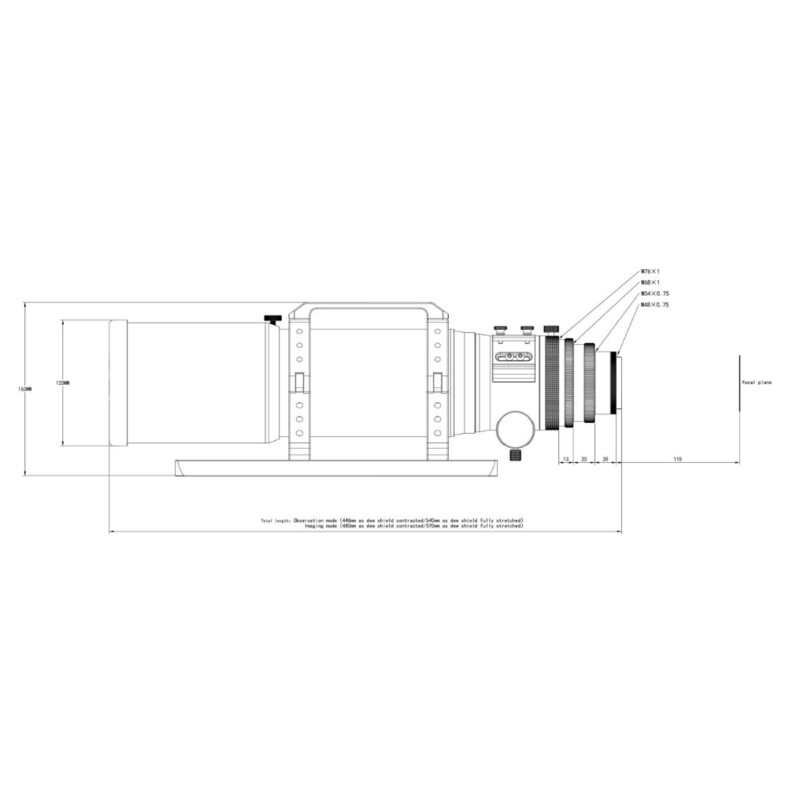

  • Working distance visual: 148 mm from the end of the 2" eyepiece connection

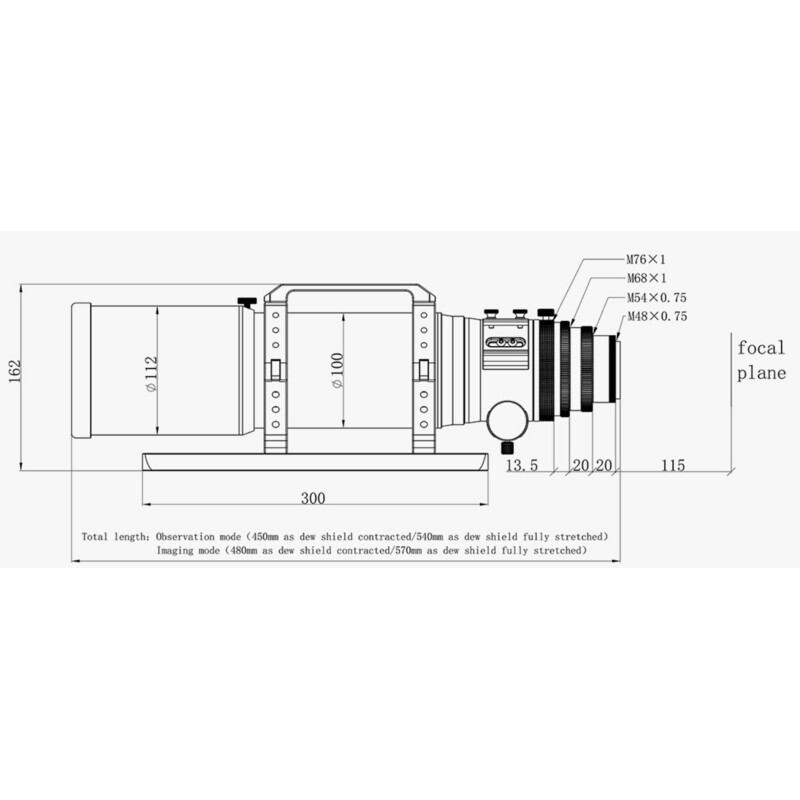

  • Working distances for screw connections: 115 mm from M48×0.75 external thread, 135 mm from M54×0.75 external thread, 155 mm from M68×1 external thread, 168.5 mm from M76×1 external thread

The telescope is tested by the manufacturer before delivery: The focuser is optimally adjusted, the optics are collimated and checked on the optical bench.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
600
Aperture ratio (f/)
7,5
Resolving capacity
1,73
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
lens design
Triplet
Tube length (mm)
540
Carrying length (mm)
448
field (mm)
44

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Load capacity (kg)
8
Gear reduction
yes
Adjustment range (mm)
110
Tilting Adaptor
no
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Corrector
integrated
Prism rail
without
Carrying handle
yes
finder base
Vixen/Skywatcher Level
Tube clamps
yes

General


Series
PHQ

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
