Astronomy > Telescopes > Askar > Askar Apochromatic refractor AP 108/600 Quintuplet OTA
Product no.: 85490

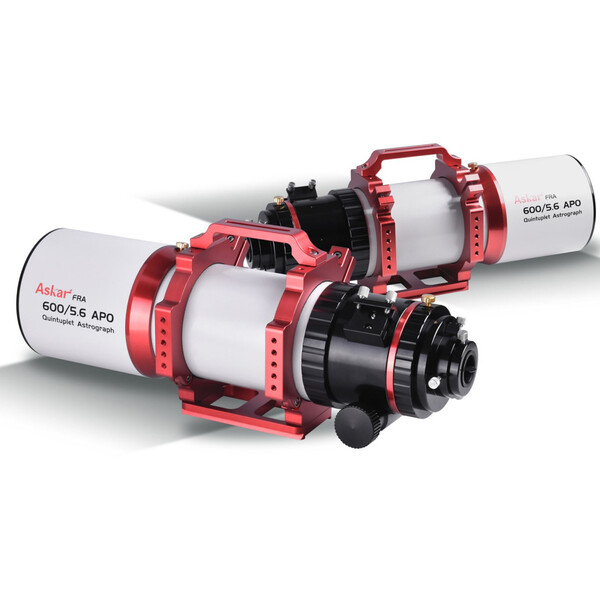

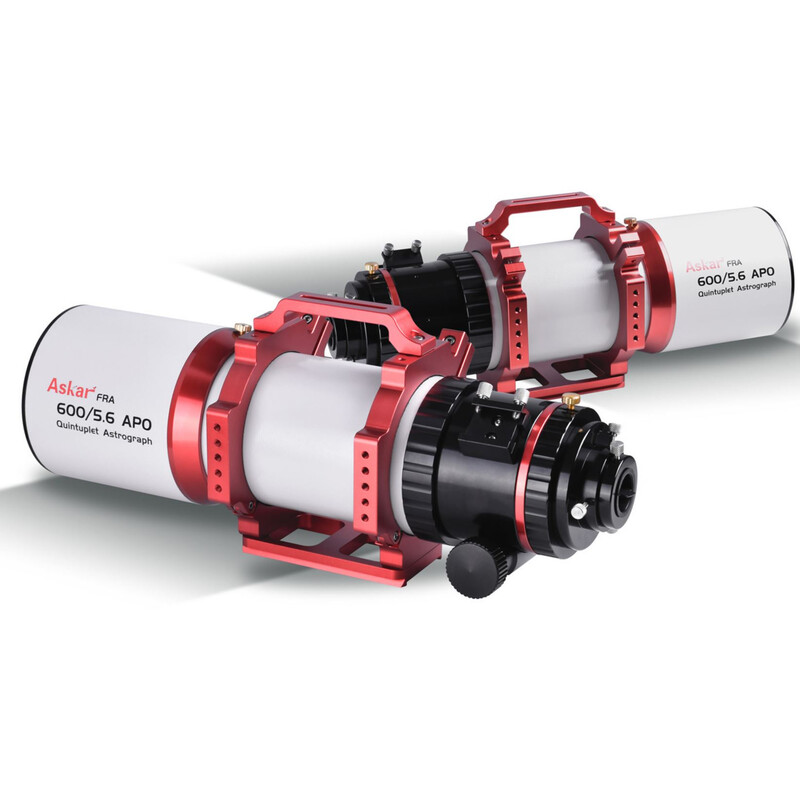

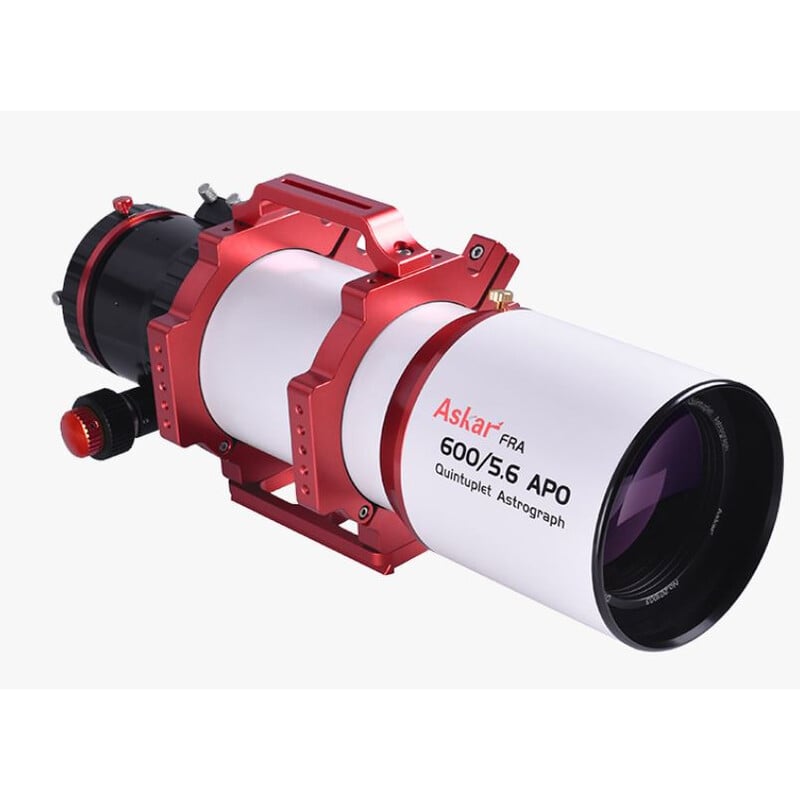

Apochromatic refractor AP 108/600 Quintuplet OTA

$ 3,310.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.09.2025 + lead time

Product description

With the FRA600 Quintuplet Astrograph, Askar has created a colour-pure apochromat for astrophotography with large sensors!

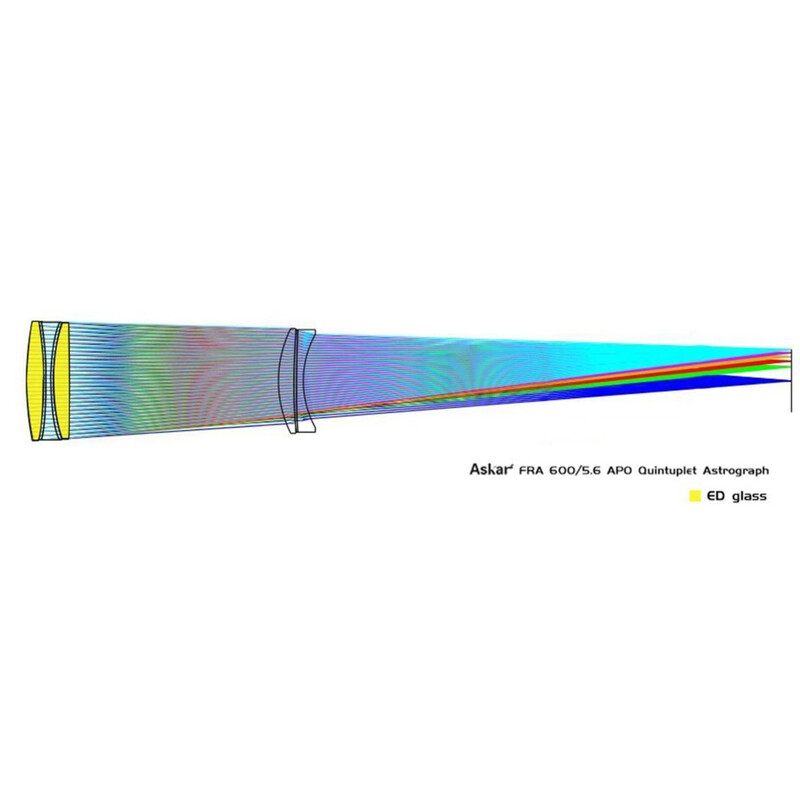

With these telescopes, great attention has been paid to optical and mechanical quality. FRA stands for refractor telescopes with an integrated corrector element for a flat and corrected image field. The FRA series is mainly used for astrophotography. The ASKAR FRA600 is a 5-element apochromat based on Petzval with a focal length of 600 mm and an aperture ratio of f/5.6. The aperture is 108 mm. The triplet lens contains two special glass elements for colour-free images. The 2-element corrector is permanently installed in the tube and corrects an image circle up to 66 mm in diameter. Once your camera is in focus, you are automatically at the correct distance.

The ASKAR FRA600 was designed for astrophotography. However, thanks to the comfortable working distance, 2" diagonal mirrors can also be connected. This turns the Astrograph into a very nice telescope for astronomical observation and also landscape observation. All common 2" and 1.25" accessories can be connected. For photography, a long adaptor is included, which allows all common cameras to be connected via the M48 thread.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
108
Focal length (mm)
600
Aperture ratio (f/)
5,6
Resolving capacity
1,1
Limit value (mag)
12
Max. useful magnification
216
tube diameter (mm)
125
Tube construction
Full tube
Light gathering capacity
240
Coating
multiple
lens design
Quintuplet

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2
Rotating
yes
Gear reduction
1:10 fine focusing
Adjustment range (mm)
80
Ring clamp
yes

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" & 2"
Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Losmandy-Style
Corrector
integrated
Transport cases
yes
Test protocol
yes

General


Length (mm)
560
Total weight (kg)
7,9

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes (very good)
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (36)

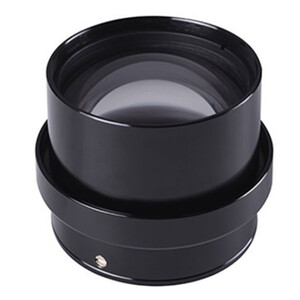

Askar full-frame Reducer for FRA600
