Astronomy > Telescopes > Askar > PHQ > Askar Apochromatic refractor AP 130/1000 130PHQ OTA
Product no.: 77528

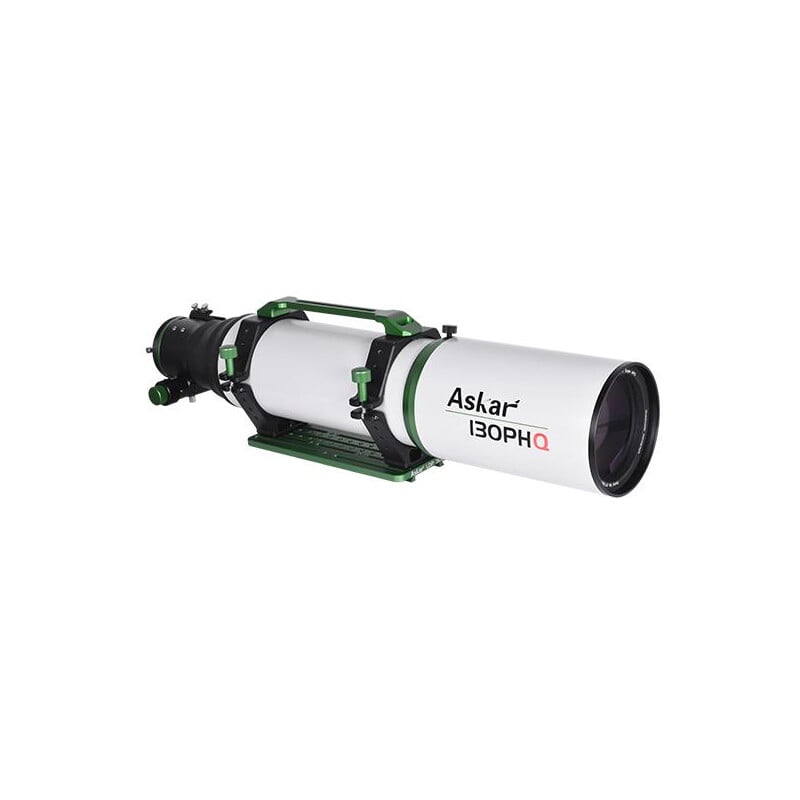

Apochromatic refractor AP 130/1000 130PHQ OTA

$ 4,420.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • Apochromat with integrated flattener
  • Objective with two ED elements
  • 3.4" focuser with reduction gear

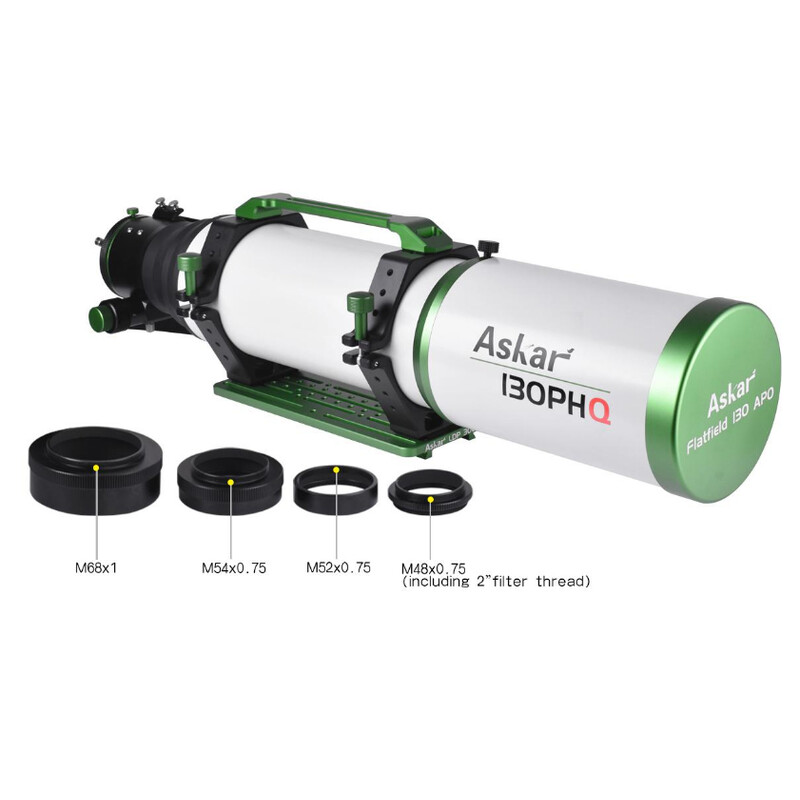

  • 2" mount and M68, M54 and M48 threads
  • Prism rail according to Losmandys standard

Product description

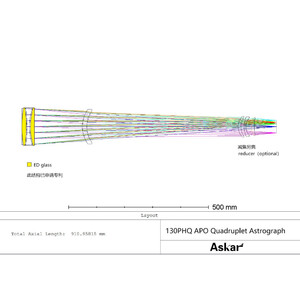

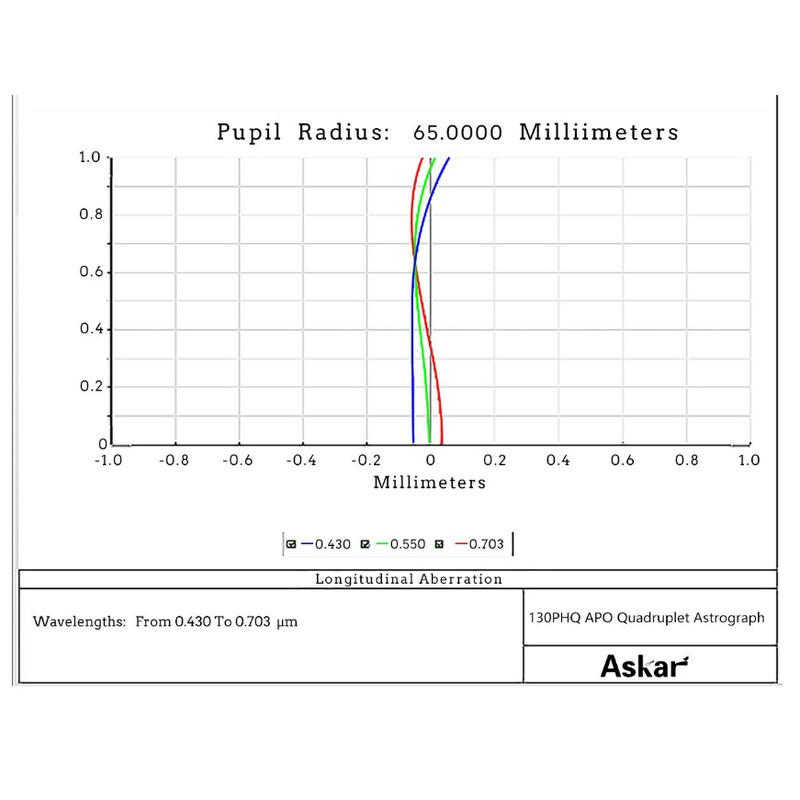

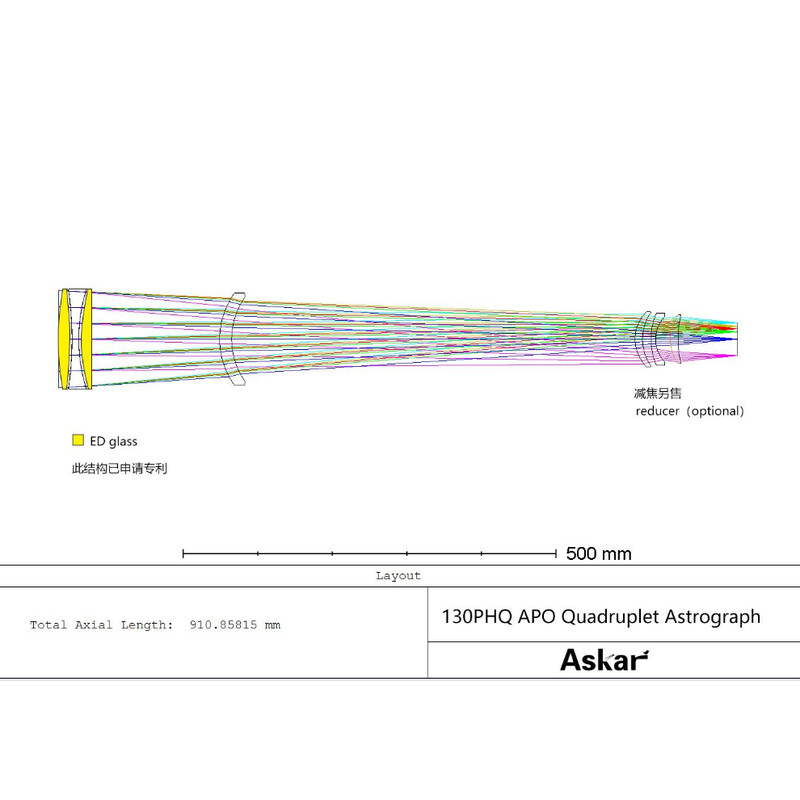

The AP 130/1000 optics are a Petzval-like quadruplet lens with two ED glass elements and offer excellent control of chromatic and other aberrations.

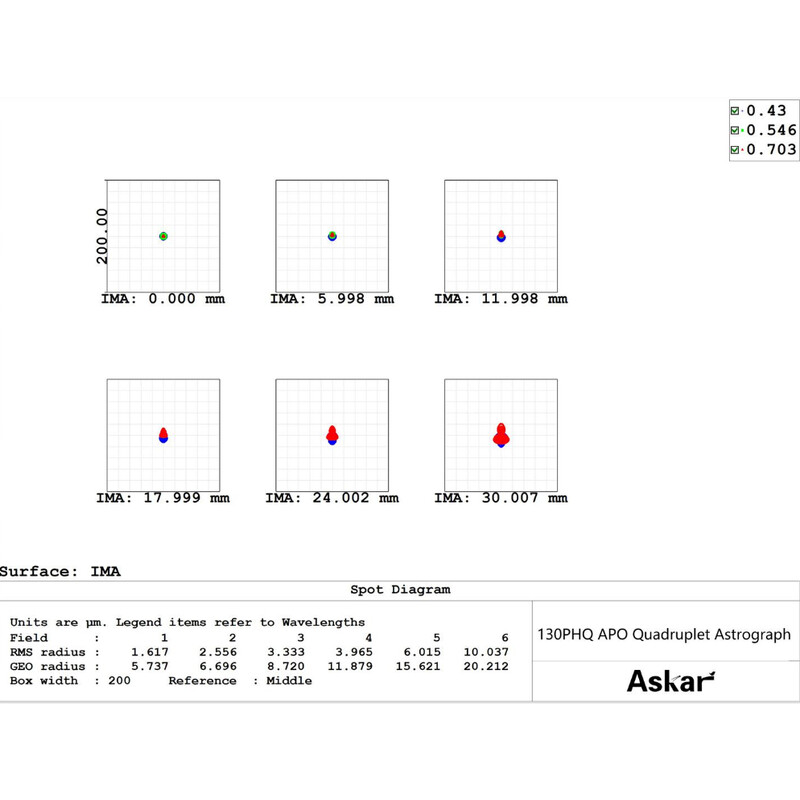

With its integrated flattener ( field flattening lens), the optics are optimised for astrophotography. You do not need any additional optical accessories! The Apo illuminates a 60-millimetre image circle, has a fine spot diagram with minimal distortion of the edge stars and its central RMS radius is less than 2 micrometres.

Additional features:

  • With a focal length of 1000 mm and the large corrected field of view, even extended objects can be captured. However, fine details of objects can also be brought out when using high-resolution cameras.
  • The use of different cameras with different flange focal distances is no problem. Simply focus and you are always at the correct distance.
  • The focuser has a large adjustment range, so you can find the focus without any problems.
  • The working distance or back focus from the 2" barrel is long enough to allow the use of a 2" diagonal mirror. This turns the Flatfield apochromatic refractor into a large-field telescope or even a planetary telescope, depending on the eyepiece used.

Scope of delivery:

  • telescope
  • eyepiece adaptor

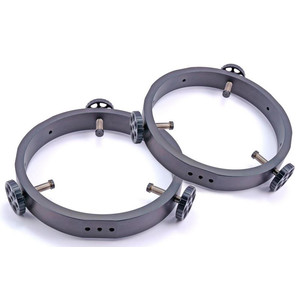

  • Tube clamps with carrying handle
  • Prism rail
  • camera adaptor

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
130
Focal length (mm)
1000
Aperture ratio (f/)
7,7
Resolving capacity
1,06
Limit value (mag)
12,4
Light gathering capacity
340
Max. useful magnification
260
lens design
Quadruplet
Tube weight (kg)
12
tube diameter (mm)
146
Tube length (mm)
1060
Carrying length (mm)
842
dew cap diameter (mm)
169
Fully Corrected Field (mm)
60

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M68, M54 & M48
Backfocus (mm)
186, 156, 136, 116
Free aperture (mm)
86
Motorized
no
Ring clamp
yes
Load capacity (kg)
8
Gear reduction
yes
Adjustment range (mm)
110
Tilting Adaptor
no
Rotating
no

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Corrector
integrated
Prism rail
Losmandy-Style
Carrying handle
yes
Extension tubes
yes
Transport cases
no
Carry case
no
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes

General


Series
PHQ

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (36)

Askar Reducer 0.7x

$ 650.00*
Astronomy > Eyepieces (20)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (14)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Askar Apochromatic refractor AP 130/1000 130PHQ OTA
Includes
Askar Apochromatic refractor AP 130/1000 130PHQ OTA

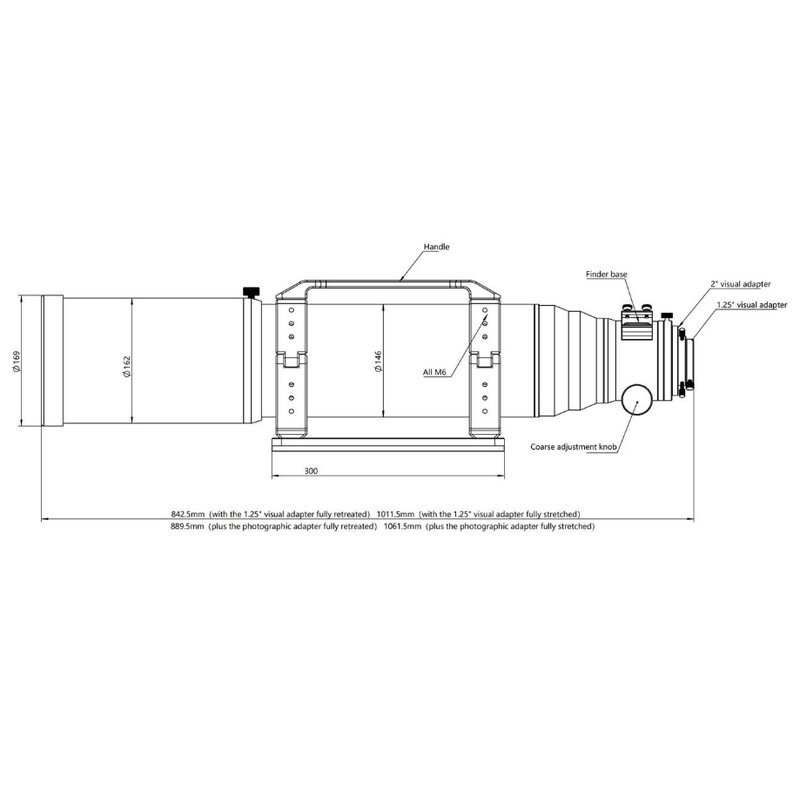

Dimensions
Askar Apochromatic refractor AP 130/1000 130PHQ OTA

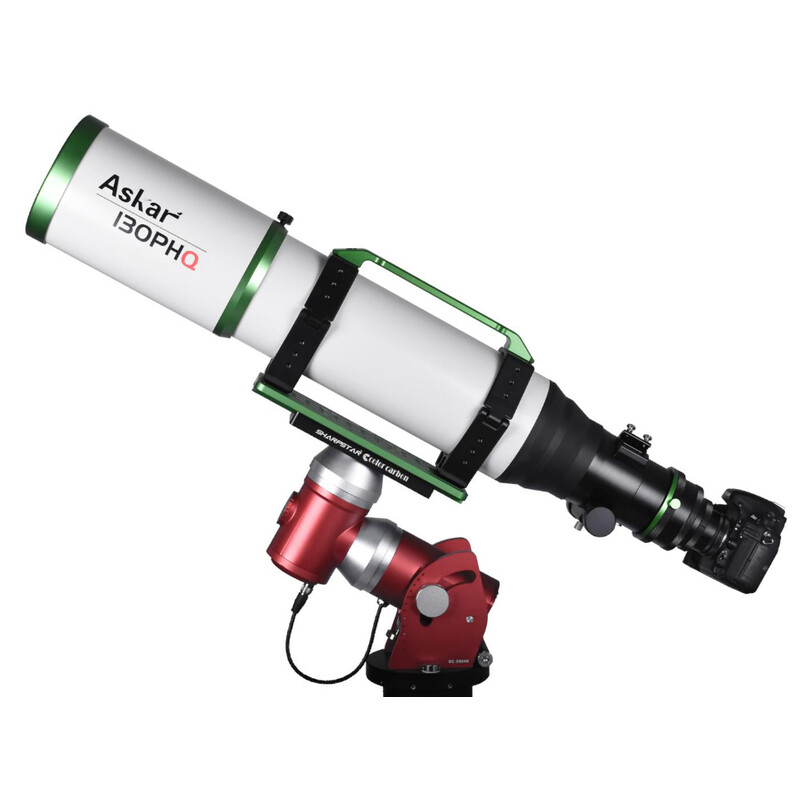

Example of use
