Astronomy > Telescopes > Askar > Askar Apochromatic refractor AP 140/980 Triplet OTA
Product no.: 88498

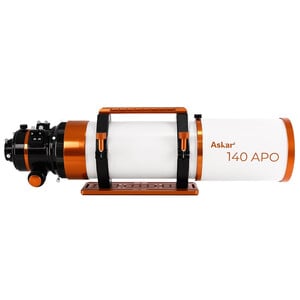

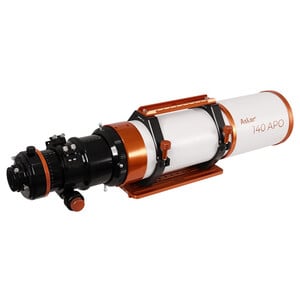

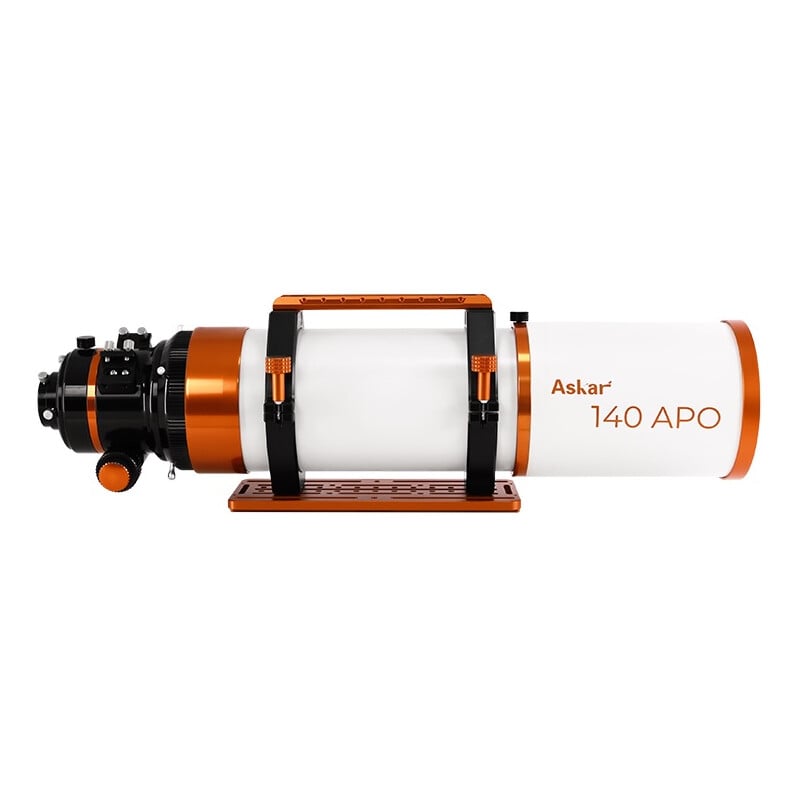

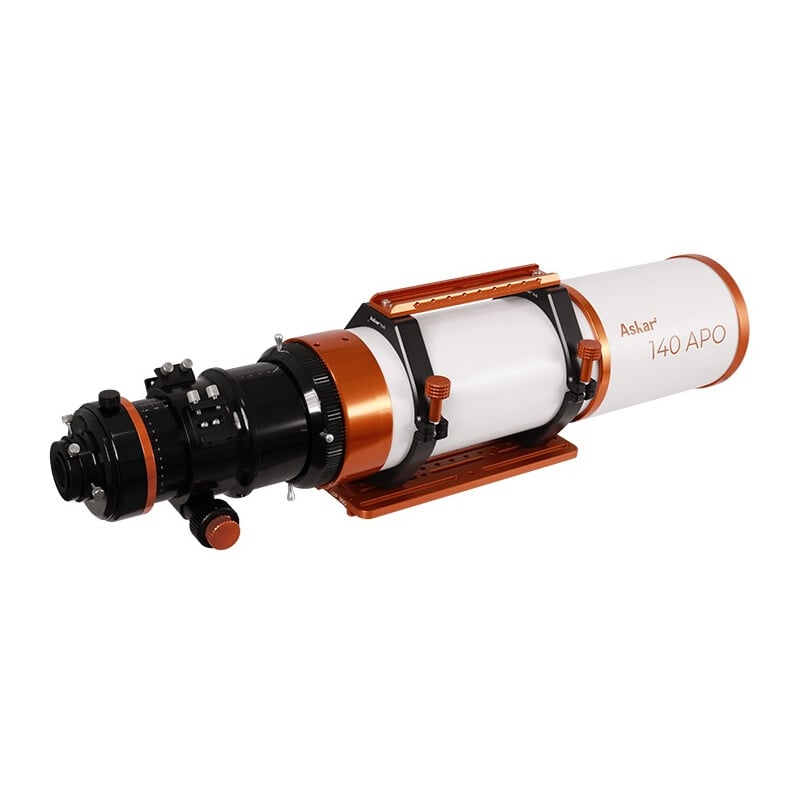

Apochromatic refractor AP 140/980 Triplet OTA

$ 3,310.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Triplet lens with two air gaps and central ED element
  • Sturdy 3.5" R&P focuser with micro reduction gear
  • 360° rotation for the right image section
  • Two finder scopes and mounting rail
  • For visual observations and astrophotography alike

Product description

The large lens diameter offers high resolution, brightness and – because there is no secondary optics to interfere with the beam path – high contrast, so astrophotographers will enjoy more detail and brighter objects in their images. The Askar APO is equipped with a triplet objective that features ED glass to virtually eliminate the colour aberration typical of lenses.

The Askar APO has two finder shoes. This provides an additional mounting position for further astronomical accessories. The handle is designed so that it can also serve as a base for accessories. The tube clamps, which weigh only 1.7 kilograms, have a large knurled screw that allows for easy opening and closing.
The Losmandy prism rail is compatible with most larger mounts on the market. The length of the rail (300 mm) makes it easier to balance the telescope on the mount.

Integrated tube extension: The tube has an integrated extension that can be pulled out or pushed in as required and locked in place with a clamping ring. This means that the APO can be used not only for photography but also for visual observation. The working distance is large enough to use diagonal mirrors and binocular attachments.

The Askar APO is equipped with a sturdy 3.5-inch focuser with reduction gear, which is also compatible with most focus motors on the market. The entire focuser is CNC-milled and has an anti-reflective coating on the inside, which provides additional protection against stray light. The focuser features a large 360° precision rotator with scales for convenient and accurate adjustment. The large locking screw holds the rotator securely in the desired position, even under high loads.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
140
Focal length (mm)
980
Aperture ratio (f/)
7
Resolving capacity
0,99
Limit value (mag)
12,5
Max. useful magnification
280
Light gathering capacity
400
Coating
multiple
lens design
Triplet
Carrying length (mm)
735
Tube length (mm)
870
Tube weight (kg)
10,9

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Rotating
yes
Gear reduction
1:10 fine focusing
Ring clamp
yes
Free aperture (mm)
89
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
55

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Losmandy-Style
Corrector
without
Carry case
yes
Deviating optics
no
Eyepiece adaptor
2" / 1.25"
Carrying handle
yes
Dew Shield
yes

Area of application


Nature Observation
no
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (4)

Omegon Star chart Planisphere

$ 19.90*
Outdoor (3)

Omegon LED headlamp

$ 15.90*
Astronomy > Telescope accessories (37)

ZWO Electronic Automatic Focuser EAF Pro

$ 461.00*
Astronomy > Eyepieces (20)

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 79.00*
Astronomy > Filters (13)

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 1.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 6.90*

*All prices include VAT plus shipping costs.

Askar Apochromatic refractor AP 140/980 Triplet OTA

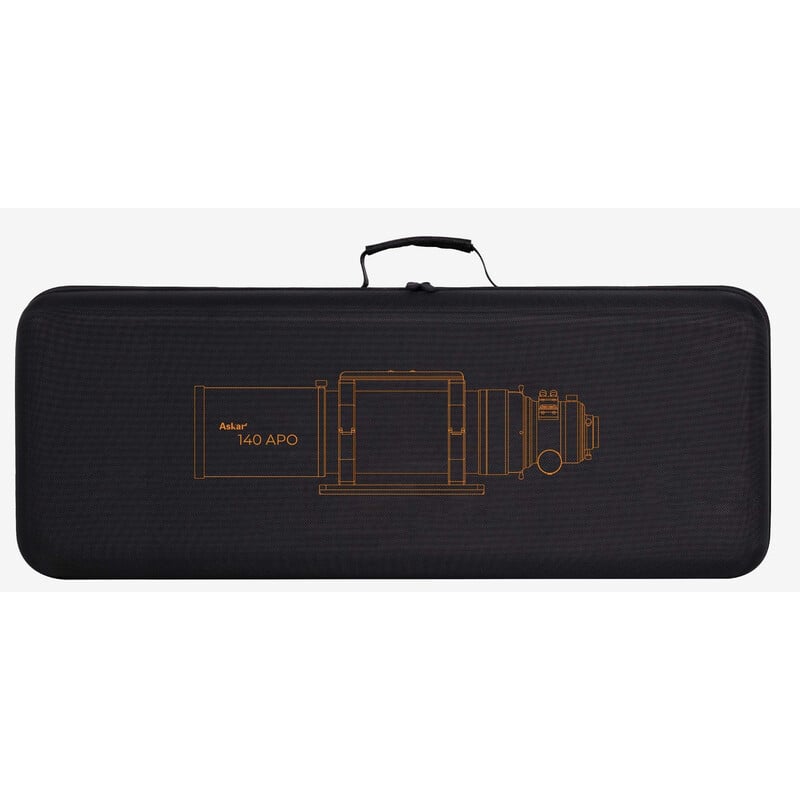

Transport cases
