Astronomy > Telescopes > Askar > Askar Apochromatic refractor AP 185/1295 Triplet OTA
Product no.: 80952

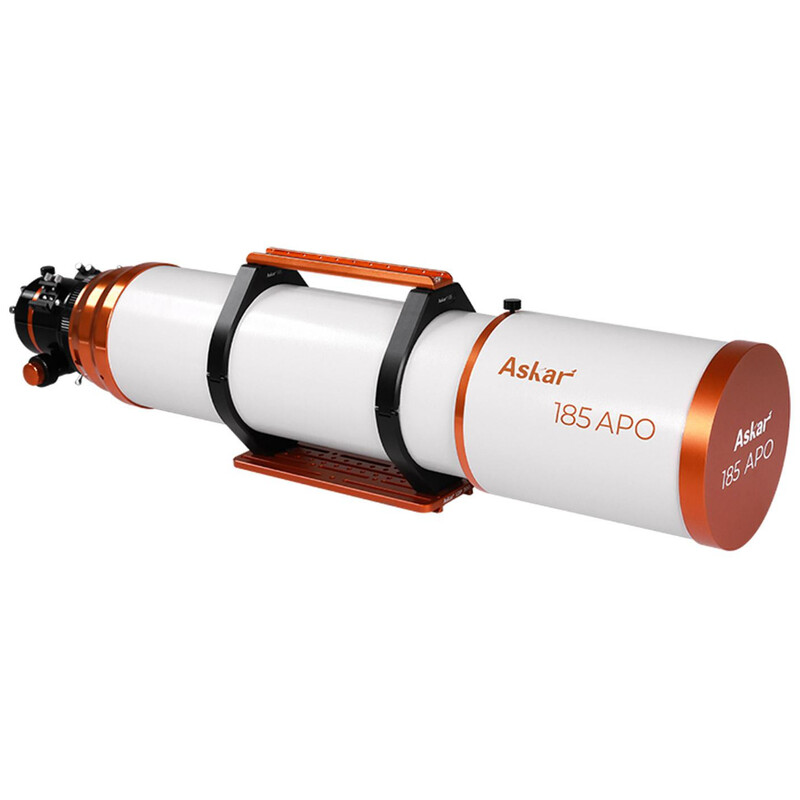

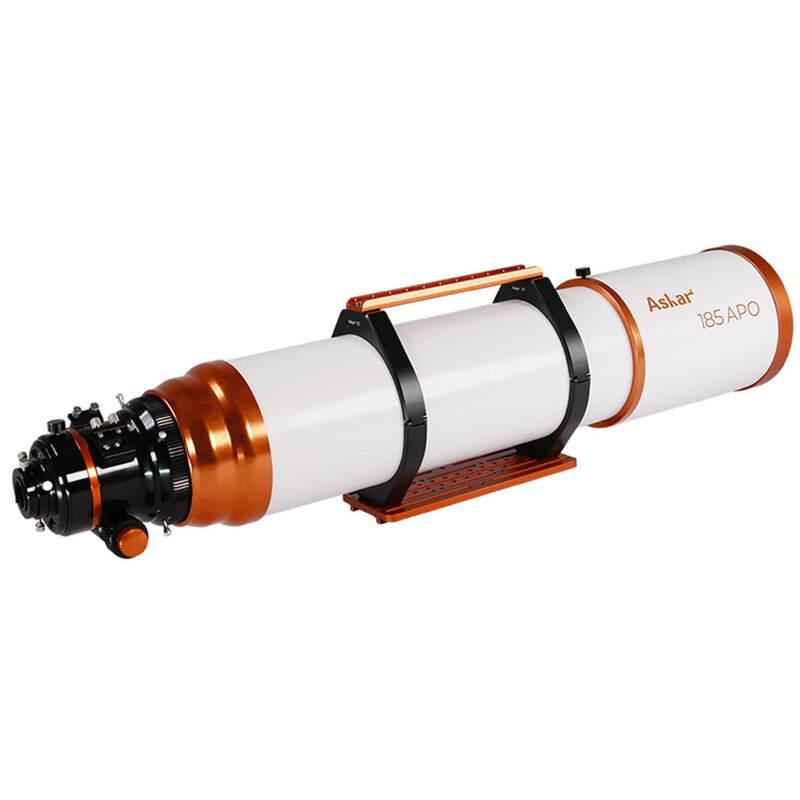

Apochromatic refractor AP 185/1295 Triplet OTA

RRP: $ 8,000.00 Our price:
$ 7,100.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

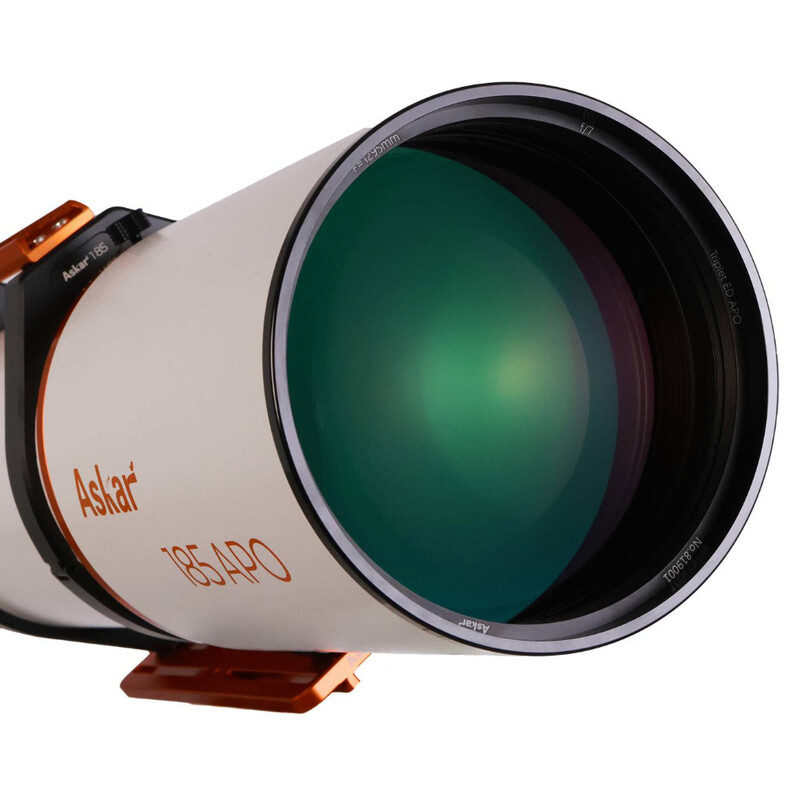

  • Triplet lens with two air gaps and central ED element
  • Sturdy 3.5" R&P focuser with micro reduction gear
  • 360° rotation for the right image section
  • Two finder scopes and mounting rail
  • For visual observations and astrophotography alike

Product description

This Askar APO uses multiple lens elements to correct chromatic aberration, resulting in higher image quality.

  • The tube is CNC-milled and finished with a durable paint coating or anodised.
  • Despite its large aperture and long focal ratio, the 185APO is very compact: the shortest overall length is only 1081 mm.
  • The large locking screws ensure easy operation. The knurled screws allow the clamps to be opened and closed easily.
  • The APO handle has a long hole so that it can be used to attach accessories. The handle itself is 400 mm long.
  • The prism rail is 400 mm long and has numerous mounting options. The distance between the clamps is variable.

Integrated tube extension: The tube has an integrated extension that can be pulled out or pushed in as required and locked in place with a clamping ring. This means that the APO can be used not only for photography but also for visual observation. The working distance is large enough for the use of a diagonal mirror and binocular attachment.

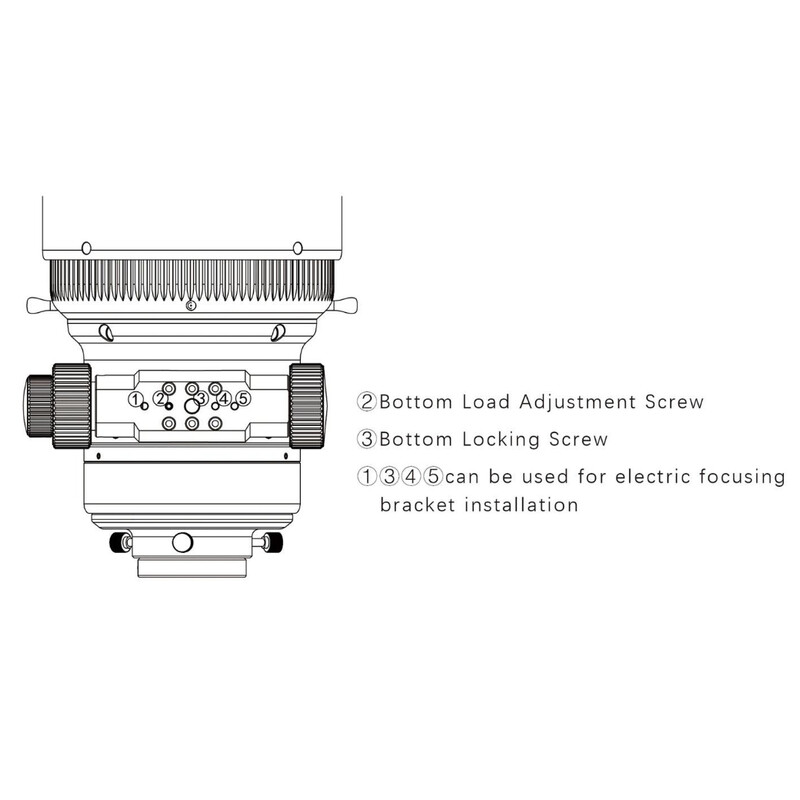

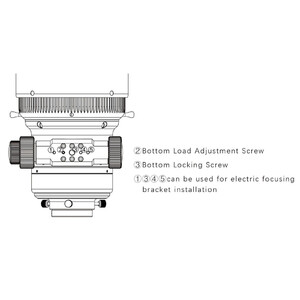

Focuser: The 3.5-inch rack and pinion focuser is compatible with most modern focus motors. The focus travel is 100 mm. The entire focuser is CNC-machined and has an anti-reflective coating on the inside. A scale makes it easy to set a specific position.
The large 360° rotator has precise scales for convenient adjustment and a large locking screw that is easy to tighten even under high loads. Adaptors for 2" and 1.25" accessories complete the equipment.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
185
Focal length (mm)
1295
Aperture ratio (f/)
7
Resolving capacity
0,62
Limit value (mag)
13,1
Max. useful magnification
370
Light gathering capacity
698
Coating
multiple
lens design
Triplet
Carrying length (mm)
1081
Tube length (mm)
1222
Tube weight (kg)
17,2

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Rotating
yes
Gear reduction
1:10 fine focusing
Adjustment range (mm)
100
Ring clamp
yes
Free aperture (mm)
89

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Losmandy-Style
Corrector
without
Transport cases
yes
Deviating optics
no
Eyepiece adaptor
2" / 1.25"
Carrying handle
yes
Test protocol
yes
Dew Shield
yes

Area of application


Nature Observation
no
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
no

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (37)
Focusing Mask

TS Optics Bahtinov mask, 195-240mm

$ 34.90*
Astronomy > Eyepieces (15)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (9)
Solar Filters

Baader AstroSolar telescope solar filter ASTF 160mm

$ 136.00*
Astronomy > Other (2)
Mount

Celestron Mount CGX-L GoTo

$ 5,800.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Askar Apochromatic refractor AP 185/1295 Triplet OTA
Triplet
Askar Apochromatic refractor AP 185/1295 Triplet OTA

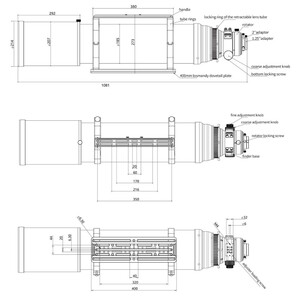

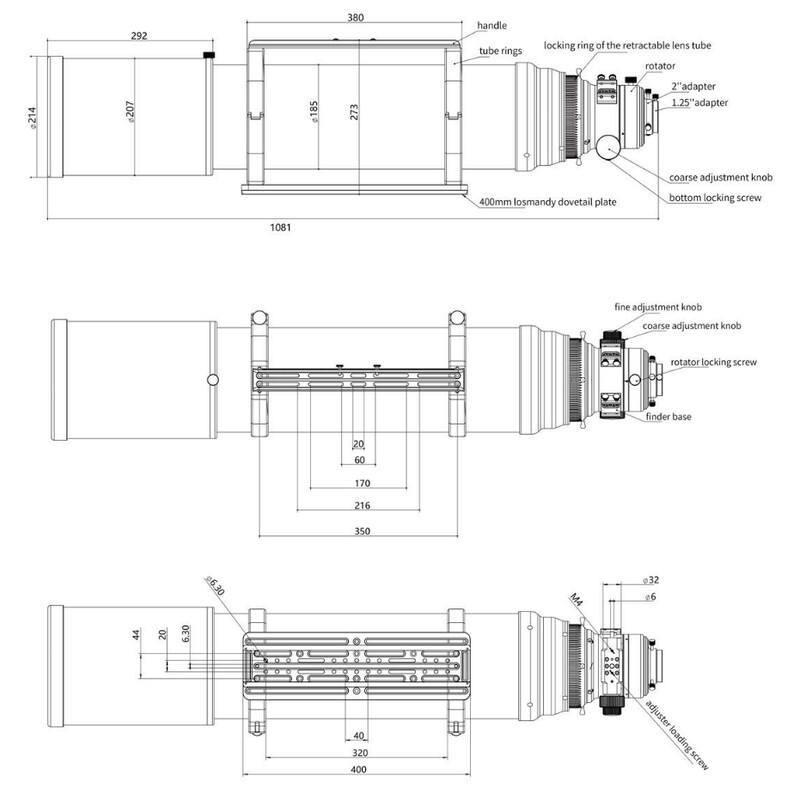

Dimensions
Askar Apochromatic refractor AP 185/1295 Triplet OTA

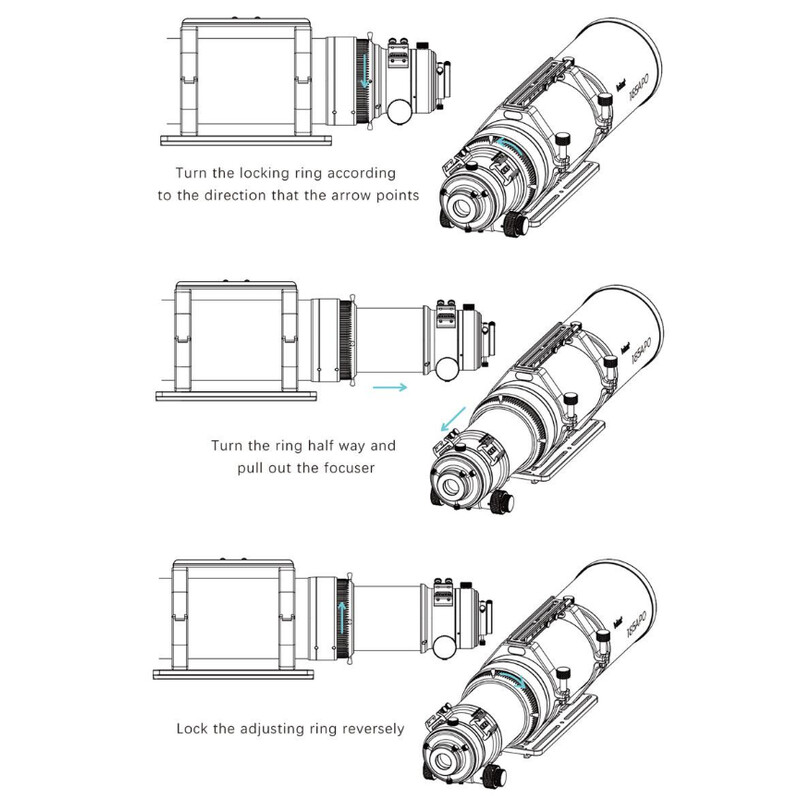

Tube extension
