Astronomy > Telescopes > Askar > Askar Apochromatic refractor AP 203/1421 OTA
Product no.: 85322

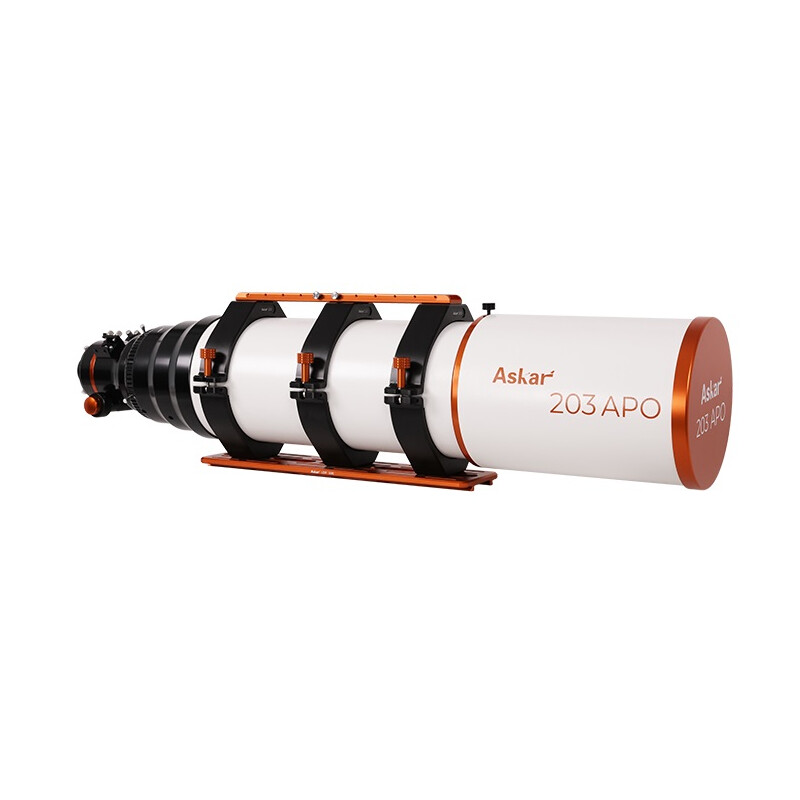

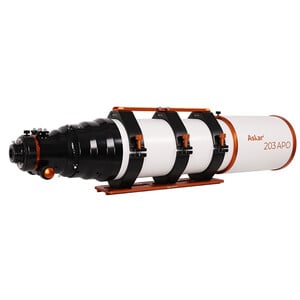

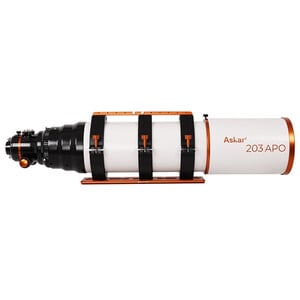

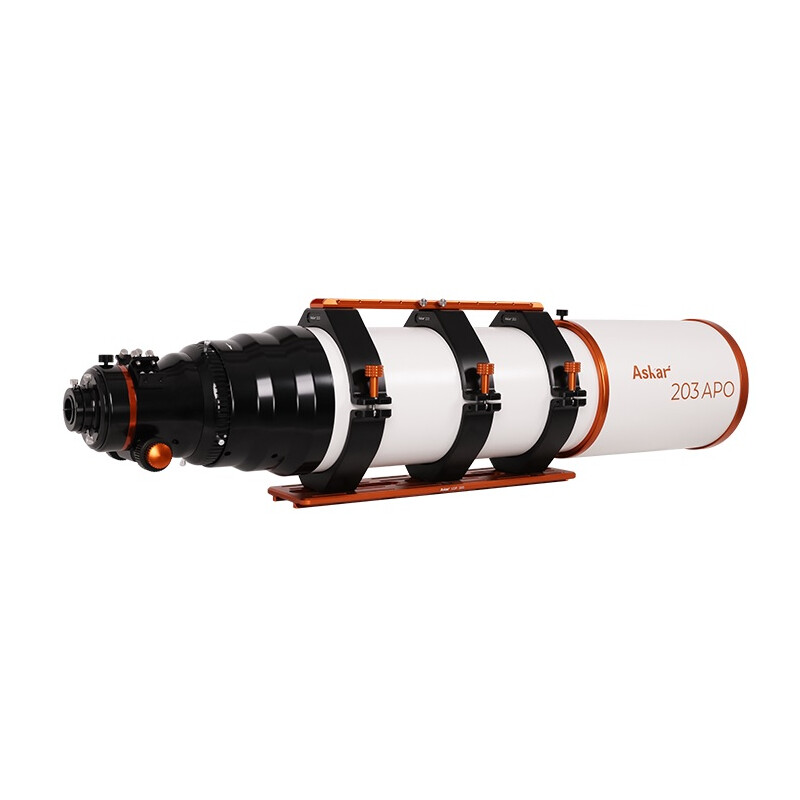

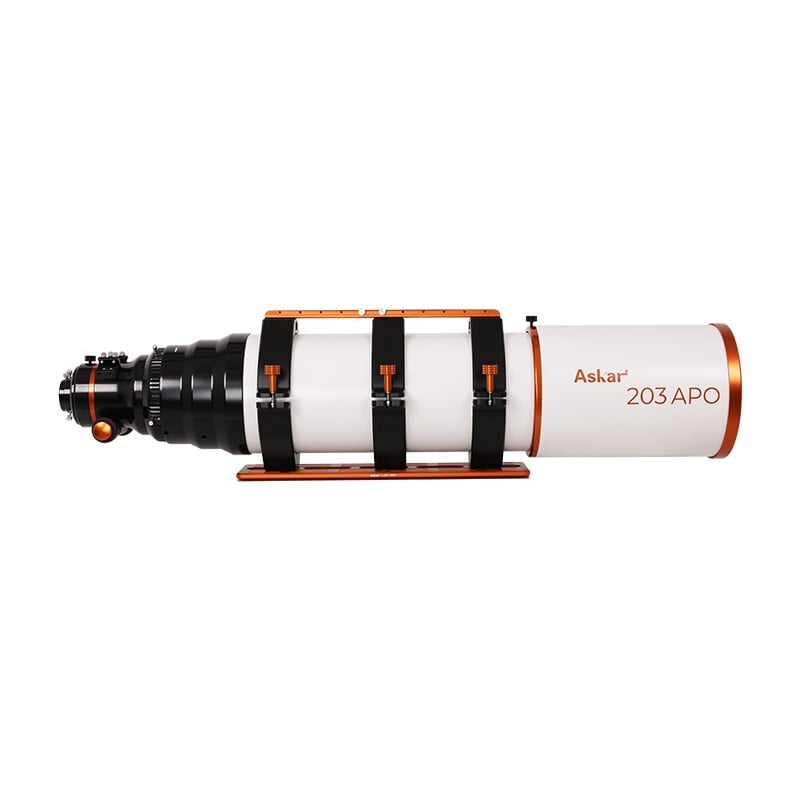

Apochromatic refractor AP 203/1421 OTA

RRP: $ 10,800.00 Our price:
$ 10,300.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • Triplet lens with two air gaps and central ED element
  • Sturdy 3.5" R&P focuser with micro reduction gear
  • 360° rotation for the right image section
  • Two finder scopes and mounting rail
  • For visual observations and astrophotography alike

Product description

This lens telescope is one of the largest apochromatic refractors on the market and ideal for observatories. Sharpstar continues its tradition of uncompromising value for money with this apo.

The triplet apo lens with air gap: The Askar APO series uses special optical designs and multiple lens elements to correct chromatic aberration, resulting in higher image quality. ED glass, also known as low dispersion glass, is an optical glass specially developed to reduce chromatic aberration.

Integrated tube extension: The tube has an integrated extension that can be pulled out or pushed in as required and locked in place with a clamping ring. This means that the APO can be used not only for photography but also for visual observation. The working distance is large enough for the use of a diagonal mirror and binocular attachment.

Focuser: The 3.5-inch rack and pinion focuser is compatible with most modern focus motors. The focus travel is 100 mm. The entire focuser is CNC-machined and has an anti-reflective coating on the inside. A scale makes it easy to set a specific position.
The large 360° rotator has precise scales for convenient adjustment and a large locking screw that is easy to tighten even under high loads. Adaptors for 2" and 1.25" accessories complete the equipment.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
203
Focal length (mm)
1421
Aperture ratio (f/)
7
Resolving capacity
0,68
Limit value (mag)
13,3
Light gathering capacity
840
Max. useful magnification
406
lens design
Triplet
Tube weight (kg)
23,5
Coating
FMC

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Free aperture (mm)
89
Motorized
no
Ring clamp
yes
Gear reduction
yes
Adjustment range (mm)
100
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Corrector
without
Prism rail
Losmandy-Style

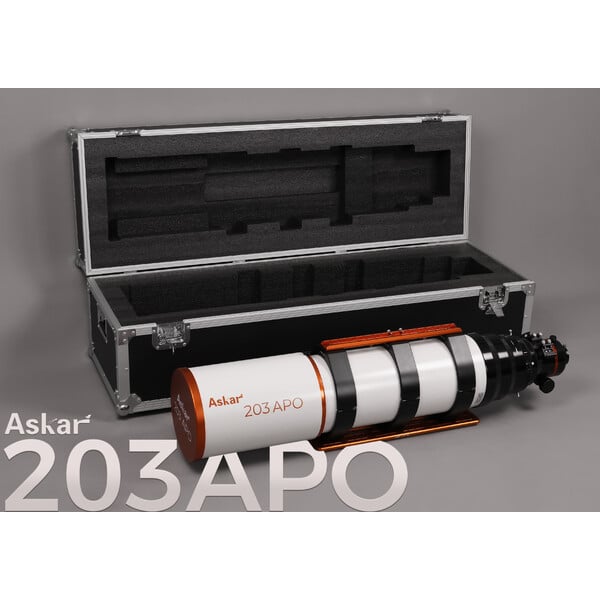

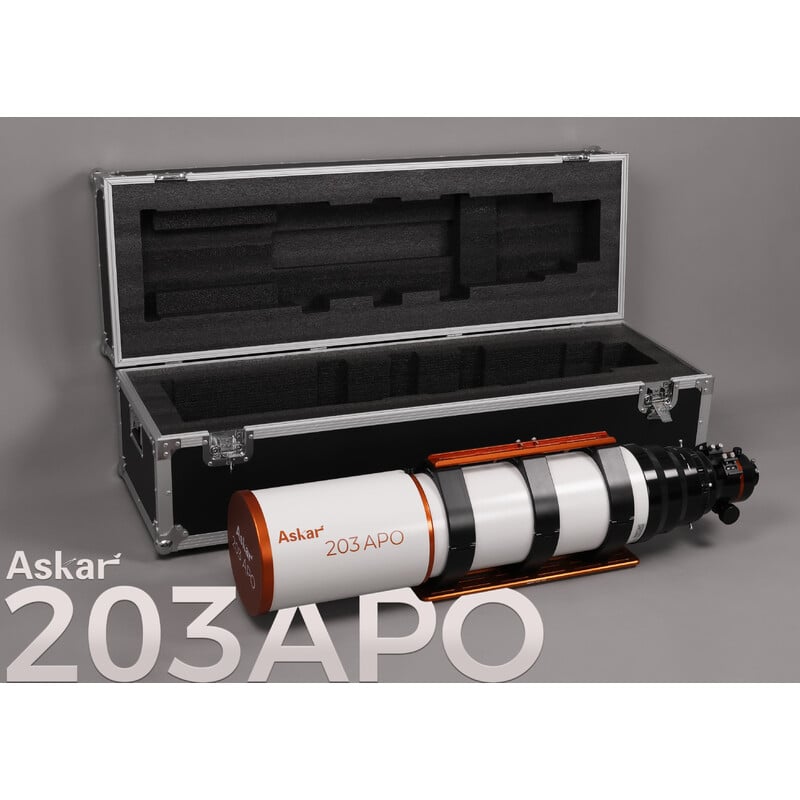

Transport cases
yes
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes
