Astronomy > Telescopes > Askar > PHQ > Askar Apochromatic refractor AP 65/416 65PHQ OTA
Product no.: 90957

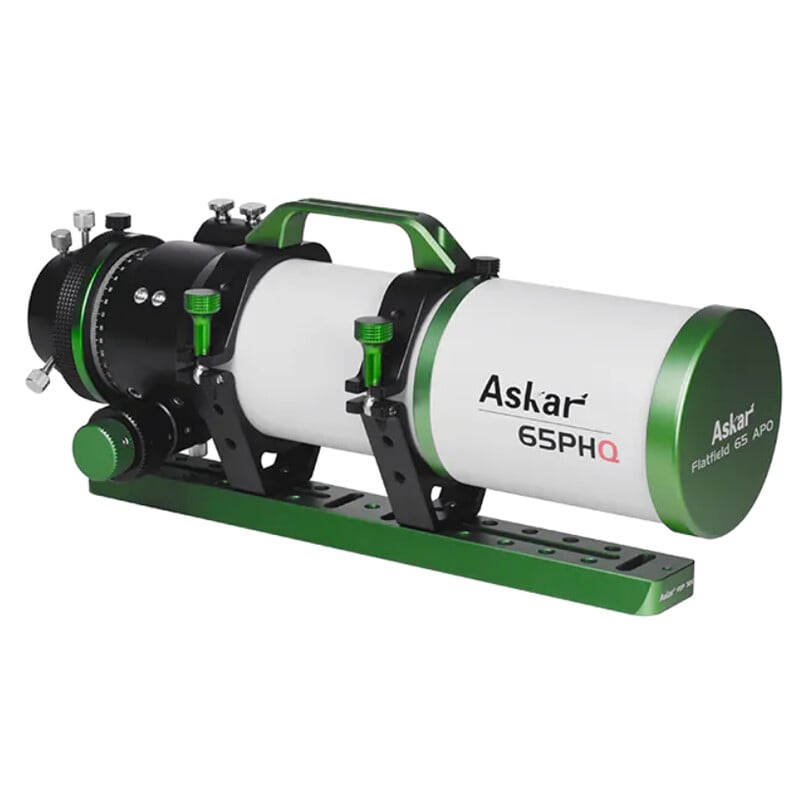

Apochromatic refractor AP 65/416 65PHQ OTA

RRP: $ 1,150.00 Our price:
$ 1,130.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • Apochromat with integrated flattener
  • Optimised for astrophotography
  • 2.5" focuser with reduction gear
  • Corrected image circle: 44 millimetres
  • Prism rail to Vixen standard, 300 mm length

Product description

The PHQ series apochromats are Flatfield astrographs that do not require an additional field flattener and do not necessitate complicated calculations to determine the correct distance to the camera sensor (backfocus). Astrophotographers can simply equip a PHQ apochromat with any accessories.

Suitable reducers for changing the focal length are available as accessories. This further increases the light gathering power of the apochromats, albeit at the expense of a narrower field of view.

Unlike the other models in the series, the 65PHQ features a five-element lens design (quintuplet). Three lenses, including two ED glass elements, form the objective lens, whilst two further lenses in the middle section of the tube act as the field flattener (corrector). This enables excellent correction of chromatic aberration and ensures minimal distortion of stars at the edge of the field of view.

Scope of delivery:

  • telescope
  • eyepiece adaptor
  • Tube clamps with carrying handle
  • Prism rail
  • camera adaptor

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
65
Focal length (mm)
416
Aperture ratio (f/)
6,4
Resolving capacity
2,12
Limit value (mag)
10,9
Light gathering capacity
90
Max. useful magnification
130
lens design
Triplet
Tube weight (kg)
2,8
tube diameter (mm)
80
Tube material
Aluminium
Carrying length (mm)
328
Tube construction
Full tube
dew cap diameter (mm)
93
Fully Corrected Field (mm)
44

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M68, M54, M48
Backfocus (mm)
121 (visual)
Free aperture (mm)
64
Motorized
no
Ring clamp
yes
Load capacity (kg)
8
Gear reduction
1:10 fine focusing
Adjustment range (mm)
110
Tilting Adaptor
no
Rotating
yes
Filter thread
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Corrector
integrated
Prism rail
Vixen-Style
Carrying handle
yes
Extension tubes
yes
Transport cases
yes
Carry case
no
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes
Camera adaptor
yes

General


Series
PHQ

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (5)

Omegon Star chart Planisphere

$ 19.90*
Outdoor (3)

Omegon LED headlamp

$ 14.90*
Astronomy > Telescope accessories (35)

Askar Reducer 0.75x

$ 333.00*
Astronomy > Eyepieces (21)

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 79.00*
Astronomy > Filters (13)

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 1.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 6.90*

*All prices include VAT plus shipping costs.

Askar Apochromatic refractor AP 65/416 65PHQ OTA

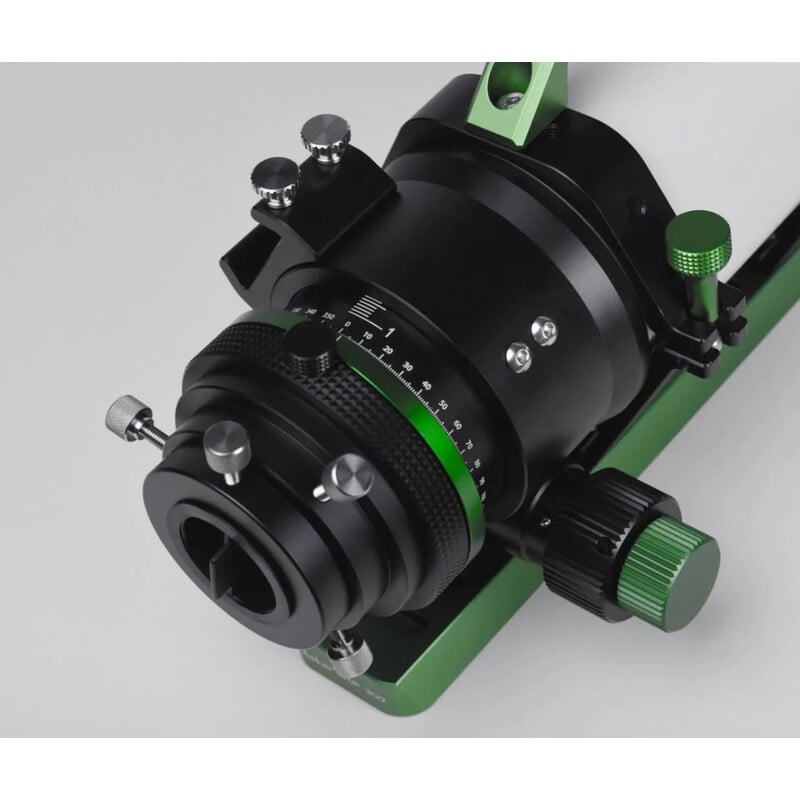

Drawtube
Askar Apochromatic refractor AP 65/416 65PHQ OTA

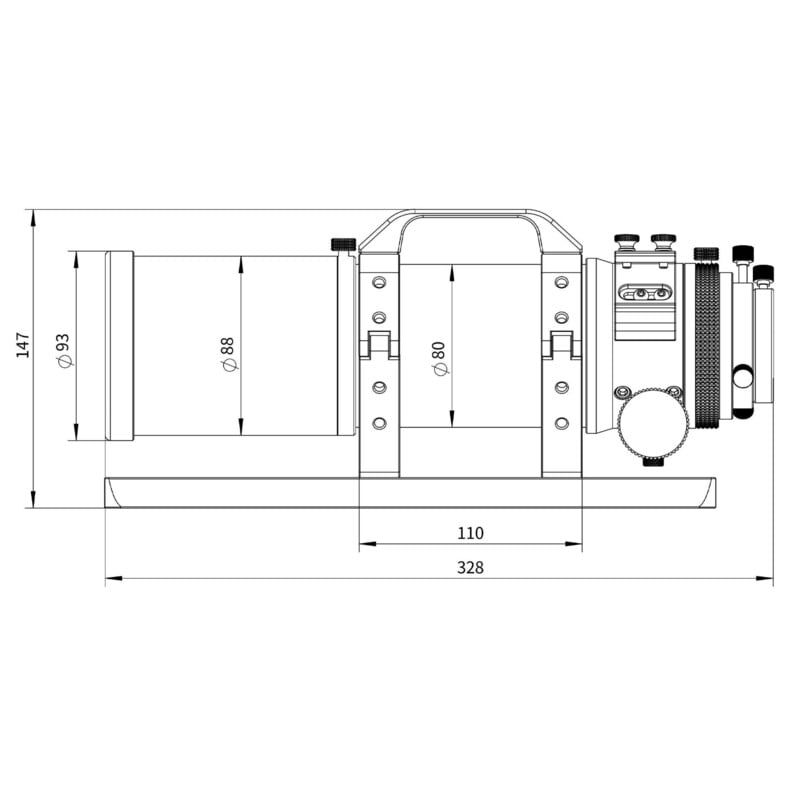

Dimensions
Askar Apochromatic refractor AP 65/416 65PHQ OTA

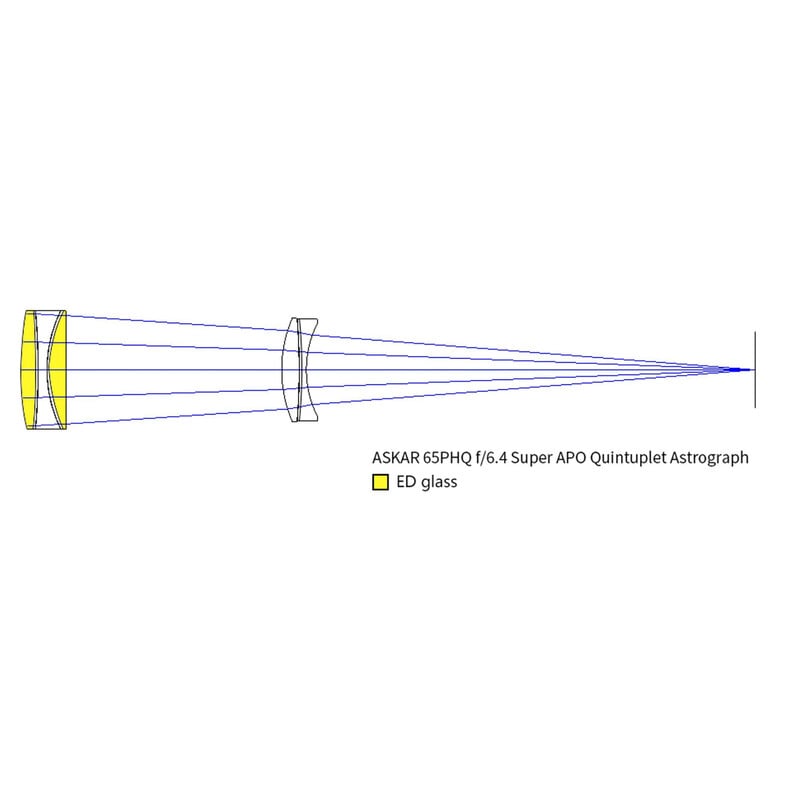

Optical design
