Astronomy > Telescopes > Baader > Triband-SCT > Baader Schmidt-Cassegrain telescope SC 279/2800 Triband-SCT 11
Product no.: 84331

Schmidt-Cassegrain telescope SC 279/2800 Triband-SCT 11

$ 7,200.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
  • Triband: The Schmidt plate replaces an additional ERF energy protection filter
  • For the Sun in white light, H-alpha, CaK and narrowband deep sky photography
  • Only use in combination with solar filters!

Product description

Based on the proven Schmidt-Cassegrain (SC) telescopes, the Triband SCs with Triband ERF-coated Schmidt plate were developed. They are the ideal basis for detailed H-alpha solar observation with a large aperture as well as for narrow-band deep sky photography.

The Baader Triband SCTs have the energy protection filter required for SolarSpectrum CaK and H-alpha filters already integrated into the Schmidt plate. The cost of an energy protection filter, which would be truly "astronomical" for apertures between 8 and 11 inches, is eliminated. Thanks to the triband coating, the telescope remains fully usable for narrow-band photography despite being designed for solar observation!

The special Triband ERF Schmidt plate of the Triband SCT has the following transmission ranges: 380 to 400 nm, 480 to 515 nm and 630 to 680 nm. In addition, it is blocked in the UV range (below 380 nm) and in the IR range (above 680 nm) to prevent both short-wave radiation and heat build-up.

Additional, rear-ventilated heat shields at the front of the tube and in front of the secondary mirror effectively reduce the absorption of radiant heat by the tube. This allows you to take full advantage of the resolution possible at your observation site.

TriBand pre-filter for narrowband observations: The transmission windows are designed for calcium K, continuum (including H-beta and O III), H-alpha, S II, similar to a UHC filter, and allow the use of additional narrowband filters.

Depending on the application, you may need additional accessories:

  • H-alpha: Solar Spectrum H-alpha filter, TZ-3 telecentric and TK0.4 or TK0.7 telecompressor. A D-ERF filter is not required.
  • CaK: Solar Spectrum CaK filter, K-line filter plus pre-filter for solar observation in calcium light
  • Continuum: Safety Cool-Ceramic Herschel wedge and, if necessary, suitable narrow-band filters.
  • Deep-Sky (not for solar observation!): Deep-Sky filters depending on the type of application (RGB / H-beta / O-III / H-alpha / S-II

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
Schmidt-Cassegrain
Aperture (mm)
279
Focal length (mm)
2800
Aperture ratio (f/)
10
Resolving capacity
0,41
Limit value (mag)
14
Light gathering capacity
1590
Max. useful magnification
560
Tube length (mm)
610
Tube construction
Full tube
Tube weight (kg)
13,1

Reflector


Secondary mirror obstruction
34
Secondary mirror diameter (mm)
95,3
corrector plate coatings
Triband-ERF

Focuser


Type of build
SC thread
Connecting threaded socket (camera-side)
SC

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Deviating optics
no
Prism rail
yes

General


Series
Triband-SCT

Area of application


Moon & Planets
no
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Product safety

Manufacturer: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, www.baader-planetarium.de

Recommended accessories

Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (26)
Finder

Omegon Radiant Finder with fastener

$ 49.90*
Astronomy > Eyepieces (4)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (6)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Baader Schmidt-Cassegrain telescope SC 279/2800 Triband-SCT 11

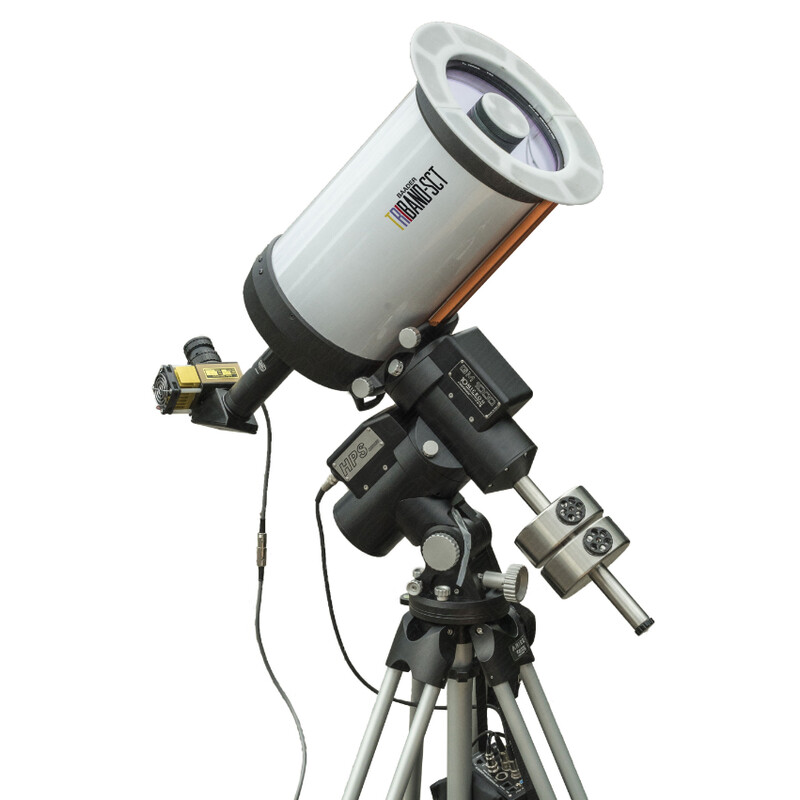

Typical application 1

Baader Schmidt-Cassegrain telescope SC 279/2800 Triband-SCT 11

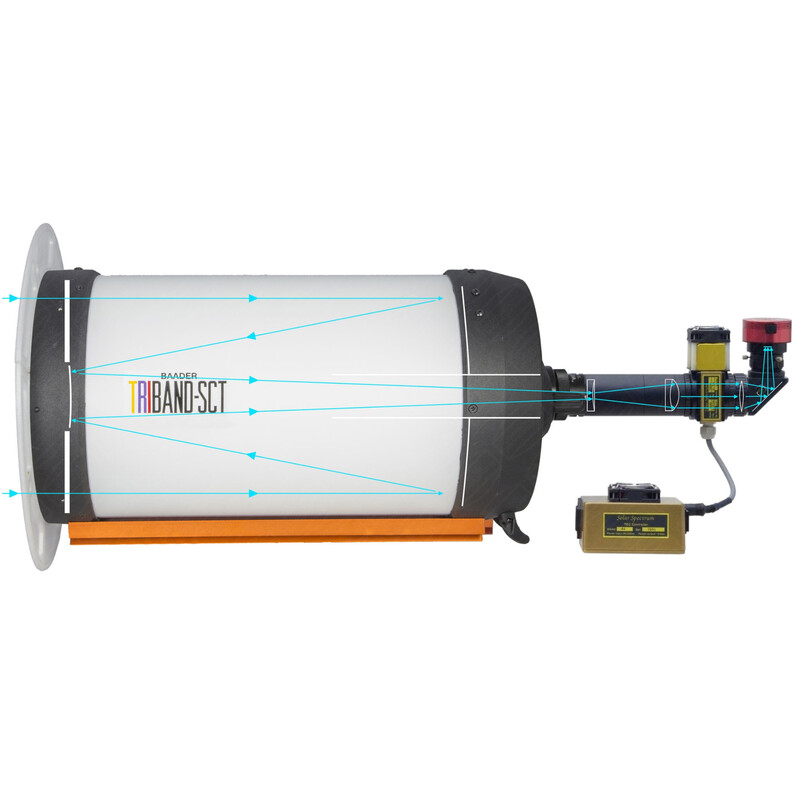

Typical application example 2

Baader Schmidt-Cassegrain telescope SC 279/2800 Triband-SCT 11

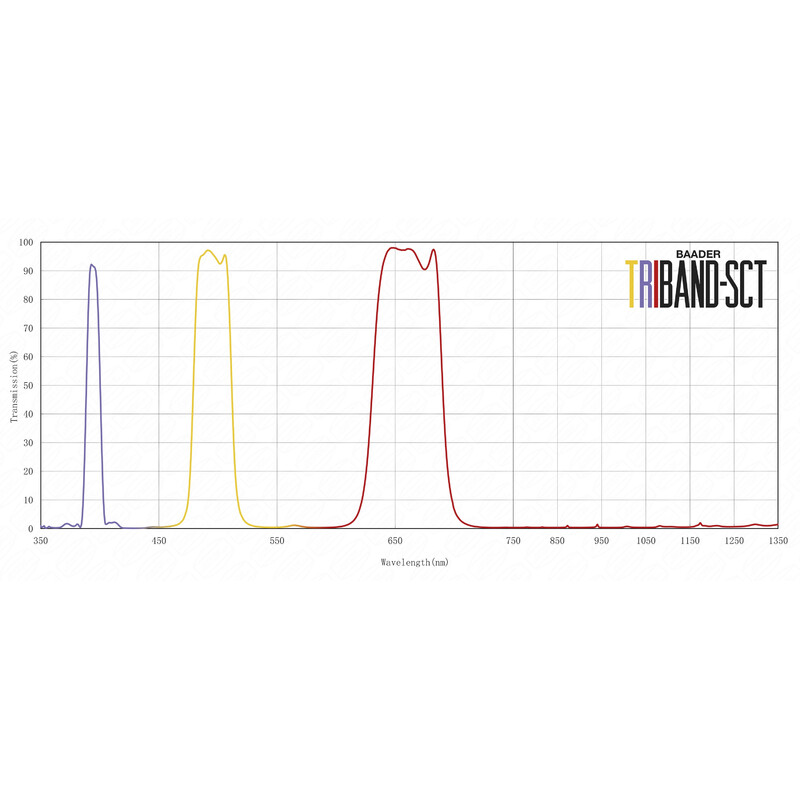

Light transmission curve
