Astronomy > Telescopes > Orion Optics UK > Astrograph > Orion Optics UK Telescope N 250/950 AG10 Carbon Astrograph OTA
Product no.: 60120

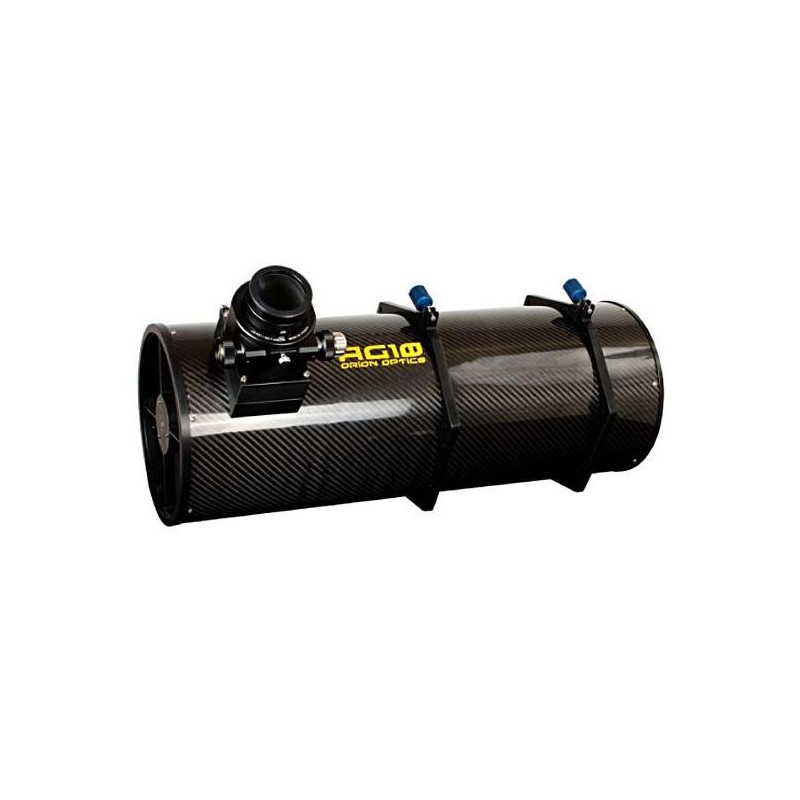

Telescope N 250/950 AG10 Carbon Astrograph OTA

$ 8,500.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 3-6 months + lead time

Product description

Astrographs from Orion Optics UK: Light-gathering high-end astrograph with 4-element Wynne corrector for ultimate astrophotography!

A key to the success of these astrographs is the carbon fibre tube. This lightweight material puts less strain on the mount than an aluminium tube and maintains focus during long exposure times, as carbon is very temperature stable.

All AG telescopes are extensively tested in the optical laboratories of Orion, UK. To prevent stray light from entering through the edge of the primary mirror, it is covered by a baffle, resulting in razor-sharp images of the stars – unmatched quality.

Some other special features of AG telescopes from Orion Optics UK:

  • All Orion UK AG primary mirrors are made from SCHOTT Suprax borosilicate glass ( virtually identical to Pyrex) with low thermal expansion, as are the primary mirrors of all this manufacturer's telescope ranges. All mirrors are manufactured to high specifications as rotationally symmetrical paraboloids with an aperture ratio of 1:4. How accurate are they? The glass is only sent for mirror coating once it has achieved a surface accuracy of 1/16 wavelength or better. This high degree of accuracy is checked using a Zygo laser interferometer.
  • The elliptical secondary mirrors are also manufactured to the highest standards and tested with the Zygo. For larger versions, Orion uses Suprax to achieve stability and accuracy. These are then Hilux-coated together with the primary mirrors, ensuring the highest reflective aluminium coatings with a protected surface available anywhere.
  • The mirror cell: Orion UK chose the current design after extensive computer calculations and testing. A 9-point system with nylon 66 tips distributes the load of the mirror as evenly as possible across 9 points on the back of the mirror. The cells are CNC-milled and then carefully finished by hand to eliminate even the smallest errors. They are then anodised to not only provide the aluminium with a corrosion-resistant coating, but also to harden the surface against scratches and wear.
  • The main mirror cell is equipped with a fan that is powered by 12 volts DC, significantly reducing the risk of fogging and quickly adjusting the mirror to the ambient temperature.
  • The simple and robust collimation system ensures that the mirror always remains in exactly the same collimated position. Its robustness also ensures a constant focal point, even after months of use in observatories.
  • The ACU-3L focuser: To further improve the quality and performance of the AG series, Orion has introduced a completely new model of its focusers, the ACU-3L. It has a long focuser tube with a diameter of 3" (76.2 mm) and is threaded for both Orion's highly acclaimed 3" Wynne corrector and other accessories. These are not simply inserted, but screwed in place using a fine thread. Basic focusing is achieved using silky-smooth main focus knobs, after which, if perfect focusing is required, the fine adjustment knob takes over with a very smooth movement at a 10:1 reduction ratio. The extension tube slides with slow, very smooth and precise movement.
  • Wynne corrector: The design of the AG corrector was finalised after months of calculations and field tests with different cameras and telescopes. It is not only used in the AG models, but also works incredibly well with telescopes from other manufacturers with different mirror sizes and aperture ratios. The corrector, which reduces the image to 0.95 times its size, consists of four elements made of special glass, arranged in two individual lenses and a cemented doublet. This focuses the light from the telescope onto a flat image plane with a diameter of 60 mm, without any colour aberrations. The design is based on the use of several rare earth glasses and the computer-assisted selection of the curvature radii of the lenses. Thanks to the complex construction, even world-renowned astrophotographers can no longer find any errors in the images.
  • Adapting your camera to the M85 thread: The Wynne corrector has an M85x1 external thread on the camera side, and a 2" adaptor is included in the scope.
  • Tube clamps: To ensure maximum safety and accuracy, Orion Optics UK manufactures tube clamps from solid aluminium pieces on its own CNC milling machines. These are then black anodised to protect the surfaces, which are lined with felt to ensure a gentle but firm hold on the polished tubes. The large knurled knob on each tube clamp adjusts the pressure to achieve a precisely defined friction on the outside of the tube.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Our expert comment:

Note: All telescopes from Orion Optics UK are handmade in England and are therefore unique items that are not mass-produced. As a result, they may have individual external differences or minor cosmetic marks, which in no way affect the optical imaging quality of the telescopes! Rather, such marks are the result of individual production and subsequent optical testing in the Orion Optics UK workshop.

(Jan Ströher)

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
250
Focal length (mm)
950
Aperture ratio (f/)
3,8
Resolving capacity
0,55
Limit value (mag)
13,8
Light gathering capacity
1280
Max. useful magnification
500
Tube weight (kg)
12
Tube material
Carbon
Tube length (mm)
810
tube diameter (mm)
300
Coating
Hilux
Tube construction
Full tube

Reflector


Secondary mirror diameter (mm)
100
secondary mirror design
Plan
Main mirror´s construction
parabolic
Ventilation for central mirror
yes
Adjustable
yes
Primary mirror - Material
Suprax
aluminising
Aluminium

Focuser


Connection ( to eyepiece)
2
Type of build
Crayford
Gear reduction
1:10 fine focusing
Backfocus (mm)
79
Free aperture (mm)
76
Connecting threaded socket (camera-side)
M85
Adjustment range (mm)
160

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Tube clamps
yes
Corrector
3" Wynne corrector
Prism rail
without
Finder scope
without

General


Series
Astrograph

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes (very good)
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: OOUK Ltd, Brymbo Road Lymedale Ind Est, ST5 9HX Newcastle under Lyme, http://www.orionoptics.co.uk/
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Workshop service (1)

Astroshop Collimation/adjustment Newtonian 8"-12"

$ 86.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (32)
Dew Shield

Orion Optics UK Dew Shield AG10/ODK10 Carbon

$ 560.00*
Astronomy > Eyepieces (5)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (8)
Filters

Omegon Filters 1.25'' deep sky filter

$ 89.00*
Astronomy > Mounts & accessories (3)
Mount

Skywatcher Mount EQ6-R Pro SynScan GoTo

$ 2,290.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Orion Optics UK Telescope N 250/950 AG10 Carbon Astrograph OTA
IC434, Chris Venter (Australia)
Orion Optics UK Telescope N 250/950 AG10 Carbon Astrograph OTA

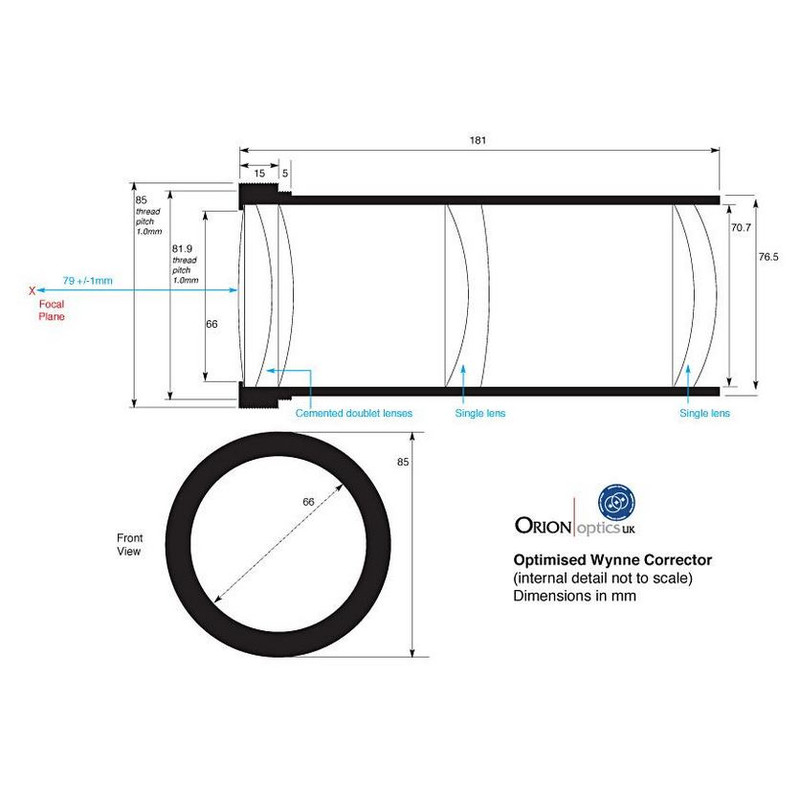

3" Wynne corrector
Orion Optics UK Telescope N 250/950 AG10 Carbon Astrograph OTA

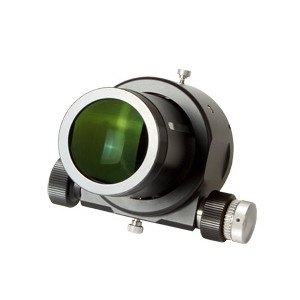

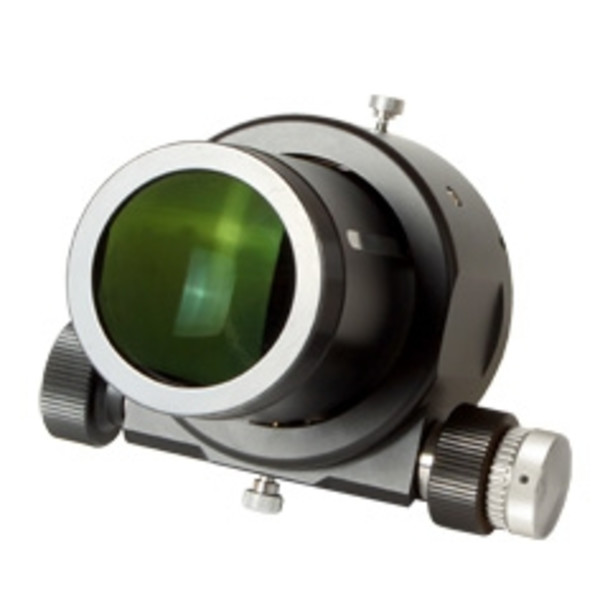

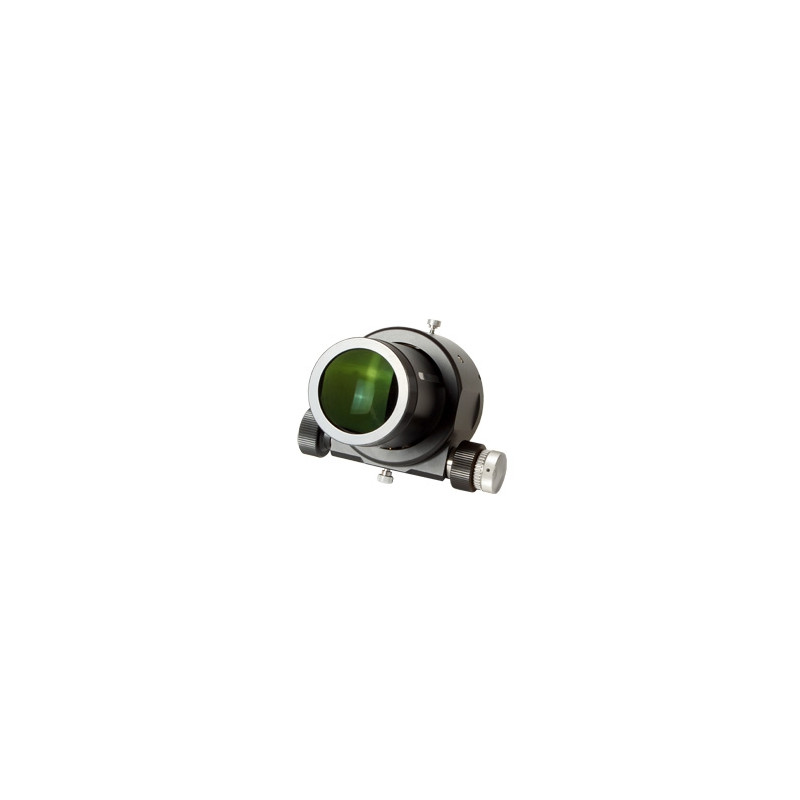

Focuser
Orion Optics UK Telescope N 250/950 AG10 Carbon Astrograph OTA

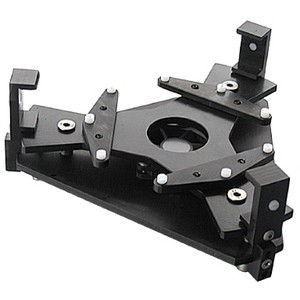

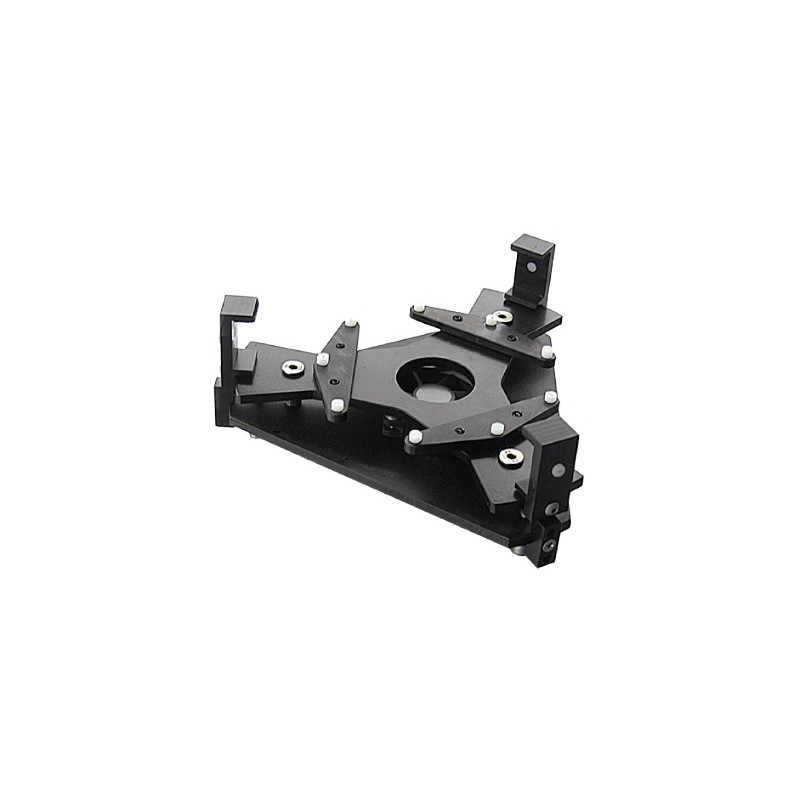

Mirror Cell
