Astronomy > Telescopes > Sharpstar > Sharpstar Apochromatic refractor AP 100/550 Z4 OTA
Product no.: 82798

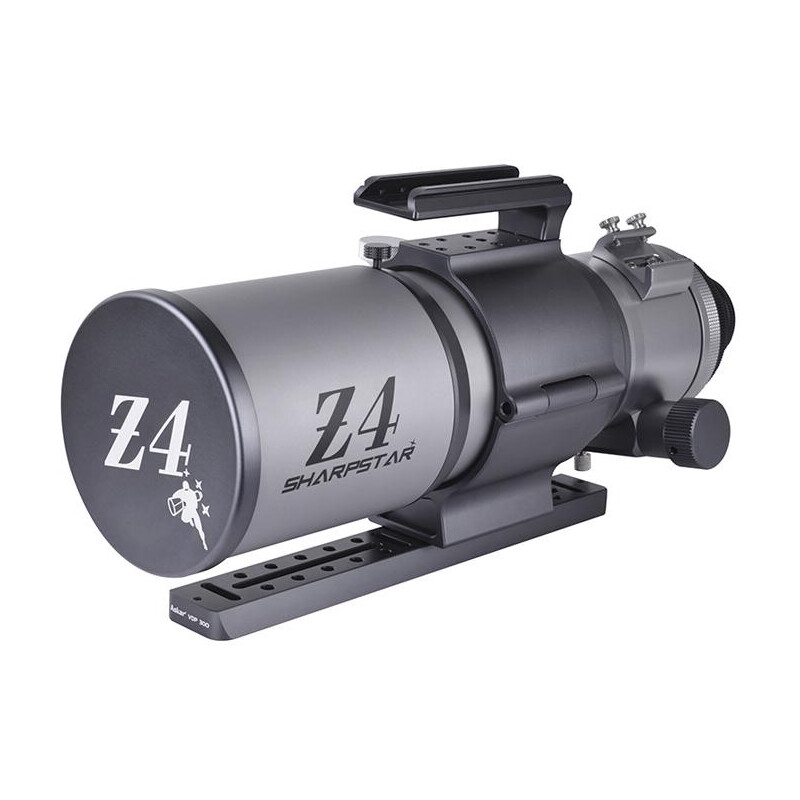

Apochromatic refractor AP 100/550 Z4 OTA

RRP: $ 3,370.00 Our price:
$ 3,020.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Apochromat with integrated flattener
  • Can be used for photography up to APS-C format
  • Rotatable focuser with 1:10 reduction
  • Numerous connection options
  • Tube clamps, prism rail, case and carrying handle included

Product description

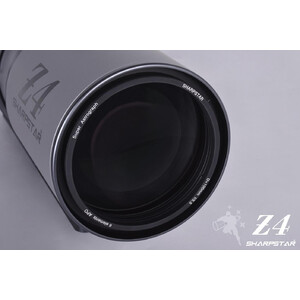

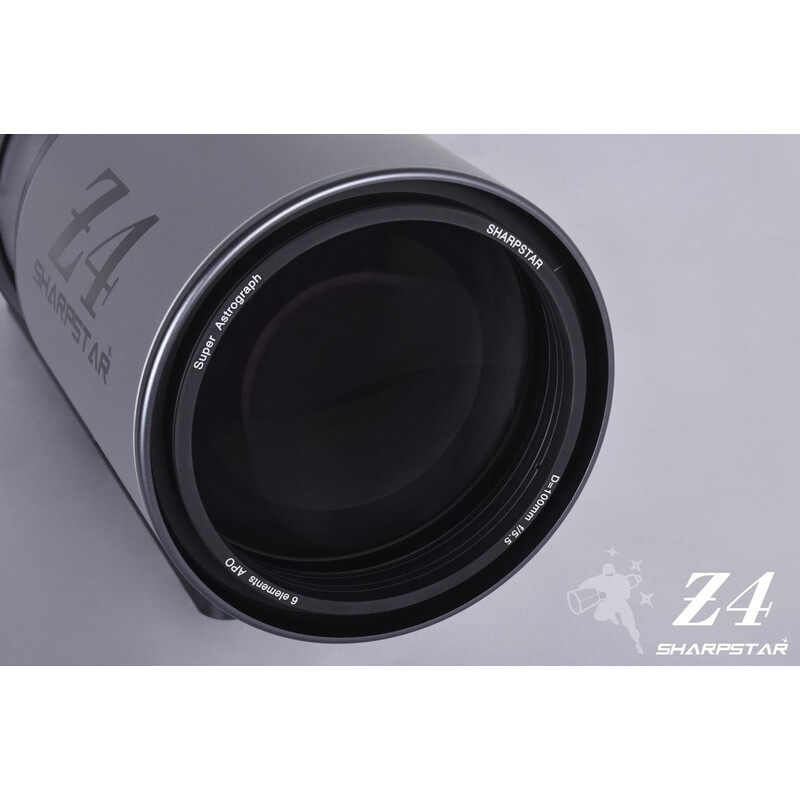

The Z4 is a sextuplet astrograph with three lenses as objectives and three lenses in the integrated image field flattener (flattener) at the rear, each of which is made of special ED glass.

The Z4 Apo therefore flattens the image field itself, so that no calculation of the flange focal distance is necessary. You can simply bring the object into focus and the optical system is perfectly adjusted for imaging. It is ideal for capturing breathtaking deep sky wide-angle images over an image circle of 36 mm (APS-C).

This fast apochromatic telescope offers excellent value for money! This is especially true in combination with astronomical cameras with smaller 1" and 4/3" sensors. The Z4 is not recommended for full-frame cameras.

The entire tube has a length of only 482 mm with the dew shield retracted. It weighs 4.3 kg. This Astrograph has a flange focal distance of 55 mm, so that conventional M48 rings work well when using DSLR cameras and you can use astronomical cameras with accessories.

The Z4 has a large 3.4" focuser with a 1:10 fine adjustment knob and a 360° rotator for easy focusing and angle adjustment. It has M86, M68, M54 and M48 adaptors, with the M48 adaptor having an internal thread into which 2" filters can be inserted.

The 300 mm long prism rail, in accordance with the Vixen standard, makes it easy to balance on the equatorial mount.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
100
Focal length (mm)
550
Aperture ratio (f/)
5,5
Resolving capacity
1,38
Limit value (mag)
11,8
Light gathering capacity
200
Max. useful magnification
200
lens design
Triplet
Tube weight (kg)
4,3
Carrying length (mm)
482
field (mm)
36

Focuser


Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M86, M68, M54, M48
Backfocus (mm)
55
Free aperture (mm)
86
Motorized
no
Gear reduction
1:10 fine focusing
Rotating
yes
Filter thread
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Finder scope
without
Dew Shield
yes
Deviating optics
no
Corrector
integrated
Prism rail
Vixen-Style
Carrying handle
yes
Transport cases
yes
finder base
Vixen/Skywatcher Level
Tube clamps
yes

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (43)

ZWO Electronic Automatic Focuser EAF Standard (5V)

$ 278.00*
Astronomy > Eyepieces (21)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (14)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Sharpstar Apochromatic refractor AP 100/550 Z4 OTA

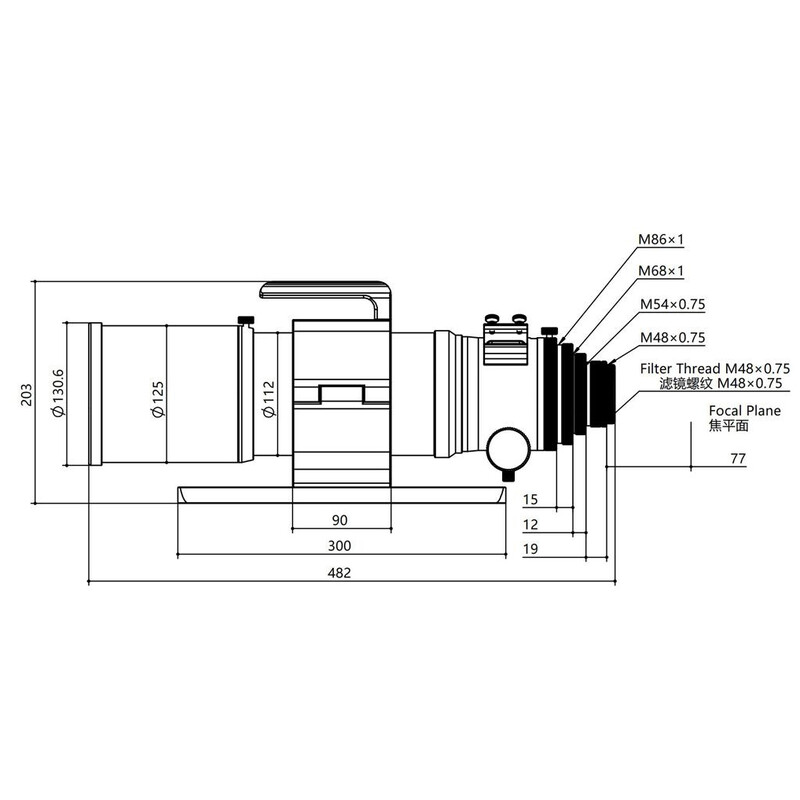

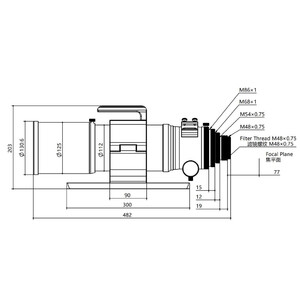

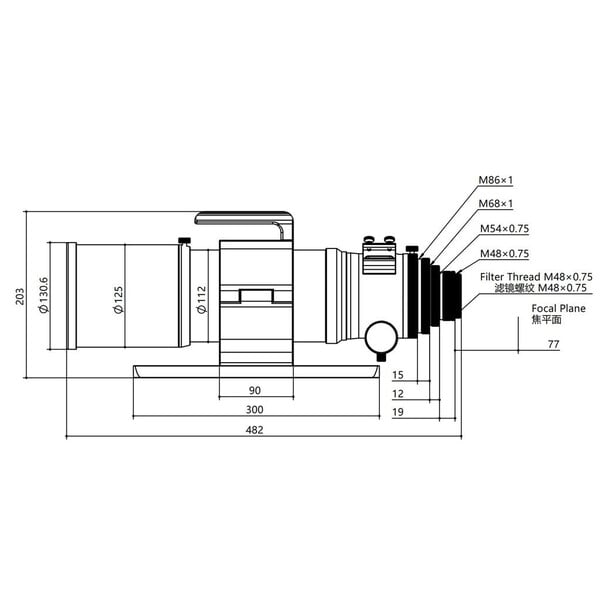

Dimensions
Sharpstar Apochromatic refractor AP 100/550 Z4 OTA

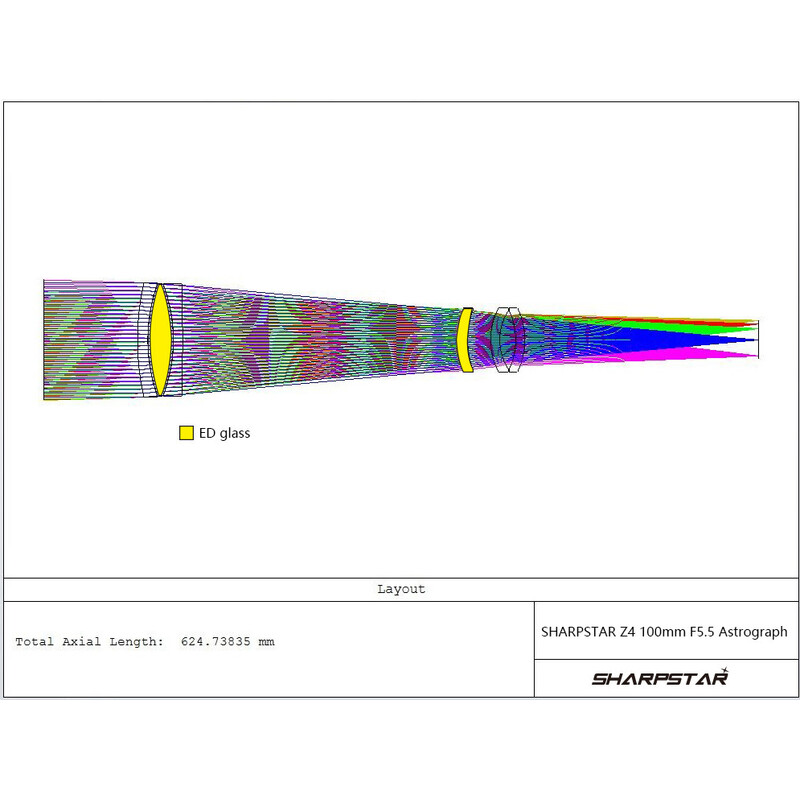

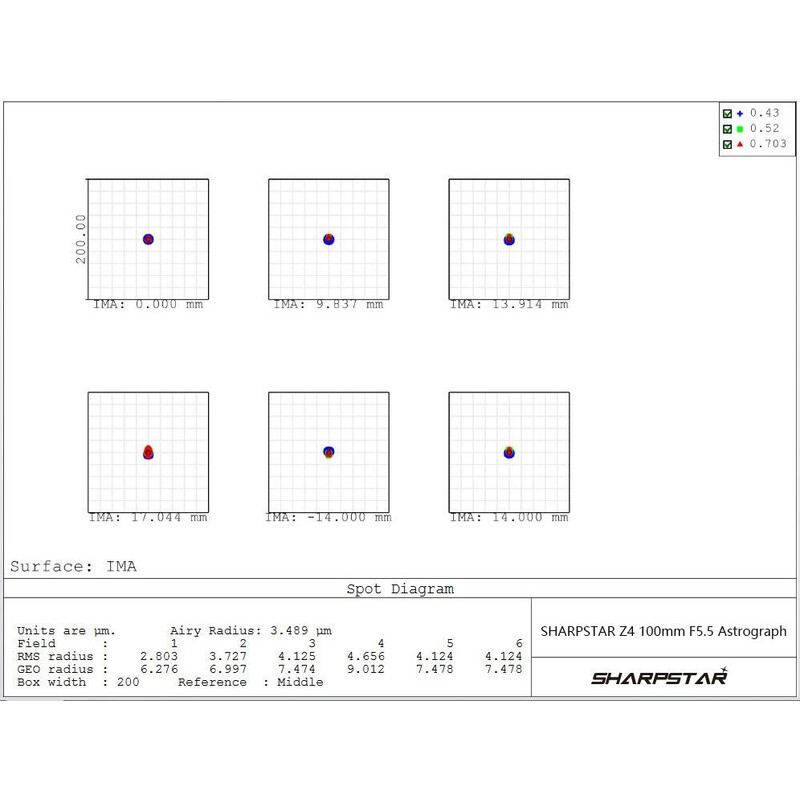

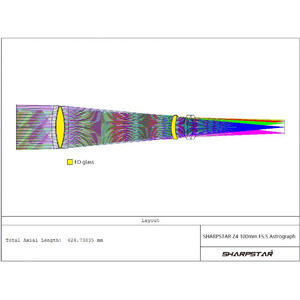

Optical system
