Astronomy > Telescopes > Tecnosky > Tecnosky Apochromatic refractor AP 70/350 Quadruplet V2 OTA
Product no.: 71075

Apochromatic refractor AP 70/350 Quadruplet V2 OTA

$ 1,430.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

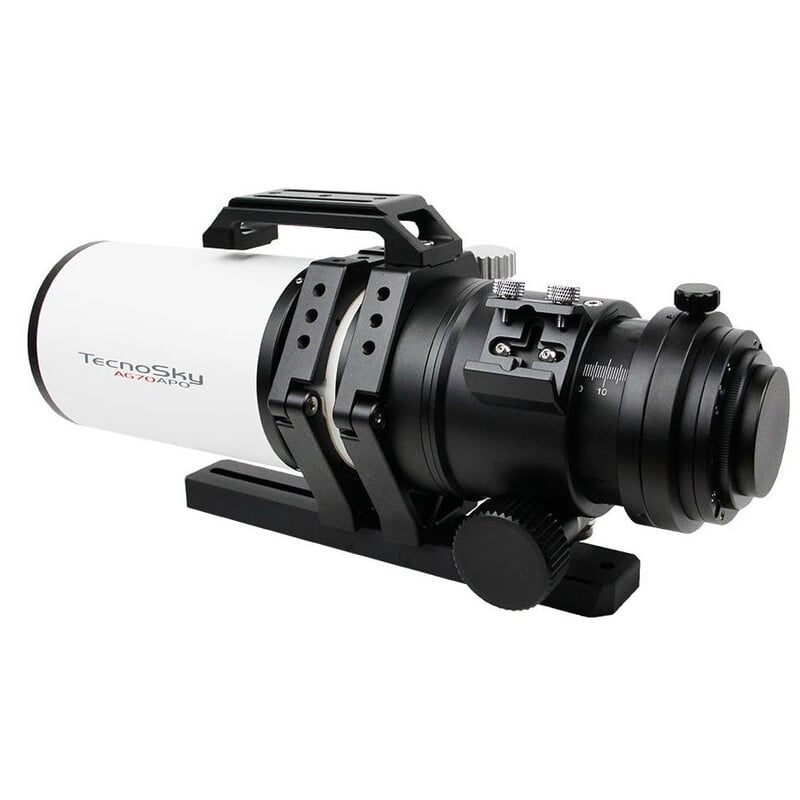

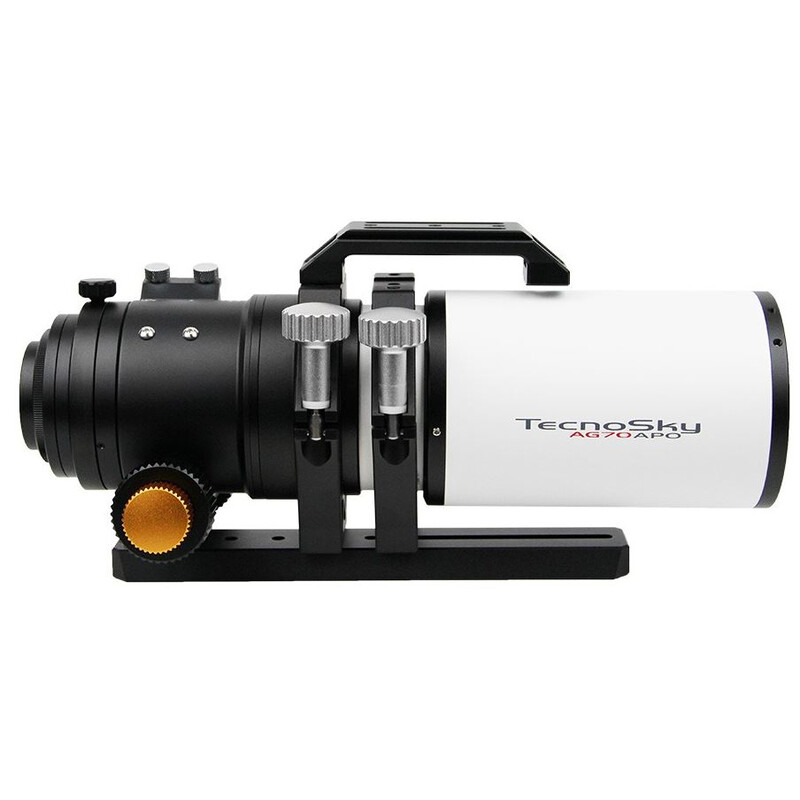

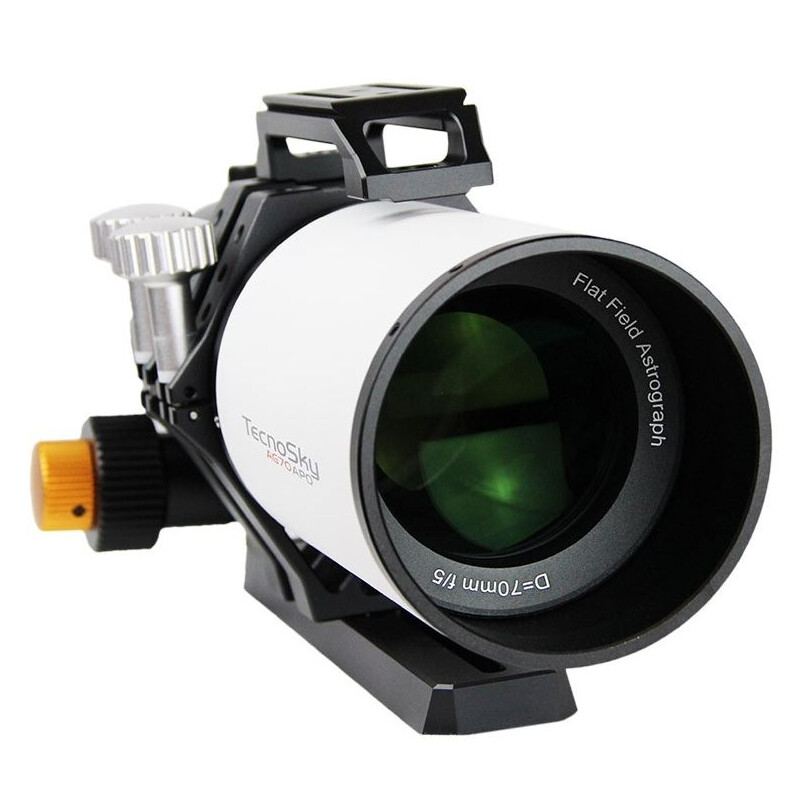

Tecnosky Quadruplet Apo AG70 V2 - an extremely handy astrograph!

Nowadays, full-frame digital SLR cameras (DSLRs) are quite affordable, and new, fast and highly corrected apochromats like this one are appearing on the market to match them, as they can fully cover the full-frame capabilities of a DSLR camera. The AG70 Astrograph from Tecnosky offers a nearly perfectly corrected and fully illuminated field thanks to its quadruplet design and an aperture ratio of f/5. The optical design by Petzval with Lanthanum glass and FPL-53 elements guarantees an illuminated field of more than 45 mm with very fine stars and no chromatic aberration even at the edge!

All optical elements are FMC-treated ("fully multi-coated") and the interior of the tube has a series of baffles to eliminate unwanted reflections. Although it is a very small and compact tube, it is equipped with a new 2.5" magnesium alloy rack and pinion focuser that holds accessories up to 3 kg without tilting!

The 2.5" focuser is fully rotatable and has an M48 x 0.75 thread for connecting a DSLR camera.

In addition, 2" filters can be screwed into the rotator.

This Apo is a small, handy all-rounder with outstanding optical and mechanical properties!

Technical features:

  • Petzval quadruplet lens design 70/350 mm
  • FMC anti-reflective coating
  • Lanthanum and FPL53 elements
  • Weight 3940 grams with clamps, prism rail and handle
  • Robust 2.5" focuser with 1:10 reduction
  • Offset field rotator with M48x0.75 connection
  • Corrected field larger than 45 mm
  • Maximum back focus from M48 thread to sensor = 66 mm

Scope of delivery:

AG 70/350 OTA

Vixen-style prism rail

tube clamps

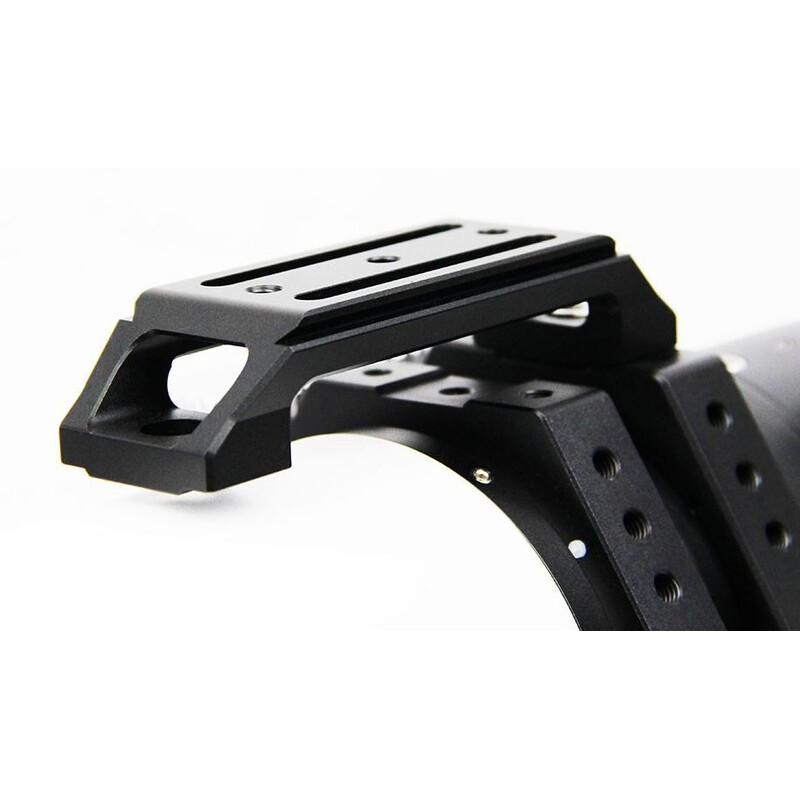

Carrying handle

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
70
Focal length (mm)
350
Aperture ratio (f/)
5
Resolving capacity
1,97
Limit value (mag)
12,3
Light gathering capacity
100
Max. useful magnification
140
Tube material
Aluminium
Tube weight (kg)
3,9
tube diameter (mm)
77
Stray light baffles in the OTA
yes
Tube construction
Full tube
lens design
Quadruplet
Coating
FMC

Focuser


Type of build
Gear rack
Gear reduction
1:10 fine focusing
Rotating
yes
Connecting threaded socket (camera-side)
M48x0,75
Backfocus (mm)
66
Ring clamp
yes
Load capacity (kg)
3

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Eyepiece adaptor
1,25" & 2"
Prism rail
Vixen-Style
Tube clamps
yes
Dew Shield
yes
Transport cases
no
Deviating optics
no
Finder scope
without
Carrying handle
yes
finder base
Vixen/Skywatcher Level

Area of application


Astrophotography
yes (very good)

Recommended for


Beginners
not recommended
Advanced
yes
Observatories
no

Product safety

Manufacturer: TecnoSky, Via Fubine 79, 15023 Felizzano, IT, www.tecnosky.it
Responsible person: TecnoSky, Via Fubine 79, 15023 Felizzano, IT, [email protected]
