Astronomy > Telescopes > TS Optics > Imaging Star > TS Optics Apochromatic refractor AP 100/580 Quadruplet Apo Imaging Star OTA
Product no.: 50205

Apochromatic refractor AP 100/580 Quadruplet Apo Imaging Star OTA

RRP: $ 3,190.00 Our price:
$ 2,630.00 incl. VAT plus shipping costs
too expensive?
short-term
Product can be shipped as of 25.06.2025 + lead time

Product description

An apochromat with integrated corrector for astrophotography – extreme image quality in the field and, of course, on the axis.

The 100 mm f/5.8 quadruplet was developed for the demanding astrophotographer and observer. The image is free of colour errors and offers excellent contrast. The built-in corrector ensures that the field is perfectly flattened. You will have perfect star images in the field right from the start, without the tedious search for correctors and the right distance.

Important features:

  • Integrated flattener ensures a corrected image field of 49 mm: Fully illuminated even for full-frame cameras
  • New 4" CNC rack and pinion focuser, also very well suited for heavy cameras up to 8 kg!
  • The objective and corrector are adjustable. Each telescope is tested and adjusted by the manufacturer.
  • Generous working distance: The telescope can also be used for visual observation with an optional diagonal mirror.
  • Back focus: 125 mm from 2" barrel, 145 mm from M82x1 thread

The apochromat features a classic triplet apochromatic lens with air gap and a single-lens corrector (flattener). The objective is mounted in an adjustable position. The mount is temperature-compensated, so even low temperatures do not affect the star image. The main glass is FPL53 from Ohara, Japan. Each glass-air surface has the best possible coating available from the manufacturer.

The 4" CNC focuser is significantly superior to conventional Crayford focusers. Power is transmitted by a helical drive rod and is decoupled from the actual bearing of the focuser tube. This achieves greater rigidity even under maximum load.

Although the Apo has been optimised for astrophotography, it also offers very good visual performance. The stars are crisp and sharp and are reproduced without colour aberrations. The image remains sharp and high-contrast up to approximately 300x magnification.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
100
Focal length (mm)
580
Aperture ratio (f/)
5,8
Resolving capacity
1,15
Limit value (mag)
11,8
Light gathering capacity
200
Max. useful magnification
200
Tube weight (kg)
5,3
Tube length (mm)
590
Carrying length (mm)
490
Tube material
Aluminium
Tube construction
Full tube
lens design
Triplet
Fully Corrected Field (mm)
49

Focuser


Type of build
Gear rack
Load capacity (kg)
8
Gear reduction
1:10 fine focusing
Adjustment range (mm)
46
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M82
Free aperture (mm)
102

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Corrector
integrated
Transport cases
yes
Tube clamps
yes
Dew Shield
yes
Eyepiece adaptor
2" / 1.25"
Deviating optics
no
Finder scope
no
Prism rail
Vixen-Style
finder base
Vixen/Skywatcher Level

General


Series
Imaging Star
Total weight (kg)
8,8

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (36)

TS Optics Adaptors for USB_Focus Motorset

$ 136.00*
Astronomy > Eyepieces (21)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (14)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

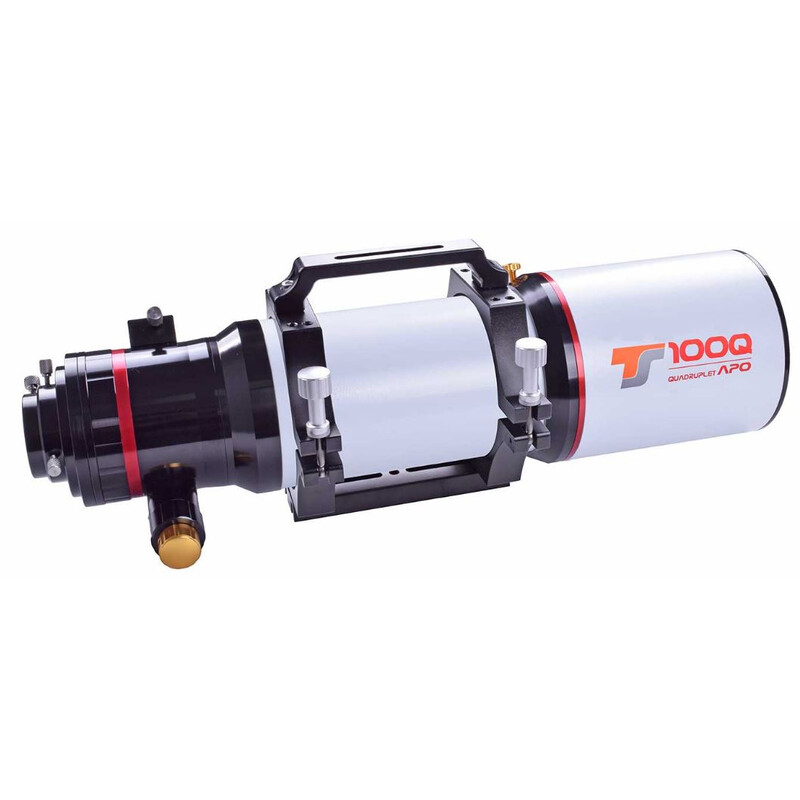

TS Optics Apochromatic refractor AP 100/580 Quadruplet Apo Imaging Star OTA

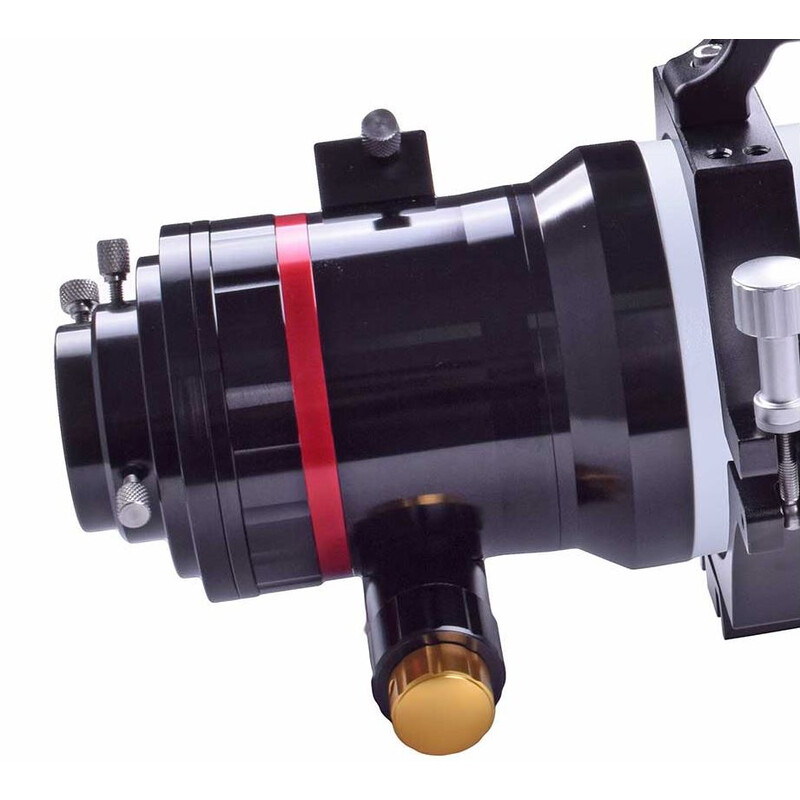

Drawtube

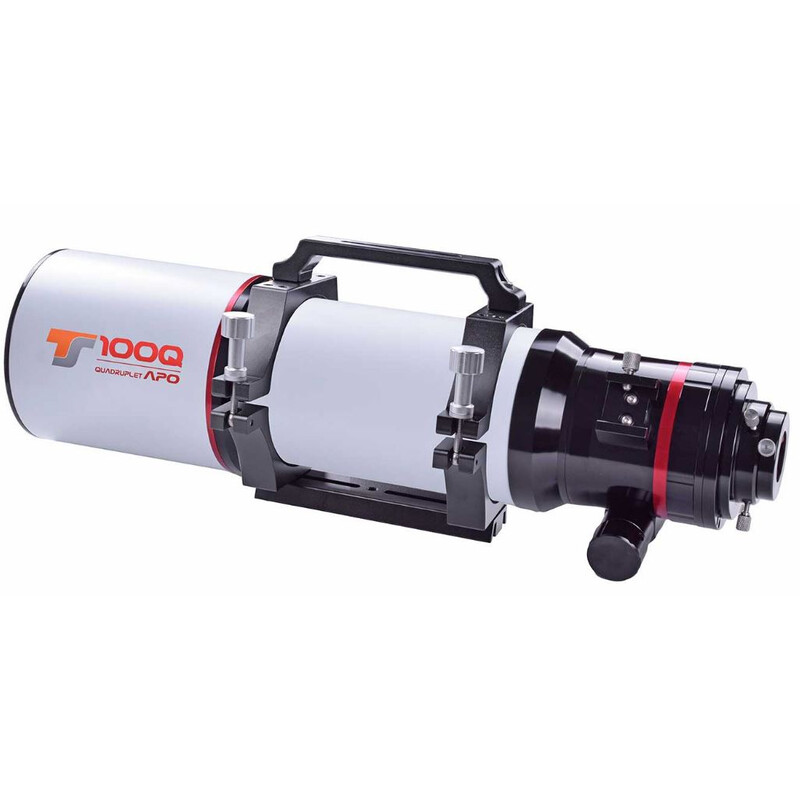

TS Optics Apochromatic refractor AP 100/580 Quadruplet Apo Imaging Star OTA

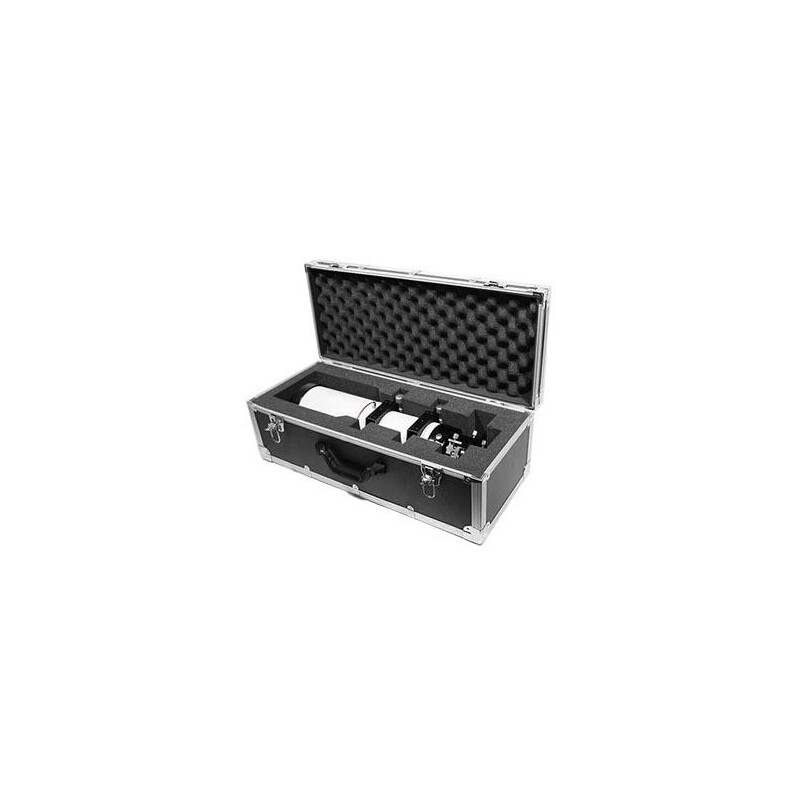

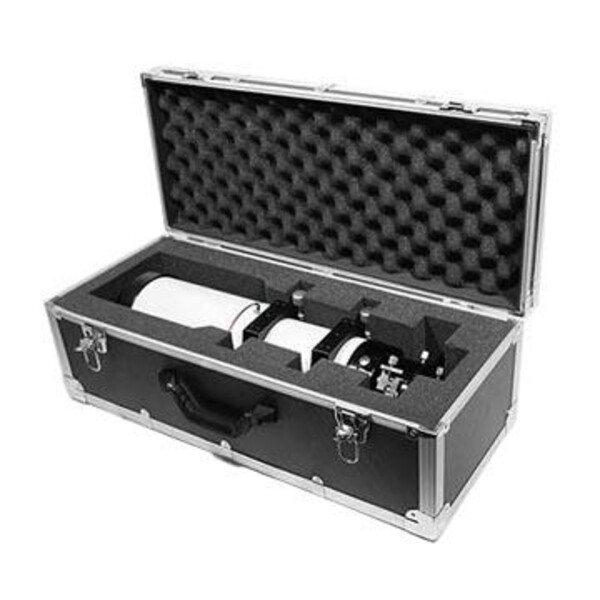

Transport cases
