Astronomy > Telescopes > TS Optics > Photoline > TS Optics Apochromatic refractor AP 106/700 FDC100 OTA
Product no.: 75154

Apochromatic refractor AP 106/700 FDC100 OTA

$ 2,510.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

The AP 106/700 is an apochromat with a colourless triple objective with glass from Hoya (Japan).

The apo shows you lunar craters or planets without colour aberration with a contrast that only a refractor can achieve. But bright stars are also imaged without any disturbing colour fringing. The reason for this is the high-quality triplet lens with the special FCD100 glass from Hoya in Japan. This glass has the same correction as the well-known FPL53.

The air gap triplet objective is mounted in a stable, temperature-compensated mount. The entire mount can be adjusted with tension and compression screws. Collimation is therefore not carried out by lateral pressure on the lenses and is therefore much more accurate and better for imaging.

In combination with the TS Optics Flattener 0.75 M63, the apo is ideal for astrophotography.

FCD100 is an optical glass with extremely low dispersion, equivalent to fluorite (CaF2). This glass, in combination with optical glasses with a high refractive index, achieves excellent correction of chromatic aberration (colour fringing). The difference in dispersion performance compared to the well-known FPL53 glass is less relevant than the difference in how well the optics are polished. FCD100 is Hoya's designation for this special glass, just as FPL53 is Ohara's registered name.

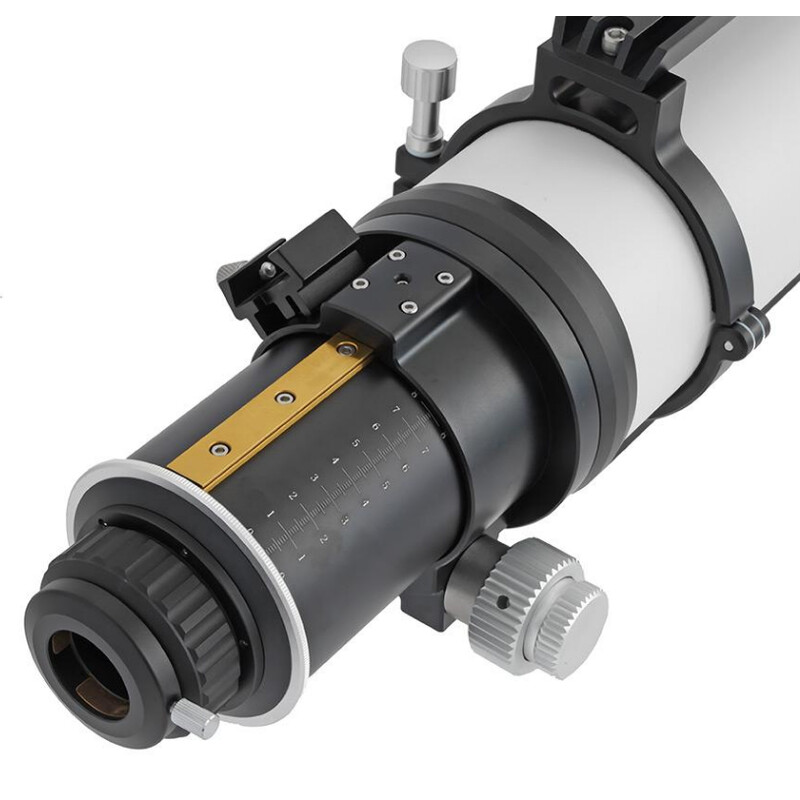

3.5" hybrid focuser: The focuser is equipped with a special bearing so that you can attach heavy accessories to it. It is not just ball bearings pressing against the focuser tube, which give way under higher loads. A rail is attached to the focuser tube, which is perfectly supported by adjustable ball bearings. This means that even with heavy accessories weighing up to 10 kg, there is no noticeable tilting.

The adjustment itself is decoupled and is achieved via a helical gear. This guarantees fine and smooth adjustment even with heavy accessories. The 1:10 micro reduction gear enables even more precise focusing. The focus position is fixed by locking the adjustment wheel. No screw presses on the focuser tube.

In addition to the 2" and 1.25" barrel extensions for visual observation, the focuser also offers an M63x1 internal thread and an M78x1 internal thread for screw-in adapters.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
106
Focal length (mm)
700
Aperture ratio (f/)
6,6
Resolving capacity
1,3
Limit value (mag)
11,9
Light gathering capacity
230
Max. useful magnification
212
lens design
Triplet
Tube weight (kg)
6,3
tube diameter (mm)
115
Tube length (mm)
640
Carrying length (mm)
550
Tube material
Aluminium
Coating
FMC
Tube construction
Full tube
dew cap diameter (mm)
145

Focuser


Type of build
Hybrid
Connecting thread (telescope side)
M110
Connecting threaded socket (camera-side)
M63
Connection ( to eyepiece)
2
Backfocus (mm)
192
Free aperture (mm)
89
Motorized
no
Ring clamp
yes
Load capacity (kg)
10
Gear reduction
1:10 fine focusing
Adjustment range (mm)
80
Tilting Adaptor
no
Rotating
no

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Corrector
without
Carrying handle
yes
Transport cases
no
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes

General


Series
Photoline

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de
