Astronomy > Telescopes > TS Optics > Imaging Star > TS Optics Apochromatic refractor AP 70/350 Imaging Star OTA
Product no.: 51024

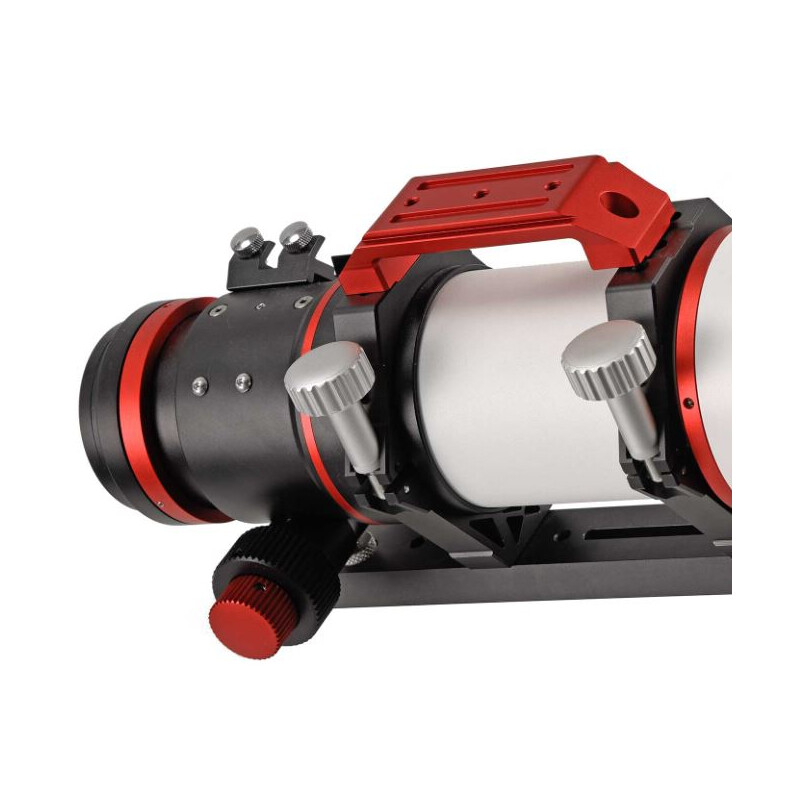

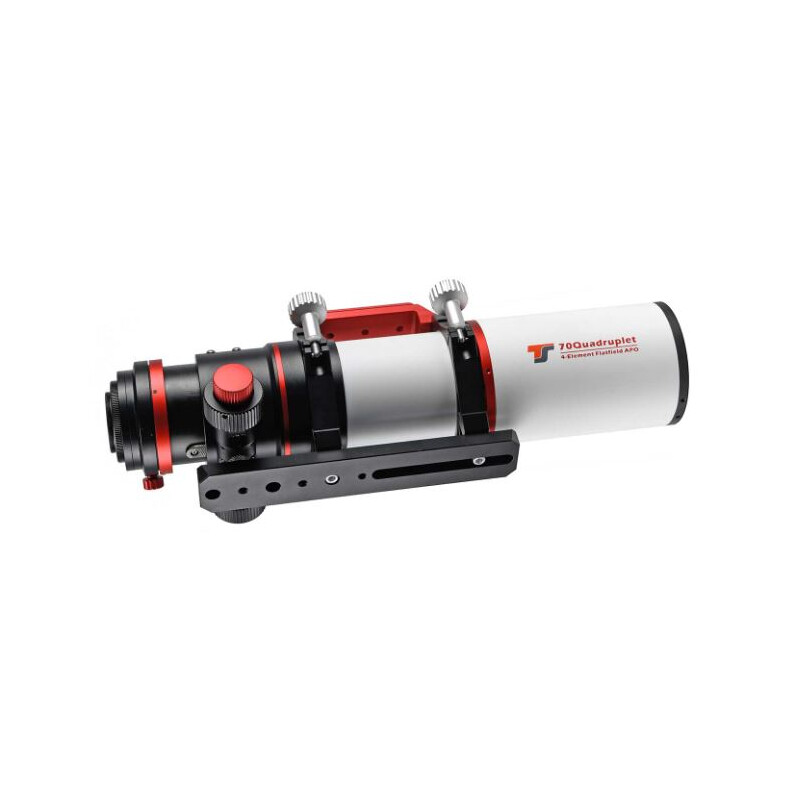

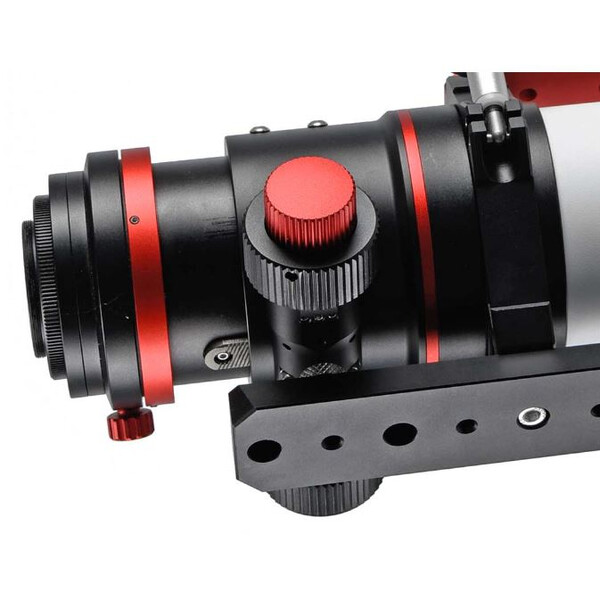

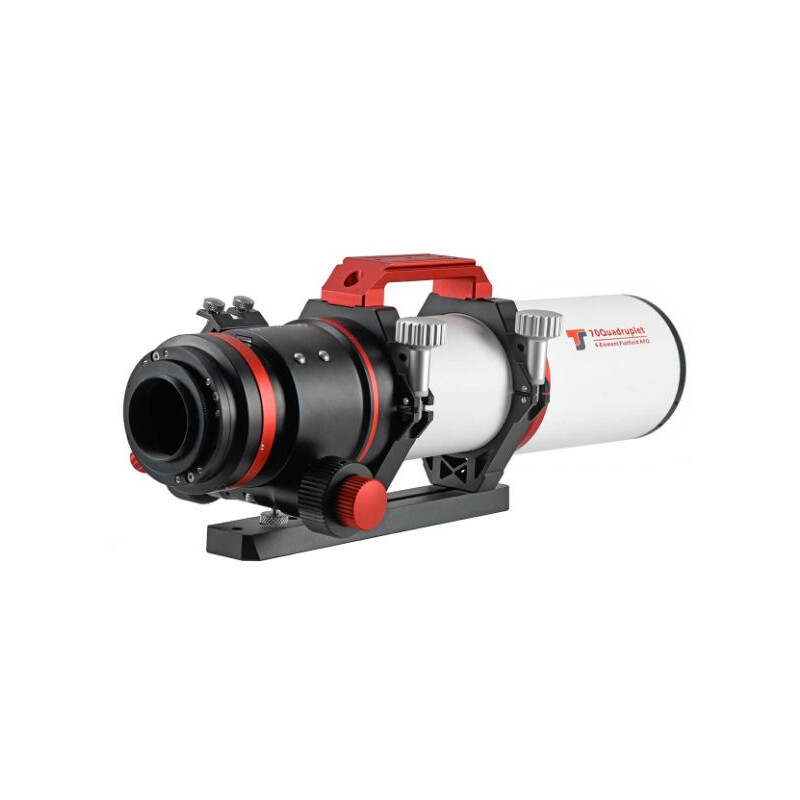

Apochromatic refractor AP 70/350 Imaging Star OTA

RRP: $ 1,600.00 Our price:
$ 1,540.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Apochromat for astrophotography
  • FPL53 triplet lens for colour-accurate imaging
  • The corrector element is permanently installed in the tube
  • Fully illuminated and corrected image circle with a diameter of 45 mm
  • 360° rotation for the right image section
Product questions?
advice for Astronomy

Product description

This apochromat with a 70 mm aperture and 350 mm focal length was specially developed for astrophotography. It offers a fully illuminated and corrected field with a diameter of 45 mm, making it suitable for cameras with full-frame sensors. The FPL53 triplet lens corrects chromatic aberration. The image is free of chromatic aberration on the axis and in the field.

On the camera side , the Apo has an M48x0.75 external thread, and with a bayonet adaptor suitable for your camera, you can screw a DSLR directly onto it. From the T2 thread, you have between 40 mm and 70 mm distance to the focal plane, depending on the position of the extension tube. This gives you enough space for all common astro cameras, SLR and system cameras.
If you unscrew the M48 adaptor, you will find an M54x0.75 internal thread. This gives you an additional 6.5 mm of optical travel. A 2" filter thread is integrated into this adaptor.

Scope of delivery:

  • Imaging Star 70 mm Apo
  • CNC tube clamps
  • Vixen level prism rail with photo tripod connection

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics

Type
Refractor
Type of build
Apochromat
Aperture (mm)
70
Focal length (mm)
350
Aperture ratio (f/)
5
Resolving capacity
1,97
Limit value (mag)
11,1
Light gathering capacity
100
Max. useful magnification
140
Carrying length (mm)
325
dew cap diameter (mm)
103
Tube material
Aluminium
Coating
multiple
Tube weight (kg)
3
Tube construction
Full tube
lens design
Triplet

Focuser

Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48 & M54
Backfocus (mm)
70 & 76
Type of build
Gear rack
Free aperture (mm)
76
Load capacity (kg)
6
Gear reduction
1:10 fine focusing
Rotating
yes
Adjustment range (mm)
30

Mount

Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories

Thread for camera tripod
yes
Prism rail
Vixen-Style
Tube clamps
yes
Transport cases
no
Dew Shield
yes
Deviating optics
no
Finder scope
no
Corrector
integrated
finder base
Vixen/Skywatcher Level

General

Series
Imaging Star

Area of application

Astrophotography
yes (very good)
Nature Observation
no
Sun
no (Only with appropriate Sun filter)

Recommended for

Beginners
no
Advanced
yes
Observatories
no
show more...

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de
Product safety

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
+ Show more accessories in this category: 2
Outdoor (4)

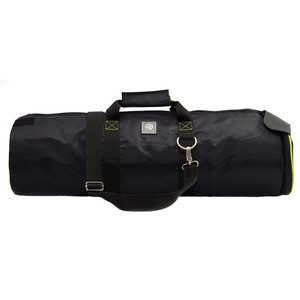

TS Optics Hardcase Protect Case 570mm
