Astronomy > Telescopes > TS Optics > CF-APO > TS Optics Apochromatic refractor AP 80/480 CF-APO f/6 FPL55 Triplet OTA
Product no.: 75080

Apochromatic refractor AP 80/480 CF-APO f/6 FPL55 Triplet OTA

$ 1,370.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

The AP 80/480 optics offer the highest optical and mechanical performance for astrophotography and amateur astronomy. Even at high magnifications, the image is free of annoying colour fringing. Even bright stars are rendered without a distracting blue fringe in astrophotography.

The APO element is made of special FPL55 glass. Another special glass supports colour correction. The triplet lens with air gap is fully adjustable. Each optical glass-air surface is multi-coated. The lens is in a temperature-compensated, adjustable mount.

The Apo is very compact and is well supported by small mounts from the EQ3 class upwards. It is ideal for mobile use. The extra-long prism rail allows even heavy cameras to be used while keeping the telescope in balance.

The 2.5" rack & pinion focuser is optimised for photography and can carry accessories weighing up to 6 kilograms. The reduction gear allows for sensitive focusing. The focuser accepts accessories with 2" and 1.25" barrel extensions, but also allows screw-in adaptation via the M63x1 internal thread. The focuser also offers 360° rotation for selecting the right image section.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
480
Aperture ratio (f/)
6
Resolving capacity
1,73
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
lens design
Triplet
Tube weight (kg)
3,5
Tube material
Metal
Coating
FMC
Stray light baffles in the OTA
yes
Tube construction
Full tube

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M63
Free aperture (mm)
64
Ring clamp
yes
Load capacity (kg)
6
Gear reduction
yes
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Corrector
without
Prism rail
Vixen-Style
Carrying handle
yes
Transport cases
yes
finder base
Vixen/Skywatcher Level
Tube clamps
yes

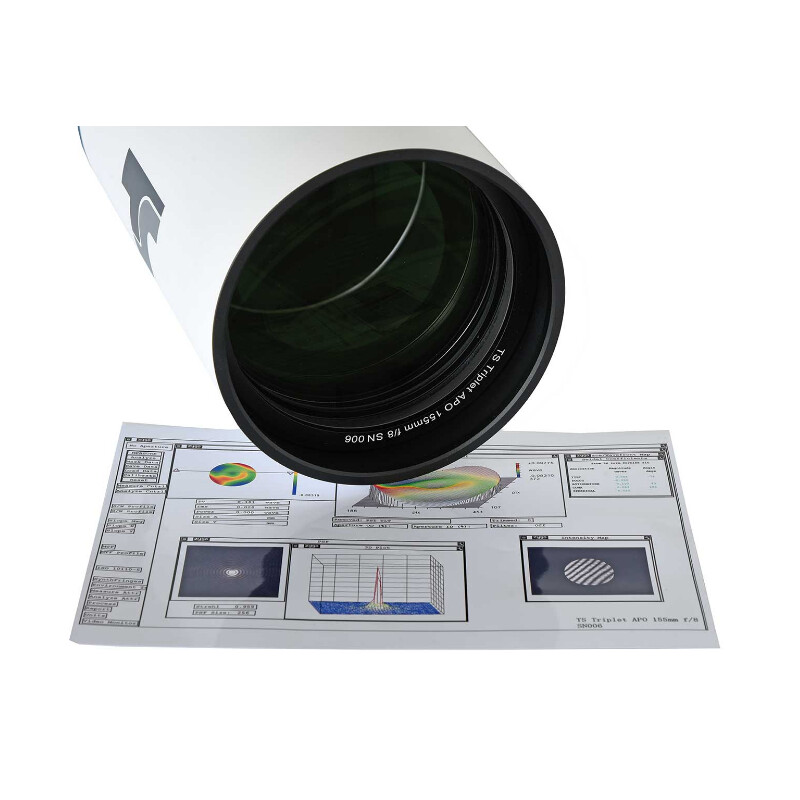

Test protocol
yes

General


Series
CF-APO

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (39)
Focusing Mask

TS Optics Focusing Mask Bahtinov 85-120mm

$ 36.90*
Astronomy > Eyepieces (20)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (14)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

TS Optics Apochromatic refractor AP 80/480 CF-APO f/6 FPL55 Triplet OTA

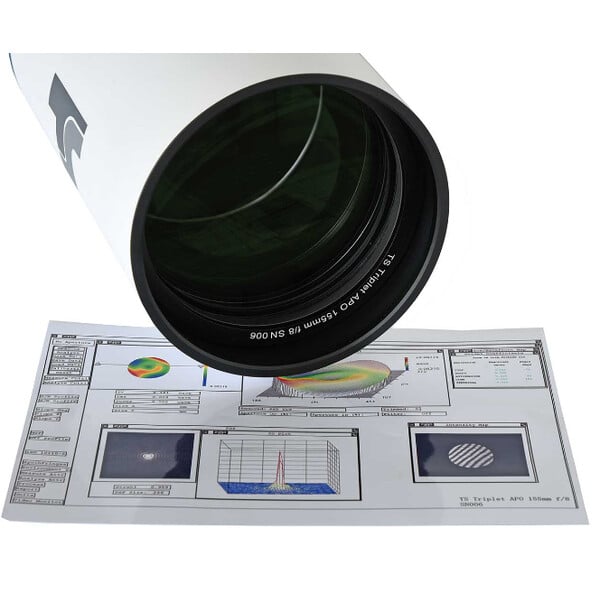

certificate
TS Optics Apochromatic refractor AP 80/480 CF-APO f/6 FPL55 Triplet OTA

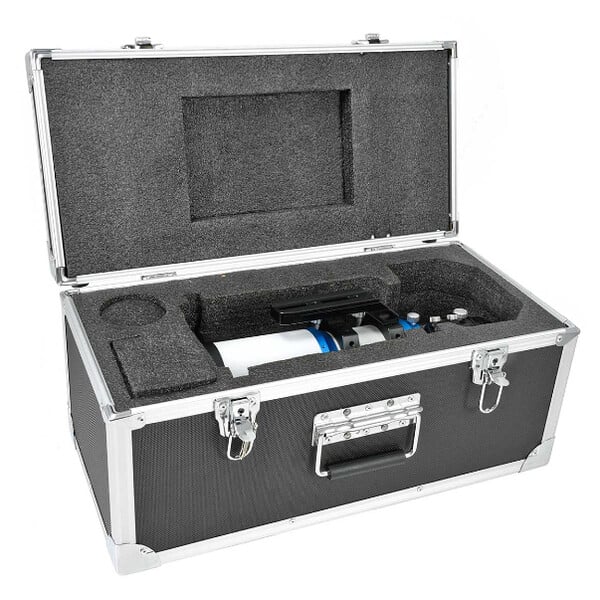

Transport cases

TS Optics Apochromatic refractor AP 80/480 CF-APO f/6 FPL55 Triplet OTA

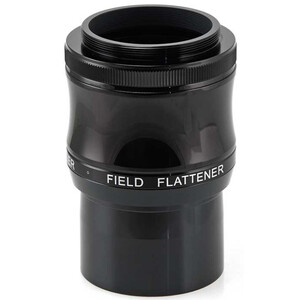

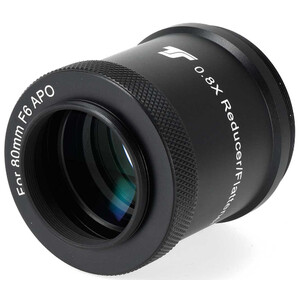

Optional flattener
