Astronomy > Telescopes > TS Optics > Hypergraph > TS Optics Telescope N 150/420 Hypergraph6 OTA
Product no.: 62508

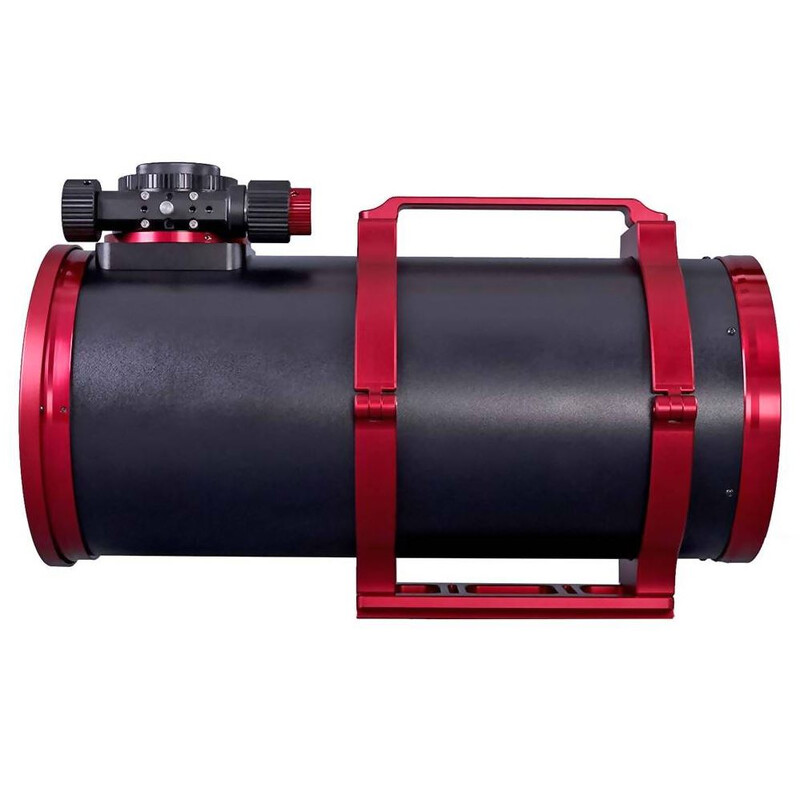

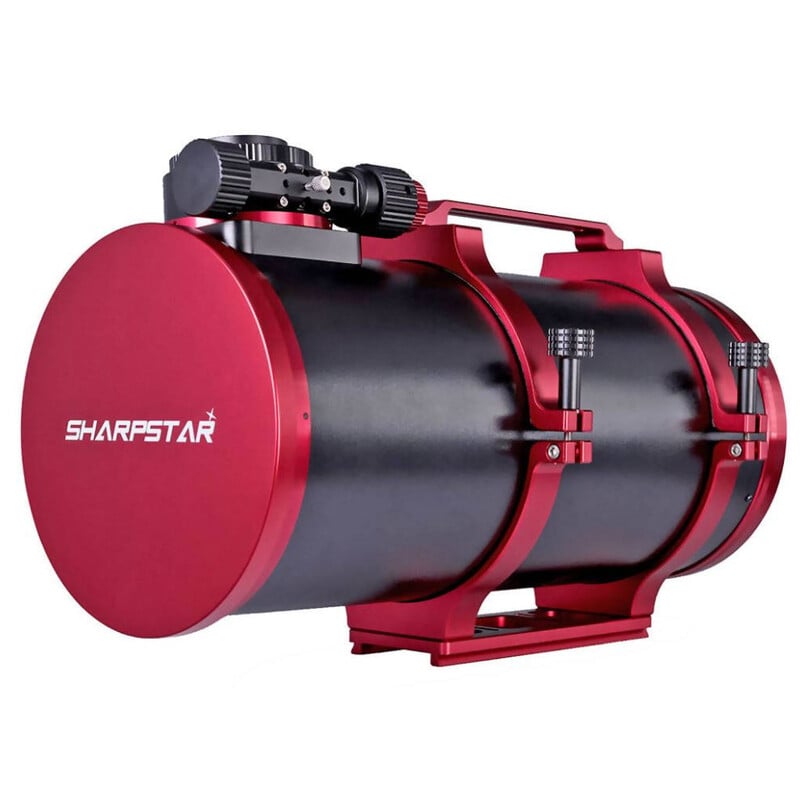

Telescope N 150/420 Hypergraph6 OTA

$ 2,700.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

Hyperbolic Flatfield Astrograph ("Hypergraph") with very fast aperture ratio! Thanks to the carbon tube, it is lightweight and ideal for mobile astrophotography!

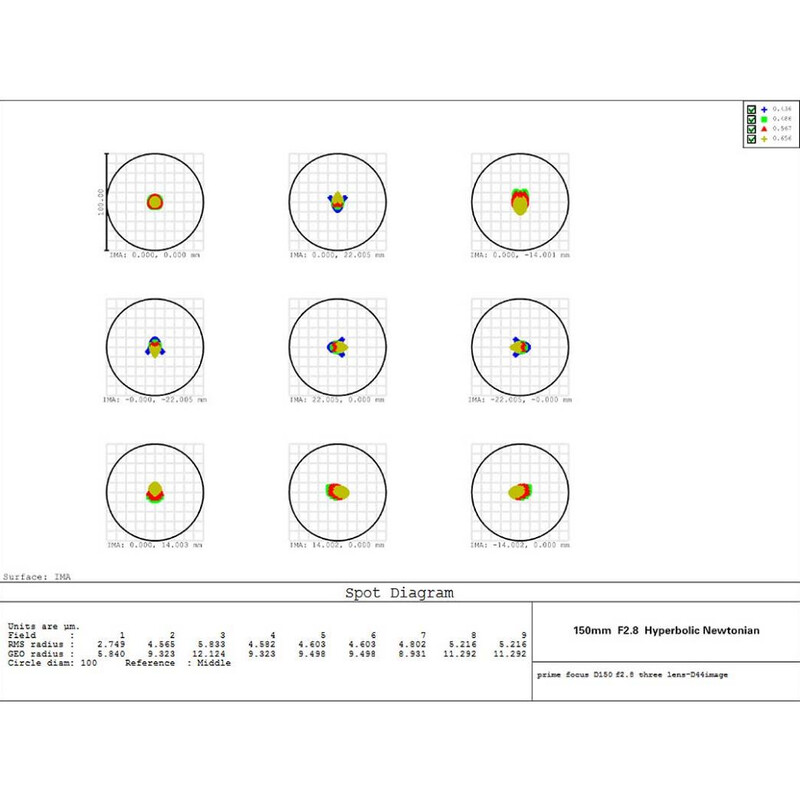

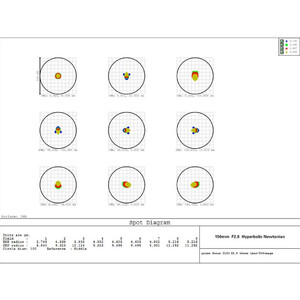

What is a Hypergraph? These astrographs are perfectly tailored to the modern requirements of digital astrophotography. They have a specially adapted corrector in the focuser. This achieves a perfectly corrected image circle with a space-saving design and moderate secondary mirror diameter. The imaging performance is so good that even modern astro cameras with very high resolution can be used.

Further advantages of the Hypergraph:

  • The secondary mirror is built in with the necessary offset, resulting in more uniform illumination of the image field.
  • Despite the extreme aperture ratio, the telescope is easy to collimate and maintains collimation well during transport.
  • Microfocusing is already built in, which is necessary given the extreme aperture ratio.
  • High-quality CNC tube clamps and a Vixen prism rail are included in the scope of delivery.
  • The carrying handle with mounting surface and long hole for additional accessories

The camera is best connected to the screw thread of the focuser:

With such a fast lens, a screw-in camera adapter is necessary. This prevents tilting and blurred stars at the edge.

The R&P focuser has a M48x0.75 external thread. The working distance from this thread is exactly 55 mm. This corresponds, for example, to the distance required by a digital single-lens reflex camera (DSLR) with the T2 ring. Astro cameras, such as those from ZWO, are often supplied with an adaptor to M48, which takes this distance into account. It couldn't be easier!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
150
Focal length (mm)
420
Aperture ratio (f/)
2,8
Resolving capacity
0,92
Limit value (mag)
12,7
Light gathering capacity
460
Max. useful magnification
300
Tube weight (kg)
5
tube diameter (mm)
200
Tube length (mm)
450
Tube material
Aluminium
Tube construction
Full tube
Fully Corrected Field (mm)
45

Reflector


Main mirror´s construction
hyperbolic
secondary mirror design
Plan
Secondary mirror diameter (mm)
70

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
1,25"
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
55 (@M48)
Free aperture (mm)
64
Gear reduction
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Corrector
integrated
Tube clamps
yes
Carrying handle
yes
Transport cases
no
Prism rail
Vixen-Style
finder base
Vixen/Skywatcher Level

General


Series
Hypergraph

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de
