Astronomy > Telescopes > ZWO > ZWO Apochromatic refractor FF130 AP 130/1000 Quadruplet OTA
Product no.: 84769

Apochromatic refractor FF130 AP 130/1000 Quadruplet OTA

$ 4,410.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 11.06.2025!
  • Petzval design
  • Integrated flattener
  • Includes four camera adaptors
  • 60 mm corrected image field

Product description

ZWO offers a 1-year warranty on the FF65 / 80 / 130 apochromats of the FF series.

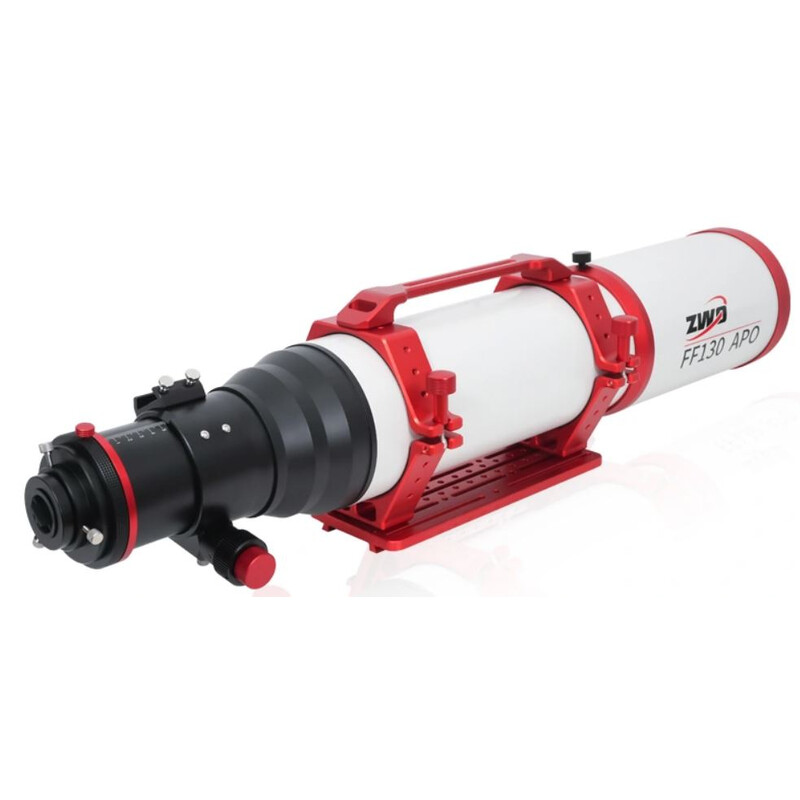

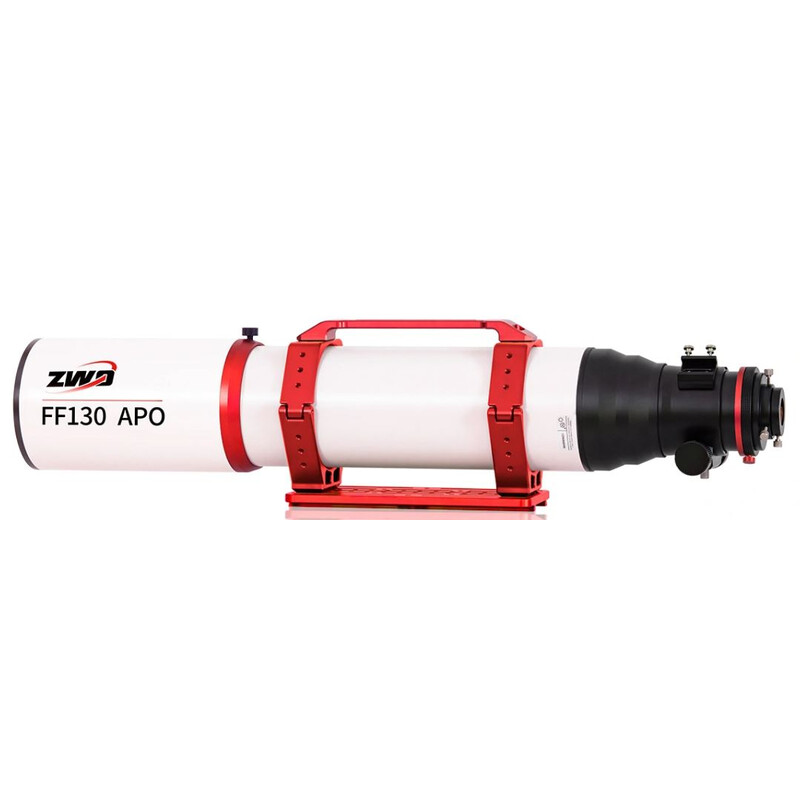

ZWO FF130 Flatfield APO Astrograph

This Flatfield apochromat with a focal length of 1000 mm supports an image circle of 60 mm (full format) and requires no calculations for the back focus. When the image is in focus, the image field is flat.

The largest refractor from ZWO consists of a triplet lens with two ED glasses and a single element. This Petzval-like lens design achieves excellent colour correction and sharpness. With its self-levelling design, the FF130 has great advantages for astronomical photography. It offers more than the full-frame image field and has a fine spot diagram with only tiny distortions of the peripheral stars.
Instead of purchasing an additional flattener, calculating the back focus of the flattener or making a tedious connection to set the correct distance, astrophotographers can simply equip this apochromat with all possible photographic accessories and then the entire optical system is perfectly adjusted for imaging. The image no longer requires any external correction/field flattening by a flattener/corrector!

The FF130 comes with a pull-out dew shield, a high-quality CNC-machined tube and decorative parts. The OTA weighs 10.5 kg – the complete package with tube clamps and Losmandy rail weighs 12.5 kg. The sturdy 3.4" focuser comes with a 360° rotator and a finder shoe. M86, M68, M54 and M48 camera adaptors are also included. The M48 adaptor has an internal thread for installing 2" filters.

The back focus with the corresponding adaptors:

  • 116 mm from M48x0.75 external thread
  • 136 mm from M54x0.75 external thread
  • 156 mm from M68x1 external thread
  • 186 mm from M86x1 external thread

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
130
Focal length (mm)
1000
Aperture ratio (f/)
7,7
Resolving capacity
1,06
Limit value (mag)
12,3
Light gathering capacity
340
Max. useful magnification
260
Tube material
Aluminium
Tube weight (kg)
10,5
tube diameter (mm)
146
Stray light baffles in the OTA
yes
Tube construction
Full tube
lens design
Triplet
Coating
FMC
Fully Corrected Field (mm)
60
Carrying length (mm)
842,5
Tube length (mm)
1061,5

Focuser


Type of build
rack and pinion
Gear reduction
1:10 fine focusing
Rotating
yes
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48x0,75 & T2
Adjustment range (mm)
100
Backfocus (mm)
116 - 186 (je nach Adapter)
Connecting thread (telescope side)
3,4"
Ring clamp
yes

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Prism rail
Losmandy-Style
Tube clamps
yes
Dew Shield
yes
Transport cases
no
Deviating optics
no
Finder scope
no
Carrying handle
yes
finder base
Vixen/Skywatcher Level
Corrector
integrated
Eyepiece adaptor
1,25" & 2"
Miscellaneous
Camera adapter 4

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
not recommended
Nebulae & galaxies
yes
Sun
yes (Only with appropriate Sun filter)

Recommended for


Beginners
not recommended
Advanced
yes
Observatories
no
