Astronomy > Telescopes > ZWO > ZWO Apochromatic refractor FF80 AP 80/600 Quadruplet OTA
Product no.: 80983

Apochromatic refractor FF80 AP 80/600 Quadruplet OTA

RRP: $ 2,390.00 Our price:
$ 2,012.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.11.2025 + lead time
  • Quadruplet apochromat
  • Integrated flattener
  • Corrects the image field to full format
  • Includes four camera adaptors

Product description

ZWO offers a 1-year warranty on the FF65 / 80 / 130 apochromats of the FF series.

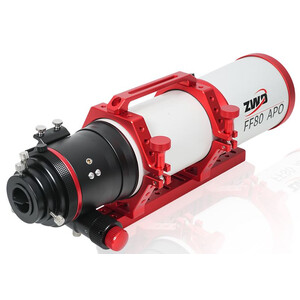

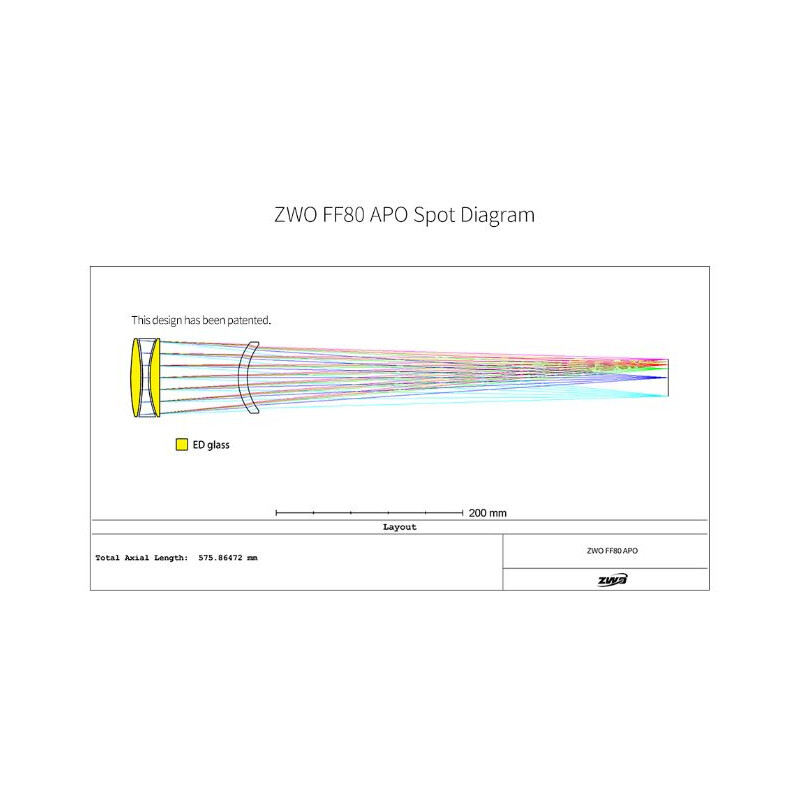

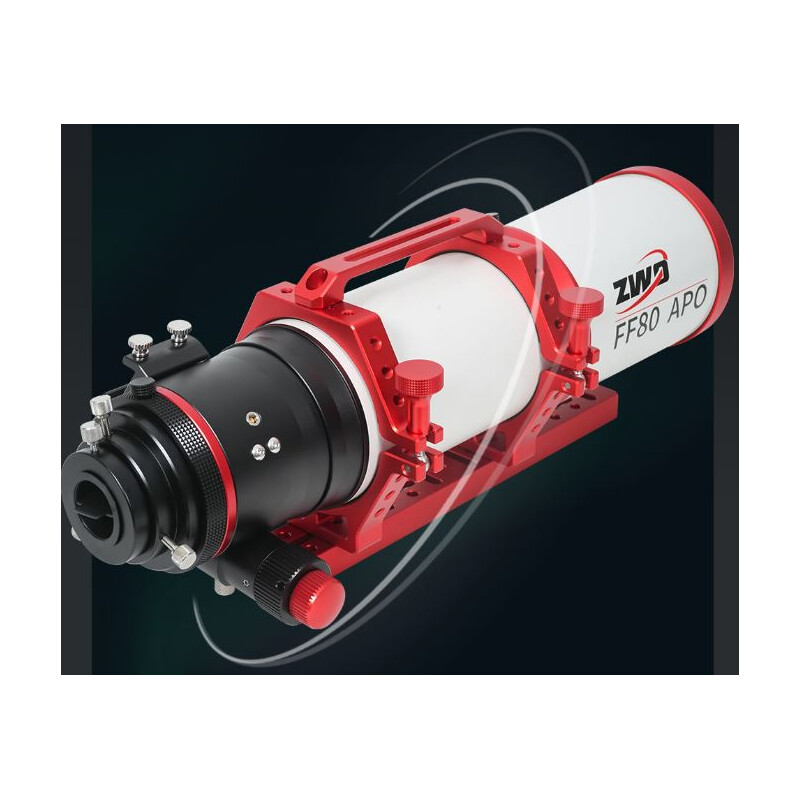

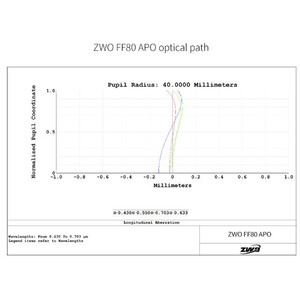

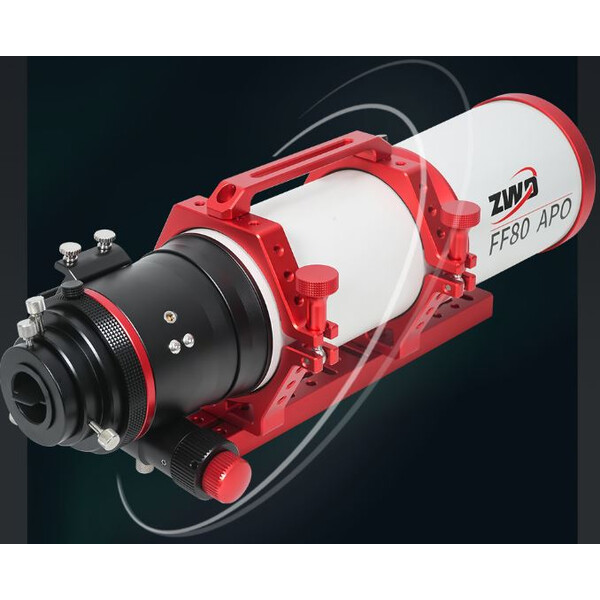

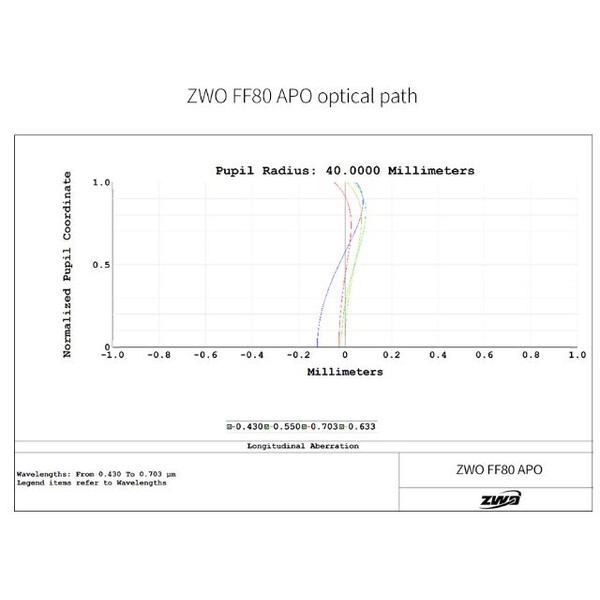

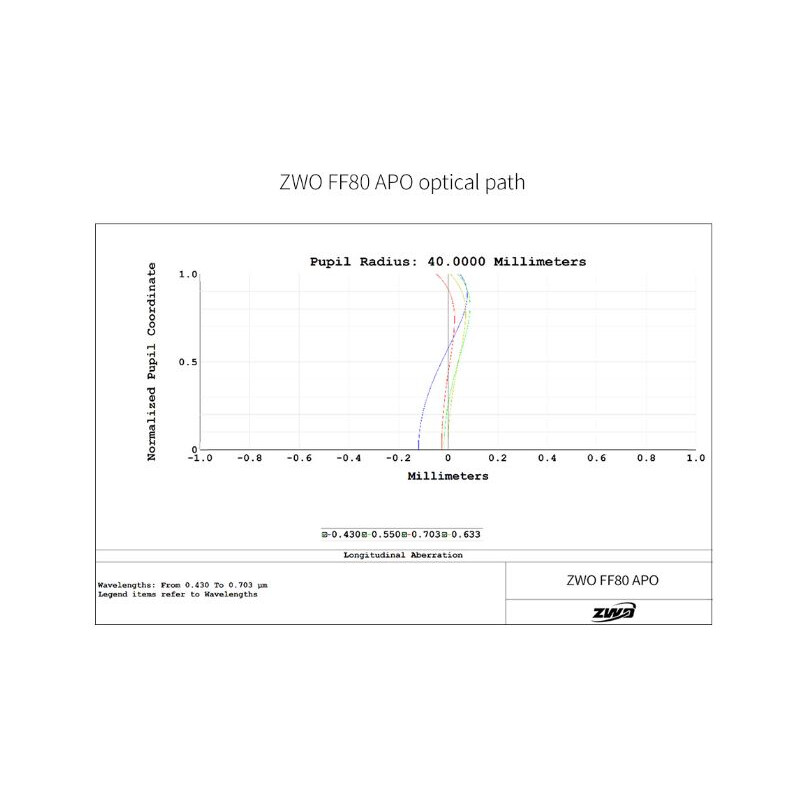

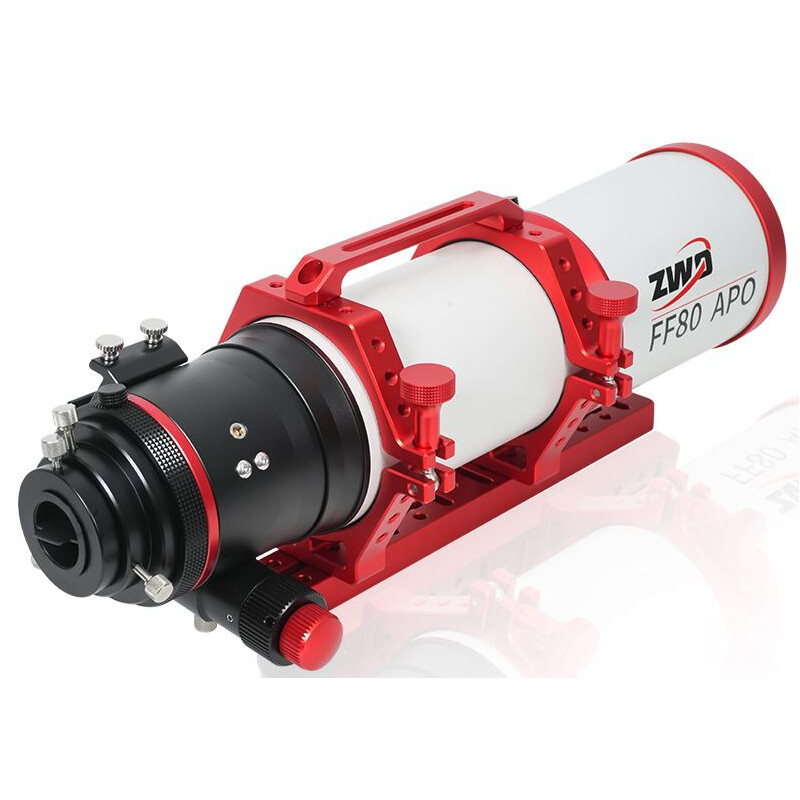

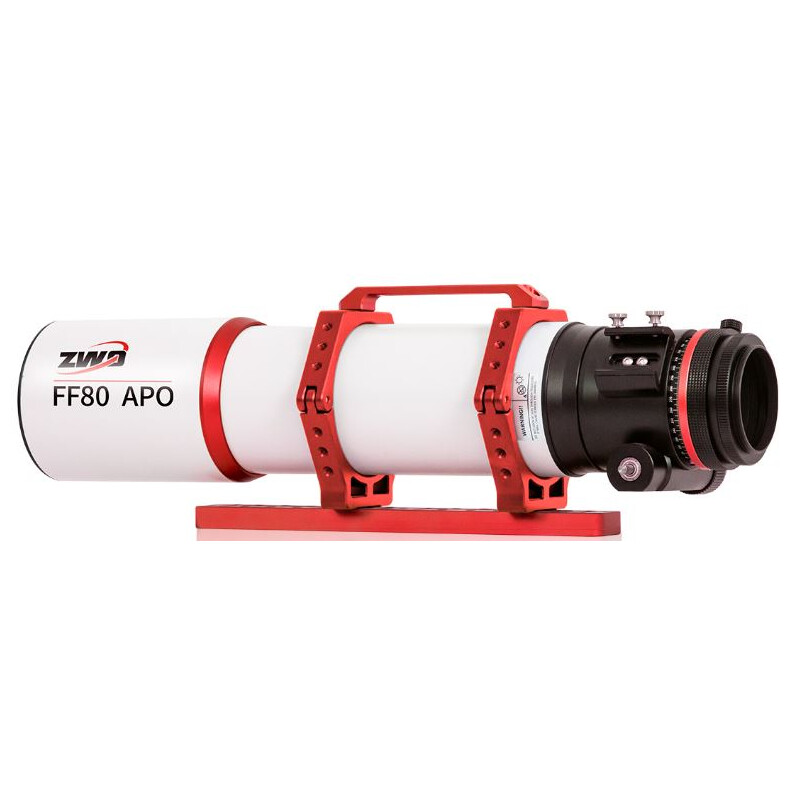

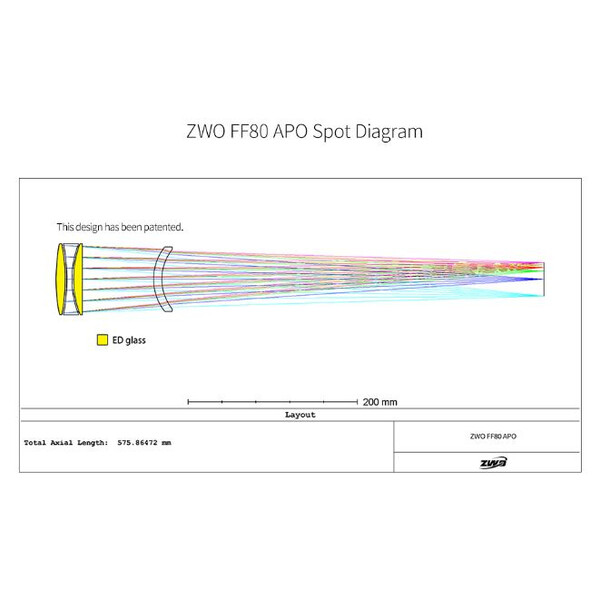

The ZWO FF80 Quadruplet is a very compact apochromatic refractor for astrophotography with a corrected image field up to full format and observation up to the highest magnification range. The telescope has an aperture ratio of f/7.5 with a focal length of 600 mm. The FF80 is a quadruplet design with two ED lenses, which provides excellent suppression of chromatic aberration.

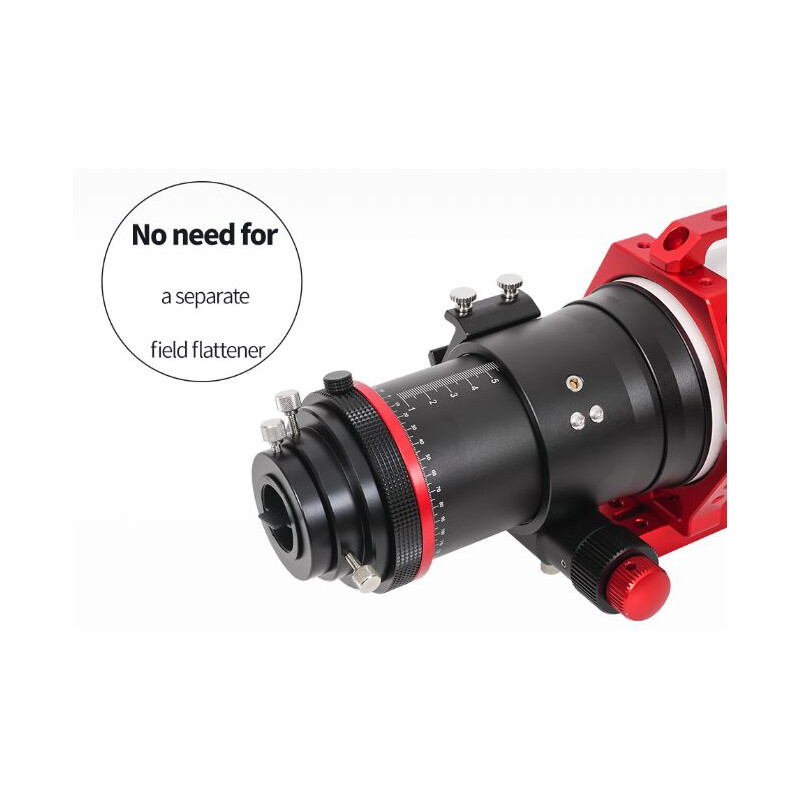

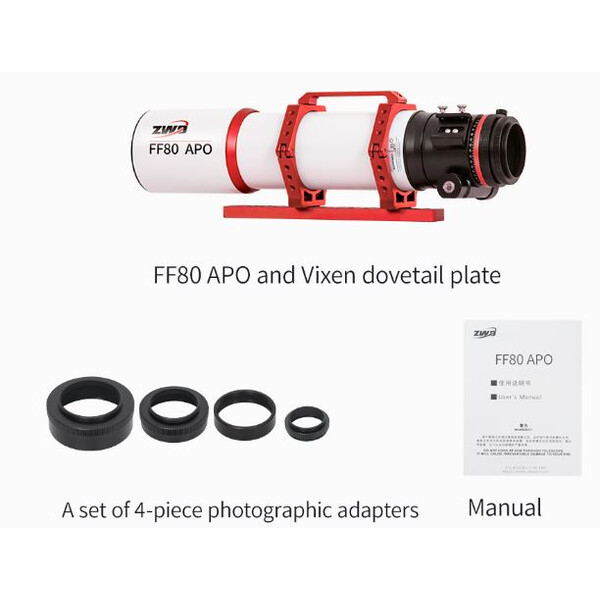

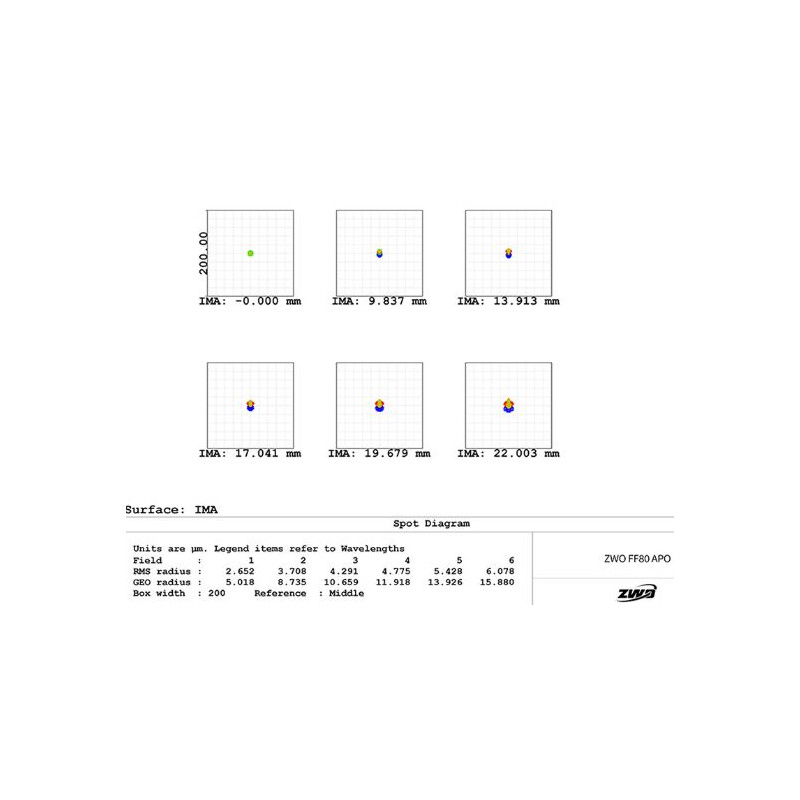

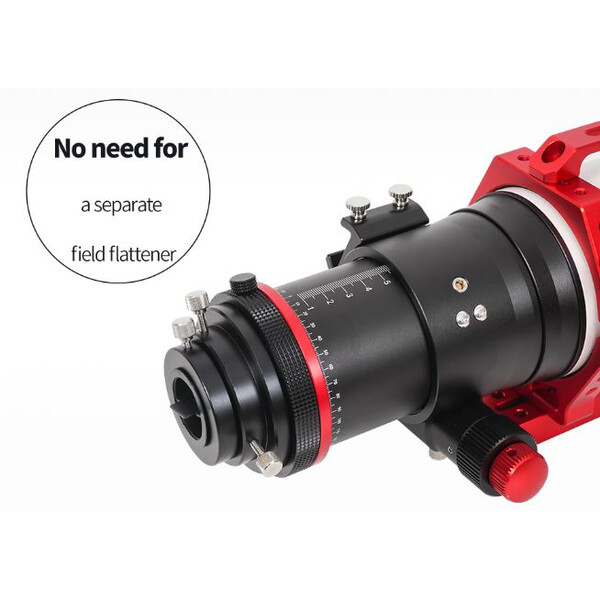

With its integrated flattener, the FF80 offers great advantages for astrophotography: it illuminates full-frame sensors and ensures fine imaging with point-like stars on the axis. The apochromat comes with an extendable dew shield, a 3" focuser with 360° rotation, a Vixen/GP finder shoe and four different camera adaptors (M76, M68, M54 and M48). The tube itself weighs 3.9 kg, with tube clamps and rail the weight is 4.7 kg.

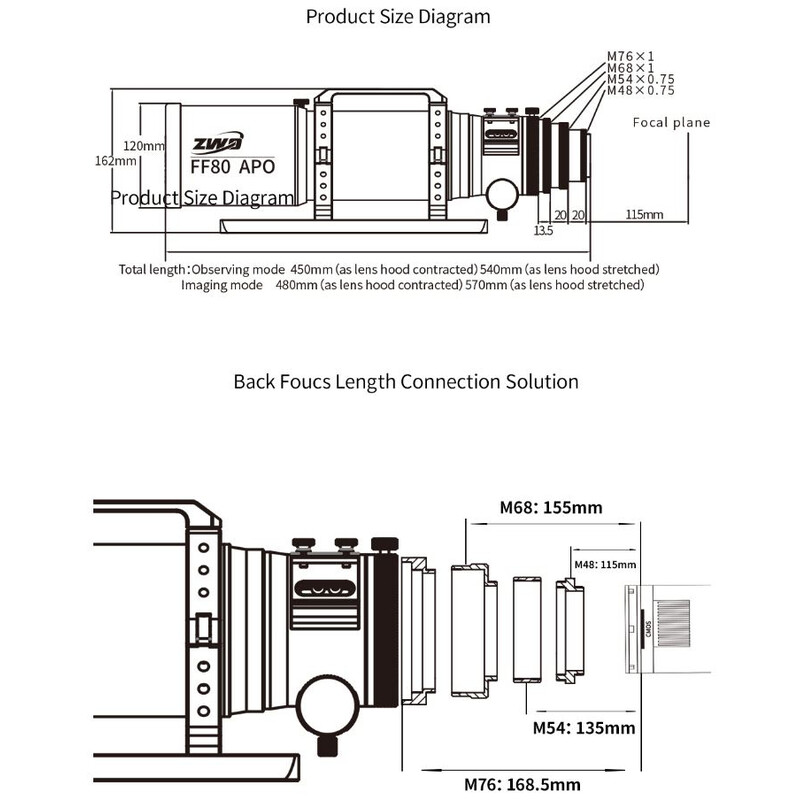

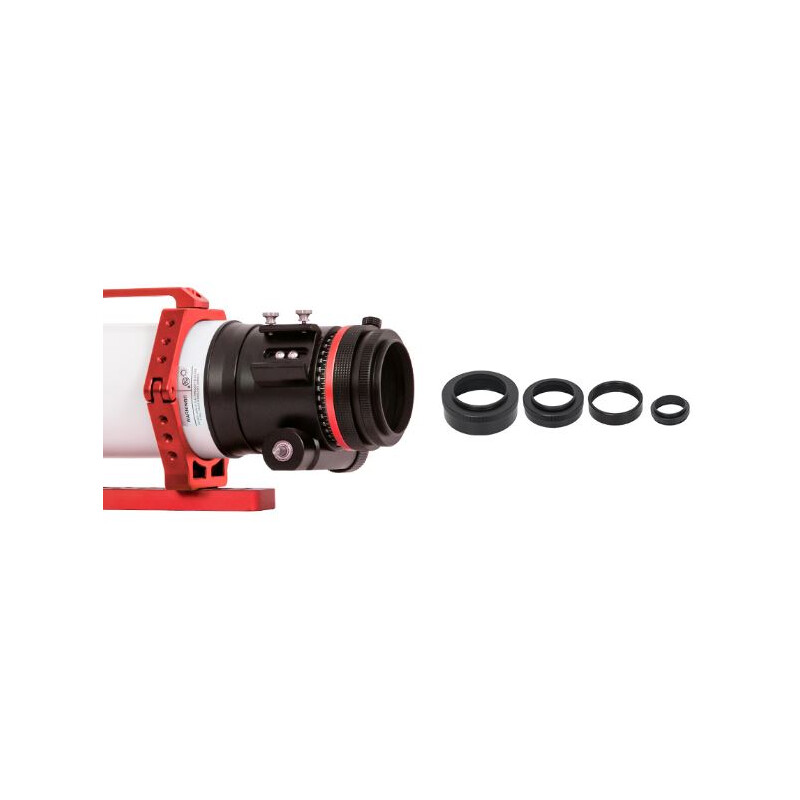

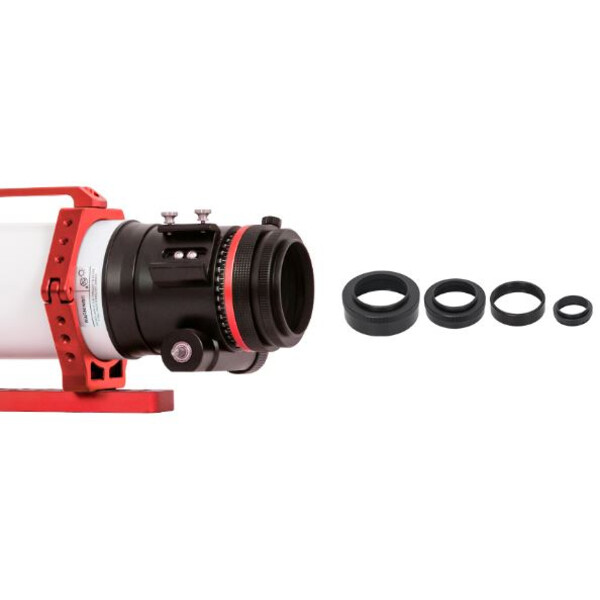

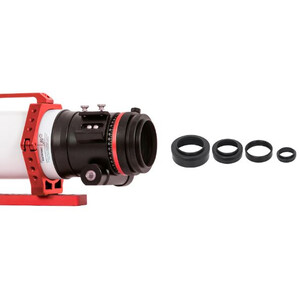

Back focus of the included camera adapters:

115 mm from M48x0.75 external thread
135 mm from M54x0.75 external thread
155 mm from M68x1 external thread
168.5 mm from M76x1 external thread

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
600
Aperture ratio (f/)
7,5
Resolving capacity
1,73
Limit value (mag)
12,3
Light gathering capacity
130
Max. useful magnification
160
Tube material
Aluminium
Tube weight (kg)
3,9 (nur OTA)
tube diameter (mm)
89
Stray light baffles in the OTA
yes
Tube construction
Full tube
lens design
Quadruplet
Coating
FMC
Fully Corrected Field (mm)
44
Carrying length (mm)
450
Tube length (mm)
570

Focuser


Type of build
rack and pinion
Gear reduction
1:10 fine focusing
Rotating
yes
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48x0,75 & T2

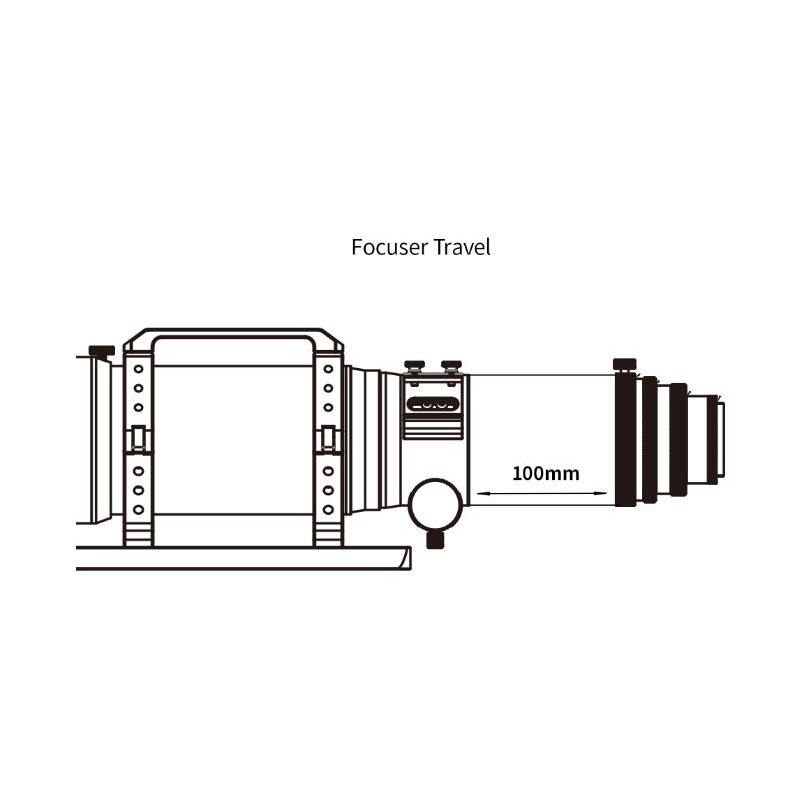

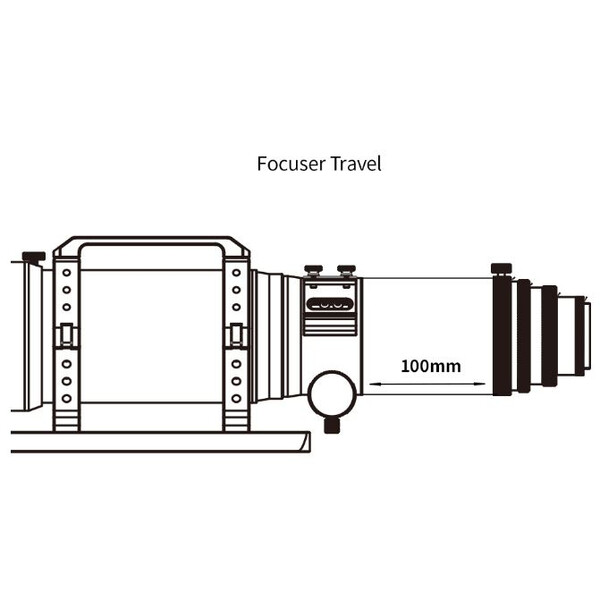

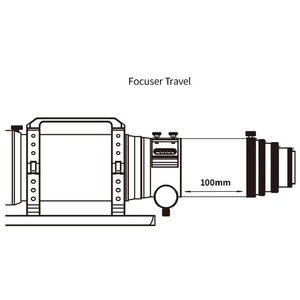

Adjustment range (mm)
100
Backfocus (mm)
135-168,5 (je nach Adapter)
Connecting thread (telescope side)
3"
Ring clamp
yes

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

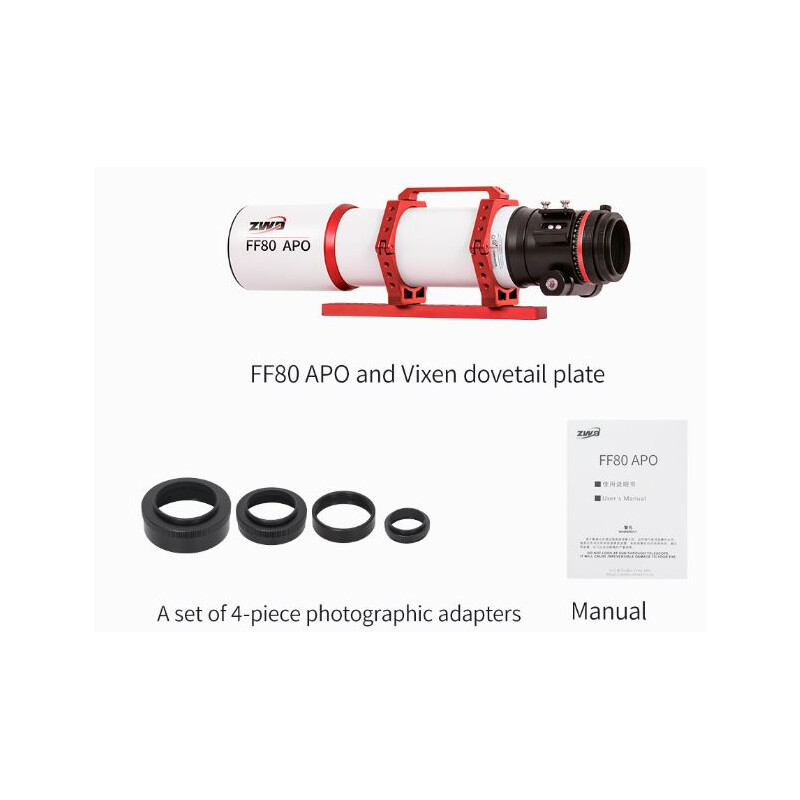

Included accessories


Prism rail
Vixen-Style

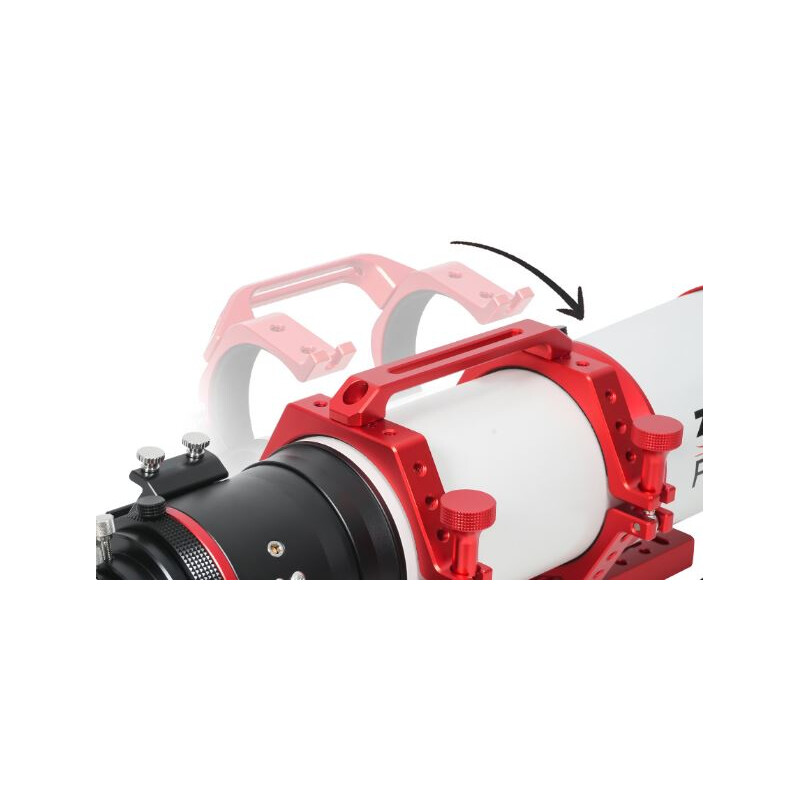

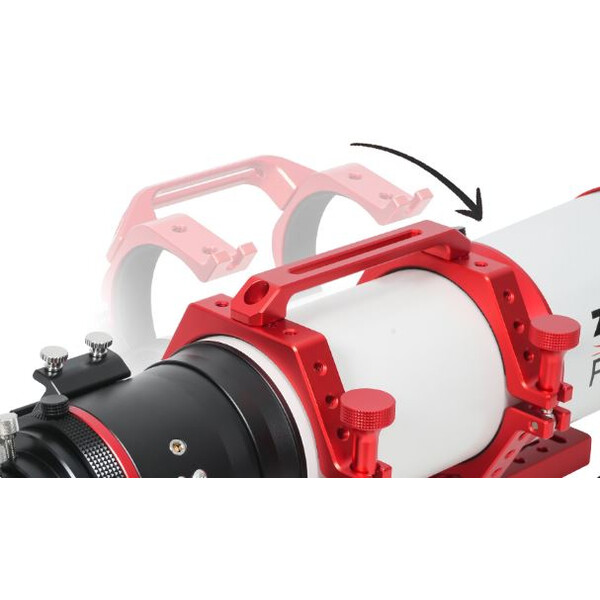

Tube clamps
yes
Dew Shield
yes
Transport cases
no
Deviating optics
no
Finder scope
no
Carrying handle
yes
finder base
Vixen/Skywatcher Level
Corrector
integrated
Eyepiece adaptor
1,25" & 2"
Miscellaneous
Camera adapter 4

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
not recommended
Nebulae & galaxies
yes
Sun
yes (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
yes
Observatories
no

Product safety

Manufacturer: Suzhou ZWO Co., Ltd., Moon bay road 6, SuZhou Industrial Park, 215123 SuZhou, CN, www.zwoastro.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor > Lamps (3)
Astronomy torch

Explore Scientific Astronomy torch Astro R-Lite

$ 19.90*
Outdoor > Other (1)

Omegon aluminium case, large

$ 89.00*
Astronomy > Telescope accessories (37)

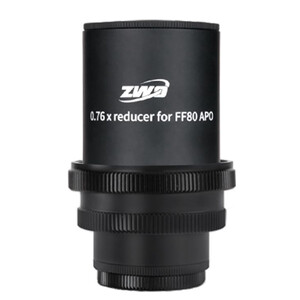

ZWO FF80 Apo 0.76x Full Frame Reducer
