Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > HIKMICRO > Explorer > HIKMICRO Thermal imaging camera Explorer E20Plus
Product no.: 80445

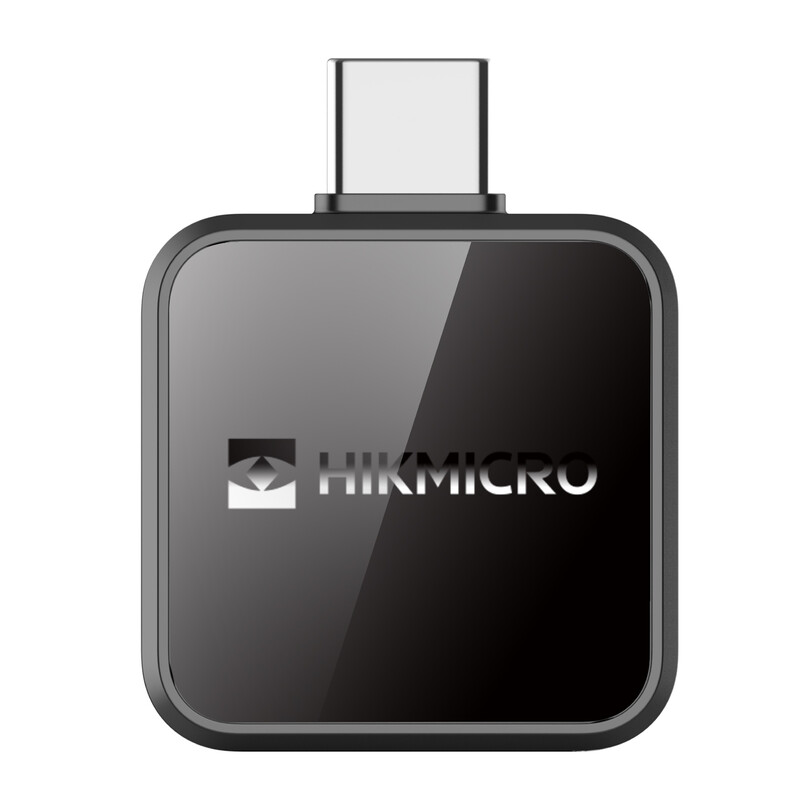

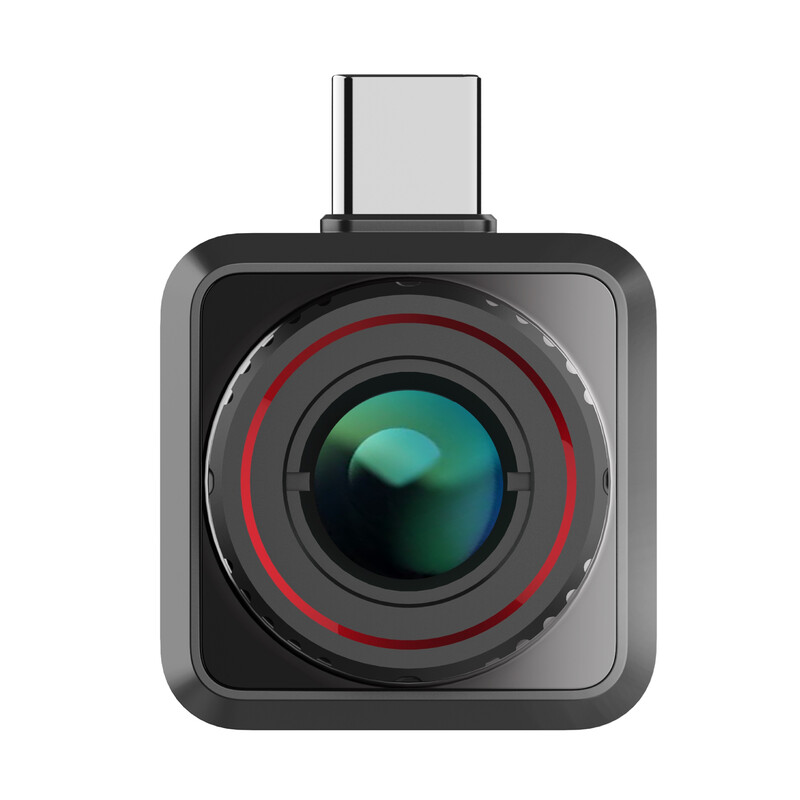

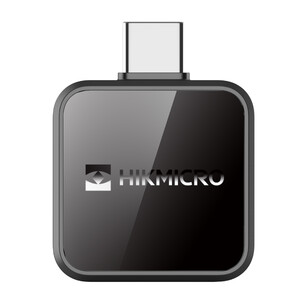

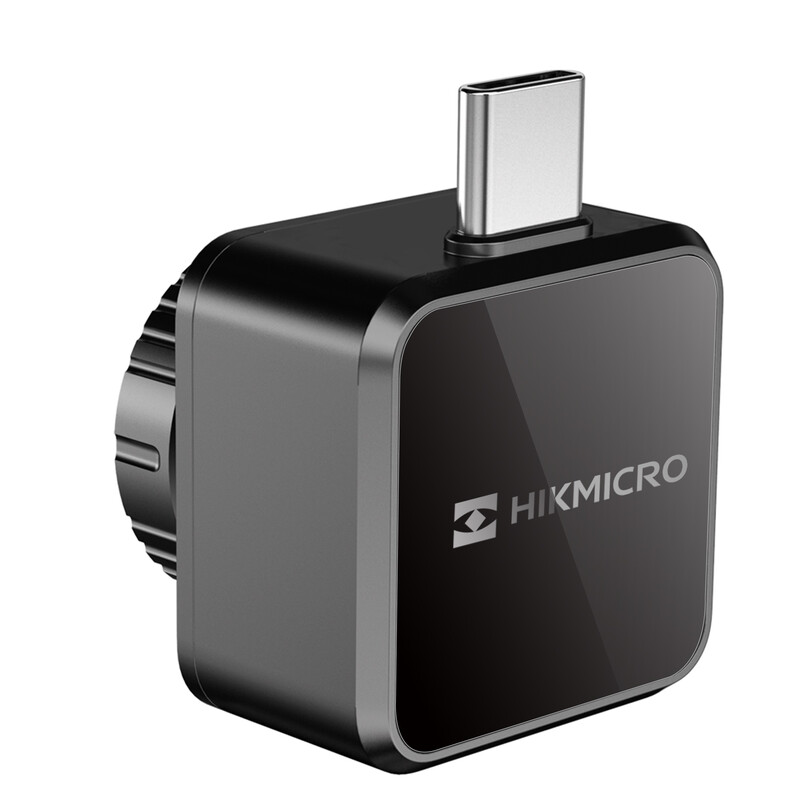

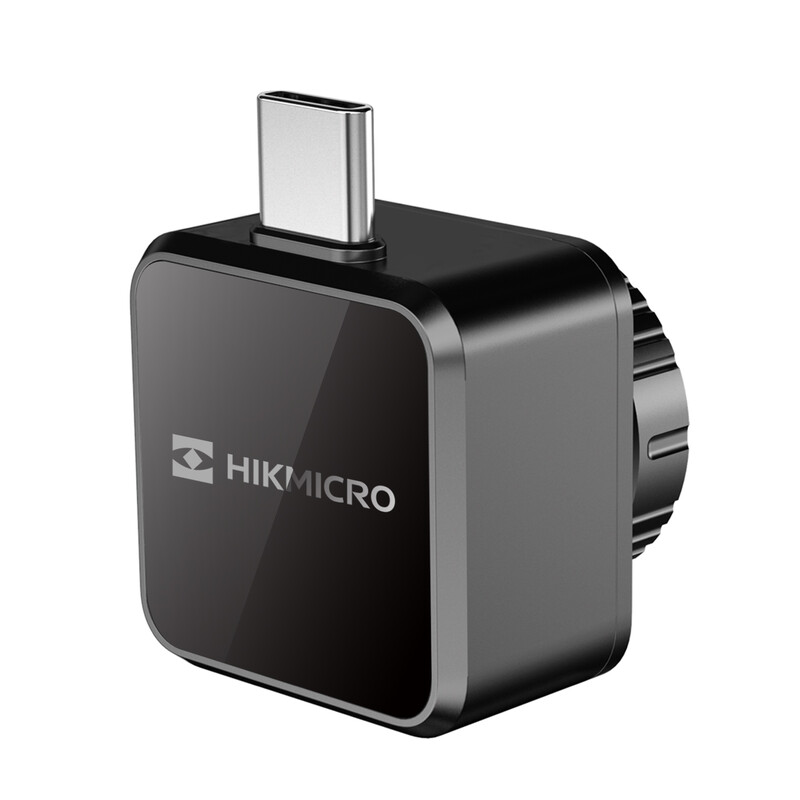

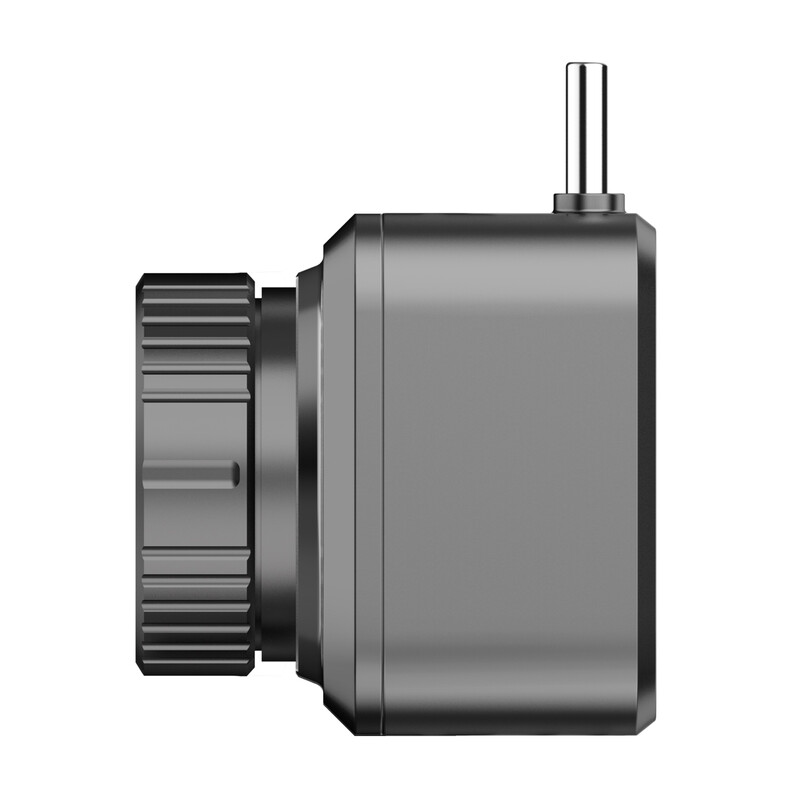

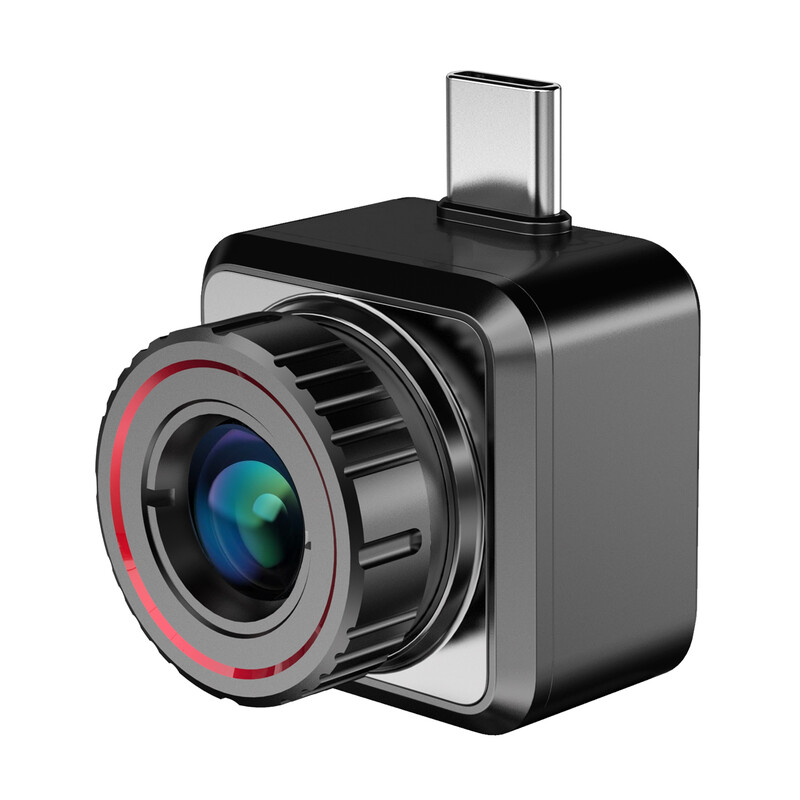

Thermal imaging camera Explorer E20Plus

RRP: $ 455.00 Our price:
$ 441.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

HIKMICRO EXPLORER E20Plus
Mini Day & Night World in Your Hand

Thermal imaging camera for smartphones

Areas of application
EXPLORER is the perfect companion for outdoor activities. The 256x192 sensor, 12µm pixel pitch, 9.7mm lens and a 31.8m x 23.8m field of view at 100 metres make this thermal imaging camera a great choice for users to find and identify hidden targets in complex environments, such as bird watching or nature observation on camping trips, day or night.

Plug and play, easy to use
Mini in your pocket, smaller than a watch. Weighing less than 26g, you can easily take it with you.

Installation in less than a second
Simply connect the E20 Plus to your Smartphone and get started right away with the HIKMICRO SIGHT app, wireless connection is supported.

Powerful and sharp, smooth and entertaining
Powerful thermal detector, image matches your visual experience. The combination of a 256x192 sensor, 12μm pixel pitch and 9.7mm lens provides a large 31.8m x 23.8m field of view at 100 metres. The EXPLORER ensures that the thermal image clearly matches your visual experience.

Smoother HDR image
Filming at 50Hz improves every image with a higher dynamic range.

Multiple modes, additional bird watching mode
Six colour palettes are available to meet your observation needs in a variety of outdoor scenarios.

Battery-free design with low power consumption <0.35W
Thanks to its battery-free design and extremely low power consumption (<0.35W), the E20 Plus is suitable for all-day use.

Large detectionrange
Despite its compact size, the EXPLORER offers a large detection range of up to 970m with a sharp image.

Specifications

Capacity


Type of build
Smartphone adapter
Technology
Thermal imaging camera
Zoom (digital)
2x
Maximum operating distance (m)
970
Sensor type
VOx
Pixel size
12
temperature resolution (mK)
< 50
Image display
Different versions (Birdwatching / Red Hot / White Hot / Black Hot / Rainbow / Ironbow)
Image cycle rate (Hz)
50

Special features


Digital imaging
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no
WiFi
no
attachment
no
Rangefinder
no

Field of view


True field of view (°)
18,1x13,6
Field of view at 100 m (m)
31,8x23,8

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
26,6
Width (mm)
26,6
Height (mm)
27,2
Weight (g)
26
Series
Explorer

Product safety

Manufacturer: Hangzhou Microimage Software Co., Ltd, Gebäude A1, Nr. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, , Hangzhou, Zhejiang, CN, www.hikmicrotech.com/de/outdoor/
Responsible person: Hoptics GmbH , Lengericher Weg 37, 49584 Fürstenau, DE, [email protected]
