Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > HIKMICRO > Gryphon LRF > HIKMICRO Thermal imaging camera Gryphon GQ50L
Product no.: 80421

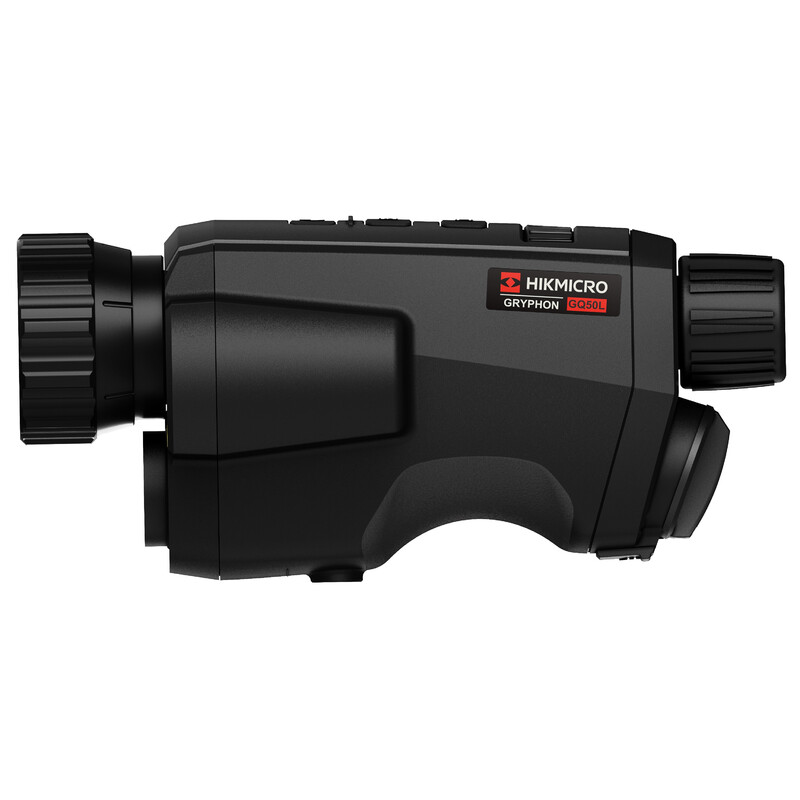

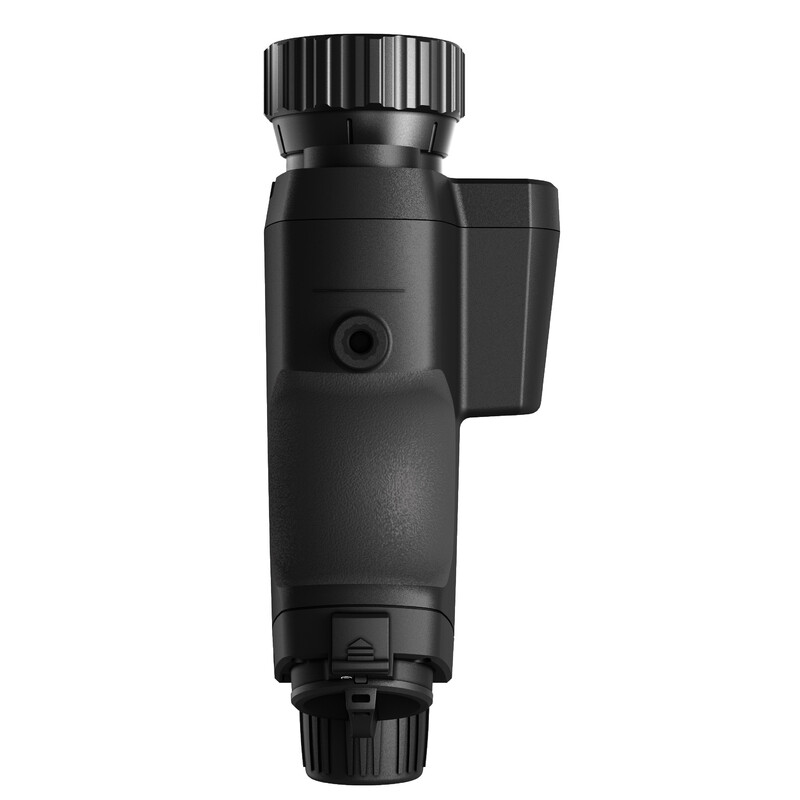

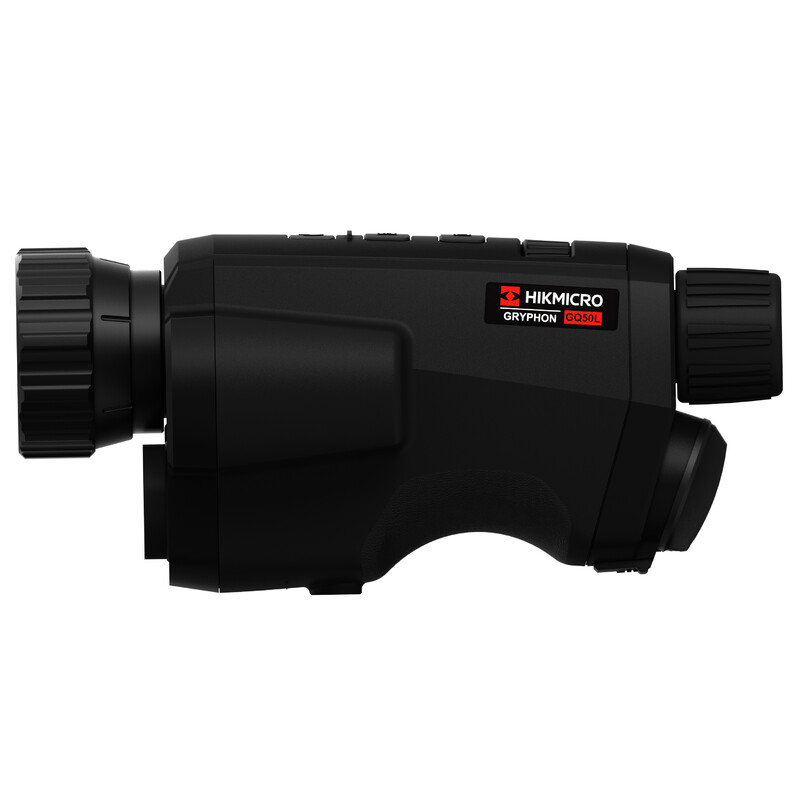

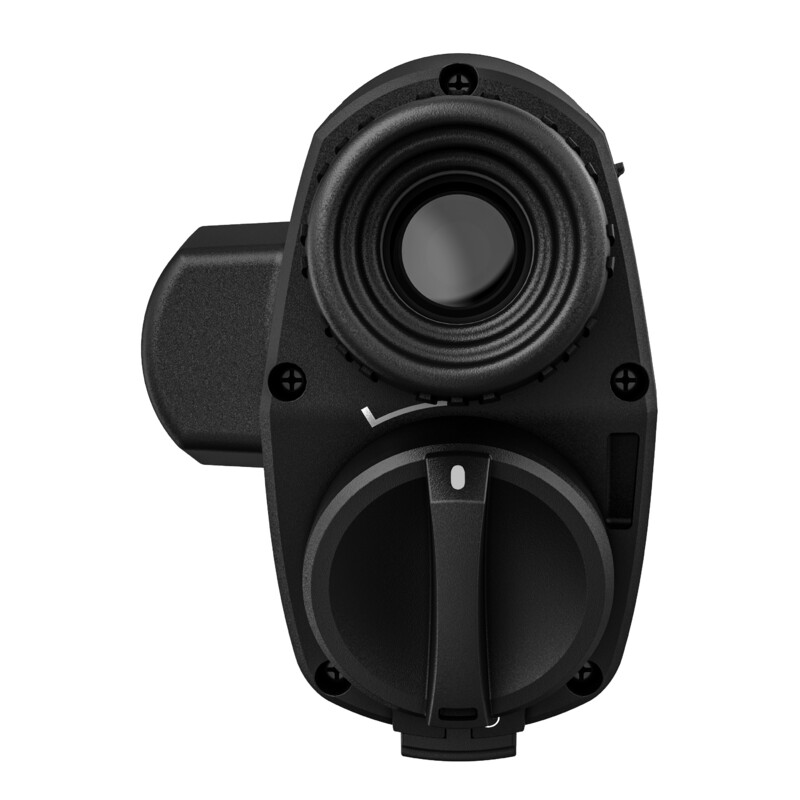

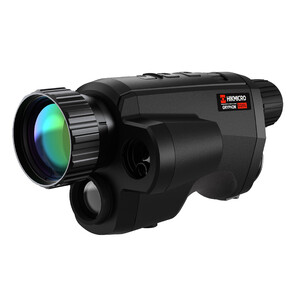

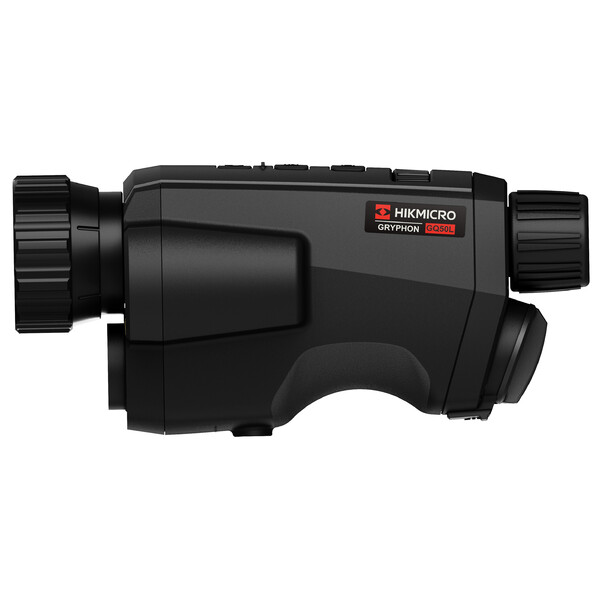

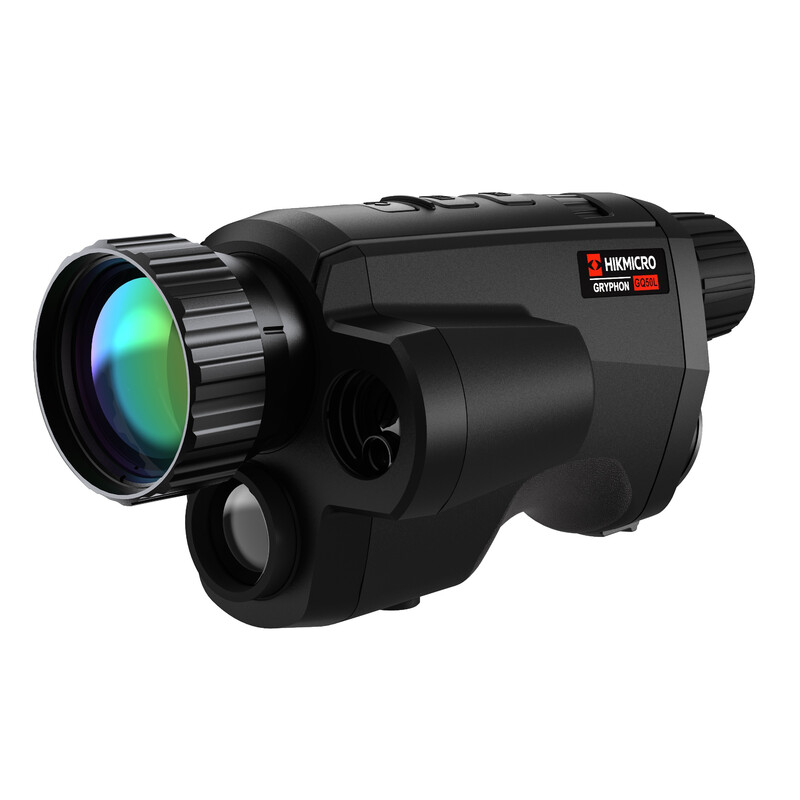

Thermal imaging camera Gryphon GQ50L

RRP: $ 3,170.00 Our price:
$ 3,080.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Thermal imaging, digital night vision & laser rangefinders
  • Replaceable battery (2x included)
  • WiFi, USB Type-C interface & 16 GB EMMC memory
  • Self-developed image algorithm for a clear and detailed image

Product description

HIKMICRO GRYPHON LRF
The combination of thermal imaging, digital night vision and laser rangefinders makes this device a true allrounder.

Excellent image algorithm
The proprietary image algorithm optimises image quality and provides a high-resolution, clear image that highlights the edges of the object.

The combination of thermal imaging, digital night vision and laser rangefinders make the GRYPHON LRF a true allrounder.

  • Specially developed image algorithm for a clear and detailed image, highlighting the contours of targeted objects

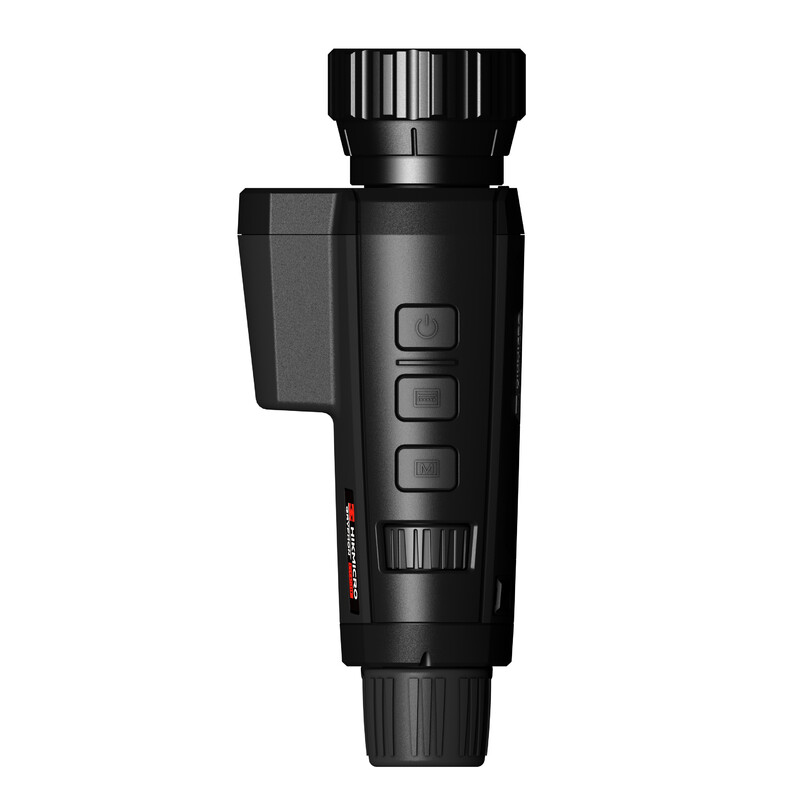

  • Innovative controls via a zoom wheel, which also serves as the menu selection
  • Advanced VOx 12 µm image sensor with NETD<35mK
  • Built-in laser rangefinder (range up to 600 m; accuracy +/- 1)
  • Two 18650 rechargeable batteries included (HIKMICRo charger included), for easy replacement for longer operating times

Advanced technology of the GRYPHON LRF models:

  • Innovative
    control The wheel is used for menu selection and zooming, making operation more intuitive and easier. Each turn gives the user an excellent sense of control.
  • Advanced VOx 12µm image sensor
    The powerful VOx 12µm image sensor with NETD<35mK ensures perfect target detection and delivers clear and detailed images even in complete darkness.
  • Built-in laser rangefinders
    The integrated laser rangefinder allows you to accurately determine the distance to game, even in complete darkness.
  • Replaceable battery
    Two 18650 rechargeable batteries and a HIKMICRO charger are included in the scope of delivery. This gives you up to 10 hours of operating time.

Specifications

Capacity


Type of build
Monocular
Technology
Fusion
Magnification
2,9
Zoom (digital)
2x/4x/8x
Maximum operating distance (m)
2600
objective
50mm f:1.2
Sensor type
VOx
Pixel size
12
temperature resolution (mK)
< 35
Display resolution (Pixel)
1024x768
Image display
Different versions
Image cycle rate (Hz)
50
infrared lighting wavelength (nm)
850
Battery durability (h)
4,5

Special features


Infrared illuminator
yes
Digital imaging
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes

Field of view


True field of view (°)
8,78x7,03
Field of view at 100 m (m)
15,3
Close focus limit (m)
5

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
184
Width (mm)
87
Height (mm)
73
Weight (g)
548
Series
Gryphon LRF

Product safety

Manufacturer: Hangzhou Microimage Software Co., Ltd, Gebäude A1, Nr. 299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, , Hangzhou, Zhejiang, CN, www.hikmicrotech.com/de/outdoor/
Responsible person: Hoptics GmbH , Lengericher Weg 37, 49584 Fürstenau, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

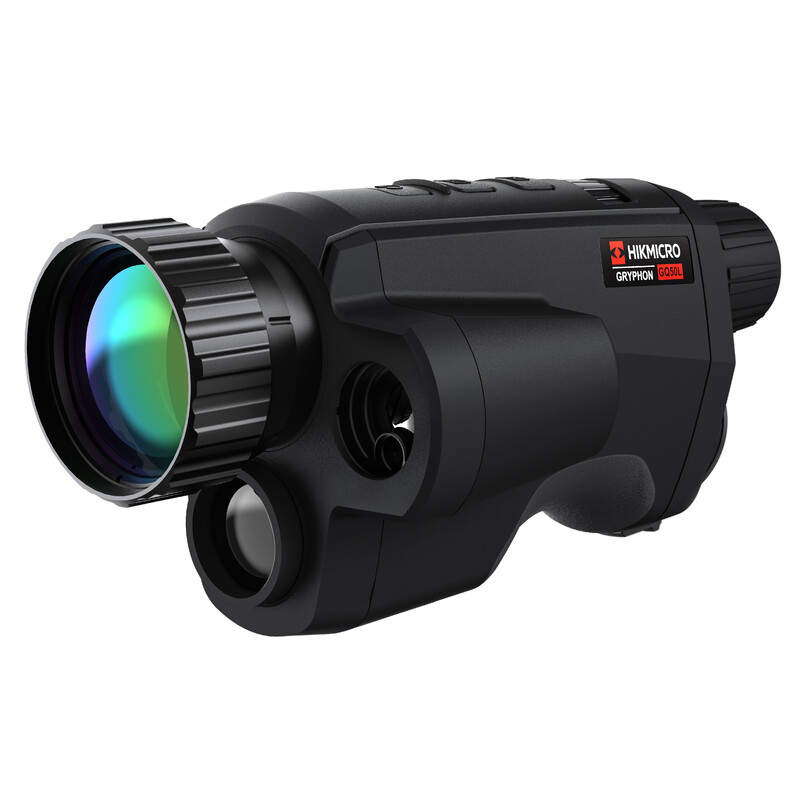

HIKMICRO Thermal imaging camera Gryphon GQ50L

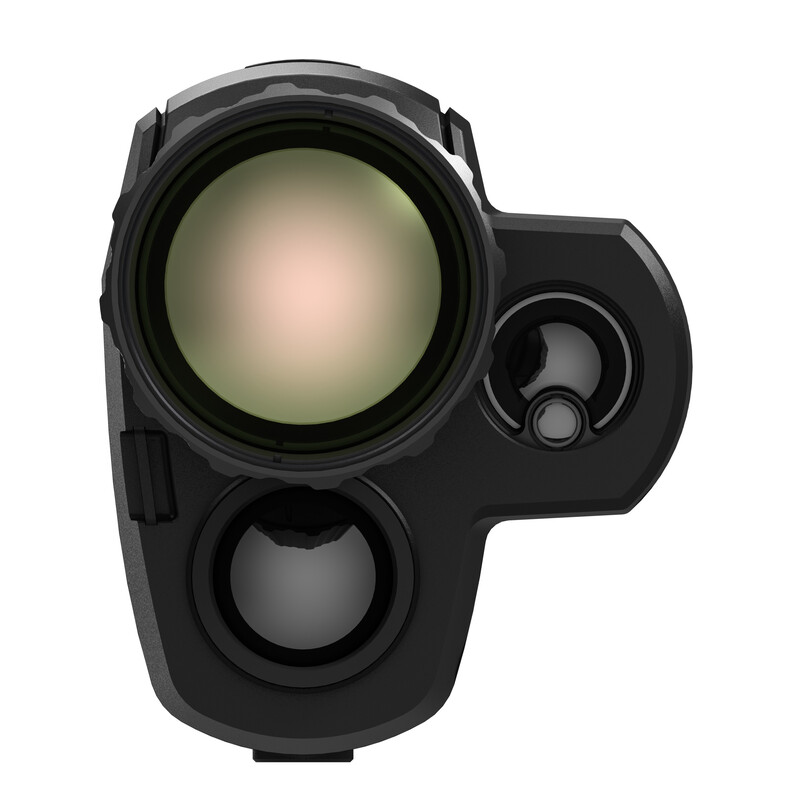

HIKMICRO Thermal imaging camera Gryphon GQ50L
